4. Feeder Base & ANC (CP-40) 7 8 CYLINDER BLOCK ANC CLOSE ANC OPEN Feeder Power Cable Ass'y J2102108 ANC Senso r C able Ass'y J2102104 Feeder I/F Board J9800394 15 16 Cylinder J1301689 Version Date WA QA CA…

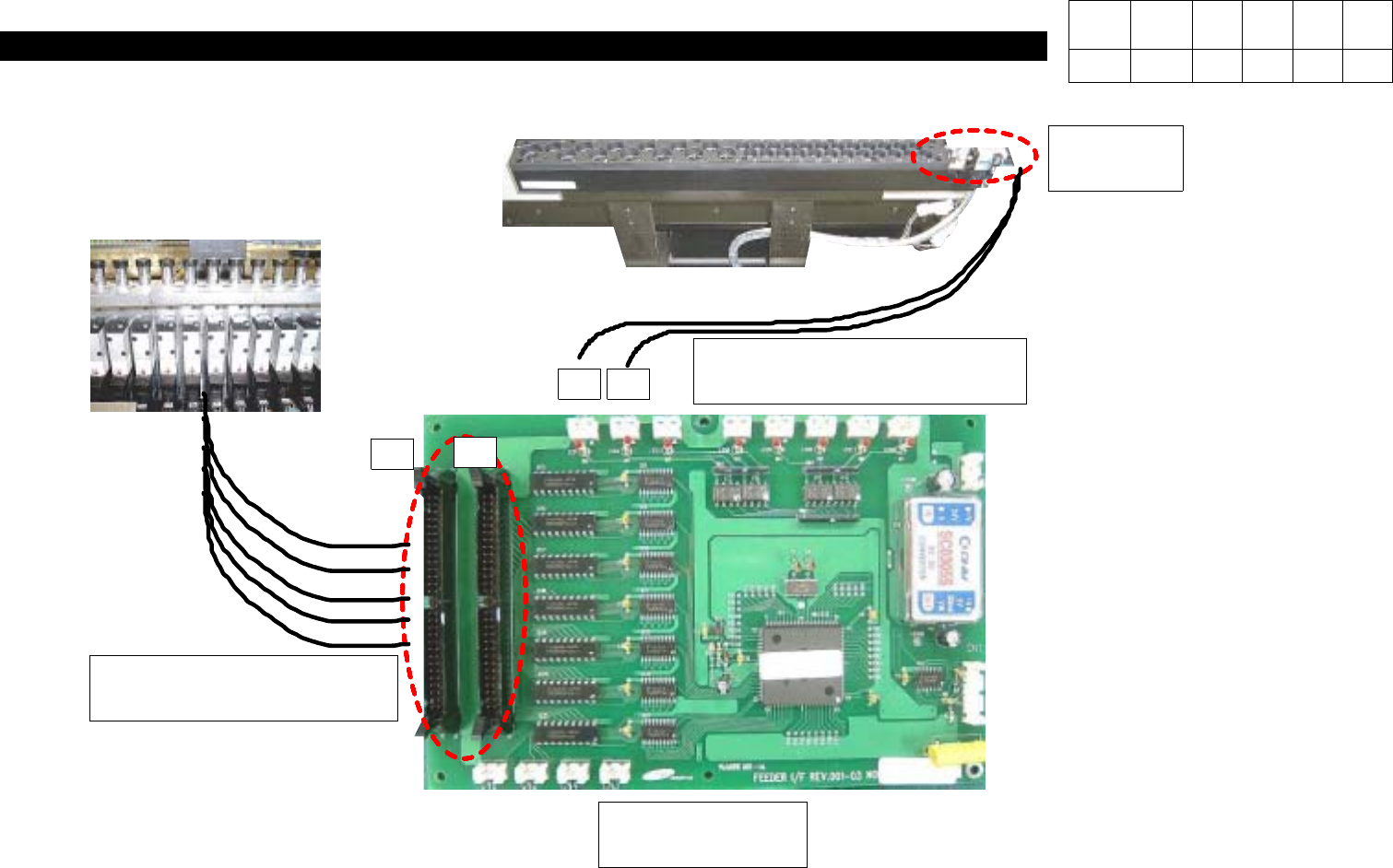

4. Feeder Base & ANC
(CP-40)
4-3-2. Feeder I/F Board Cable Check
Rear
Front
4) Disconnect Connector on PCB.
5) Loosen Six Spherical Head Bolts to
Disconnect Feeder I/F Board.
6) Replace New PCB and Assemble it
according to Reverse Procedures of
Disassembly.
<Feeder I/F Board>
J9800394
Version Date WA QA CA Note
00 Nov04 O O O
4. Feeder Base & ANC
(CP-40)
7 8
CYLINDER BLOCK
ANC CLOSE
ANC OPEN
Feeder Power Cable Ass'y
J2102108
ANC Sensor Cable Ass'y
J2102104
Feeder I/F Board
J9800394
15
16
Cylinder
J1301689
Version Date WA QA CA Note
00 Nov04 O O O
4. Feeder Base & ANC
(CP-40)

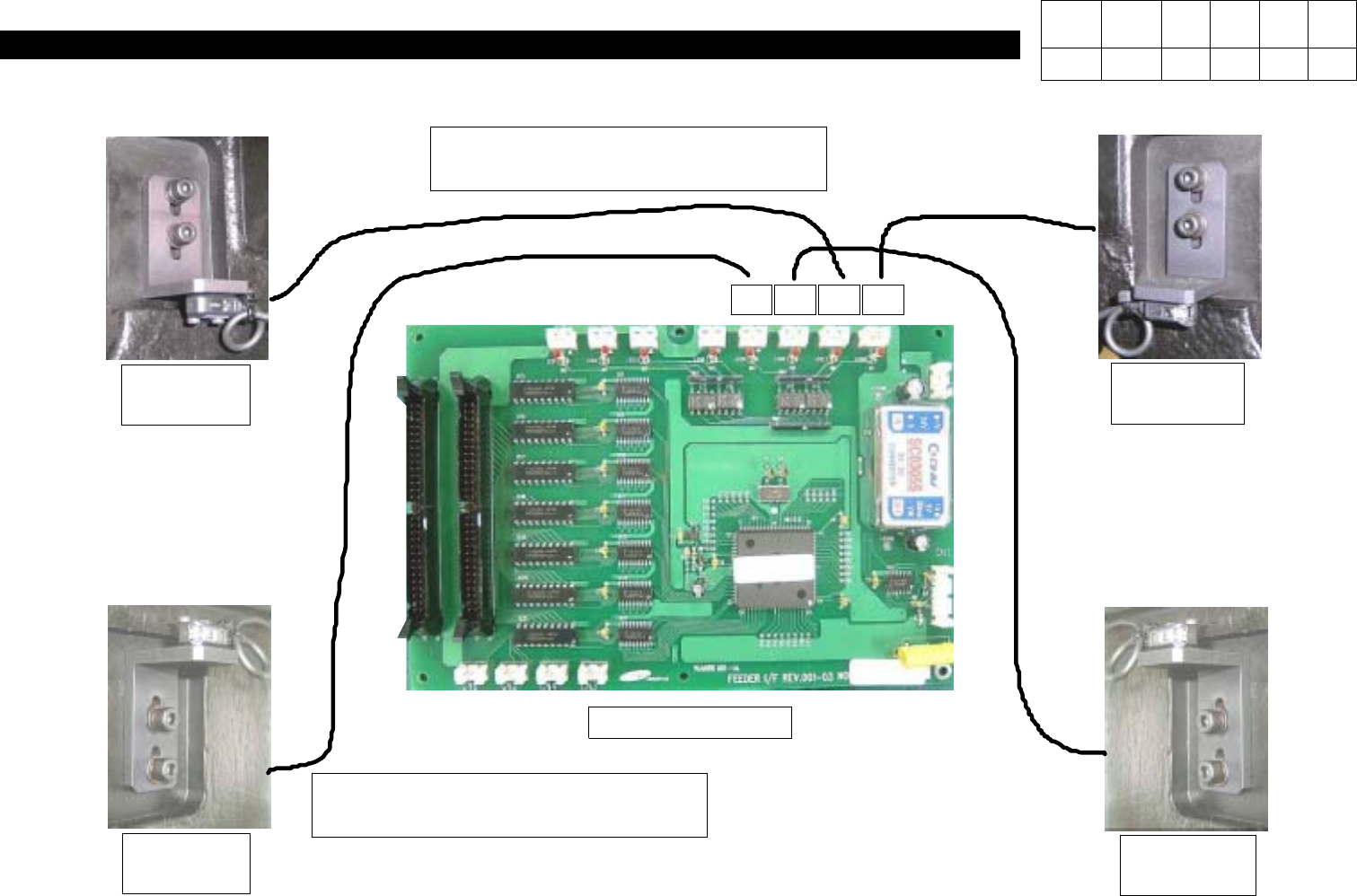

4-3-3. Feeder Unlock Sensor Replacement and Setting
11 12 13 14
Feeder I/F Board
Emitting
Light(Front)
Receiving
Light(Front)
Emitting
Light(Rear)
Receiving
Light(Rear)
Feeder Unlock Sensor Cable Ass'y
J2102111
Feeder Unlock Sensor Cable Ass'y
J2102109
Version Date WA QA CA Note
00 Nov04 O O O
