4. Feeder Base & ANC (CP-40) 4-3-3. Feeder Unlock Sensor Replacement and Setting 11 12 13 14 Feeder I/F Board Emitting Light(Front) Receiving Light(Front) Emitting Light(Rear) Receiving Light(Rea r) Feeder Unlock Sen…
4. Feeder Base & ANC
(CP-40)
7 8
CYLINDER BLOCK
ANC CLOSE
ANC OPEN
Feeder Power Cable Ass'y
J2102108
ANC Sensor Cable Ass'y
J2102104
Feeder I/F Board
J9800394
15
16
Cylinder
J1301689
Version Date WA QA CA Note
00 Nov04 O O O
4. Feeder Base & ANC
(CP-40)
4-3-3. Feeder Unlock Sensor Replacement and Setting
11 12 13 14
Feeder I/F Board
Emitting
Light(Front)
Receiving
Light(Front)
Emitting
Light(Rear)
Receiving
Light(Rear)
Feeder Unlock Sensor Cable Ass'y
J2102111
Feeder Unlock Sensor Cable Ass'y
J2102109
Version Date WA QA CA Note
00 Nov04 O O O
4. Feeder Base & ANC
(CP-40)
1. Faulty Feeder Unlock Sensor Replacement
(Replace Light-Emitting/Receiving Parts in
Pairs.)
1) Replace Faulty Feeder Lock Sensor.
Replace Light-Emitting/Receiving Parts in
Pairs.
2)
Set the Height with the Sensor Assembled
Temporarily.
3) Centering Feeder Base, Light-Receiving Part
is on the Right-hand and Light-Emitting Part
is on the Left-hand(It is Applied to Both the
Front and the Rear Identically).

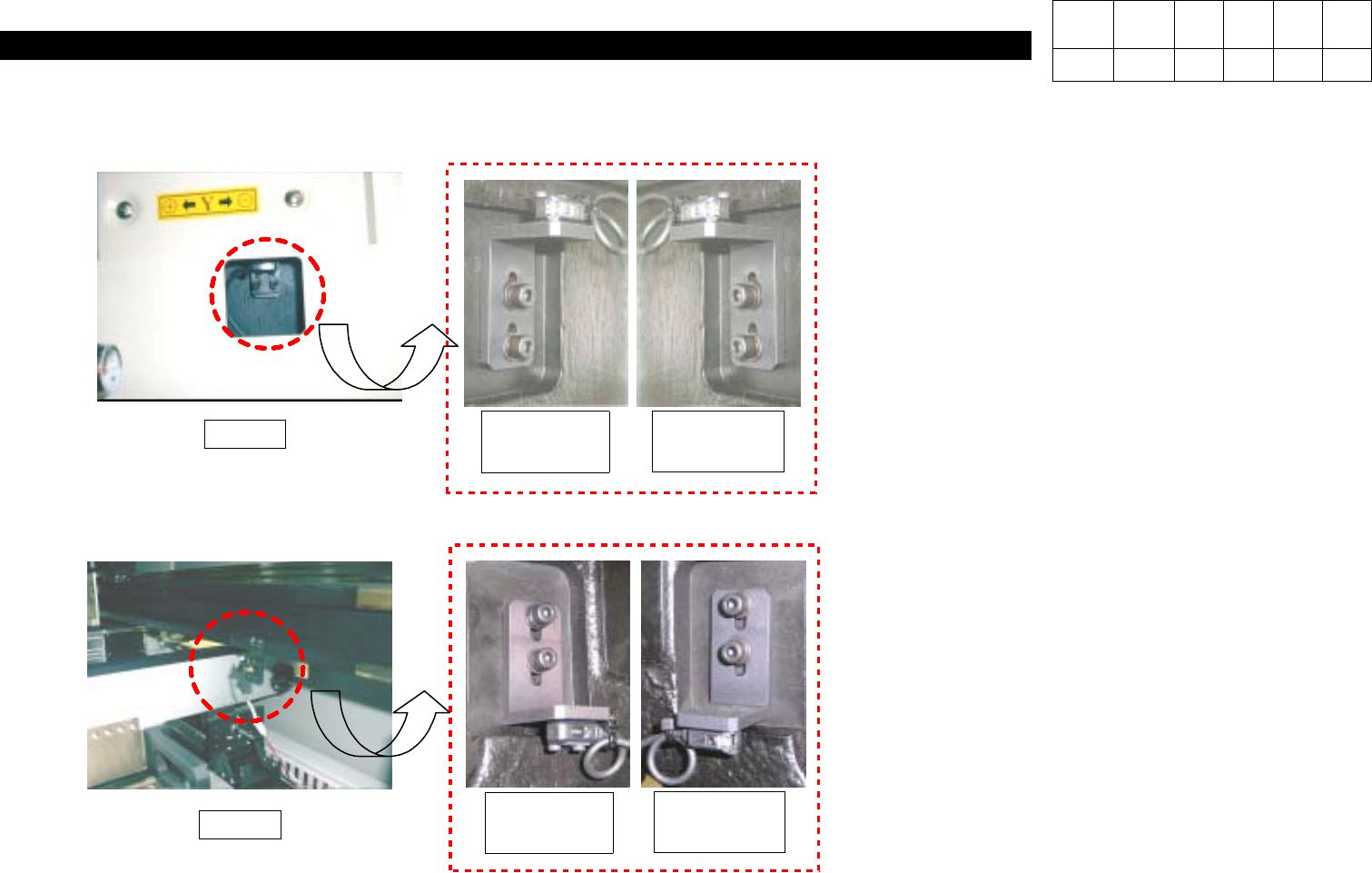

Fig. 1
Fig. 2
Receiving
Light(Rear)
Emitting
Light(Rear)
Receiving
Light(Front)
Emitting
Light(Front)
