2. Conveyor (CP-40) NO Symptom Possible Cause Error Code Action Instr uctio n 1 B/U Table Malfunction When Back Up Down, Adjust ment is not Made Properly . Adjust Cushion. 2 But Up Sens or does not Sense anything . Adjus…
2. Conveyor
(CP-40)
Malfunction
B/U Table Hole Fixer Motor Sensor
Feeder I/F Board Connector Check 3 6
Back Up Table Speed Adjustment 1
Back Up Sensor Position
Adjustment
2
Back Up Table Parallelism Check 3
Feeder I/F Board Replacement 4 5
Hole Fixer Push Setting 2
Hole Fixer Parallelism Check 3
Hole Fixer Sensor Check 1
Motor Pin Modification 1
Conveyor Pack Board Replacement 2
Conveyor Sensor Sensitivity
Adjustment
1
Step Conveyor Pin Setting 2
Stopper Speed Con Adjustment 3
Conveyor I/F Board Replacement 4 4 4
Parts
Symptom
Check and Action
2-1. Trouble Diagnosis Guide Table
# Number Indicates Priority of Check Items.
2. Conveyor
(CP-40)
NO Symptom Possible Cause Error Code Action
Instructio
n
1
B/U Table
Malfunction
When Back Up Down, Adjustment is not
Made Properly.
Adjust Cushion.
2 But Up Sensor does not Sense anything. Adjust Position of Sensor.
3
Bad Hole Fixer
Bad Hole Fixer Setting Adjust Hole Fixer Push.
4 Bad Parallelism Tight Fixing Bolt Again.
5
Hole Fixer Malfunction
Adjust Position of Sensor.
6 CheckHoleFixerAir.
7 Adjust Hole Fixer Push.
8
Motor Malfunction
Counter-rotation of Motor Modify Connector Pin.
9 Slow Rotation of Conveyor Motor Replace Conveyor Pack Board.
10 OUT Conveyor Motor does not Rotate. Modify Conveyor Pack Board No.1&2 Wiring.
11 Largest PCB does not Reach 400.
Modify Conveyor Wiring in Rear Feeder
Part.
4-3-2
12 Place Conveyor Motor does not Rotate. Check 24V DC Power.
13
Sensor Malfunction
Wait Sensor Malfunction Adjust Sensitivity of Wait Sensor. 2-3-2
14 Bad PCB Loading Adjust Sensitivity of Wait Sensor. 2-3-2
15 Large Size PCB Driving Error Adjust Place Stopper Speed Con. 2-3-2
16
Bad Feeder Unlock Sensor
Replace Feeder Unlock Sensor. 4-3-3
17 Position Feeder Unlock Sensor Properly. 4-3-3
2-2 Trouble Diagnosis
2. Conveyor
(CP-40)

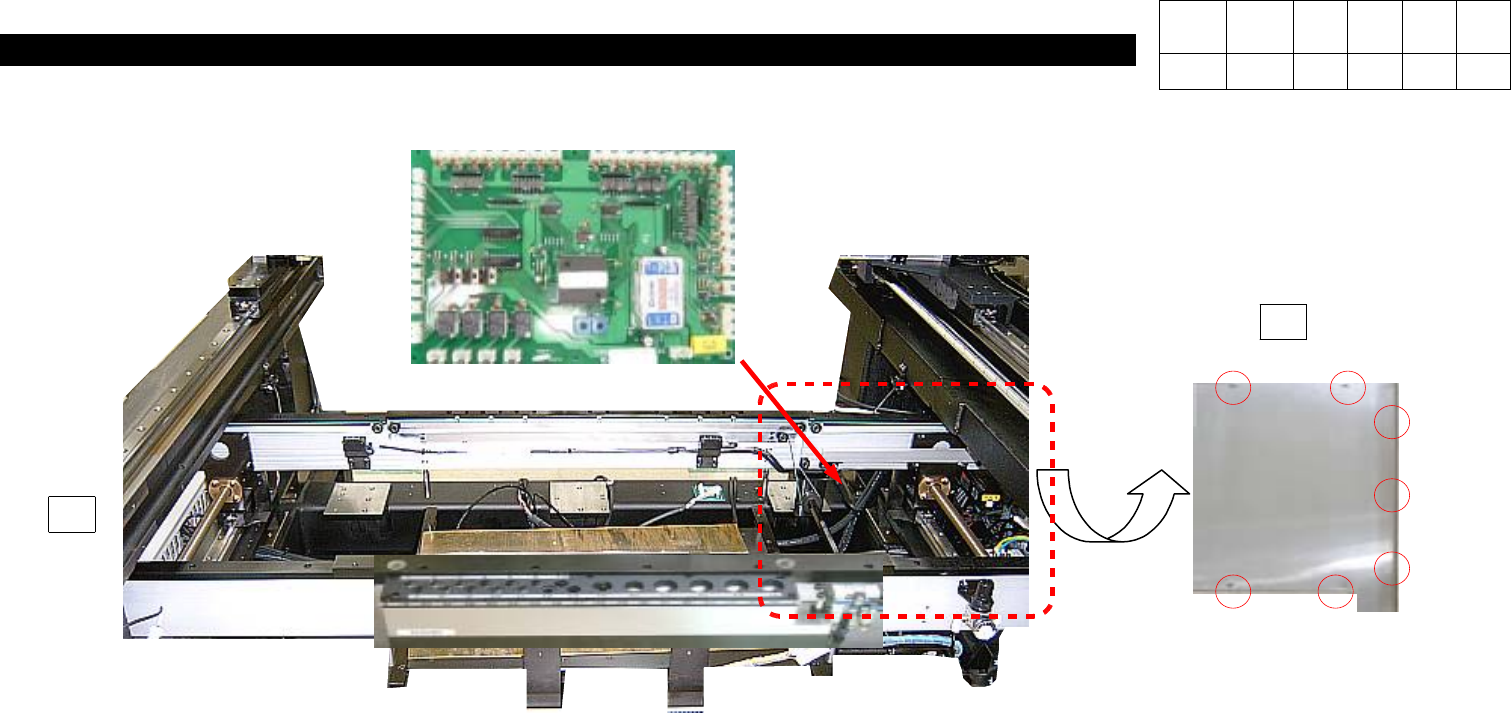

J9800393
Conveyor I/F Board Ass'y
J2102038
Chip Cover Side 2
3
1) Using Teaching Box, Move Head to the Rear.
2) Turn Conveyor Width Adjusting Handle to the Left-hand Side to Widen Conveyor Width as Wide as Possible.
3) Loosen Seven M3*6 Toras Bolts to Open Chip Cover in Left-hand Side inside Equipment.
4) Disconnect Connector on PCB.
5) Loosen Six Spherical Head Bolts to Disconnect Feeder I/F Board.
6) Replace New PCB and Assemble it according to Reverse Procedures..
2
Version Date WA QA CA Note
00 Nov04 O O O
2-3-1. Conveyor I/F Board Replacement
