3. X-Y PART (CP-40) 3-3-4. X&Y Axis +,- Limit Measurement In Setup, Select Input Password and Input SCP in Enter Password Window (Display ) . System Setup Window is Displayed as Follows (Display ) . In System Setup W…
3. X-Y PART
(CP-40)

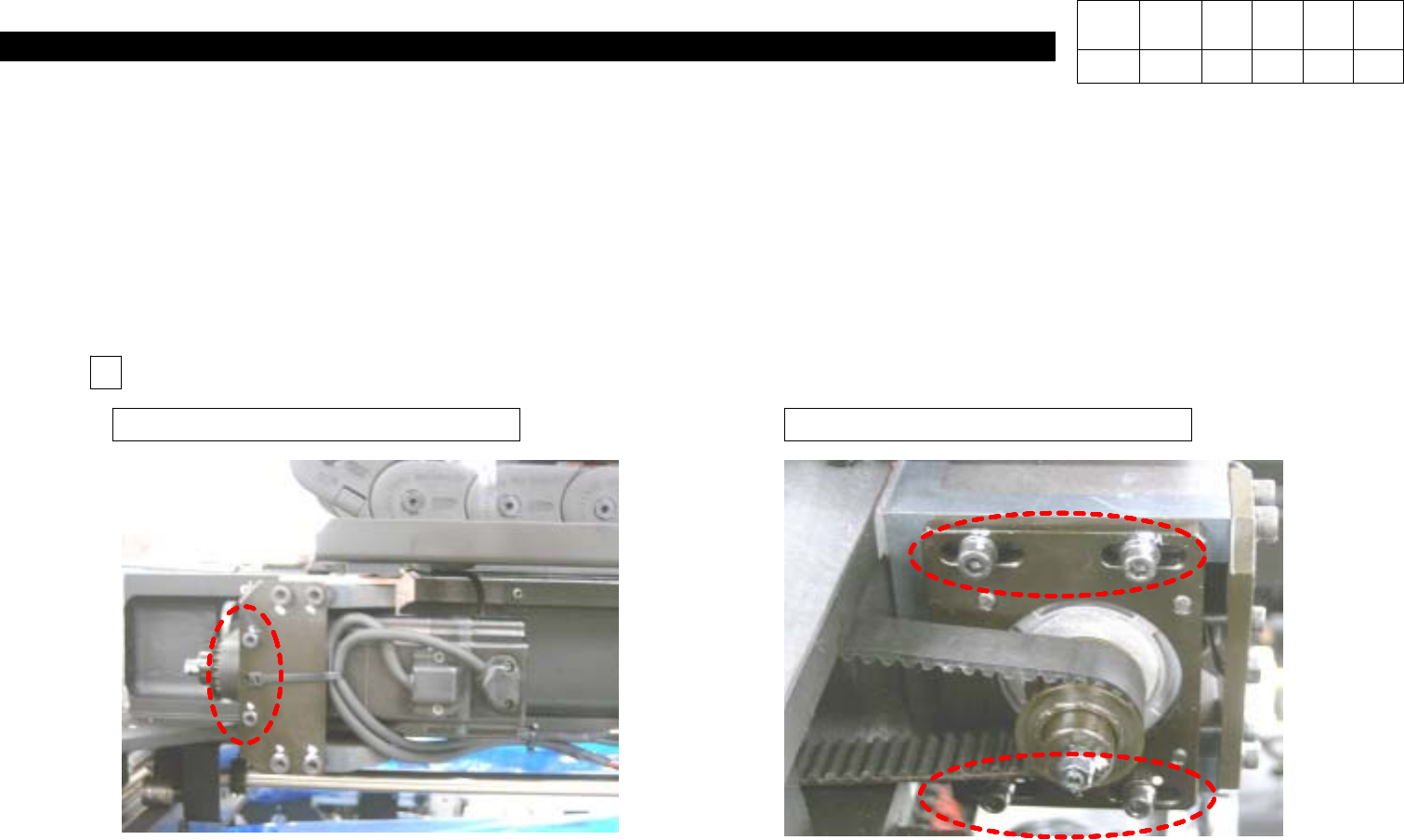

3. Secure M5*20 Hexagon Wrench Bolts.
4. While Moving Head from Side to Side, Check Gage.
5. Using Loctite, Perform Bonding of Four M5*20 Bolts and Two M4*20 Bolts.
M5*20 Hexagon Wrench Bolt * 4eaM4*20 Hexagon Wrench Bolt * 2ea
5
Version Date WA QA CA Note
00 Nov04 O O O
3. X-Y PART
(CP-40)
3-3-4.
X&Y Axis +,- Limit Measurement
In
Setup,
Select Input Password and Input
SCP
in Enter Password Window
(Display )
.

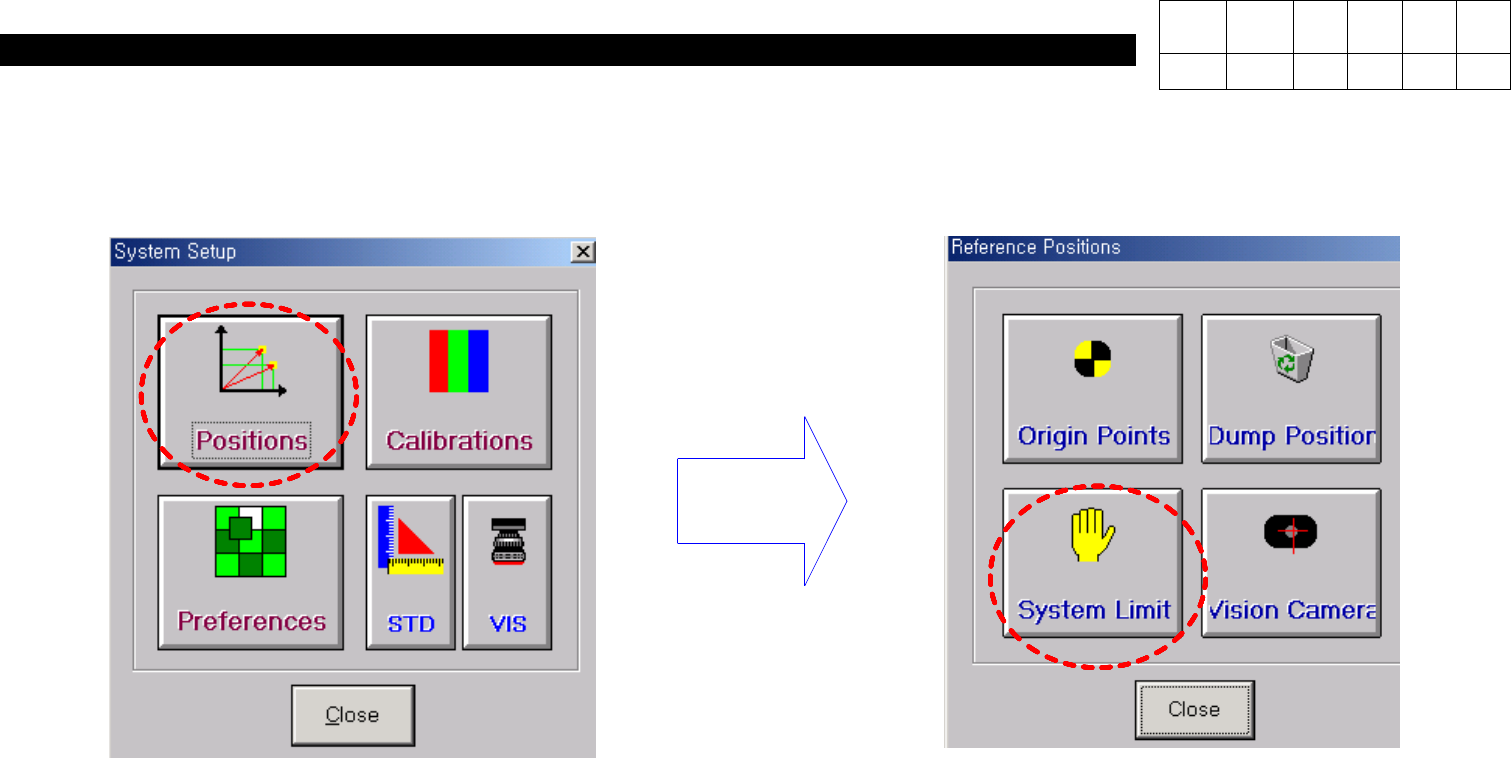

System Setup Window is Displayed as Follows
(Display )
.
In System Setup Window, Select
Position
and then
System Limit
.
In Limit Position Window, Select
Auto(Display )
.
=> After S/W Limit is Measured Automatically, the Measured Value will be Displayed.
Click OK to Finish.
Version Date WA QA CA Note
00 Nov04 O O O
