4. Feeder Base & ANC (CP-40) 4-3-5. Multi Cylinder Block Replacement 1 2 Toras M4*8 4EA J2101539 Cover-F eeder S /T(Front) J2101864 Cover-F eeder S /T(Rear) J7061004B CON PANEL F/R 1. Loosen Four M4*8 Toras Bolts to …
4. Feeder Base & ANC
(CP-40)

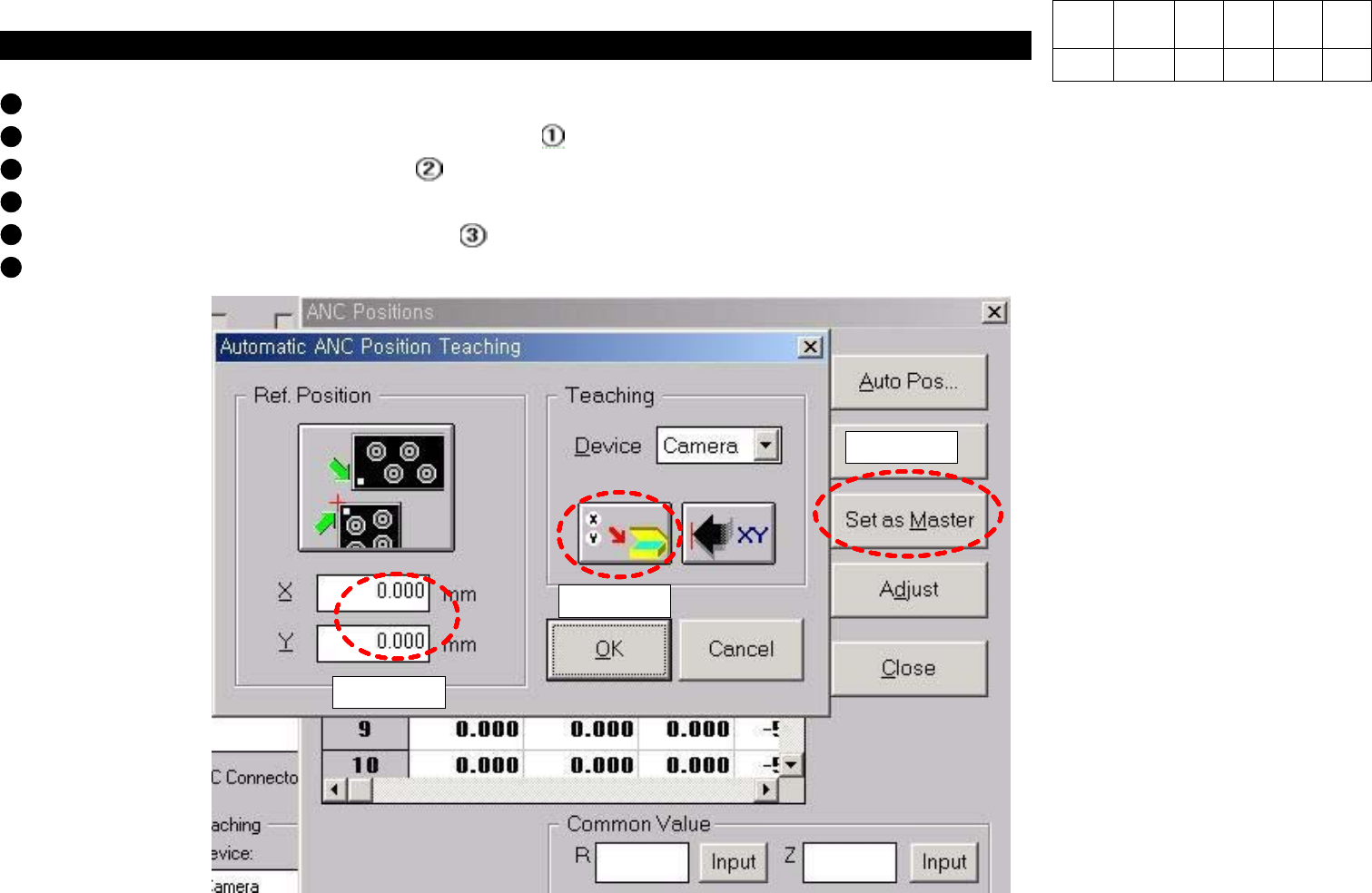

If Selecting "Auto Position", the below Window is Appeared.
Take Cursor on X and Y of Ref. Position(Display ).
In Teaching, Select X, Y Get(Display ).
Select "OK" to Finish.
Select and Verify "Set as Master"(Display ).
After Closing the Window, Move to Each ANC Hole and Check it is Located Properly.
Display 1
Display 2
Display 3
Version Date WA QA CA Note
00 Nov04 O O O
4. Feeder Base & ANC
(CP-40)

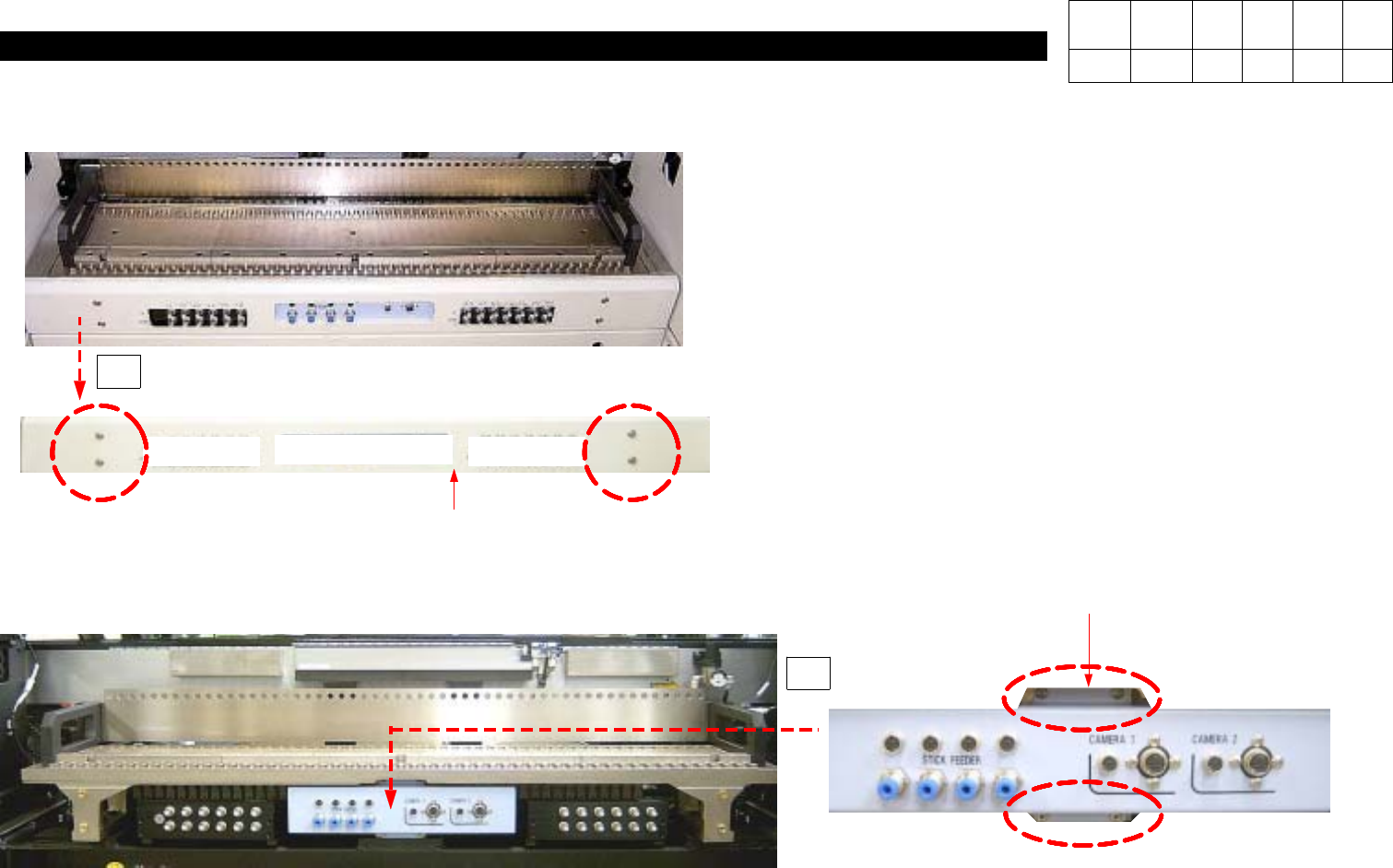

4-3-5. Multi Cylinder Block Replacement
1
2
Toras
M4*8 4EA
J2101539 Cover-Feeder S/T(Front)
J2101864 Cover-Feeder S/T(Rear)
J7061004B CON PANEL F/R
1. Loosen Four M4*8 Toras Bolts to Disconnect Cover-Feeder
S/T from the Body.
2. Loosen Four M3*6 Toras Bolts to Disconnect Con Panel F/R
from the Body.
Toras
M3*6 4EA
Version Date WA QA CA Note
00 Nov04 O O O
4. Feeder Base & ANC
(CP-40)

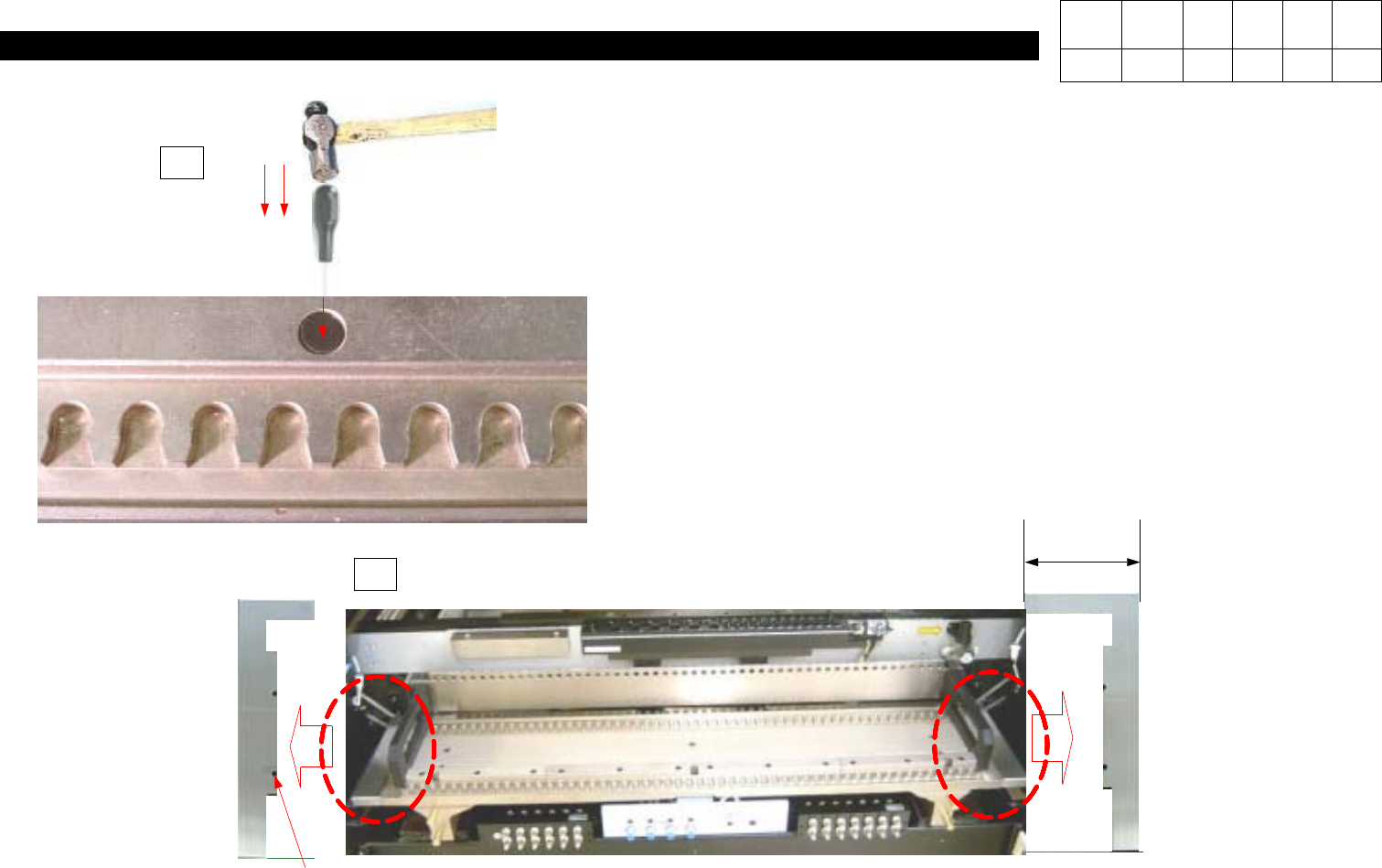

3. Using Driver and Hammer, Remove Hole Plug.
(8ea for Front, 8ea for Rear)
4. Loosen Two M3*6 Toras Bolts on Left- and Right-hand
Sides to Remove Chip Cover.
Hammer
Driver
J6309009A
Hole Plug
Feeder Base
3
4
* Longer than Left Bracket
J2101456
Cover-Front-Left
J2101459
Cover-Rear-Left
J2101457
Cover-Front-Right
J2101458
Cover-Rear-Right
Toras M3*6
