4. Feeder Base & ANC (CP-40) Version Date WA QA CA Note 00 Nov04 O O O 10. Loosen Two Bolts in the Bottom(refer to the Abov e Figure) to Replace Cylinder Block of Faulty Area. (* Take Note of Locations of Bolts.) Fou…
4. Feeder Base & ANC
(CP-40)

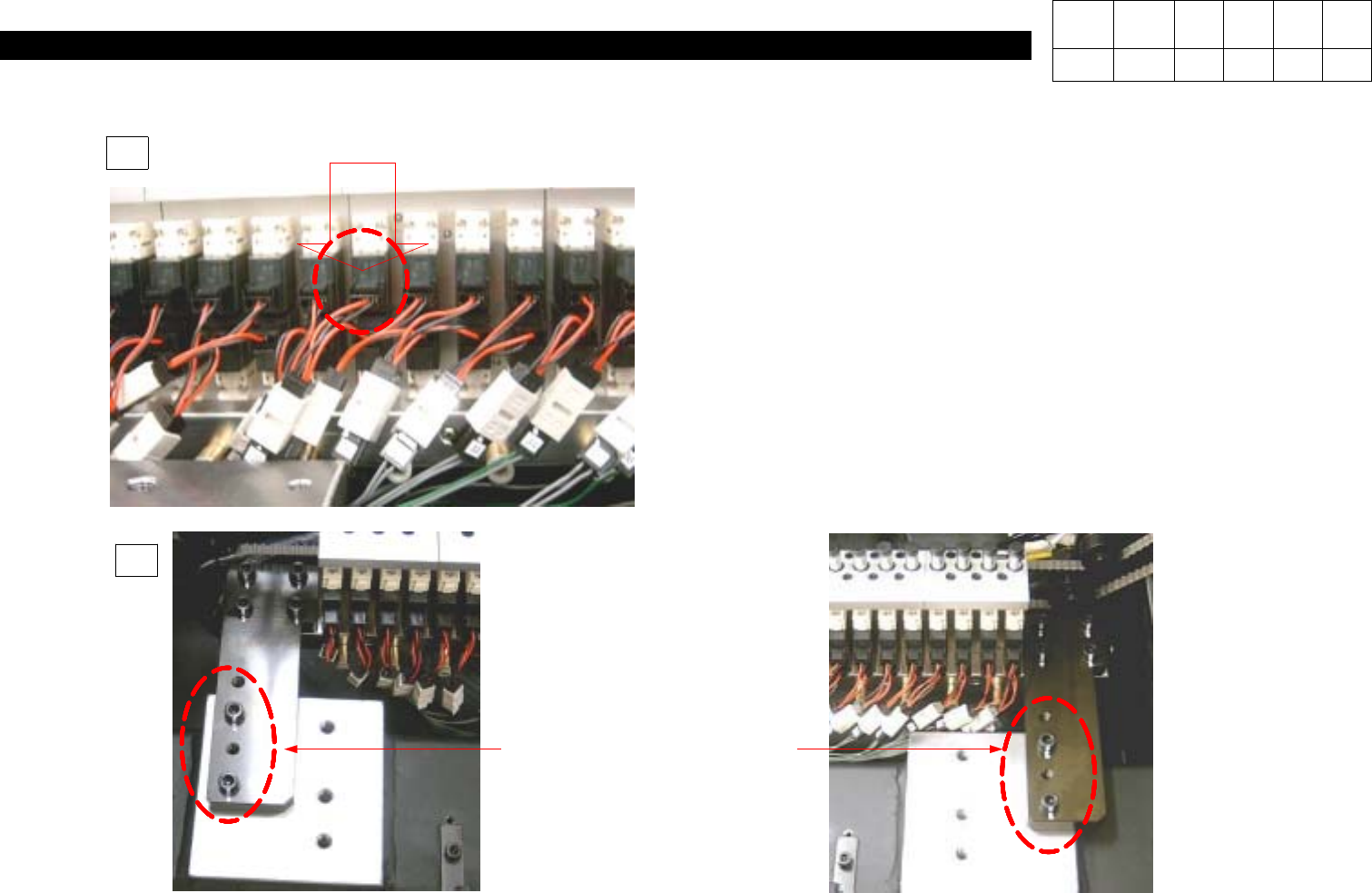

7. Remove Wire Harness of Cylinder Block.
8. Loosen Eight M4*6 Flush Bolts(for Securing Chip
Cover) in the Rear of Cylinder Block.
9. Loosen Two Hexagon Wrench Bolts(for Securing) in
the Right- and Left-hand Sides of Cylinder Block
Respectively to Lift and Carry.
7
* Press Connect with Thumb and Pull it
to Disconnect.
Hexagon Wrench Bolts for
Securing Cylinder
Block(2ea for Left/Right
Sides Respectively)
9
Right Side
Left Side
Version Date WA QA CA Note
00 Nov04 O O O
4. Feeder Base & ANC
(CP-40)
Version Date WA QA CA Note
00 Nov04 O O O

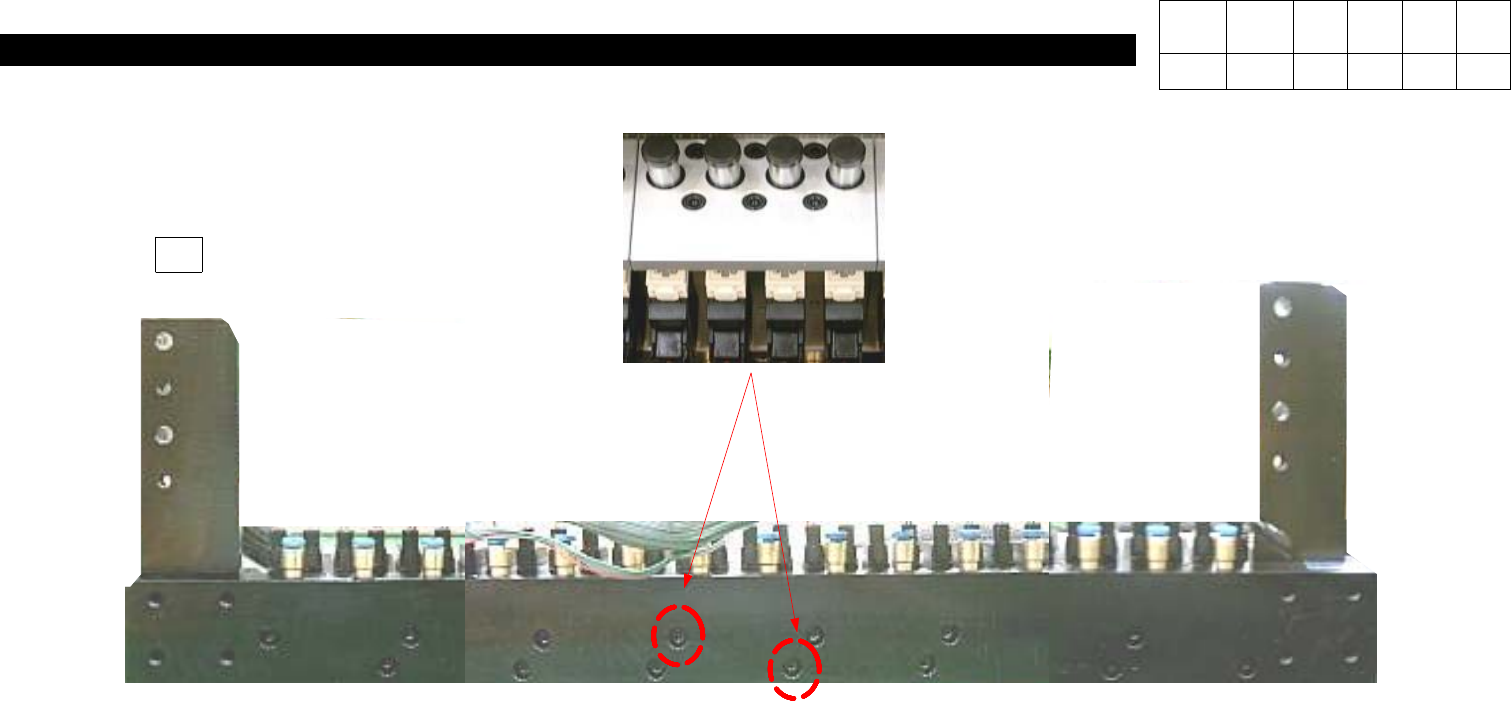

10. Loosen Two Bolts in the Bottom(refer to the Above Figure) to Replace Cylinder Block of Faulty Area.
(* Take Note of Locations of Bolts.)
Four Multi Cylinders Make a Set, which is a Unit for Replacement.
11. For Assembly, Perform Reverse Procedures.
J1301387
Multi Cylinder (Woosung)
10
Bolt for Securing Multi Cylinder
(2ea)
4. Feeder Base & ANC
(CP-40)
Origin Fixture is Required to Set Feeder Base Parallelism, but in the Field, Feeder can also be Used.
Feeder Base Parallelism is
Front/Rear SPEC : +- 0.1
.
For the Front, Set the Parallelism according to the below Figure.
=>
As shown in the above Figure, Put Feeder on Feeder Base in Order of
No.52=> No.27=> No.13
and Perform Setting
until the Value is within
SPEC : 0.1
.
For the Rear, Set the Parallelism according to the below Figure.
=>
As shown in the above Figure, Put Feeder on Feeder Base in Order of
No.52=> No.27=> No.13
and Perform Setting
until the Value is within
SPEC : +- 0.1
.
1 2 ------ 12
13
14 15 -------------- 24 25 26
27
28 29 ------------- 48 49 50 51
52
52
51 50 49 48 ---------- 30 29 28
27
26 25 --------------- 15 14
13
12 ------ 3 2 1
Version Date WA QA CA Note
00 Nov04 O O O
4-3-6. Feeder Base Parallelism Setting
