6. Computer (CP-40) 4. Lower Front Cover Disconnection => Loosen Four T oras Bolts to Disconnect Lower Front Cover. 5. Upper Front Cover Disconnection => 5-1. Loosen Five(Right), Two(Upper ) and Four(Left) Toras Bo…

6. Computer

(CP-40)

6-3-1. FDD Replacement

1. Disconnect Key Board, Mouse and Teaching Box from Equipment.

2. Raise Acrylic Cover and Loosen Three M3*6 Flush Bolts to Disconnect Stay.

Stay

M3*6 3ea

3. Using T-Wrench, Loosen Four

Wrench Bolts to Disconnect

Lower Right-hand Cover.

Wrench Bolt

4ea

Lower

Right-hand

Cover

Version Date WA QA CA Note

00 Nov04 O O O

6. Computer

(CP-40)

4. Lower Front Cover Disconnection => Loosen Four Toras Bolts to Disconnect Lower Front Cover.

5. Upper Front Cover Disconnection =>

5-1. Loosen Five(Right), Two(Upper) and Four(Left) Toras Bolts.

5-2. Loosen Four Black Wrench Bolts under Upper Cover.

Left

Toras 4ea

Upper

Toras 2ea

Right

Toras 5ea

Toras 2ea

Version Date WA QA CA Note

00 Nov04 O O O

6. Computer

(CP-40)

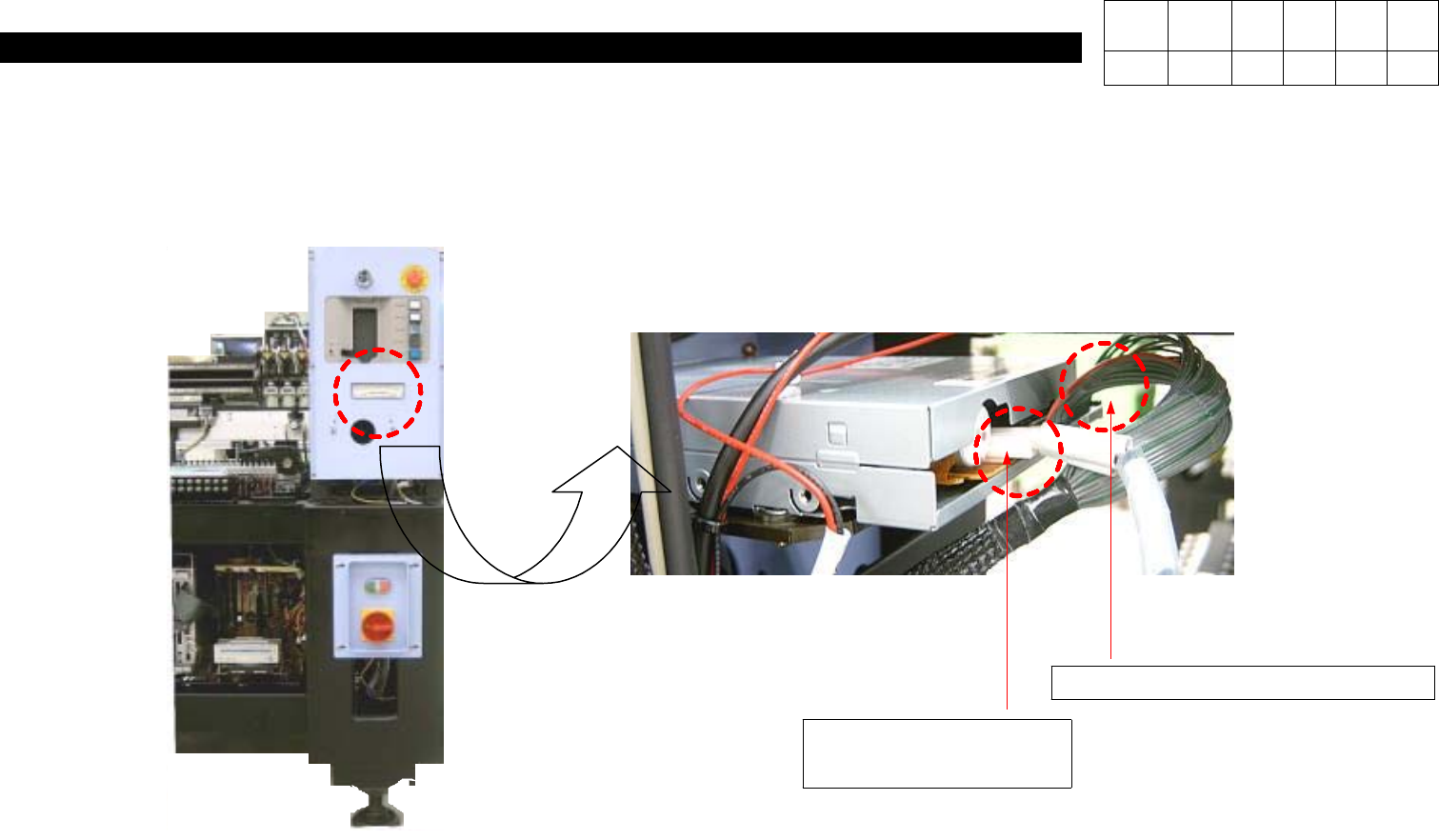

6. Disconnect Power Cable and Signal Cable in the Rear of FDD.

FDD Signal Cable Disconnection

FDD Power Cable

Disconnection

Version Date WA QA CA Note

00 Nov04 O O O
