8. Fix Camera (CP-40) (Display 1 ) (Display 2) (Display3) (Display4) (Display5) ) (Displ ay6) Version Date WA QA CA Note 00 Nov04 O O O
8. Fix Camera
(CP-40)
Version Date WA QA CA Note
00 Nov04 O O O
Engage Fix Camera in No.41 of Rear Feeder Base(Tighten Handle Completely not to be Loose).
Insert Calibration tool into HEAD 1,2,3.
MARK PAD [UPWARD VISION ONLY] 2101976 1 EA
CALIBRATION NOZZLE [UPWARD VISION ONLY] 2101543 1 EA
In Setup Menu,
=>
Select INPUT PASSWORD
.
=>
In ENTER PASSWORD
Window,
=>
Input SCP(Display 1 ).
The Following System Setup Window is Appeared
(Display 2 ).
In System Setup Window,
=>
Select POSITION.
=>
Select VISION CAMERA.
=>

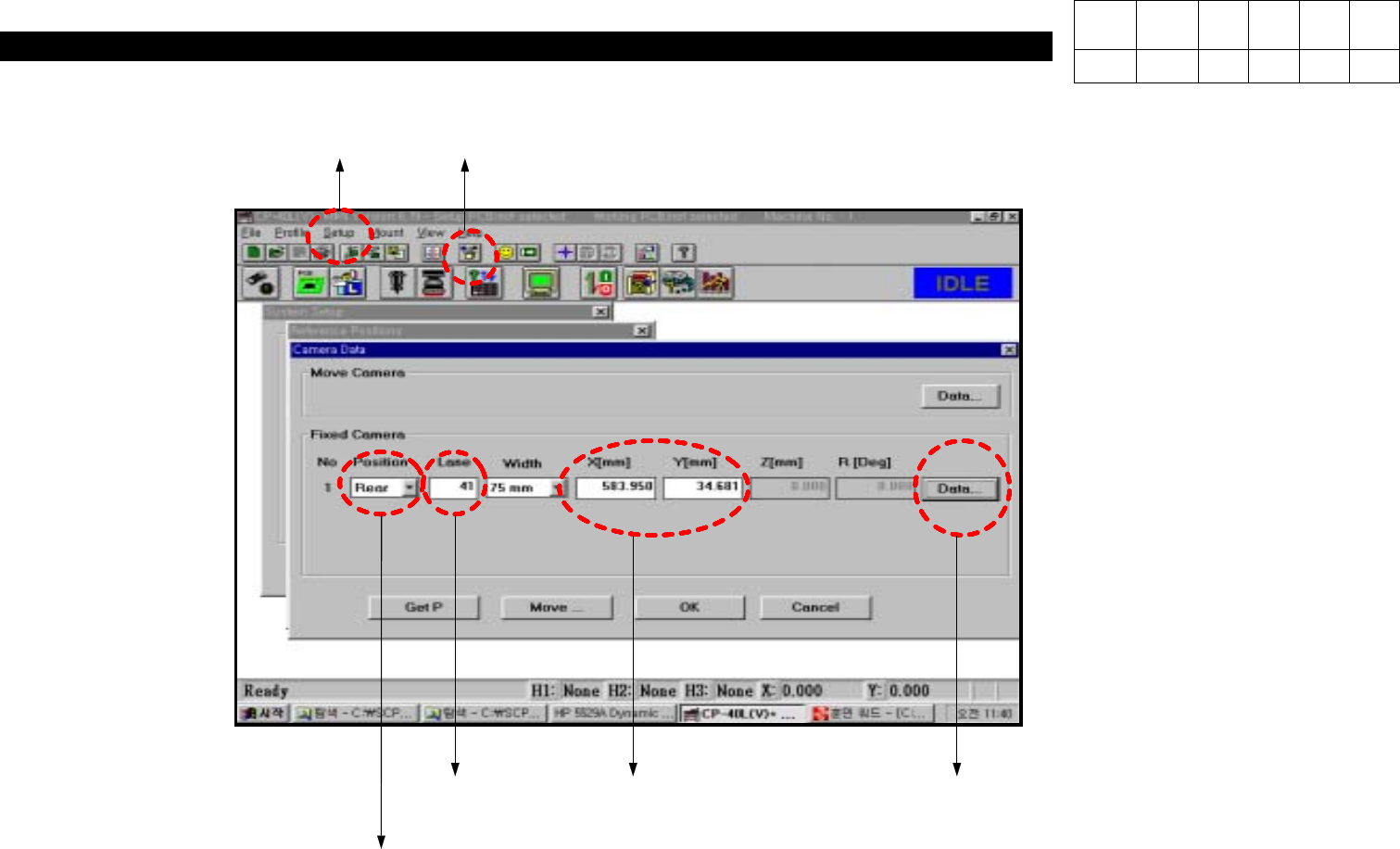

CAMERA DATA Window is Appeared
.
In FIXED CAMERA,
Modify Position to Rear
(Display 3 ).
Modify Lane to
41(Display 4 ).
Set Coordinates of X and Y to Get(Display 5 ).
=> Through Monitor, Move Head 1 to Fix Camera and then Lower X-Axis of Head 1 and Align it with the Center of Tool
to Get..

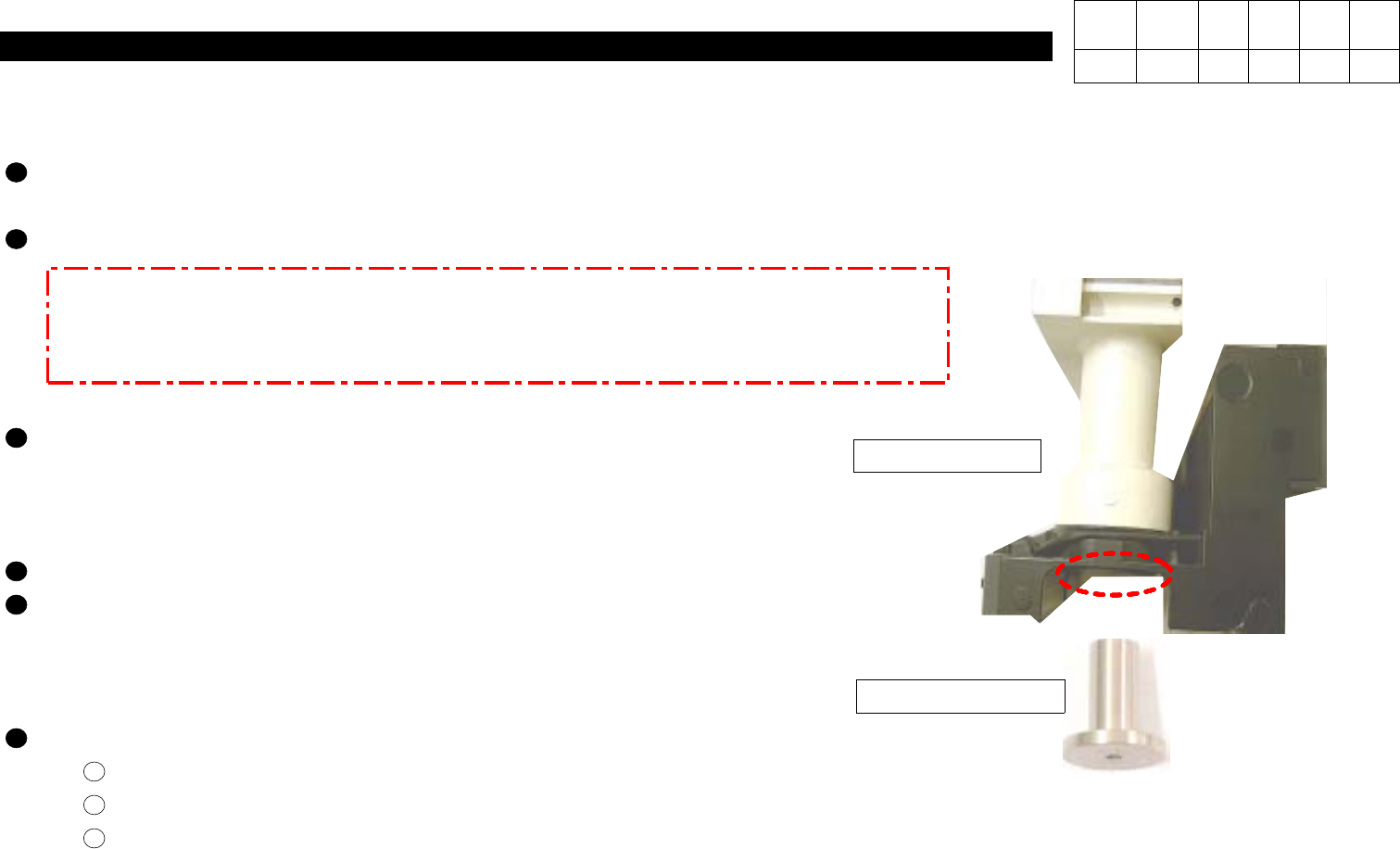

Aligner Ass'y
Calibration Tool
8-3-2. Fix Camera Calibration
8. Fix Camera
(CP-40)
(Display 1 ) (Display2)
(Display3)
(Display4) (Display5)) (Display6)
Version Date WA QA CA Note
00 Nov04 O O O
8. Fix Camera
(CP-40)
After Setting as the above, Select OK to Finish.
In System Setup Window, Selecting =>
Calibration
makes
Auto Calibration Window Displayed
In Auto Calibration Window, Set Camera to Fix Camera1
(Display1).
In Fix Camera Calibration, Select
FIX CAM(Display2).
If Selecting
FIX CAM
, the below Figure is Displayed
(Display3).
If Clicking Next Twice in the below Figure, Fix Camera Calibration is Automatically Executed
(Display4).
