9. Motor & Dr iver (CP-40) Motor Driver Cable Connection Check (fo r Linear Scale) 1. After Open the Right-hand Cover of Equipment, Check if the Equipment is Linear Scale One or General One. 2. Check Wire and Sensor …

9. Motor & Driver

(CP-40)

Version Date WA QA CA Note

00 Nov04 O O O

<<Caution> - Short the above Selector Terminals.

(Area to be Shorted: CONVEYOR WIDTH, SWING MIRROR, Z1 ~ Z6)

- Connect Wiring Correctly not to Mix R,S,T Terminals with U,V,W,E Terminals.

=> Shorted Area is Used When CP-45, etc. Uses Regenerative Resistance.

=> When CP-40 Uses Linear Scale, Replace Motor Driver of X, Y according to the Following

Specification.

(For Z1, Z2 and Z3, Use the Same Spec. as LV.)

Short

9. Motor & Driver

(CP-40)

Motor Driver Cable Connection Check (for Linear Scale)

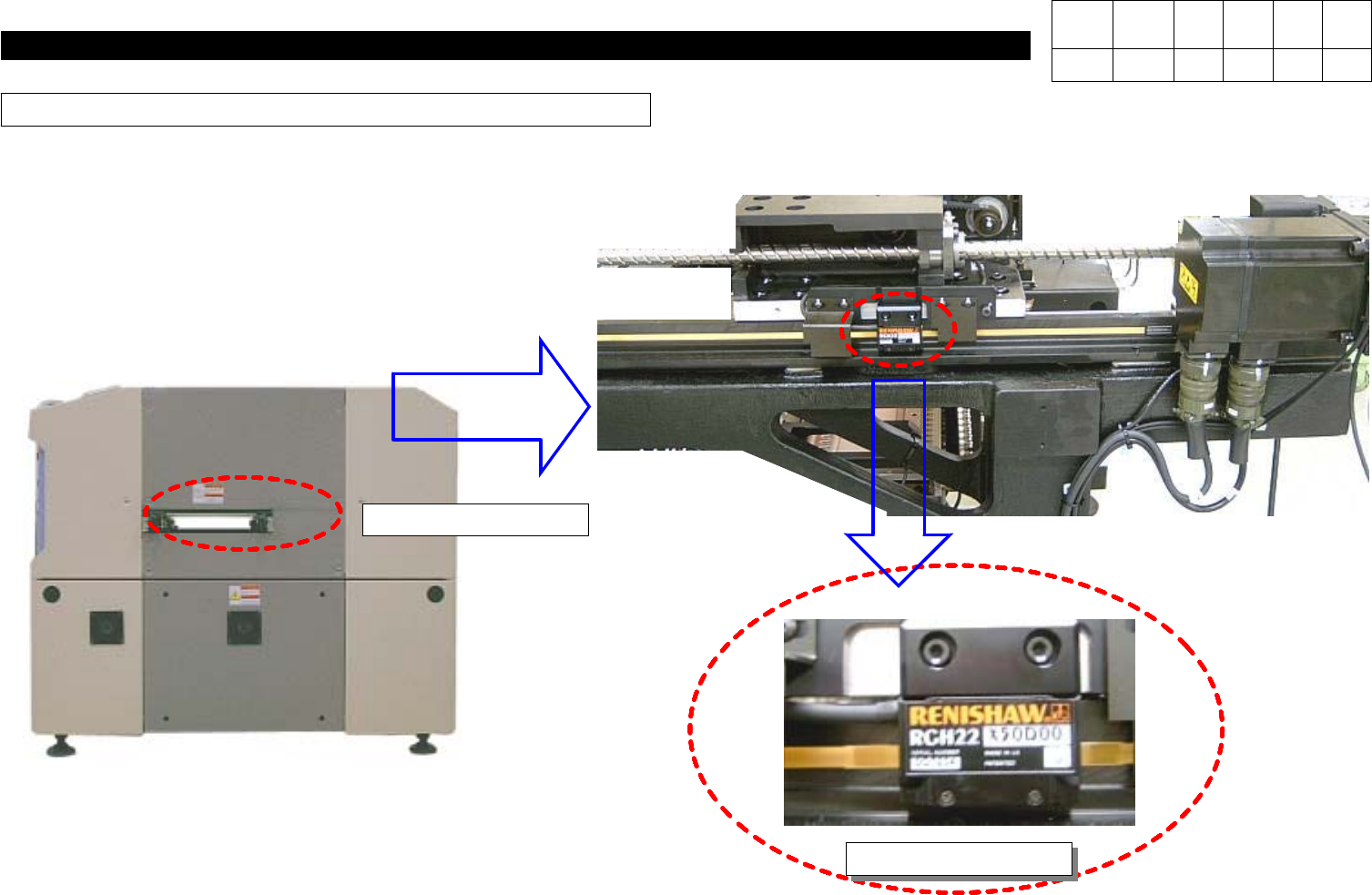

1. After Open the Right-hand Cover of Equipment, Check

if the Equipment is Linear Scale One or General One.

2. Check Wire and Sensor of Linear Scare for any

Normality.

Linear Scale

Side Cover Open

Version Date WA QA CA Note

00 Nov04 O O O LV+

9. Motor & Driver

(CP-40)

Y X Z1 Z2 Z3

forLinearScale

for Regenerative Resistance of CP45

=> When Connecting Regenerative Resistance

of CP-45, Release Short and Connect

Regenerative Resistance Wire.

Y X Z1 Z2 Z3

Nomenclature PY0A0 50A PY0A0 30A PY0A0 15A PY0A0 15A PY0A0 15A

Specification T1FC1P01 T1N51P01 IFD1P01 IFD1P01 IFD1P01

=> Before Using Linear Scale, be Sure

to Verify Specification of X, Y Motor

Driver.

Add

CN 3

Version Date WA QA CA Note

00 Nov04 O O O
