CP40 service manual - 第234页

11. Utility (CP-40) Version Date WA QA CA Note 00 Nov04 O O O

11. Utility

(CP-40)

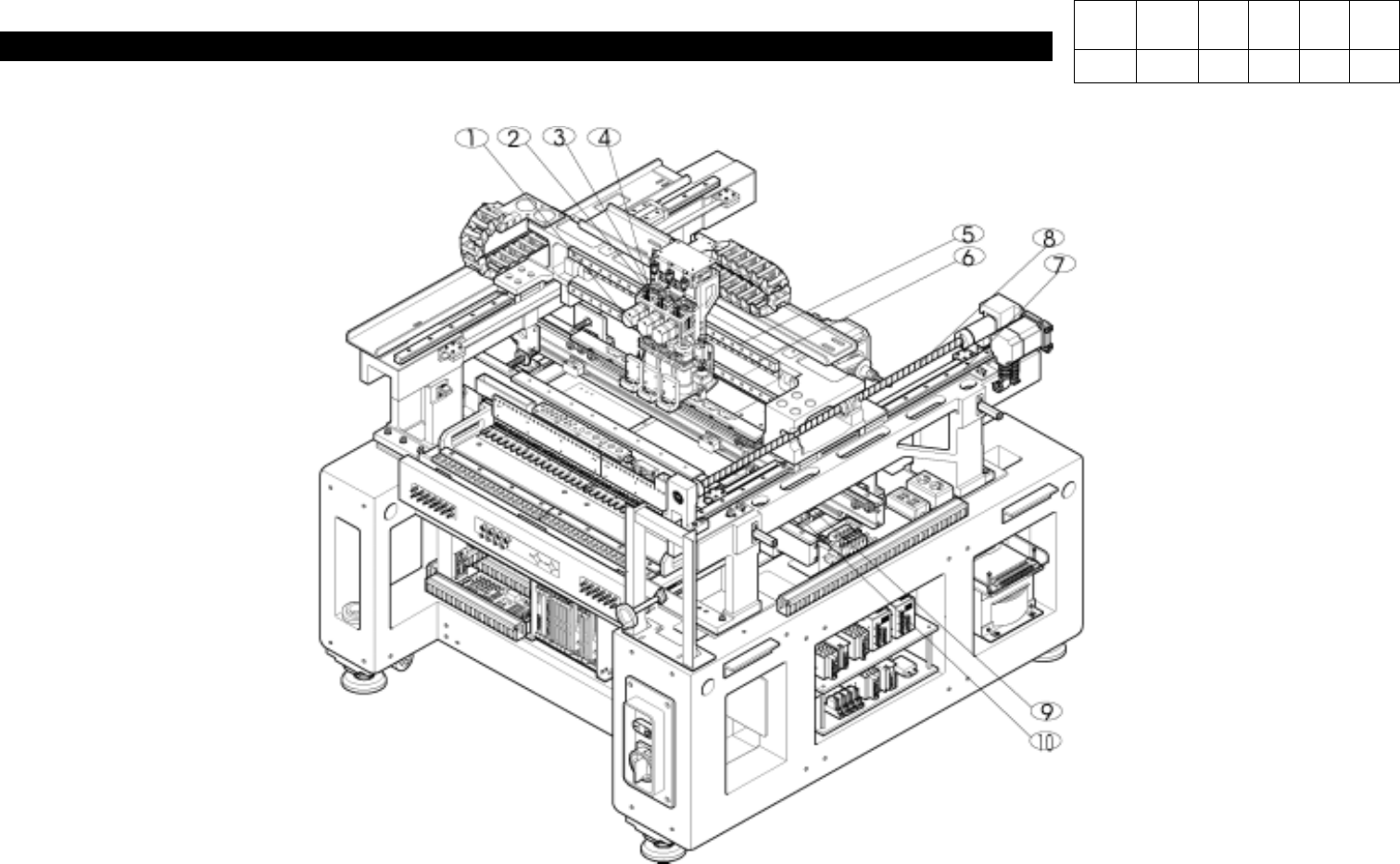

Grease Specification and Lubrication Cycle of CP40

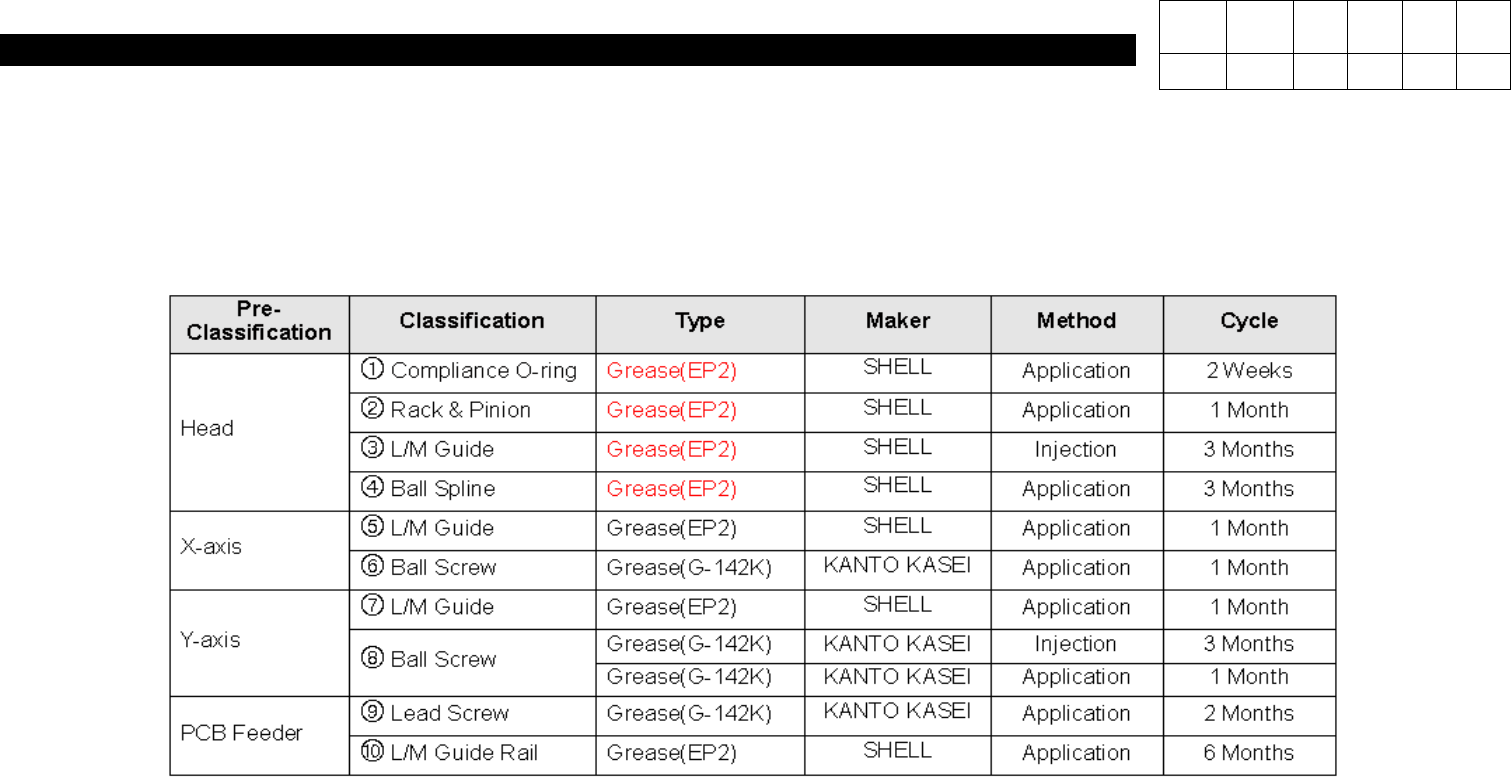

11-3-7. CP-40 Grease Specification

Version Date WA QA CA Note

00 Nov04 O O O

11. Utility

(CP-40)

Version Date WA QA CA Note

00 Nov04 O O O

12. Performance/Efficiency

(CP-40)

12-1. Trouble Diagnosis Guide Table

# Number Indicates Priority of Check Items.

Malfunction

Program Bad Installation IT Feeder

Internal Foreign Material Removal with Air Gun 8

O-Ring Replacement 7

Feeder Pitch Check 6

Soft_Ware Re-Setup 1

Comp Data Check 3

Camera Offset Reset 5

Spindle Center Reset 4

50M Vision Part Spec Check 50M Application

Installation Speed Test Parameter Check 2

Part Setup Parameter Check 1

50M Head3 Z-Axis Speed Setup 50M Application

LAN Card Check for Bad Connection 3

Step Motor Driver 24V Check 4

Power Supply Voltage Check(5V, 12V) 1

IQIF Controller Power Check 2

Parts

Symptom

Check and Action
