1. Head Part (CP-40) 8. Replace Faulty Part Among H1~H3 of Vacuum Generator. 9. In Case of Weak Blow, Adjust it Using Adjust Screw. H1 H2 H3 Blow Adjust Screw Block E nd of Compliance with Finger. Vacuum Generato r J6707…
1. Head Part
(CP-40)
Fitting #1
Fitting #2
M4 Hexagon Wrench
Bolt * 2ea
Φ
3NUT*2ea
M4 Hexagon Wrench
Φ
6Spanner
7. Loosen Two
Φ
3 Nuts Using
Φ
6 Spanner.

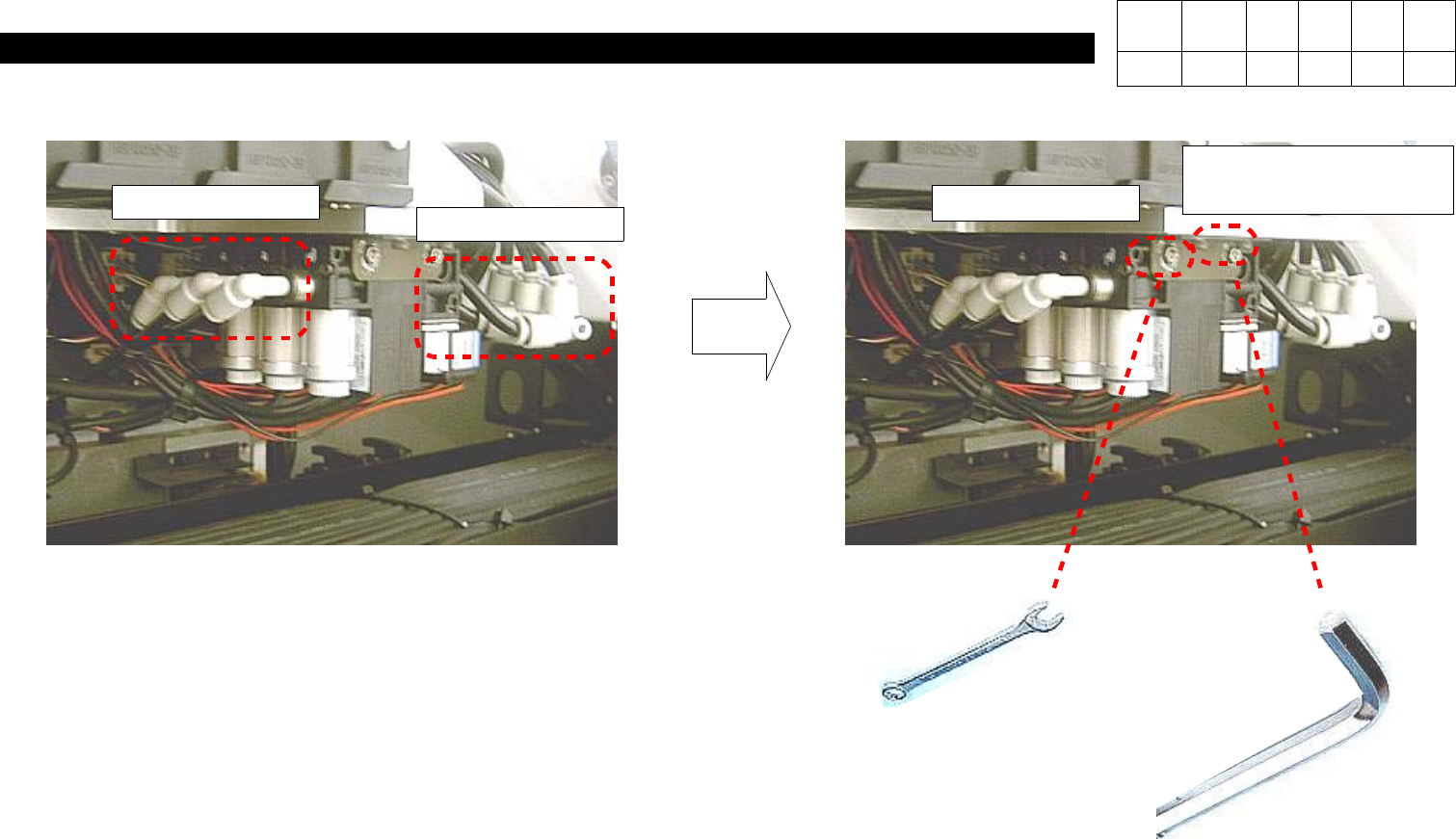

With 3mm Wrench, Loosen Two M3*8 Hexagon
Wrench Bolts.
6. Disconnect Fitting #1 and #2 from Vacuum
Generator.
Version Date WA QA CA Note
00 Nov04 O O O
1. Head Part
(CP-40)

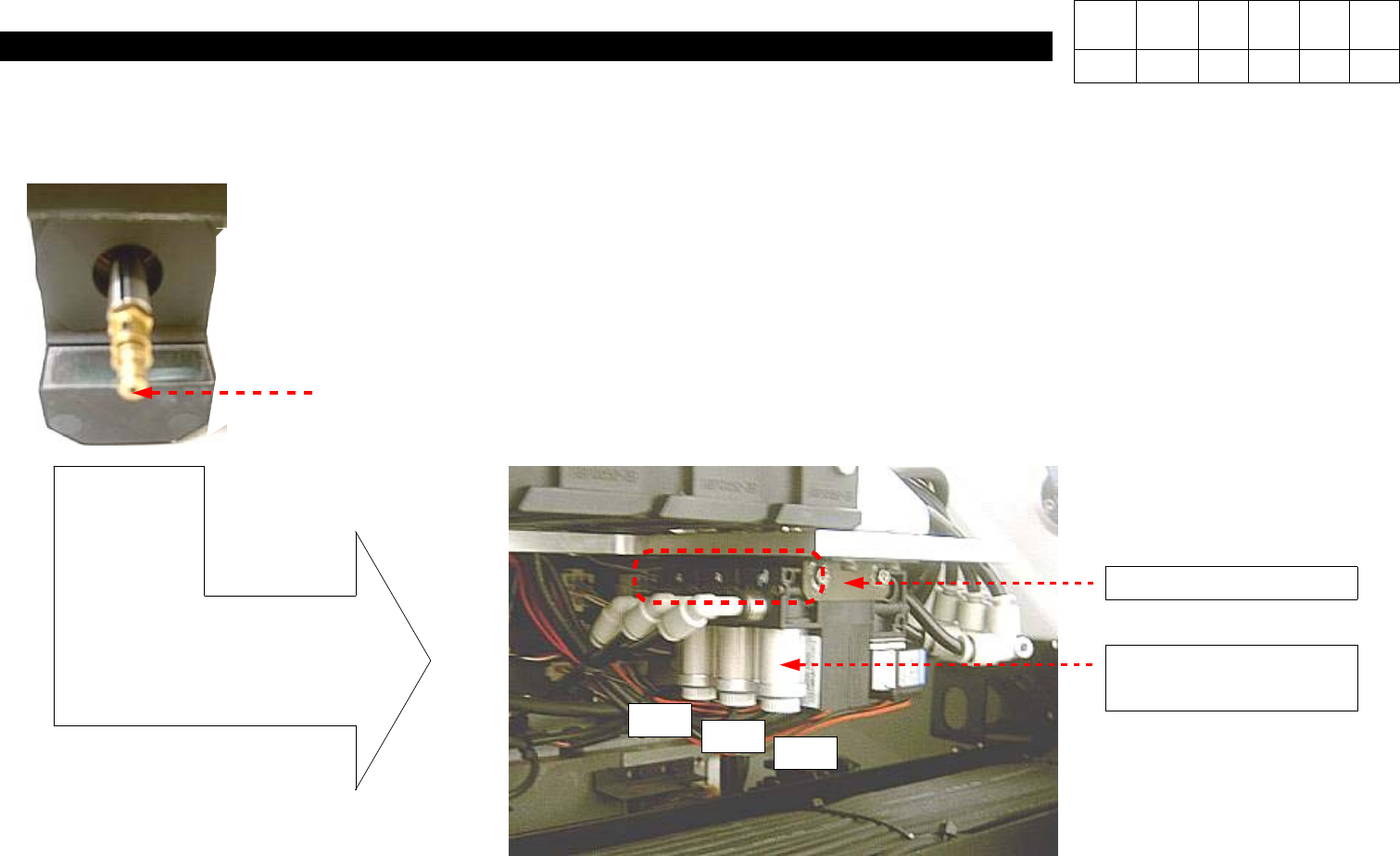

8. Replace Faulty Part Among H1~H3 of Vacuum Generator.
9. In Case of Weak Blow, Adjust it Using Adjust Screw.
H1
H2
H3
Blow Adjust Screw
Block End of Compliance with Finger.
Vacuum Generator
J6707016A
Version Date WA QA CA Note
00 Nov04 O O O
1. Head Part
(CP-40)
1-3-6. WA Cleaning Method
<Installation State and Abandonment Rate>
If WD-40 or Glass Cleansing Fluid is Applied to W/A Aligner Sensor, Diffuser Film and Cover Glass Adhesive are Dissolved. If
User Applies Vinyl Tape to Aligner Window Optionally, Inferiority of Installation State and Abandonment Rate may be Caused.

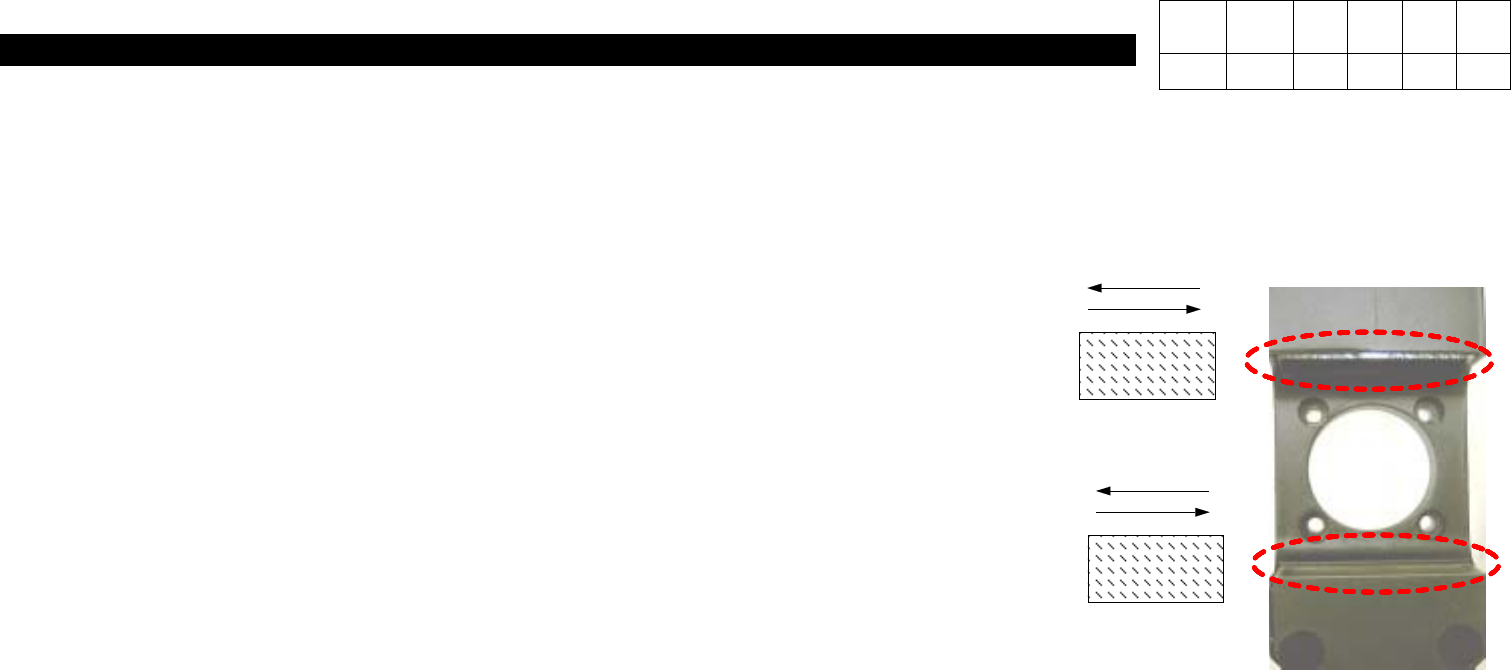

<WA Cleaning Method>
1. W/A Cleaning
Because W/A Diffuser and Cover Glass are Exposed, They Should be Maintained
Cleanly. Fingerprint or Dust may Influence Installation State.
2. Cycle
1) Diffuser : Once a Month
2) Cover Glass : Every Third Week
3) Besides the Above Cycles, Perform Cleaning When Abandonment Rate of Part
is Increased and Installation State is Bad.
3. Method
1) Diffuser : Using Soft and Dry Cotton Cloth, Wipe Gently in the Same Direction with Pattern..
# Caution : Never Use Solvent such as Water, Alcohol, Glass Cleansing Fluid, etc.
Only Use Dry Cloth.
2) COVER GLASS :
- Using Soft and Dry Cotton Cloth, Wipe Gently in the Same Direction.
-
If Foreign Materials are still Left, Wipe Gently in the Same Direction with Soft and Dry Cotton Cloth Applied with a little Ethyl Alcohol.
- Using Soft and Dry Cotton Cloth, Remove Residual Ethyl Alcohol(Wipe in the Same Direction).
# Caution : (1)
If Wiping in the Both Directions, Foreign Materials may not be Removed or Damage to Glass may be Caused.
(2) Never Use Any Solvent except for Ethyl Alcohol.
Version Date WA QA CA Note
00 Nov04 O
