Retrofit instructions Nozzle changer SIPLACE HF-series C&P head
12/2004 Edition
19
2.4 Conversion
: Switch the placement machine off at the main switch.
: Knock the pins into the appropriate holes in the nozzle reject bracket.
2
2
2
2
2
2
2
2
2
2
2
2
2
Retrofit instructions Nozzle changer SIPLACE HF-series C&P head
20

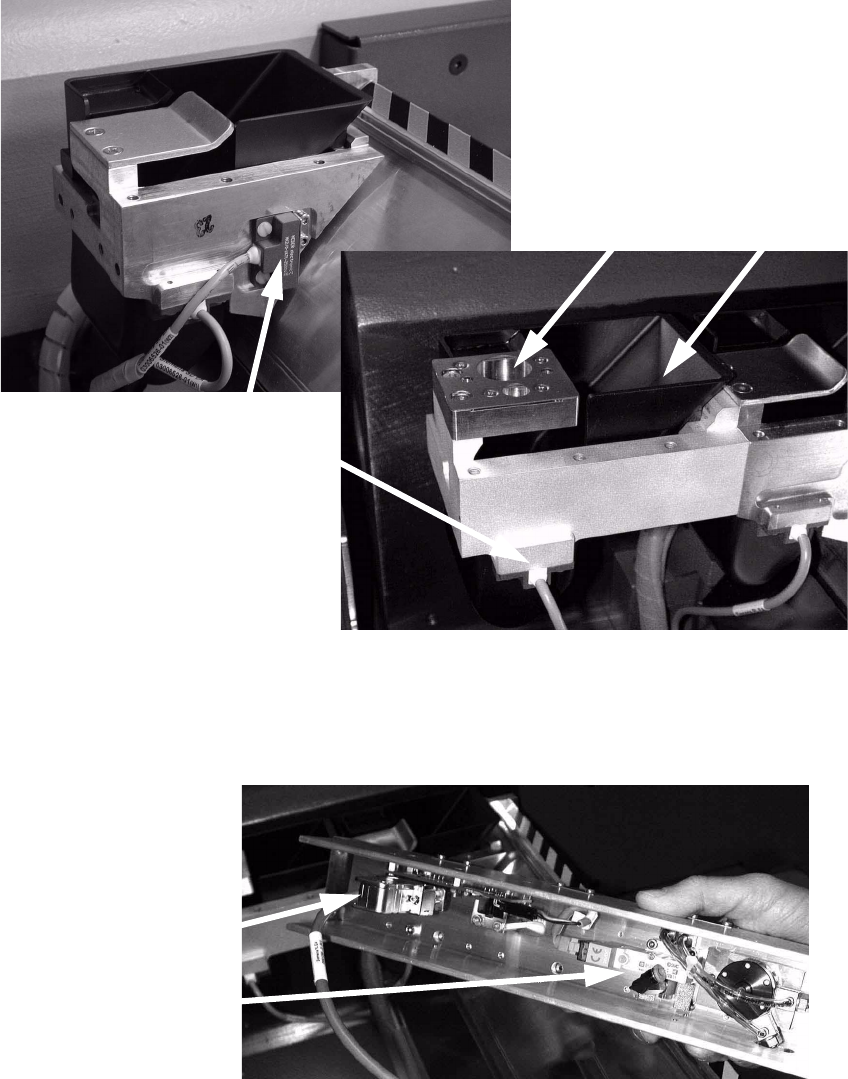

: Fit the nozzle take-off device.
: Install the reject bin sensor from the component reject bin parking position on the nozzle reject
carrier.
: Insert the reject bin.
2
2
: Plug the cable and the compressed air hose into the C&P head nozzle changer.
The cable for row 1 is marked "a".
2
Reject bin sensor
Nozzle take-off
device
Reject
bin
Cable
Compressed air
connector
Retrofit instructions Nozzle changer SIPLACE HF-series C&P head
12/2004 Edition
21
Only SIPLACE HF-series from serial number A-001 2
: Fit the One-Wire-HUB.
2
2
: Attach the cable of the nozzle changer (located in the cable duct) on the HUB.
2
2
2
2
2
One-Wire-HUB
Plug of nozzle changer
Slot for plug of nozzle changer
