Retrofit instructions Nozzle changer SIPLACE HF-series C&P head
12/2004 Edition
21
Only SIPLACE HF-series from serial number A-001 2

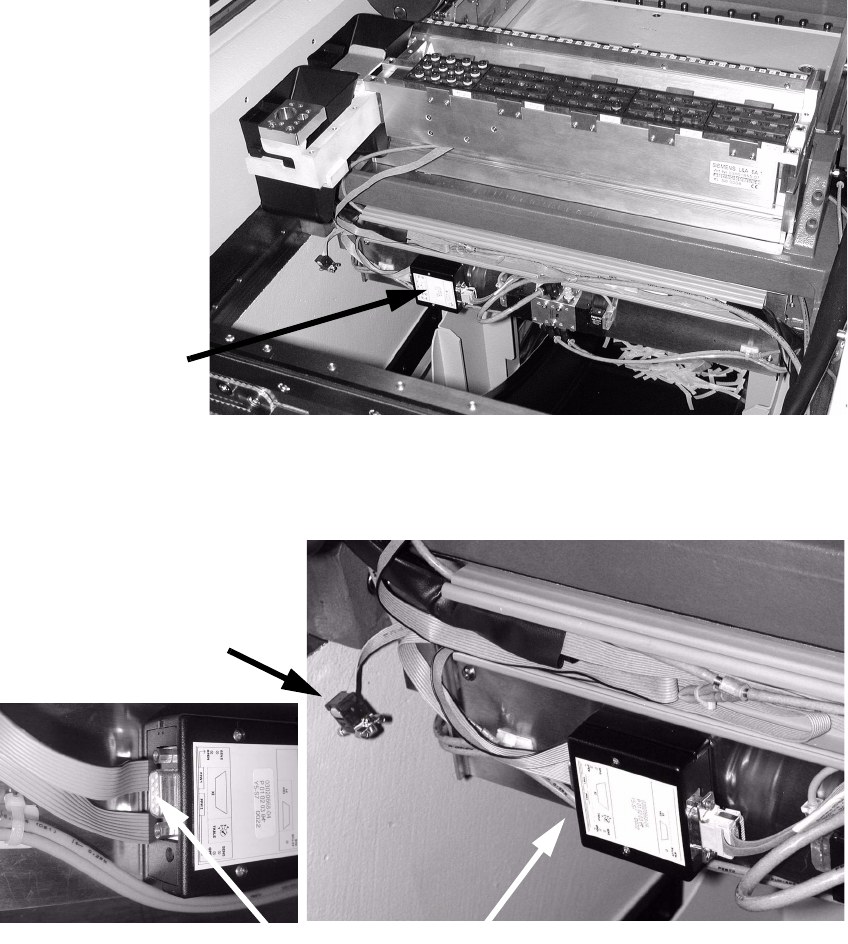

: Fit the One-Wire-HUB.
2
2
: Attach the cable of the nozzle changer (located in the cable duct) on the HUB.
2
2
2
2
2
One-Wire-HUB
Plug of nozzle changer
Slot for plug of nozzle changer
Retrofit instructions Nozzle changer SIPLACE HF-series C&P head
22
: Select the location of the nozzle changer with the adjustment screw.
2
2
All machines 2

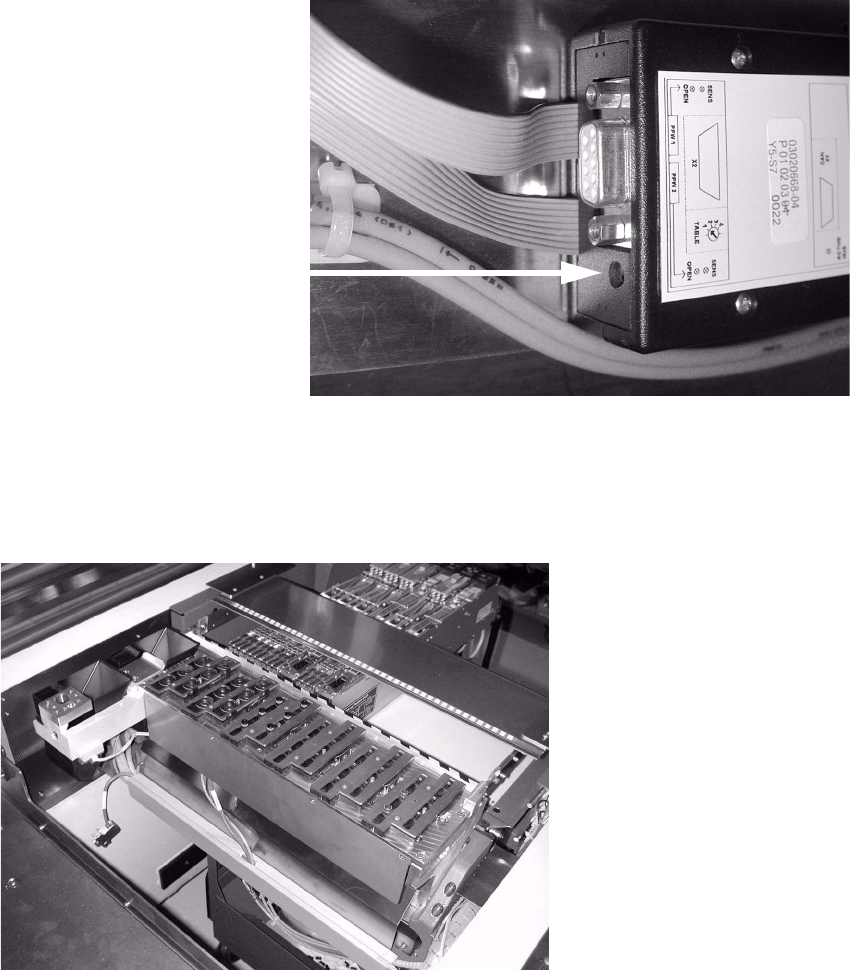

: Fit the nozzle changer with the four screws.
2
Fig. 2 - 1 Example of nozzle changer for HF 6-Segment C&P - head
2
2
2
2
Adjustment screw HUB
Retrofit instructions Nozzle changer SIPLACE HF-series C&P head
12/2004 Edition
23
Installing the second row of nozzle changers 2
2
The second row of a 12-nozzle changer can be installed wrongly.
This must not be mounted in the direction of PCB transport. 2
2

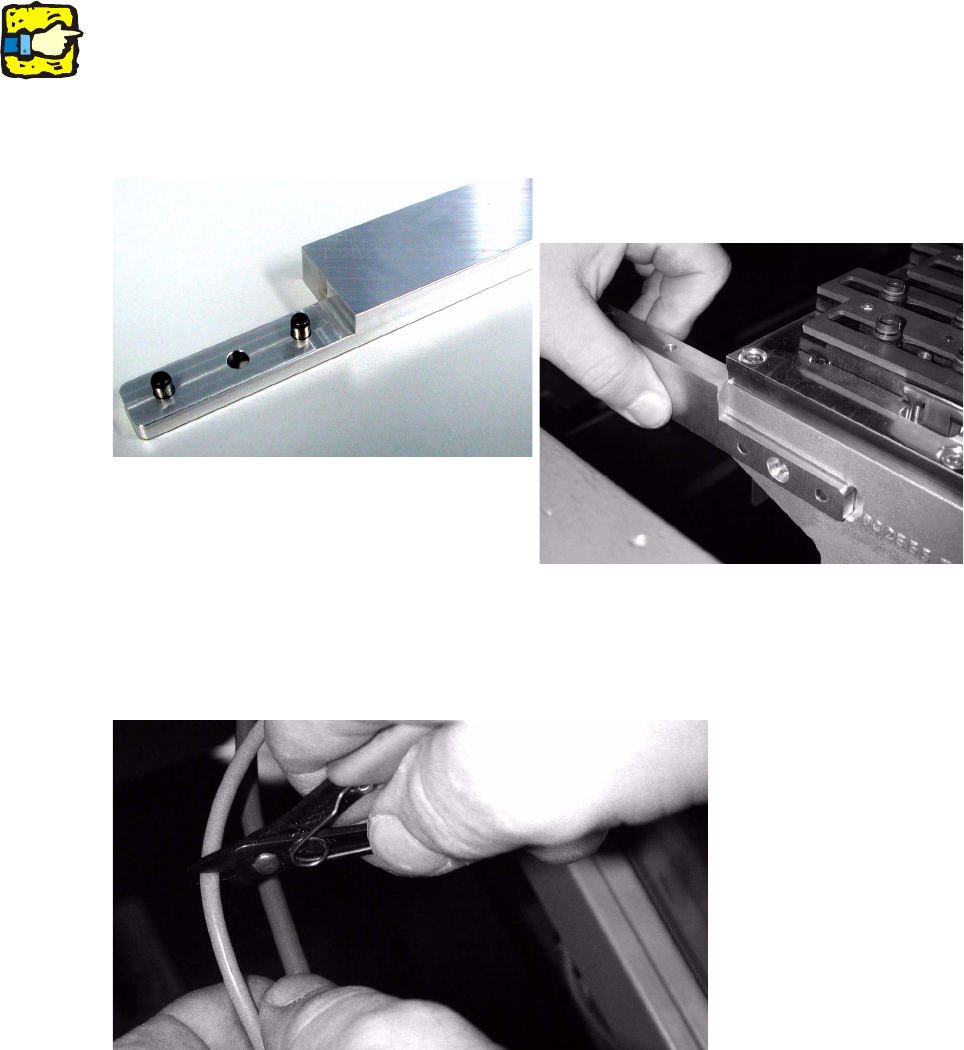

: Knock the dowel pins into the relevant holes in the bracket and screw the bracket on as shown.
2
2
: Disconnect the compressed air hose of the existing nozzle changer at the height of the used
tape cutter
