XY ROBOT 5/
XY ロボット 5/
2UHGSA000126
No. Drg.No. & Code No. QTY Description Rating Remarks
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
105 2MGYSA003501 1 SHEET
シート
FOR SINGLE AND DOUBLE ROBOT
106 H54250 2 BOLT, HEX SOCKET
ボルト　六角穴
M03X005(3ｶ ｼﾛ)
FOR SINGLE AND DOUBLE ROBOT
107 2MGYSA009402 1 RETAINER, WIRING
押え　配線
FOR SINGLE AND DOUBLE ROBOT
108 H54250 4 BOLT, HEX SOCKET
ボルト　六角穴
M03X005(3ｶ ｼﾛ)
FOR SINGLE AND DOUBLE ROBOT
110 2MHFSA007202 1 BKT
ＢＫＴ
FOR SINGLE AND DOUBLE ROBOT
111 H54269 2 BOLT, HEX SOCKET
ボルト　六角穴
M05X010(3ｶｼﾛ)
FOR SINGLE AND DOUBLE ROBOT
112 2MHFSA007000 1 BKT
ＢＫＴ
FOR SINGLE AND DOUBLE ROBOT
113 H54269 2 BOLT, HEX SOCKET
ボルト　六角穴
M05X010(3ｶｼﾛ)
FOR SINGLE AND DOUBLE ROBOT
115 Y60205 1 UNION, HALF
ユニオン　ハーフ
KQ2H08-00A FOR SINGLE AND DOUBLE ROBOT
120 2MHFSA007302 1 COVER, WIRING
カバー　配線
FOR SINGLE AND DOUBLE ROBOT
121 K5258W 2 SCREW, HEX SOCKET BUTTON
小ネジ　六角穴ボタン
M05X008(3ｶ ｼﾛ)
FOR SINGLE AND DOUBLE ROBOT
122 K5258W 2 SCREW, HEX SOCKET BUTTON
小ネジ　六角穴ボタン
M05X008(3ｶ ｼﾛ)
FOR SINGLE AND DOUBLE ROBOT
123 K63754 1 FLEXIBLE TRACK
ケーブルベア
B15i.5.038.0-17ﾘﾝｸ_105.34P
FOR SINGLE AND DOUBLE ROBOT
124 K53621 2 SCREW, HEX SOCKET COUNTERSUNK
小ネジ　六角穴皿
M06X010 (3ｶ ｼﾛ)
FOR SINGLE AND DOUBLE ROBOT
130 2MHFSA002004 1 BKT
ＢＫＴ
FOR SINGLE AND DOUBLE ROBOT
131 H54269 5 BOLT, HEX SOCKET
ボルト　六角穴
M05X010(3ｶｼﾛ)
FOR SINGLE AND DOUBLE ROBOT
132 2MHFSA005700 2 RETAINER, WIRING
押え　配線
FOR SINGLE AND DOUBLE ROBOT
133 H5427H 4 BOLT, HEX SOCKET
ボルト　六角穴
M05X025(3ｶ ｼﾛ)
FOR SINGLE AND DOUBLE ROBOT
134 S70034 4 SPACER
スペーサ
CE-513N FOR SINGLE AND DOUBLE ROBOT
135 2MGYSA006801 1 COVER, CONNECTOR
カバー　コネクタ
FOR SINGLE AND DOUBLE ROBOT
136 S63714 4 SPACER
スペーサ
MSB-318-04E FOR SINGLE AND DOUBLE ROBOT
137 S63433 4 SPACER
スペーサ
PSB-305E FOR SINGLE AND DOUBLE ROBOT
138 K51981 4 SCREW, WASHER ASS'Y
小ネジ　座金組込み
M03X006 ﾅﾍﾞｾﾑｽ P4(3ｶｼﾛ)
FOR SINGLE AND DOUBLE ROBOT
139 2MHFSA002202 1 COVER, STATIONARY
カバー　固定
FOR SINGLE AND DOUBLE ROBOT
140 H5426H 4 BOLT, HEX SOCKET
ボルト　六角穴
M04X006(3ｶ ｼﾛ)
FOR SINGLE AND DOUBLE ROBOT
141 2MHFSA005800 1 RETAINER, WIRING
押え　配線
FOR SINGLE AND DOUBLE ROBOT
142 H5426H 4 BOLT, HEX SOCKET
ボルト　六角穴
M04X006(3ｶ ｼﾛ)
FOR SINGLE AND DOUBLE ROBOT
143 H5426L 4 BOLT, HEX SOCKET
ボルト　六角穴
M04X010(3ｶ ｼﾛ)
FOR SINGLE AND DOUBLE ROBOT
145 K63105 1 FLEXIBLE TRACK
ケーブルベア
E6.29.070.075.52-E6.290.070.12 FOR SINGLE AND DOUBLE ROBOT
146 H5426M 4 BOLT, HEX SOCKET
ボルト　六角穴
M04X012(3ｶ ｼﾛ)
FOR SINGLE AND DOUBLE ROBOT
147 2MHFSA011700 1 BKT
ＢＫＴ
FOR SINGLE AND DOUBLE ROBOT
148 2MHFSA011800 1 BKT
ＢＫＴ
FOR SINGLE AND DOUBLE ROBOT
150 A61138 1 ELBOW
エルボ
KQ2L12-00A FOR SINGLE AND DOUBLE ROBOT
151 N60809 1 NIPPLE
ニップル
KQ2N12-99 FOR SINGLE AND DOUBLE ROBOT
152 Y60359 1 UNION, HALF
ユニオン　ハーフ
KQ2H12-16A FOR SINGLE AND DOUBLE ROBOT
153 A61009 1 ELBOW
エルボ
KQ2L12-99A FOR SINGLE AND DOUBLE ROBOT
155 Y60365 1 UNION
ユニオン
KQ2H10-12A FOR SINGLE AND DOUBLE ROBOT
156 Y60360 1 UNION, ELBOW
ユニオン　エルボ
KQ2L08-10A FOR SINGLE AND DOUBLE ROBOT
157 A61138 1 ELBOW
エルボ
KQ2L12-00A FOR SINGLE AND DOUBLE ROBOT
158 Y60191 1 UNION, ELBOW
ユニオン　エルボ
KQ2L08-00A FOR SINGLE AND DOUBLE ROBOT
159 S2025A 1 SHEET
シート
CTAM1 FOR SINGLE AND DOUBLE ROBOT
160 K5172L 1 SCREW, C/R TRUSS
小ネジ　十穴トラス
M04X006(3ｶ ｼﾛ)
FOR SINGLE AND DOUBLE ROBOT
161 2MHFSA013500 1 SHEET
シート
FOR SINGLE AND DOUBLE ROBOT
181 2MHFSA011901 1 RETAINER, WIRING
押え　配線
FOR SINGLE ROBOT
182 S73171 2 SPACER
スペーサ
CE-512N FOR SINGLE ROBOT
120
PTS-AIMEX3-L-06
このページはブランクページです
This page is intentionally blank.
此页是空白页
121
PTS-AIMEX3-L-06
1
2
2
3
4
3
4
5
6
7
8
10
11
12
13
12
13
14
15
16
17
18
16
16.3
16.4
18
19
19
20
20
21
22
23
24
23
24
25
26
51
52
52
53
54
53
54
55
56
57
58
60
61
62
63
62
63
64
65
66
66.3
66.4
66
66.1
66.2
67
68
68
69
69
70
70
71
72
73
74
73
74
75
76
16.1
16.2
16
16
66
66
2UHGSA000126
;<ࣟ࣎ࢵࢺ

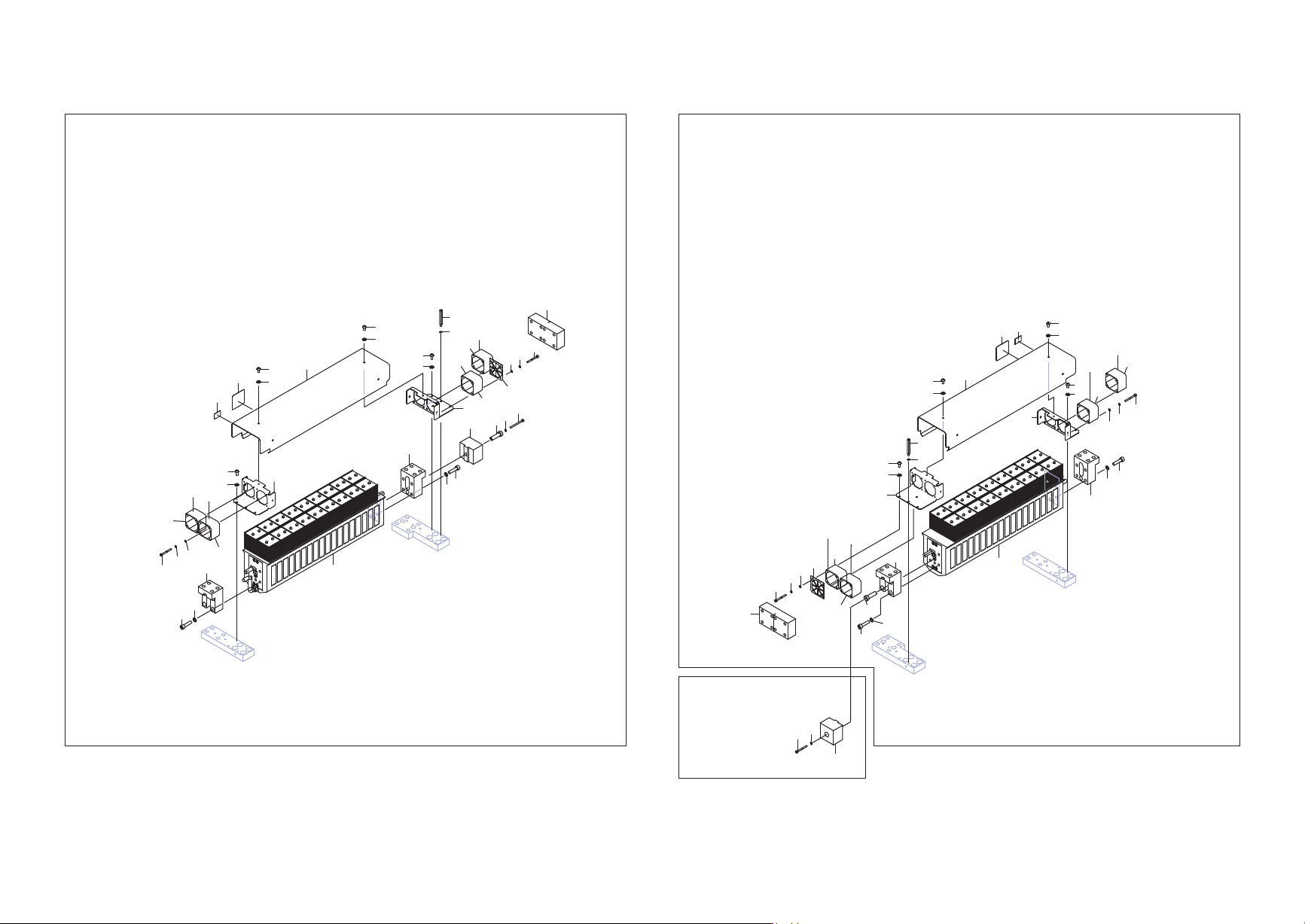

XY ROBOT 6/
FOR DOUBLE ROBOT
FOR DOUBLE ROBOT
FOR SINGLE ROBOT
DOUBLE ROBOT
