16 Placement Heads SIPLACE TwinStar SIPLACE T winS tar Fine-pitch camera a (component camera type 33) a) Two stationary cameras may be configured for each gantry. SIPLACE TwinStar Flip-chip came ra (option) a (component …
15
Placement Heads
SIPLACE MultiStar (CPP)
Increased Performance & Flexibility
The SIPLACE MultiStar is
the perfect SIPLACE solu-
tion:
• In an increasingly complex
production environment
• For an increasing diversity
of setup and production
strategies
• For a wide spectrum of
components
• For frequent product
changeovers.
It is even possible to place
larger components without a
noticeable drop in perfor-
mance. The SIPLACE Multi-
Star is perfectly designed for
integration into a flexible and
speed-optimized production
environment.
One head for all applica-
tions
• The SIPLACE MultiStar
offers top flexibility
• It combines
Collect&Place mode with
Pick&Place mode

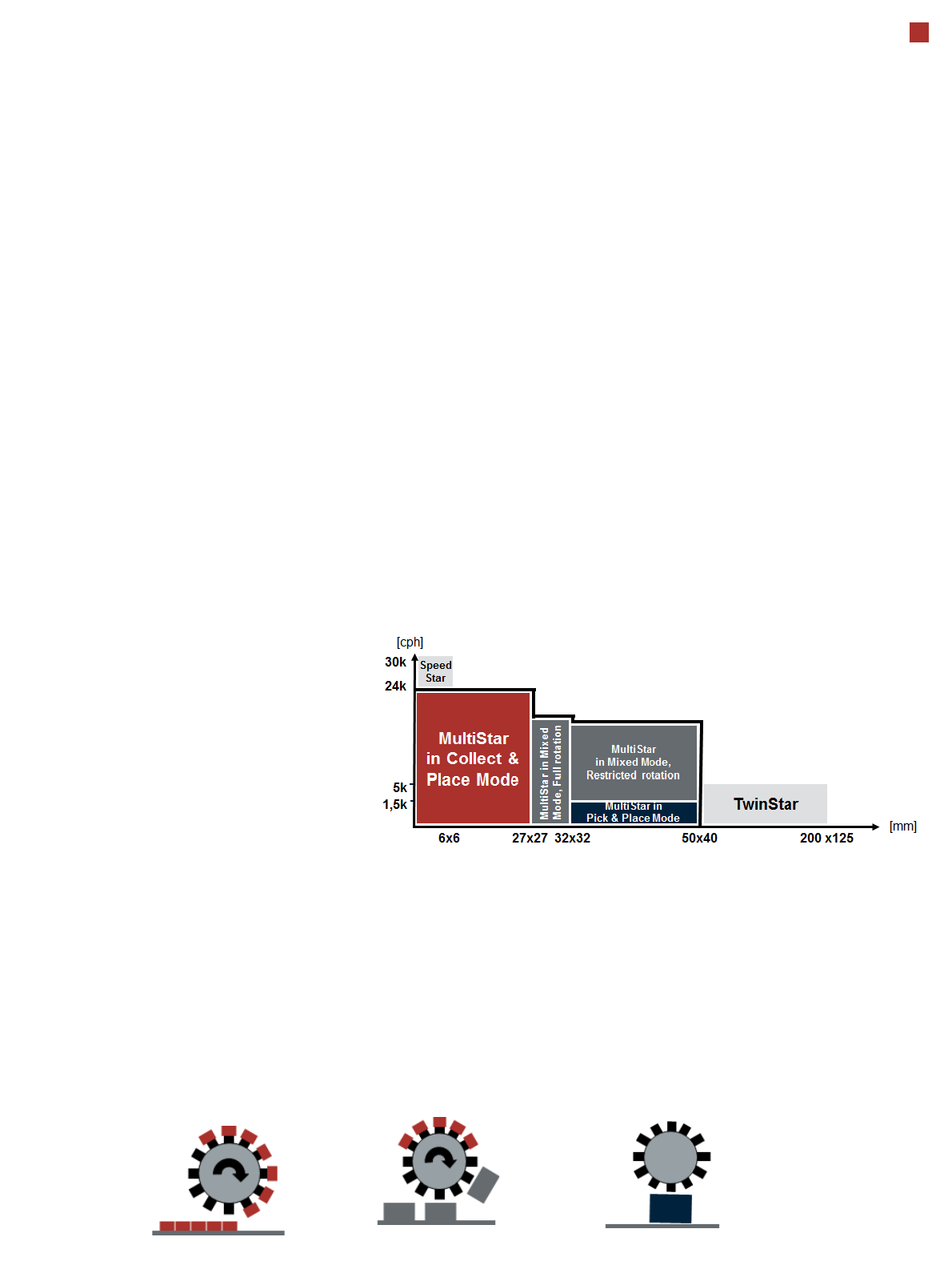

One head supports three
placement modes:
Elimination of bottlenecks
• A wider component spec-
trum
• Optimum performance uti-
lization
• More feeder tracks for the
TwinStar
• Improved throughput due
to perfect line utilization
• More products in one set-
up family
Throughput
• Up to 23,000
components/h bench-
mark value
• Up to 19,000
components/h IPC 9850
performance
Collect&Place mode Mixed mode
Pick&Place mode
16
Placement Heads
SIPLACE TwinStar
SIPLACE TwinStar
Fine-pitch camera
a
(component camera type 33)
a) Two stationary cameras may be configured for each gantry.
SIPLACE TwinStar
Flip-chip camera (option)
a
(component camera type 25)
Component range
b
b) Please note that the range of components that can be placed is also affected by the pad geometry, customer-
specific standards, component packaging tolerances and component tolerances.
0402 to SO, PLCC, QFP, BGA, spe-
cial components, bare dies, flip-
chips
0201 to SO, PLCC, QFP, sockets,
plugs, BGA, special components,
bare dies, flip-chips, shields
Component specs
c
max. height
min. lead pitch
min. lead width
min. ball pitch
min. ball diameter
min. dimensions
max. dimensions
max. weight
d
c) If MultiStar and TwinStar are combined in one placement area, the maximum component height is restricted.
d) If standard nozzles are used.
25 mm (larger heights on request)
0.3 mm
0.15 mm
0.35 mm
0.2 mm
1.0 x 0.5 mm²
55 x 45 mm² (single measurement)
For use with two nozzles
50 x 50 mm² or
69 x 10 mm²
For use with one nozzle:
85 x 85 mm² or
125 x 10 mm²
max. 200 x 125 mm² (with restric-
tions)
100 g
25 mm (larger heights on request)
0.25 mm
0.1 mm
0.14 mm
0.08 mm
0.6 x 0.3 mm²
16 x 16 mm² (single measurement)
55 x 55 mm² (multiple measurement)
100 g
Programmable set-down
force
1.0 N - 15 N
2.0 N - 30 N
e
e) SIPLACE high-force head.
1.0 N - 15 N
2.0 N - 30 N
e
Nozzle types
f
f) Over 300 different nozzles and 100 gripper types are available, with an extensive nozzle database available
online.
5xx (standard)
4xx + adapter
8xx + adapter
9xx + adapter
gripper
5xx (standard)
4xx + adapter
8xx + adapter
9xx + adapter
gripper
Nozzle spacing for P&P
heads
70.8 mm 70.8 mm
X/Y accuracy
g
g) The accuracy value was measured using the vendor-neutral IPC standard.
± 26 µm/3± 35 µm/4 ± 22 µm/3± 30 µm/4
Angular accuracy ± 0.05° / 3± 0.07°/ 4 ± 0.05° / 3± 0.07° / 4
Illumination levels 6 6
Possible illumination
level settings
256
6
256
6
17
Placement Heads
Nozzle Changers
Description
Nozzle changers increase
the flexibility of placement
heads when processing dif-
ferent components. The
nozzle configuration can be
quickly modified for new
placement jobs. Exactly
defined positions and the per-
fect seating of the nozzle in
the garage guarantee mini-
mal radial eccentricity at the
placement head.
The nozzle changers for the
MultiStar and the SpeedStar
are equipped with a monitor-
ing circuit which checks
whether the nozzle magazine
is seated correctly on the
mount. The nozzle changer
also detects from the coding
whether it is a magazine for
1xx, 20xx or 28xx nozzles.
Nozzle changers for the MultiStar and SpeedStar (PWCPP)
Standard configuration:
SIPLACE MultiStar: 5 magazines for 20xx nozzles
(60 nozzle holders) and
1 magazine for 28xx nozzles
(9 nozzle holders)
SIPLACE SpeedStar: 6 magazines (72 nozzle holders)
Magazine for two
standard nozzles
Magazine for one special nozzle, gripper
Nozzle changers for the SIPLACE TwinStar (PWTH)
Magazine for 9
type 28xx nozzles
Magazine for 12
type 20xx nozzles
Nozzle changers for the SIPLACE SpeedStar (PW20)
6 magazines 72 nozzle holders)
Magazine for 12
type 10xx, 11xx or 12xx nozzles
