22
SIPLACE X4I PCB Conveyor
Technical Data
Single conveyor Flexible dual
conveyor
Dual conveyor in
Single conveyor mode
Fixed conveyor side Right or left Right or left Right or left
Standard dimensions
(length x width)
50 x 50 mm² to
380 x 535 mm²
a
a) With PCB widths > 450 mm make sure that the peripheral modules are also able to process these
widths.
50 x 50 mm² to
380 x 250 mm²
50 x 50 mm² to
380 x 436.5 mm²
PCB thickness Standard: 0.3 mm to 4.5 mm (others available on request)
PCB warpage see page 25
PCB weight max. 3 kg
Clearance on PCB under-
side
25 mm ± 0.2 mm (standard)
PCB transport height 830 mm ± 15 mm (option)
900 mm ± 15 mm (option)
930 mm ± 15 mm (standard)
950 mm ± 15 mm (SMEMA option)
Type of interface SMEMA / Siemens
b
b) Option.
Component-free PCB han-
dling edge
3 mm
PCB changeover time < 2.5 s
PCB positioning accuracy ± 0.5 mm
Flexible dual conveyor Conveyor mode: I-placement, synchronous or asynchronous
(selected via the software)
Components to be placed on each conveyor lane: same or different
PCB width on each conveyor lane: same or different
Bad fiducial detection Single conveyor: standard
Synchronous dual conveyor: standard (no global ink spot)
Asynchronous dual conveyor: standard
Automatic electrical width
adjustment
Single conveyor: standard
Synchronous dual conveyor: standard
Asynchronous dual conveyor: standard
23

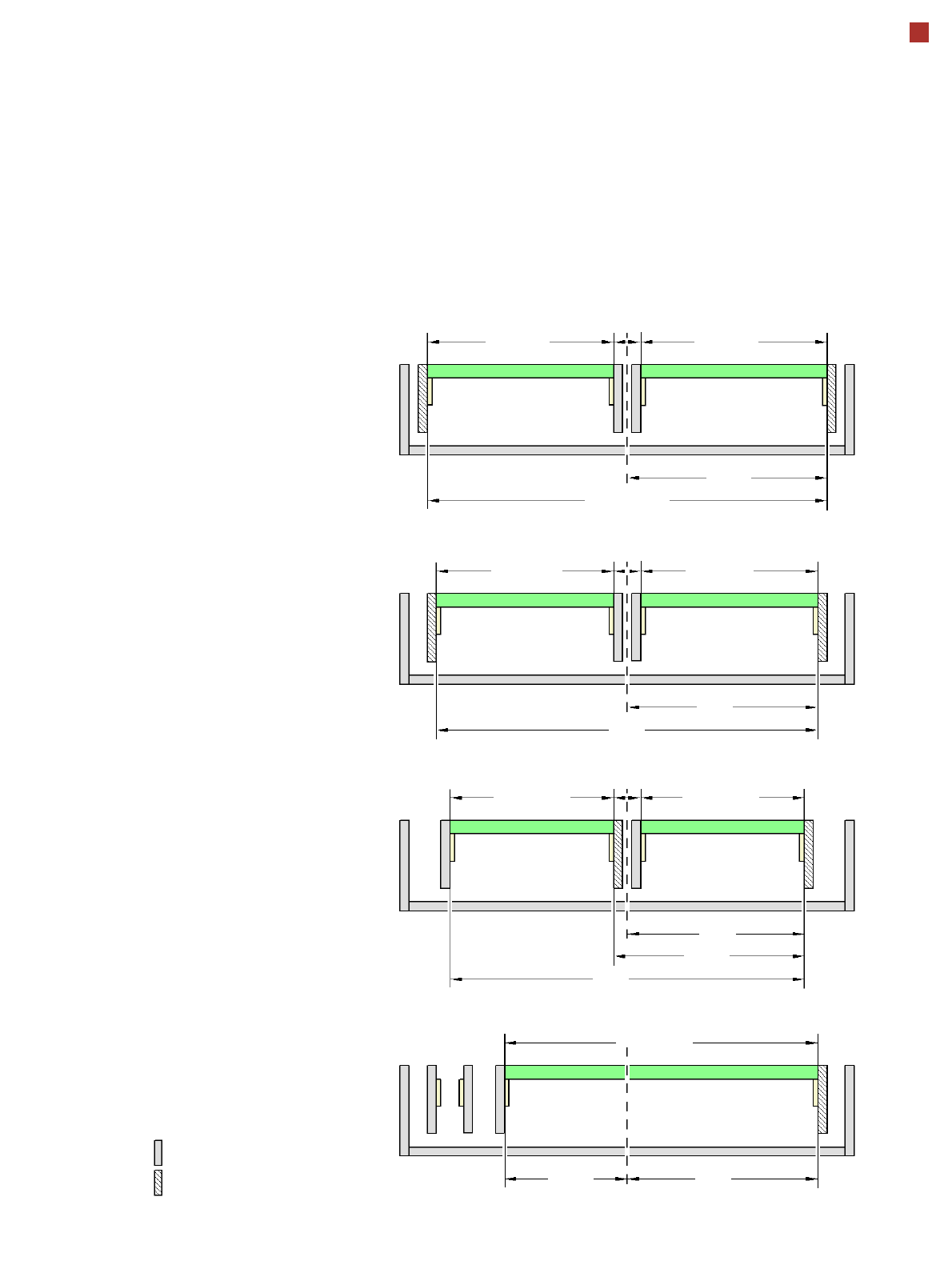

PCB Conveyor
SIPLACE X4I I-Placement
X4I/X4/X3/X2 Alternating Placement Mode
Alternating or
I-placement
a
mode
Distance between outer con-
veyor edges: 535 mm, 2 lanes,
stationary outer conveyor edge
Alternating or I-placement
a
mode
Distance between outer con-
veyor edges: 508 mm, 2 lanes,
stationary outer conveyor edge
Alternating placement mode
Distance between outer con-
veyor edges: 468 mm, 2 lanes,
right conveyor edges are
stationary
b
Alternating placement mode
Distance between outer con-
veyor edges: 508 mm, dual con-
veyor in Single conveyor mode,
right conveyor edge is
stationary
b
max. 250
Movable conveyor side
Stationary conveyor side
a) For SIPLACE X4I only.
b) Only settings with stationary conveyor edge on the right are shown. A setting with the stationary conveyor edge on the left
is also possible. All dimensions in millimeters.
c) Widths up to 450 mm are possible for SIPLACE X4/X3/X2. In this case, the distance between outer conveyor edges is 535
mm.
max. 250
267.5
535
min. 35
max. 236.5
254
508
min. 35 mm
max. 236.5
254
182.5
max. 216.5
234
min. 35
max. 216.5
251.5
468
max. 436.5
c
24
SIPLACE X4I/X4 PCB Conveyor

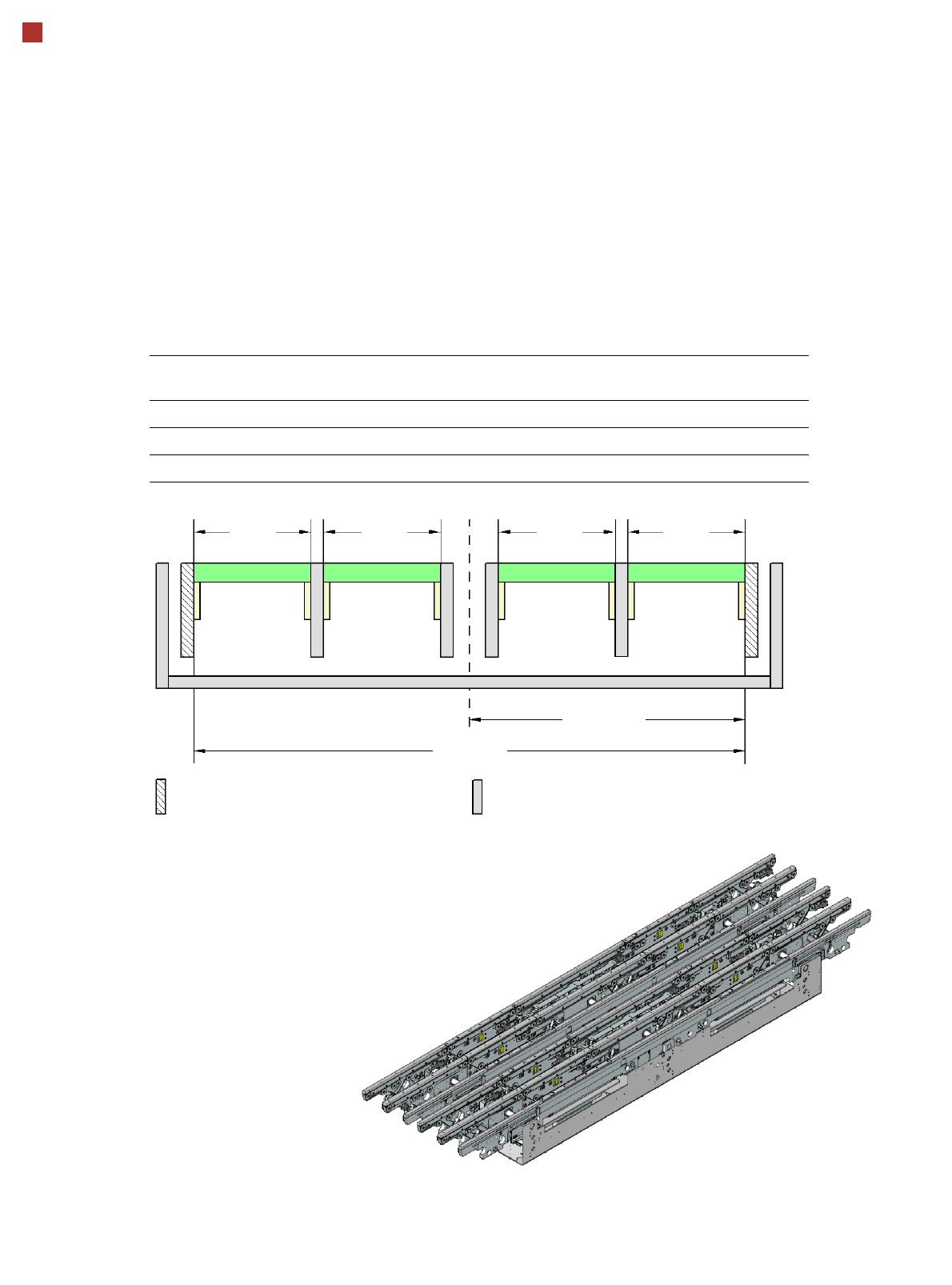

SIPLACE Quad Lane Conveyor
Description
The quad lane conveyor can
be installed on SIPLACE X4I
and SIPLACE X4 placement
machines. This allows up to
four PCBs to be processed at
the same time on this con-
veyor.
Conveyor lanes 1R and 1L or
2R and 2L carry the PCBs in
synchronous mode, while
the two conveyor lane
groups 1 and 2 can trans-
port the PCBs in both syn-
chronous and asynchronous
mode. On the quad lane con-
veyor, the two outer con-
veyor rails are stationary.
The conveyor can be config-
ured as a 1-lane, 2-lane or 4-
lane conveyor using the soft-
ware without making
any changes to the
hardware.
Technical data
Conveyor mode PCB width
lane 1R [mm]
PCB width
lane 1L [mm]
PCB width
lane 2R [mm]
PCB width
lane 2L [mm]
SIPLACE Quad Lane max. 114 max. 114 max. 114 max. 114
Quad Lane in Dual lane mode max. 178.5 max. 178.5
Quad Lane in Single lane mode max. 306.5
Max.
114 mm
267.5 mm
535 mm
Movable conveyor sideStationary conveyor side
Max.
114 mm
Max.
114 mm
Max.
114 mm
Lane 2L Lane 2R Lane 1L Lane 1R
