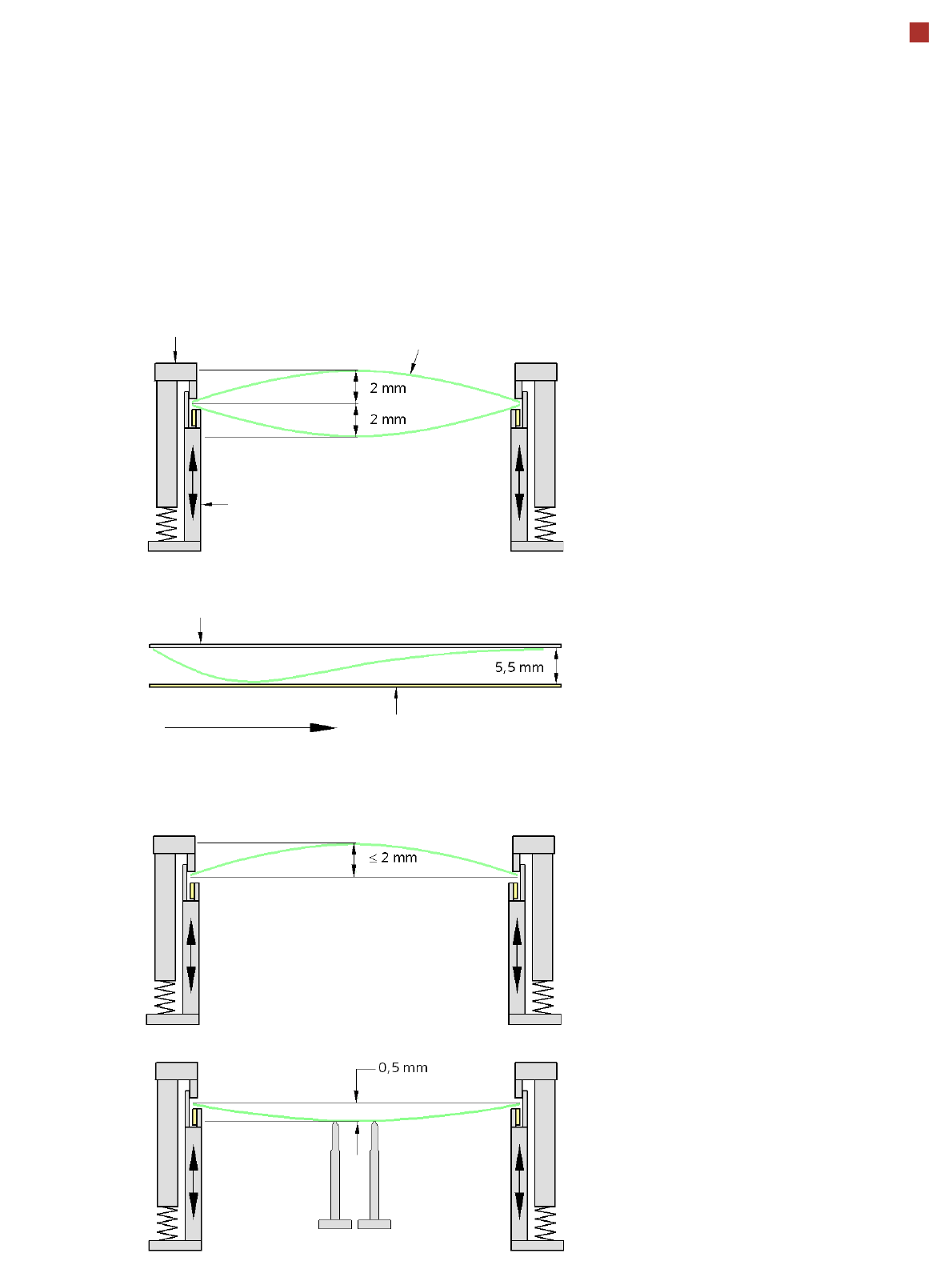

PCB Warpage

PCB warpage across the direction of travel

max. 1 % of the PCB diagonal, but not ex-

ceeding 2 mm

PCB warpage on the conveyor

PCB warpage during placement

PCB transport direction

PCB warpage down, max. 0.5 mm

Use magnetic pin supports to achieve this

value.

Conveyor belt

Fixed clamped edge

PCB warpage in direction of travel

+ PCB thickness < 5.5 mm

Fixed clamped edge

Movable clamping device

For warpage of less than 2 -mm, the ink

spots are also in the middle of the PCB in

the digital camera's focus. When all the tol-

erances are taken into account, this value is

reduced to 1.5 mm.

You should also note that the warpage re-

duces the component height.

Magnetic pin support

PCB

Component Feeding

SIPLACE X Component Changeover Table

The SIPLACE X component

changeover tables are stand-

alone and easily maneuver-

able modules that are moved

into the machine with the

automatic docking unit. This

ensures that the table is

accurately positioned in the

placement machine. Reels

are kept in the tape container

on the component change-

over table. A cutting device

on the machine automatically

cuts the used tape. The com-

ponent changeover tables

can be set up directly on the

machine or in an external

set-up area with feeder mod-

ules. The benefits of offline

set-up are that the set-ups

can be prepared without

stopping the line. This allows

the set-up to be changed

very quickly using the

changeover table principle.

The SIPLACE X component

changeover table also sup-

port extremely high-speed

attachment and removal of

the feeder modules while the

placement process is run-

ning. The component feed-

ers are at rest during the

placement process - allowing

tapes to be spliced without

stopping the machine.

If an optional component bar-

code reader and the Setup

Center option are installed, it

is possible to read and check

the barcodes on the tape

reels. This makes sure that

the component is allocated to

the right lane, and the PCB

placement can be traced

using <NoHyphen/>trace-

ability software.

Dummy feeder modules are

used at unassigned locations

to protect the operators.

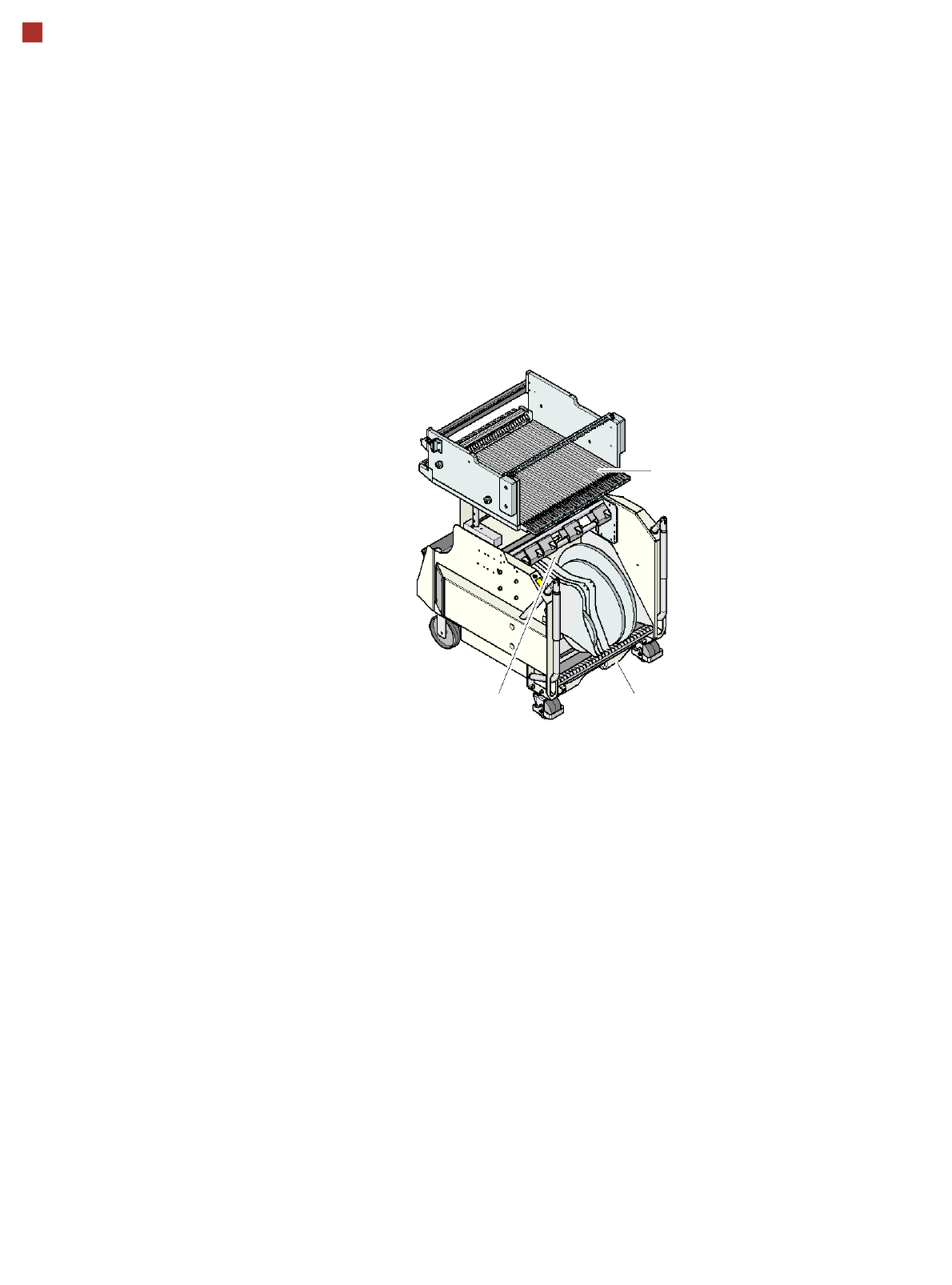

SIPLACE X component

changeover table

Tape container Waste container for remaining

empty tape

Component

feeder table

Component Feeding

SIPLACE X Component Changeover Table

Technical Data

Length x width

752 x 592 mm²

Height for

830 mm PCB transport height

900 mm PCB transport height

930 mm PCB transport height

950 mm PCB transport height

820 mm

890 mm

920 mm

940 mm

Weight

without feeder modules

with feeder module at all locations

80.4 kg

139.6 kg

Tape reel diameter

standard

maximum

up to 432 mm (17“)

483 mm (19“)

Locations for feeder modules max. 40 (8 mm X)

Changeover time for the component

changeover table

< 1 minute

Component feeding

(SIPLACE X component changeover table)

4 component changeover tables with tape reel

holders and integral waste containers

40 x 8 mm feeder module locations per

component changeover table

Matrix tray changer in place of component change-

over tables at locations 2 and 4

Feeder module types (SIPLACE X) Component tapes, waffle-pack trays, stick maga-

zines and label feeders with adapter, reject con-

veyors

Feeding capacity

(SIPLACE X component changeover table)

160 8 mm X tape feeder modules (X4I: 148)

80 2x8 mm X tape feeder modules (X4I: 74)

80 12 mm X tape feeder modules (X4I: 74)

52 16 mm X tape feeder modules (X4I: 48)

52 24 mm X tape feeder modules (X4I: 48)

40 32 mm X tape feeder modules (X4I: 36)

32 44 mm X tape feeder modules (X4I: 28)

24 56 mm X tape feeder modules (X4I: 22)

20 72 mm X tape feeder modules (X4I: –)

16 88 mm X tape feeder modules (X4I: –)
