Component Feeding

Waffle-Pack Tray Holder

Technical data for SIPLACE X waffle-pack tray

Dimensions LxWxH 429 x 376 x 200 mm³

Location assignment on the

SIPLACE X component change-

over table

Positioning options on the

X-series machines

Locations 2 and 4

Range of placement heads TwinStar, MultiStar

Max. waffle-pack tray height

including component

MultiStar

TwinStar

16 mm

30 mm

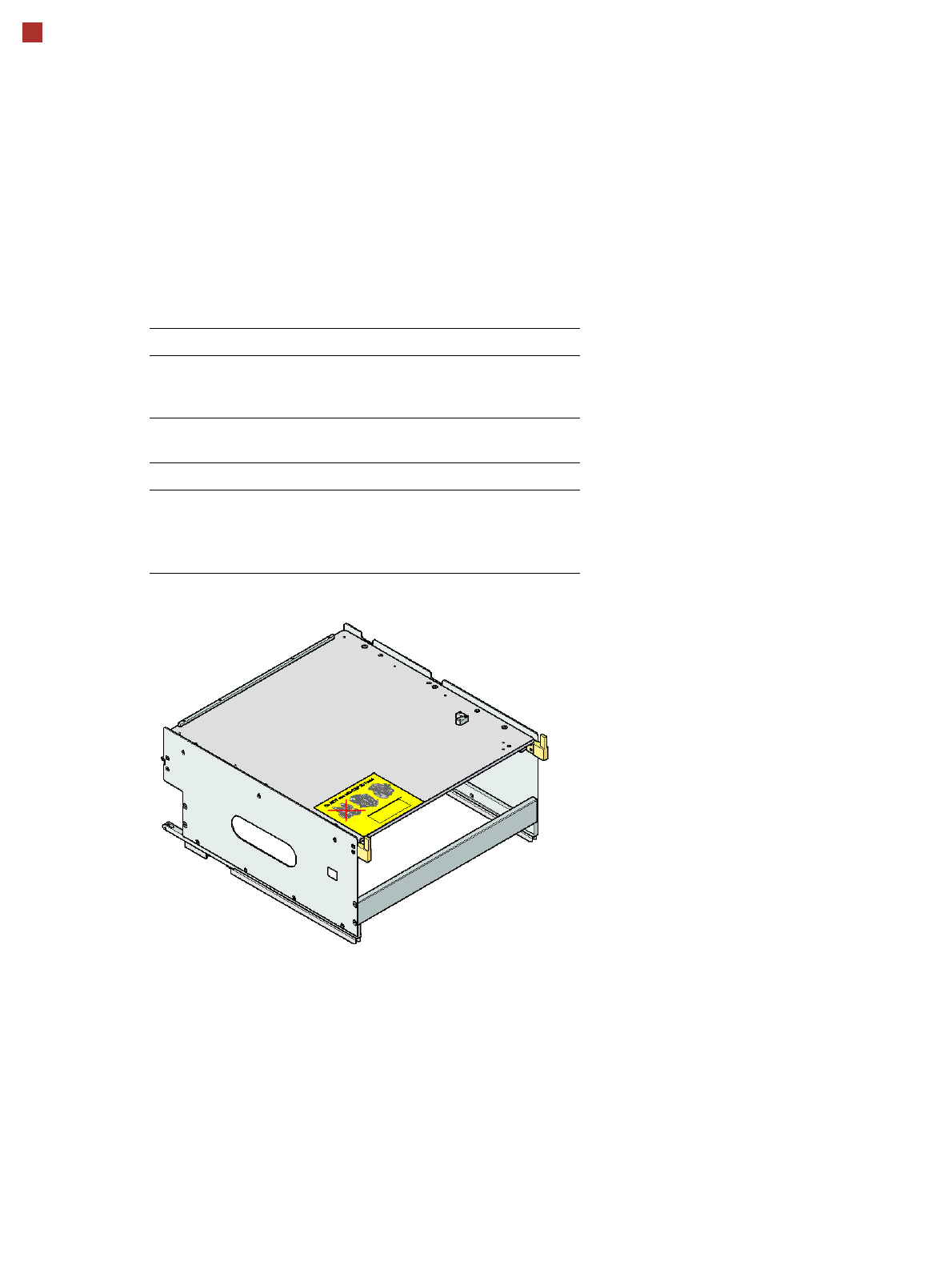

Waffle-pack tray holder SIPLACE X

Component Feeding

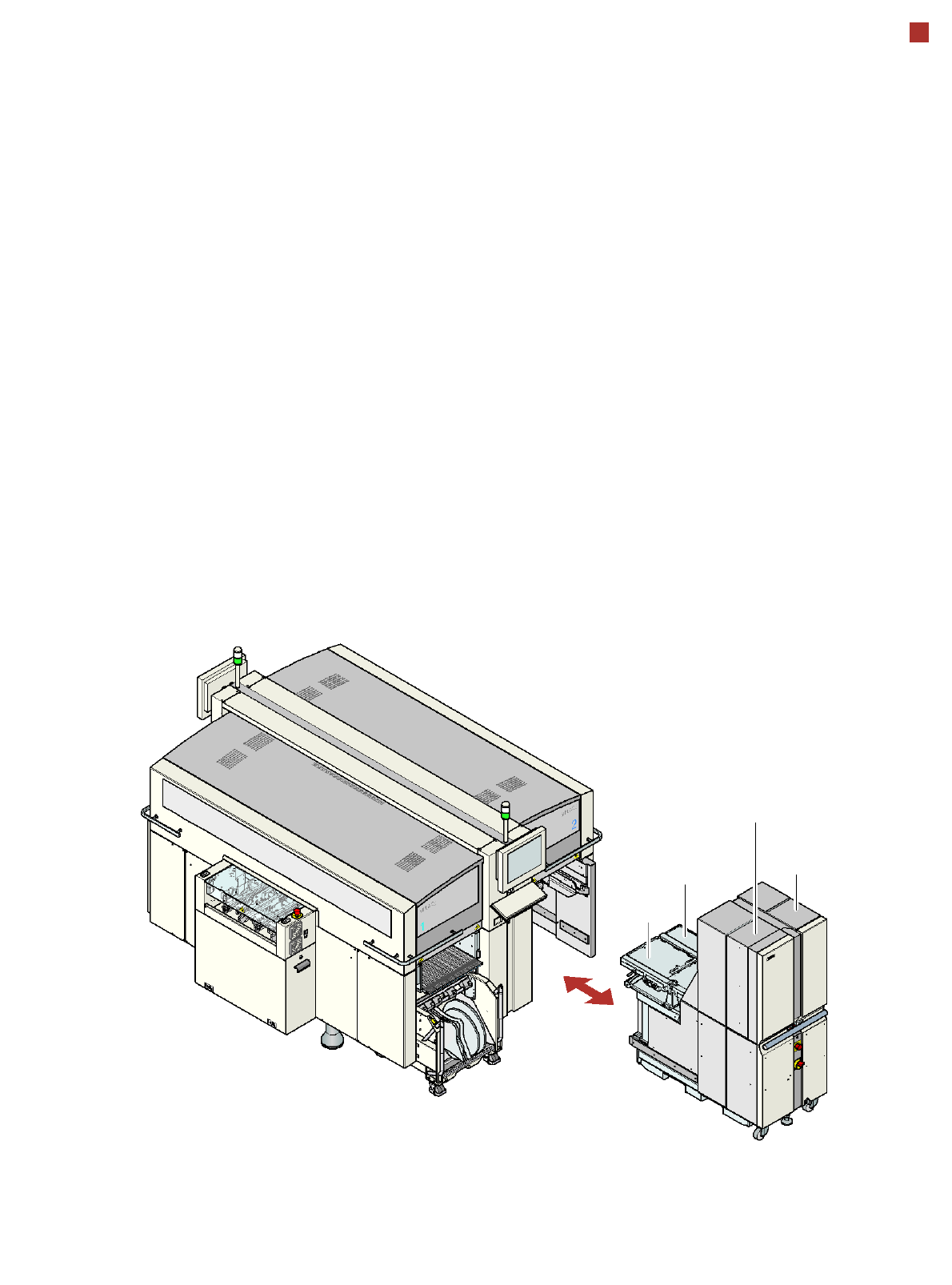

Matrix Tray Changer (MTC)

For numerous tray fed com-

ponents we recommend an

automatic tray change using

a matrix tray changer (MTC).

The MTC set-up is precisely

matched to the placement

sequence in order to opti-

mize the timings and dis-

tances traveled. Two bins

with component trays move

independently of one another

in the vertical direction until

the desired magazine is

within the range of the feed

axis. The horizontal feed axis

transports the waffle-pack

tray from the bin into the

access area of the place-

ment head. The first maga-

zine is made available as

soon as a PCB moves onto

the PCB conveyor, and valid

panel and set-up data is

available. All other magazine

changes are carried out time-

neutrally during the place-

ment process. Jedec maga-

zines can be refilled without

stopping the machine.

Defective components are

returned to the original tray.

The matrix tray changer can-

not be used with the Speed-

Star (C&P20).

Tray supply 1

Feed

axis 1

Positioning options

for the MTC:

locations 2 and 4

Tray supply 2

Feed

axis 2

Component Feeding

Matrix Tray Changer (MTC)

Technical Data

Electrical ratings

Tray supply 1 (XL) Tray supply 2

Dimensions

Length x width

Height

1305 x 600 mm²

1490 mm for 830 mm PCB transport height

1560 mm for 900 mm PCB transport height

1590 mm for 930 mm PCB transport height

1640 mm for 950 mm PCB transport height

Weight (basic equipment)

approx. 500 kg (with PCB magazines and waffle-pack tray carriers)

Weight (fully equipped)

approx. 534 kg (with components)

Weight (moving mass)

approx. 80 kg approx. 43.5 kg

Cassette size (L x W x H)

391.2 x 305.6 x 93.3 mm³ 352.7 x 154.8 x 133.8 mm³

Cassette weight

(fully equipped)

(without waffle-pack tray carrier)

approx. 11 kg

approx. 1.7 kg

approx. 7.5 kg

approx. 1.35 kg

Weight of the

waffle-pack tray carrier

850 g 150 g

Dimensions of the waffle-pack

tray carrier (L x W x H)

386.5 x 295.8 x 11.1 mm³ 371 x 146 x 10.1 mm³

Distance from cassette to cas-

sette

96 mm 135 mm

Distance from level to level

12 mm 11.8 mm

Storage capacity

30 XL waffle-pack tray carriers

with 60 JEDEC or

30 special magazines

of maximum size

40 waffle-pack tray carriers with

40 JEDEC

waffle-pack trays

Changeover time (over 5 levels)

approx. 2 s approx. 1.5 s

Max. height of component and

waffle-pack tray, including toler-

ances

all levels filled

one level free

two levels free

8.5 mm

19.5 mm

31.5 mm

8.5 mm

19.5 mm

–

Supply voltage 3 x 400 VAC, 50 Hz (Europe)

3 x 208 VAC, 60 Hz (USA)

Total power 1.5 kW

Apparent power 3.85 kVA

Rated current 2.7 A at 3 x 400 VAC

4.2 A at 3 x 208 VAC

Fuses 3 x 16 A

Rated power consumption

of the largest consumer

2 A
