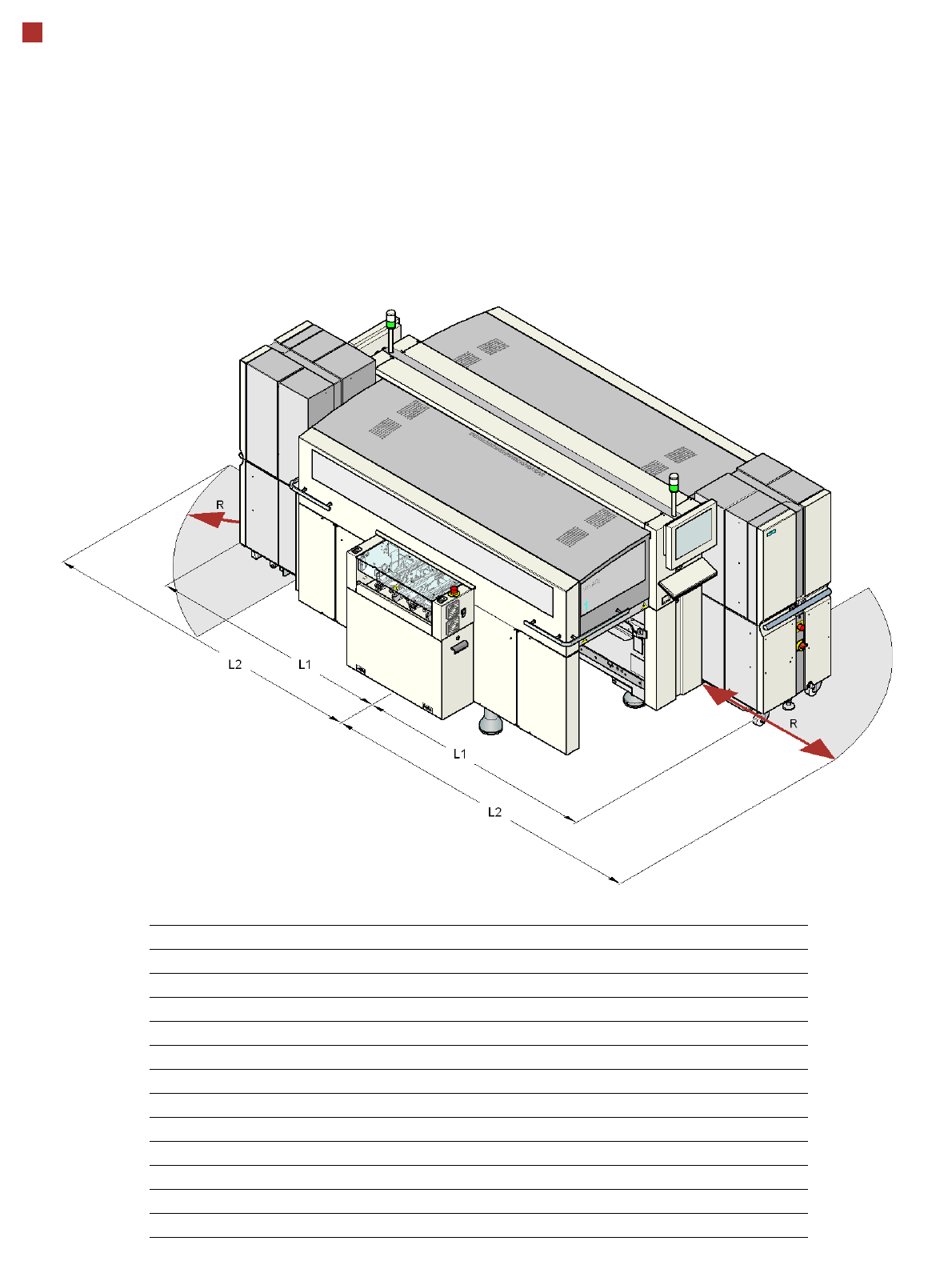

Maneuvering Radii for the MTC
Machine Location 2 Location 4
Maneuvering radius R
X4 1303 1303
X3 1123 1303
X2 1123 1123
Distance L1: Middle of machine to outer edge of MTC
X4 1802 1802
X3 1622 1802
X2 1622 1622
Distance L2: Middle of machine to the wall
X4 2562 2562
X3 2382 2562
X2 2382 2382
59
Technical Data

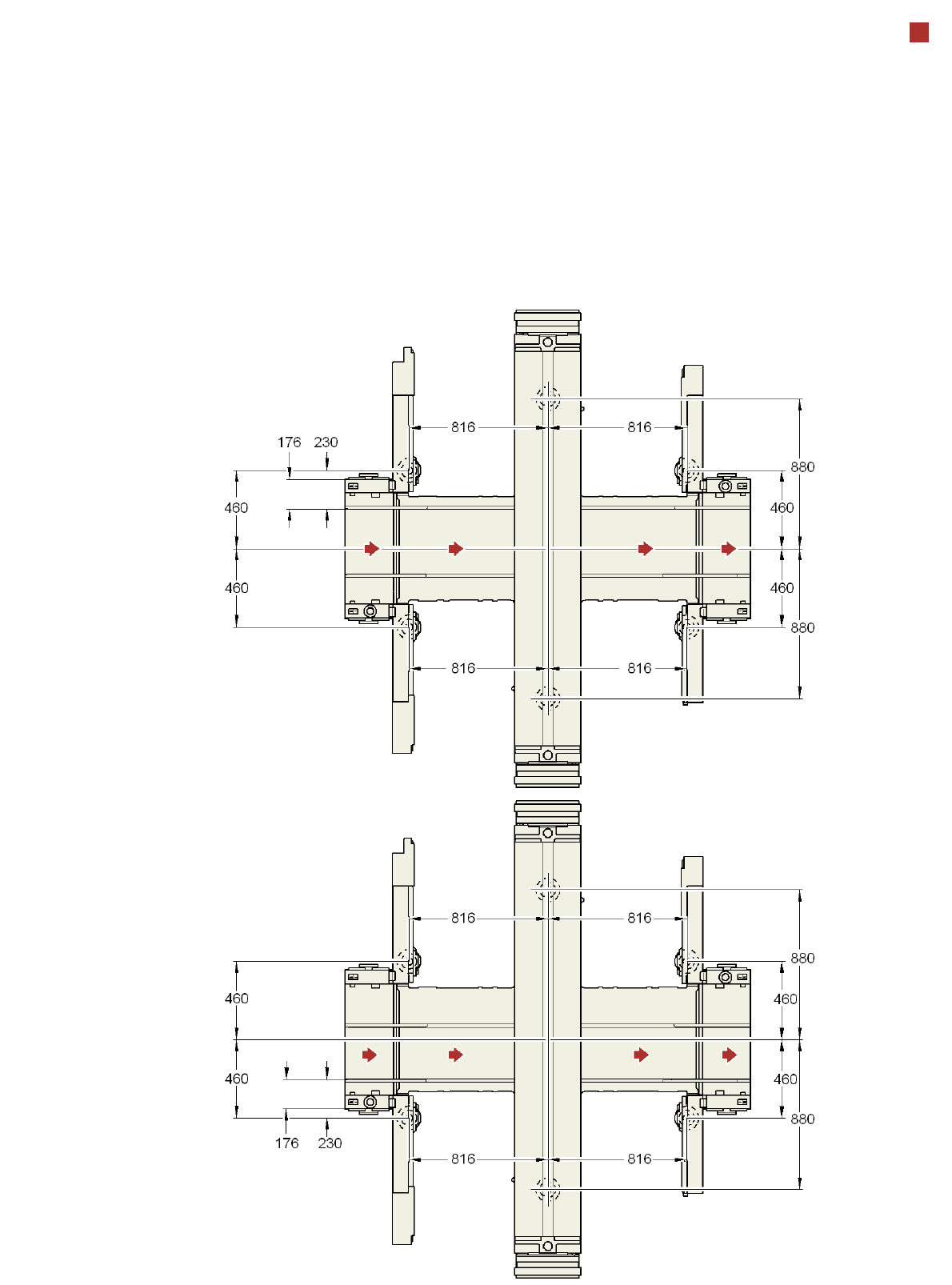

Spacing Distances for the Single Conveyor
Stationary conveyor side left,
standard conveyor width
Stationary conveyor side right,
standard conveyor width
60
Technical Data
Spacing Distances for the Flexible Dual Conveyor
Stationary conveyor side left,
standard conveyor width
Stationary conveyor side right,
standard conveyor width
