6-B 真 空ポンプユニット Vacuum Pump Unit パーツレイアウト Ki t N o . キット 品番 Kit N am e キット名称 N610012858AA ｾｸｼｮﾝNo. PARTS LAYOUT Section No. - - S13 ( KN610012858AA-09-2 )
Ref
No.
Remarks
R
1
Q'ty
6-A
真
空ポンプユニット
Vacuum Pump Unit
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610012858AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
BASE
1
1 N210029990AB
BRACKET
1
2 N210029991AA
BRACKET
1
3 N210029992AA
BRACKET
1
4 KXFB00JJA01
BRACKET
1
8 N210031696AA
Vacuum Pump Cooling Fan
1
9 N610069822AA Vacuum Pump Cooling Fan CCC:-G12
PUMP
1
12 N510012550AA
S
KHA400-106-G1(KB020)
JOINT
1
13 N431KQ2K-160 KQ2K12-03S
BOLT
4
14 KXF0DY0ZA00 ME-25
GROMMET
1
15 N510012972AB C-30-NG-79-M-EP-UL
FAN-GUARD
2
16 KXF07S8AA00 109-619E
BOLT
2
26 N510017376AA
Hexagon socket head cap screw M4X6-10.9 A2J(Trivalent)
BOLT
4
27 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
BOLT
2
30 N510017386AA
Hexagon socket head cap screw M5X10-10.9 A2J (Trivalent)
BOLT
8
31 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
BOLT
3
33 N510017470AA
Hexagon socket head cap screw M8X16-10.9 A2J (Trivalent)
WASHER
4
34 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
14
35 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
3
36 N510018503AA
Round finish plain washer 8 10H A2J (Trivalent)
WASHER
4
39 N510020100AA Thick washer for M5
NUT
20
40 N510017862AA
Hexagon nut Type-1 Best class M5-6H-4T A2J (Trivalent)
TERMINAL
1
41 N210001550AA
TRIM
1
42 KXF0DUCAA00 CE-032
TRIM
2
43 KXF0DUCAA00 CE-032
S12
--
( KN610012858AA-09-1 )

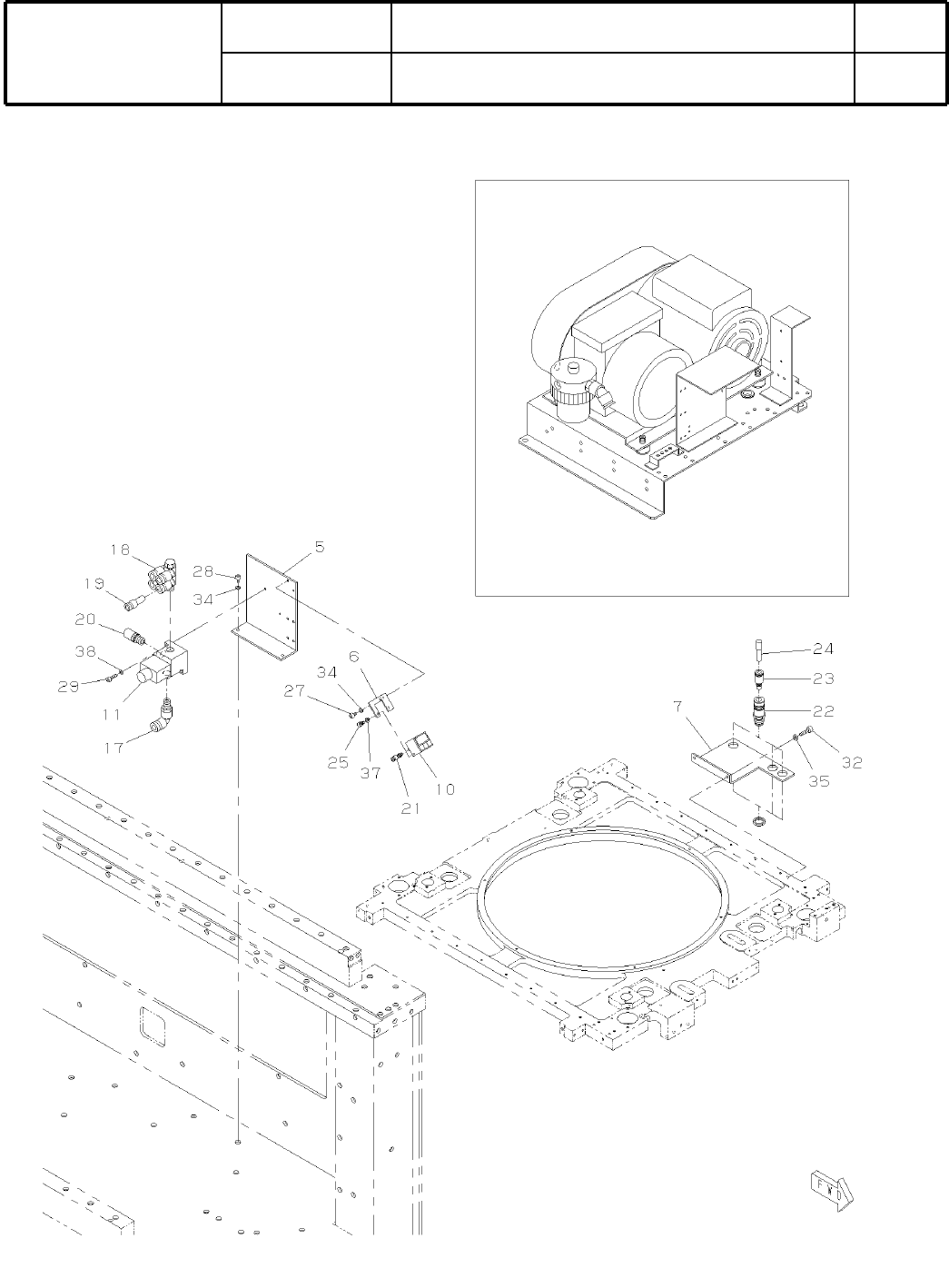

6-B
真
空ポンプユニット
Vacuum Pump Unit
パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610012858AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
S13
( KN610012858AA-09-2 )
Ref
No.
Remarks
R
1
Q'ty
6-B
真
空ポンプユニット
Vacuum Pump Unit
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610012858AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
BRACKET
1
5 N210029993AA
BRACKET
1
6 N210029994AA
BRACKET
1
7 N210075617AA
SENSOR
1
10 N610026796AA Sensor:-B1001
Valve
1
11 N610026797AA Valve:-F4003
JOINT
1
17 KXF0DWRNA00 KQ2L12-02S
JOINT
1
18 N431KQ2Z-355 KQ2ZD08-02S
JOINT
1
19 KXF0E39DA00 KQ2R04-08
SILENCER
1
20 N510064385AA AN15-02
JOINT
1
21 KXF0D2ZAA00 KQ2L04-M5
JOINT
3
22 KXF0977AA00 CPS15M-8B
JOINT
3
23 KXF09Y3AA00 CPP15-8B
JOINT
3
24 KXF0DZKRA00 KQ2P-08
BOLT
2
25 N510017341AA
Hexagon socket head cap screw M3X8-10.9 A2J (Trivalent)
BOLT
2
27 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
BOLT
2
28 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
2
29 N510017351AA
Hexagon socket head cap screw M4X16-10.9 A2J (Trivalent)
BOLT
2
32 N510017395AA
Hexagon socket head cap screw M5X16-10.9 A2J (Trivalent)
WASHER
4
34 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
2
35 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
2
37 N510018478AA
Small round-plain washer 3 10H A2J (Trivalent)
WASHER
2
38 N510018479AA
Small round-plain washer 4 10H A2J (Trivalent)
S14
--
( KN610012858AA-09-2 )
