㪊 㪯㪰䊁䊷䊑䊦 X- Y Ta bl e 䊌䊷䉿䊧䉟䉝䉡䊃 Kit N o . 䉨䉾䊃ຠ ⇟ Kit N am e 䉨䉾䊃ฬ⒓ N6 10 012 84 4AA 䍜䍖䍚䍌䍻㪥㫆㪅 PARTS LAYOUT Section No. M25 -0##
Ref
No.
Remarks
R
1
Q'ty
2-D
全
体
カバー
Whole Cover
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610029319AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
COVER
1
1 N210165851AA
S
BRACKET
1
16 N210070984AA
NUT
12
19 KXF0ATHAA00 SFB-001
CAP
12
20 KXF0ATFAA00 SFA-906
PULL
1
23 KXF0DX8BA00 AP-829-2-black
GAS-SPRING
2
27 KXF0E1VCA00
S
KSF90-10M
SCREW
4
29 N510018285AA
Cross recessed Truss head machine screw M5X10-4.8 A2S (Trivalent)
WASHER
16
30 N510011899AA NN-0816-10
SPACER
8
31 N510019916AA CB-503E
BOLT
4
32 N510020762AA MMSB10-10
WASHER
8
33 N510018506AA
Round finish plain washer (JIS B 1256:1978) 10 10H A2J (Trivalent)
BOLT
2
35 N510001804AA SRBS-M4X25
HINGE
2
40 N510011843AA B-2-B-11
BOLT
2
42 N510001803AA SRBS-M4X12
NUT
2
43 N510022614AA Domed cap nut Type-3 M4-4T A2J (Trivalent)
BOLT
10
49 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
WASHER
10
54 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
4
56 N510020100AA Thick washer for M5
NUT
4
58 N510017877AA
Hexagon nut Type-1 Best class M8-6H-4T A2J (Trivalent)
WASHER
4
68 N510020099AA Thick washer for M4
NUT-PLATE
2
70 N210053979AA
BOLT
4
76 N510017395AA
Hexagon socket head cap screw M5X16-10.9 A2J (Trivalent)
SCREW
4
79 N510018291AA
Cross recessed Truss head machine screw M5X16-4.8 A2S (Trivalent)
FRAME
1
81 N610049251AE
GROMMET
2
83 N510055131AA C-30-RK-10-EP-UL-Black
BOLT
2
84 N510017247AA
Hexagon socket head cap screw M2.5X8-10.9 A2J (Trivalent)
TRIM
2
88 N9866224-B98 62-24-B-5-Aluminium
NUT
2
92 N510017840AA
Hexagon nut Type-1 Best class M2.5-6H-4T A2J (Trivalent)
WASHER
2
93 N510018490AA
Round finish plain washer (JIS B 1256:1978) 2.5 10H A2J (Trivalent)
M24
--
( KN610029319AA-26-4 )
㪊
㪯㪰䊁䊷䊑䊦

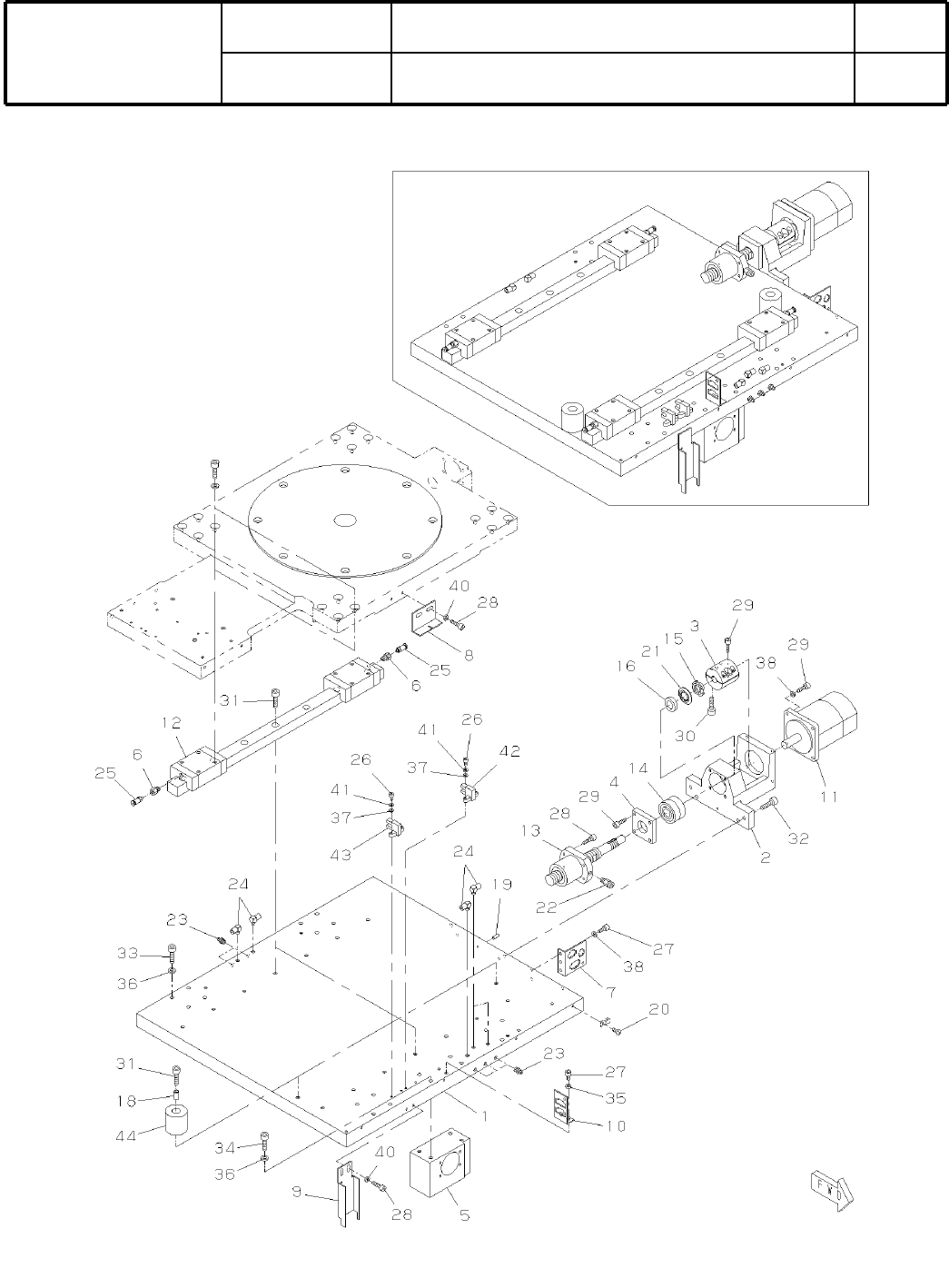

X-Y Table
䊌䊷䉿䊧䉟䉝䉡䊃
Kit N
o
.
䉨䉾䊃ຠ
⇟
Kit Name
䉨䉾䊃ฬ⒓
N610012844AA
䍜䍖䍚䍌䍻㪥㫆㪅
PARTS LAYOUT
Section No.
M25
-0##
Ref
No.
Remarks
R
1
Q'ty
㪊
㪯㪰䊁䊷䊑䊦
X-Y Table
䍐䍵䍛䍢
㪥㫆㪅
Part No.
ຠ䇭䇭ฬຠ⇟ ᢙ㊂
R
2
䊌䊷䉿䊥䉴䊃
Kit N
o
.
䉨䉾䊃ຠ
⇟
Kit Name
䉨䉾䊃ฬ⒓
N610012844AA
Part Name
䇭䇭䇭⠨
䍜䍖䍚䍌䍻㪥㫆㪅
PARTS LIST
Section No.
R
3
PLATE
1
1 N210025236AB
BRACKET
1
2 N210025237AB
COUPLING
1
3 KXFB02W7A00
PLATE
1
4 N210025238AA
HOLDER
1
5 N210025239AA
BUSHING
4
6 N210051375AA
BRACKET
1
7 KXFB0335A00
DOG
1
8 N210025240AA
DOG
1
9 N210035711AA
BRACKET
1
10 N210025241AA
MOTOR
1
11 MSMD022PJA
S
MSMD022PJA
LINEAR-WAY
2
12 N510016273AA MES20C2R400E118/119
BALL-SCREW
1
13 N510016272AA RBSK1605-92R142-Cp5ZZCL
BEARING
1
14 KXF0A1QAA00 7201T2DF/GNP5
BEARING-NUT
1
15 KXF0E3M2A00 AN01
WASHER
1
16 N510020756AA KK20
SPACER
2
18 N510019842AA 3382330-50100
PIN
1
19 N986MMS410 MMS4-10
BOLT
10
20 N510017534AA
Hexagon socket button head screw M4X6-10.9 A2J (Trivalent)
BEARING-WASHER
1
21 KXF0E3LDA00 AW01
JOINT
1
22 N510006235AA KQ2H04-M6
GREASE-NIPPLE
5
23 N510021518AA NGA-610S
JOINT
5
24 KXF02T9AA00 M-5HL-4
JOINT
4
25 KXF0DZ52A00 KQ2H04-M5
BOLT
4
26 N510017305AA
Hexagon socket head cap screw M3X10-10.9 A2J (Trivalent)
BOLT
4
27 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
8
28 N510017346AA
Hexagon socket head cap screw M4X12-10.9 A2J (Trivalent)
BOLT
12
29 N510017351AA
Hexagon socket head cap screw M4X16-10.9 A2J (Trivalent)
BOLT
2
30 N510017395AA
Hexagon socket head cap screw M5X16-10.9 A2J (Trivalent)
BOLT
16
31 N510017398AA
Hexagon socket head cap screw M5X20-10.9 A2J (Trivalent)
BOLT
4
32 N510017399AA
Hexagon socket head cap screw M5X25-10.9 A2J (Trivalent)
BOLT
16
33 N510017401AA
Hexagon socket head cap screw M5X30-10.9 A2J (Trivalent)
BOLT
4
34 N510017403AA
Hexagon socket head cap screw M5X35-10.9 A2J (Trivalent)
WASHER
2
35 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
20
36 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
4
37 N510018478AA
Small round-plain washer 3 10H A2J (Trivalent)
WASHER
6
38 N510018479AA
Small round-plain washer 4 10H A2J (Trivalent)
WASHER
4
40 N510020099AA Thick washer for M4
WASHER
4
41 N510018327AA Spring lock washer No.2 3 S A2J (Trivalent)
Sensor
1
42 N610026830AA Sensor:-B1041
Sensor
1
43 N610026831AA Sensor:-B1042
STOPPER
2
44 N210049520AA
M26
-0##
