4-F 基 板 位置 決 めリフト (L) Board Positioning Lif t(L) パーツレイアウト Ki t N o . キット 品番 Kit N am e キット名称 N610012845AA ｾｸｼｮﾝNo. PARTS LAYOUT Section No. - - M37 ( KN610012845AA-22-6 )
Ref
No.
Remarks
R
1
Q'ty
4-E
基
板
位置
決
めリフト (L)
Board Positioning Lift(L)
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610012845AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
JOINT
2
22 N210039711AA
PLATE
2
23 N210093063AA
PLATE
1
27 N210025917AA
DOG
1
50 N210026250AD
AIR-SLIDE
1
87 KXF0DLFAA00 MXPJ6-5-X23
JOINT
2
88 N510064400AA M-3AU-4-X83
BOLT
2
96 N510017747AA
Hexagon head bolt Best class M5X25-6g 4T A2J (Trivalent)
BOLT
2
100 N510017744AA
Hexagon head bolt Best class M5X16-6g 4T A2J (Trivalent)
CYLINDER
2
106 KXF016EAA00 BDA10X5
LINEAR-WAY
2
107 N510016310AA LWLF24C1R54BCSE723
JOINT
4
108 KXF02T7AA00 M-5H-4
SCREW
4
130 N510018378AA
Hexagon socket set screw Cup point M5X20-45H A2J (Trivalent)
BOLT
4
133 N510017341AA
Hexagon socket head cap screw M3X8-10.9 A2J (Trivalent)
BOLT
4
136 N510017313AA
Hexagon socket head cap screw M3X16-10.9 A2J (Trivalent)
BOLT
2
137 N510017376AA
Hexagon socket head cap screw M4X6-10.9 A2J(Trivalent)
BOLT
2
138 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
BOLT
4
139 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
4
146 N510017395AA
Hexagon socket head cap screw M5X16-10.9 A2J (Trivalent)
BOLT
2
150 N510017433AA
Hexagon socket head cap screw M6X16-10.9 A2J (Trivalent)
WASHER
2
155 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
2
157 N510018501AA
Round finish plain washer 6 10H A2J (Trivalent)
WASHER
4
160 N510020098AA Thick washer for M3
NUT
8
169 N510017862AA
Hexagon nut Type-1 Best class M5-6H-4T A2J (Trivalent)
COVER
1
185 N210069903AA
BRACKET
1
186 N210069902AB
CABLE-BEAR
1
187 N510035684AA CDP015 W25 R37-405L.C(DOWN/DOWN)
BOLT
4
188 N510017627AA
Hexagon socket Flat head bolt M4X6-10.9 A2J (Trivalent)
M36
--
( KN610012845AA-22-5 )

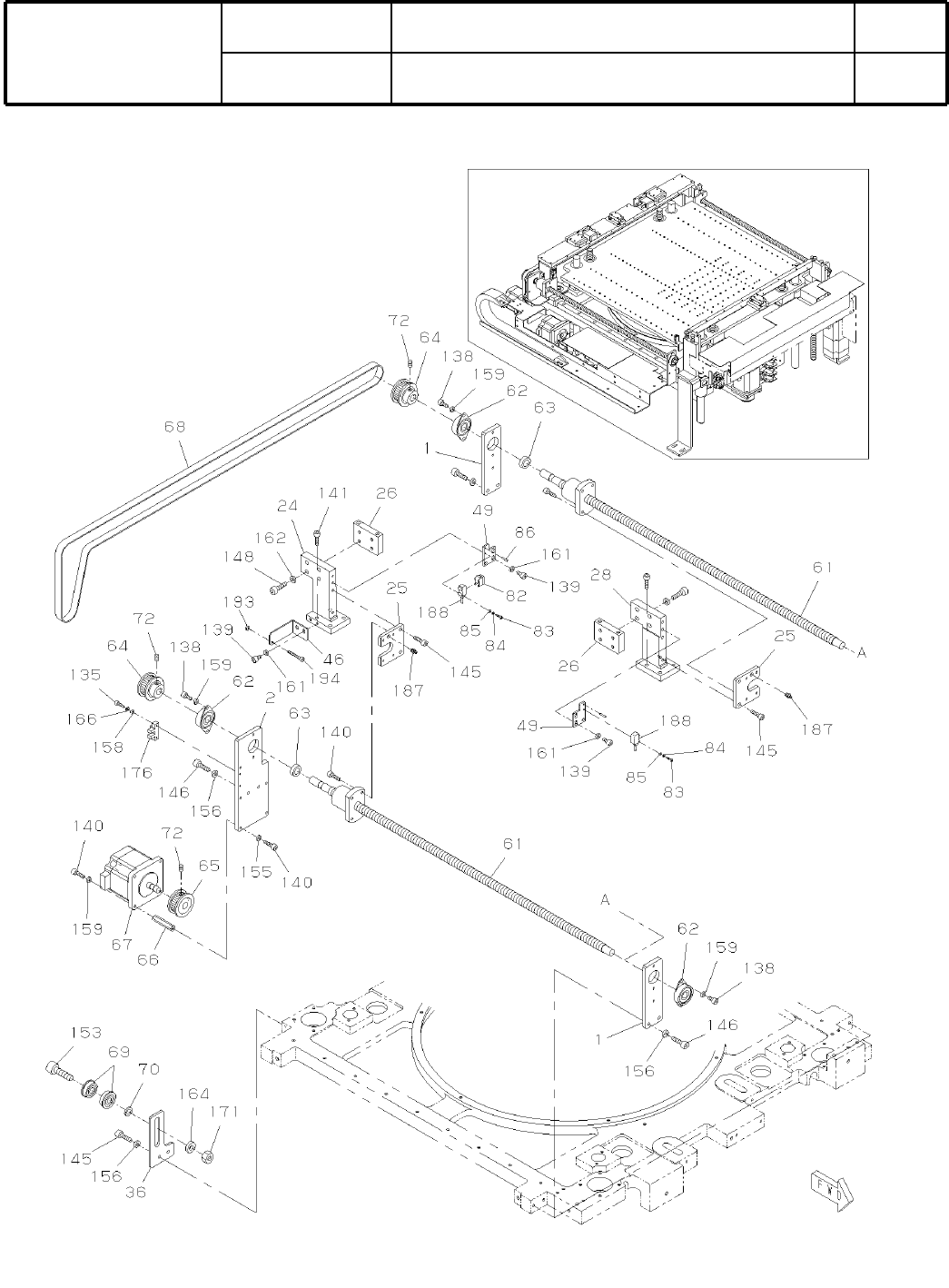

4-F
基
板
位置
決
めリフト (L)
Board Positioning Lift(L)
パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610012845AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M37
( KN610012845AA-22-6 )
Ref
No.
Remarks
R
1
Q'ty
4-F
基
板
位置
決
めリフト (L)
Board Positioning Lift(L)
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610012845AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
PLATE
3
1 N210025891AB
PLATE
1
2 N210025892AB
BRACKET
1
24 N210025914AE
PLATE
2
25 N210025915AA
PLATE
2
26 N210025916AA
BRACKET
1
28 N210043153AE
PLATE
1
36 N210025921AA
BRACKET
1
46 N210068809AA
BRACKET
2
49 N210026248AB
BALL-SCREW
2
61 N510035664AA XSTR01204C1DFC7-583-P0(NA120502)
BEARING
4
62 KXF03G0AA00 SFB38-10
WASHER
2
63 N510020766AA KK16
PULLEY
2
64 N510024786AA R101-0320C2-821305-F-PK
PULLEY
1
65 N510032579AA R101-KXF0DWXYA00S-F-PK
SPACER
3
66 N510020925AA ASF-436E
MOTOR
1
67 KXF0DZDRA00
S
103H7832-0312(DDA)
T-BELT
1
68 KXF0DYZWA00 564XL037U
BEARING
2
69 KXF020LAA00 F608ZZ
WASHER
1
70 N510026671AA SSSWA13-2.0
SCREW
6
72 N510018381AA
Hexagon socket set screw Cup point M5X5-45H A2J (Trivalent)
CONTROLLER
1
82 N310E39E10 E39-E10
BOLT
2
83 N510017254AA
Hexagon socket head cap screw M2X12-10.9 A2J (Trivalent)
WASHER
2
84 N510018324AA Spring lock washer No.2 2 S A2J (Trivalent)
WASHER
2
85 N510018477AA
Small round-plain washer 2 10H A2J (Trivalent)
PIN
2
86 KXF051WAA00 SPP2-10
BOLT
2
135 N510017308AA
Hexagon socket head cap screw M3X12-10.9 A2J (Trivalent)
BOLT
8
138 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
BOLT
6
139 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
14
140 N510017346AA
Hexagon socket head cap screw M4X12-10.9 A2J (Trivalent)
BOLT
8
141 N510017351AA
Hexagon socket head cap screw M4X16-10.9 A2J (Trivalent)
BOLT
6
145 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
BOLT
8
146 N510017395AA
Hexagon socket head cap screw M5X16-10.9 A2J (Trivalent)
BOLT
8
148 N510017399AA
Hexagon socket head cap screw M5X25-10.9 A2J (Trivalent)
BOLT
1
153 N510017475AA
Hexagon socket head cap screw M8X30-10.9 A2J (Trivalent)
WASHER
3
155 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
10
156 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
2
158 N510018478AA
Small round-plain washer 3 10H A2J (Trivalent)
WASHER
11
159 N510018479AA
Small round-plain washer 4 10H A2J (Trivalent)
WASHER
6
161 N510020099AA Thick washer for M4
WASHER
8
162 N510020100AA Thick washer for M5
WASHER
1
164 N510020102AA Thick washer for M8
WASHER
2
166 N510018327AA Spring lock washer No.2 3 S A2J (Trivalent)
NUT
1
171 N510017877AA
Hexagon nut Type-1 Best class M8-6H-4T A2J (Trivalent)
Sensor
1
176 N610026828AA Sensor:-B1B10
GREASE-NIPPLE
2
187 N510021518AA NGA-610S
Sensor
1
188 N610026829AA Sensor:-B1031
NUT
1
193 N510017849AA
Hexagon nut Type-1 Best class M3-6H-4T A2J (Trivalent)
BOLT
1
194 N510017324AA
Hexagon socket head cap screw M3X30-10.9 A2J (Trivalent) Full thread
M38
--
( KN610012845AA-22-6 )
