SP18 Mechanical - 第83页
Ref No. Remark s R 1 Q'ty 9-A ユニバーサルマスクホルダ Universal Mask Holder ｲﾗｽﾄ No. Part No. 品 名 品番 数量 R 2 パーツリスト Kit N o . キット品 番 Kit Name キット名称 N610028289AA Part Nam e 備 考 ｾｸｼｮﾝNo. PARTS LIST Section No. R 3 GUIDE 1 1 N2100…
9-A
ユニバーサルマスクホルダ
Universal Mask Holder

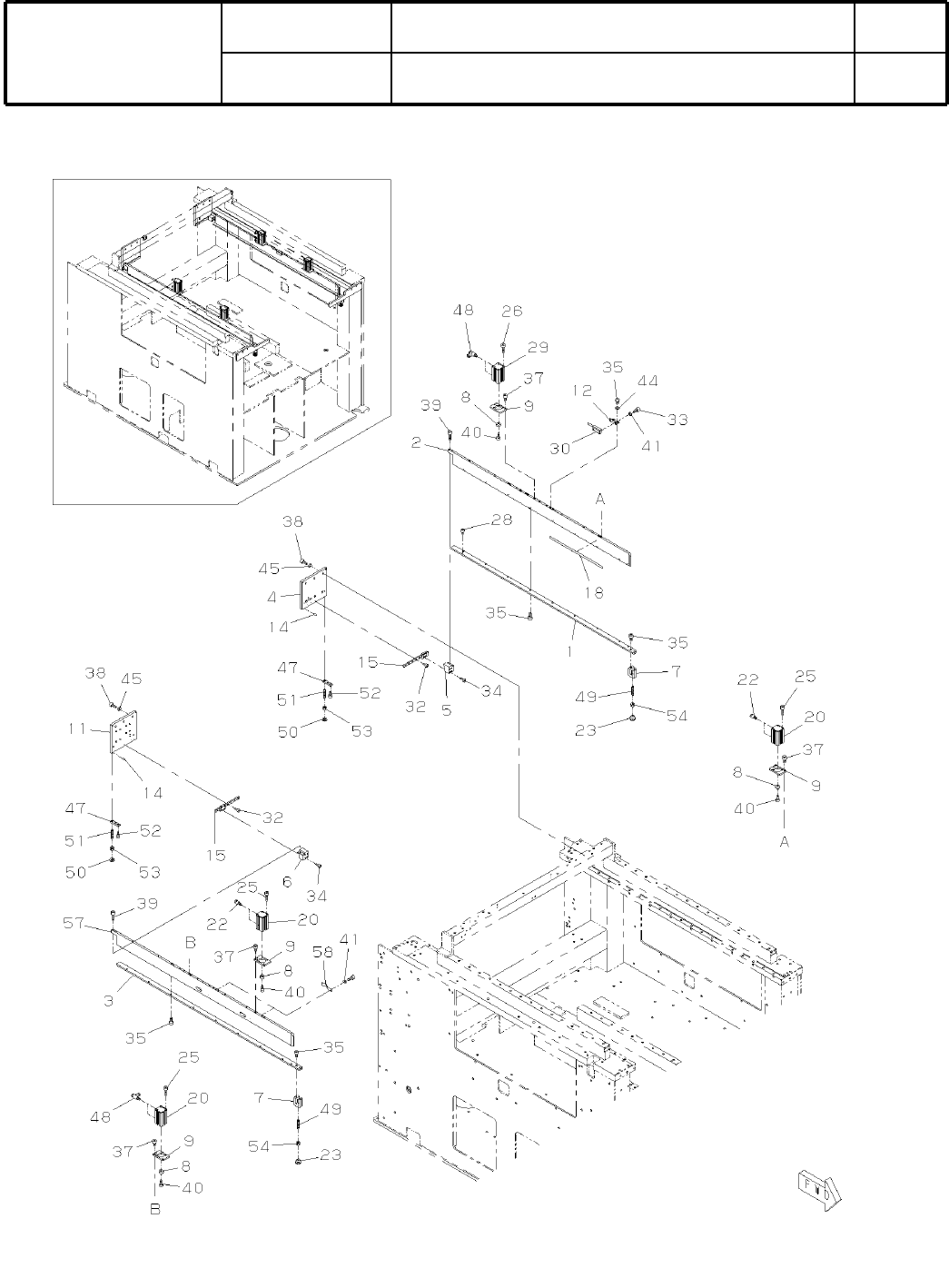

パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610028289AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M67
( KN610028289AA-11-1 )
Ref
No.
Remarks
R
1
Q'ty
9-A
ユニバーサルマスクホルダ
Universal Mask Holder
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610028289AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
GUIDE
1
1 N210042891AB
GUIDE
1
2 N210042892AB
GUIDE
1
3 N210042893AB
PLATE
1
4 N210042894AC
BLOCK
1
5 N210042895AC
BLOCK
1
6 N210042896AC
BLOCK
2
7 N210042897AA
COLLAR
4
8 N210042899AB
PLATE
4
9 N210048831AB
PLATE
1
11 N210042902AE
BRACKET
1
12 N210079165AA
PIN
4
14 KXF0529AA00 SPP3-10
LINEAR-WAY
2
15 N510016208AA SRS9MUUC1+140LM(01873001K000)
SCALE
1
18 N903FSS300R FSS-300-R
CYLINDER
3
20 N510015670AA SSD-K-25-40
JOINT
4
22 KXF029HAA00 KJH04-M5
KNOB
2
23 N510060807AA KNFS-24-M6
BOLT
6
25 N510017416AA
Hexagon socket head cap screw M5X70-10.9 A2J (Trivalent)
BOLT
2
26 N510017418AA
Hexagon socket head cap screw M5X80-10.9 A2J (Trivalent)
BOLT
1
28 N510017372AA
Hexagon socket head cap screw M4X5-10.9 A2J (Trivalent)
Cylinder
1
29 N610026820AA Limit Switch:-B1022
Sensor
1
30 N610026821AA Sensor:-B1023
BOLT
14
32 N510017341AA
Hexagon socket head cap screw M3X8-10.9 A2J (Trivalent)
BOLT
2
33 N510017305AA
Hexagon socket head cap screw M3X10-10.9 A2J (Trivalent)
BOLT
8
34 N510017321AA
Hexagon socket head cap screw M3X25-10.9 A2J (Trivalent)
BOLT
24
35 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
8
37 N510017395AA
Hexagon socket head cap screw M5X16-10.9 A2J (Trivalent)
BOLT
6
38 N510017398AA
Hexagon socket head cap screw M5X20-10.9 A2J (Trivalent)
BOLT
4
39 N510017399AA
Hexagon socket head cap screw M5X25-10.9 A2J (Trivalent)
BOLT
4
40 N510017428AA
Hexagon socket head cap screw M6X12-10.9 A2J (Trivalent)
WASHER
6
41 N510018494AA
Round finish plain washer 3 10H A2J (Trivalent)
WASHER
2
44 N510018479AA
Small round-plain washer 4 10H A2J (Trivalent)
WASHER
6
45 N510020100AA Thick washer for M5
BLOCK
2
47 N210053920AB
JOINT
4
48 N431KJY04M5 KJY04-M5
PLUNGER
2
49 N510022311AA PPJL6-5
KNOB
2
50 N510060809AA KUFS-20-M5
PLUNGER
2
51 N510021347AA PPJL5-3
BOLT
4
52 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
NUT
2
53 N510017862AA
Hexagon nut Type-1 Best class M5-6H-4T A2J (Trivalent)
NUT
2
54 N510017867AA
Hexagon nut Type-1 Best class M6-6H-4T A2J (Trivalent)
BOLT
4
56 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
GUIDE
1
57 N210136044AA
SPRING
2
58 N210139653AA
M68
--
( KN610028289AA-11-1 )
9-B
ユニバーサルマスクホルダ
Universal Mask Holder
パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610028289AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M69
( KN610028289AA-11-2 )
