Paste Dispenser Issue 2: July 2007

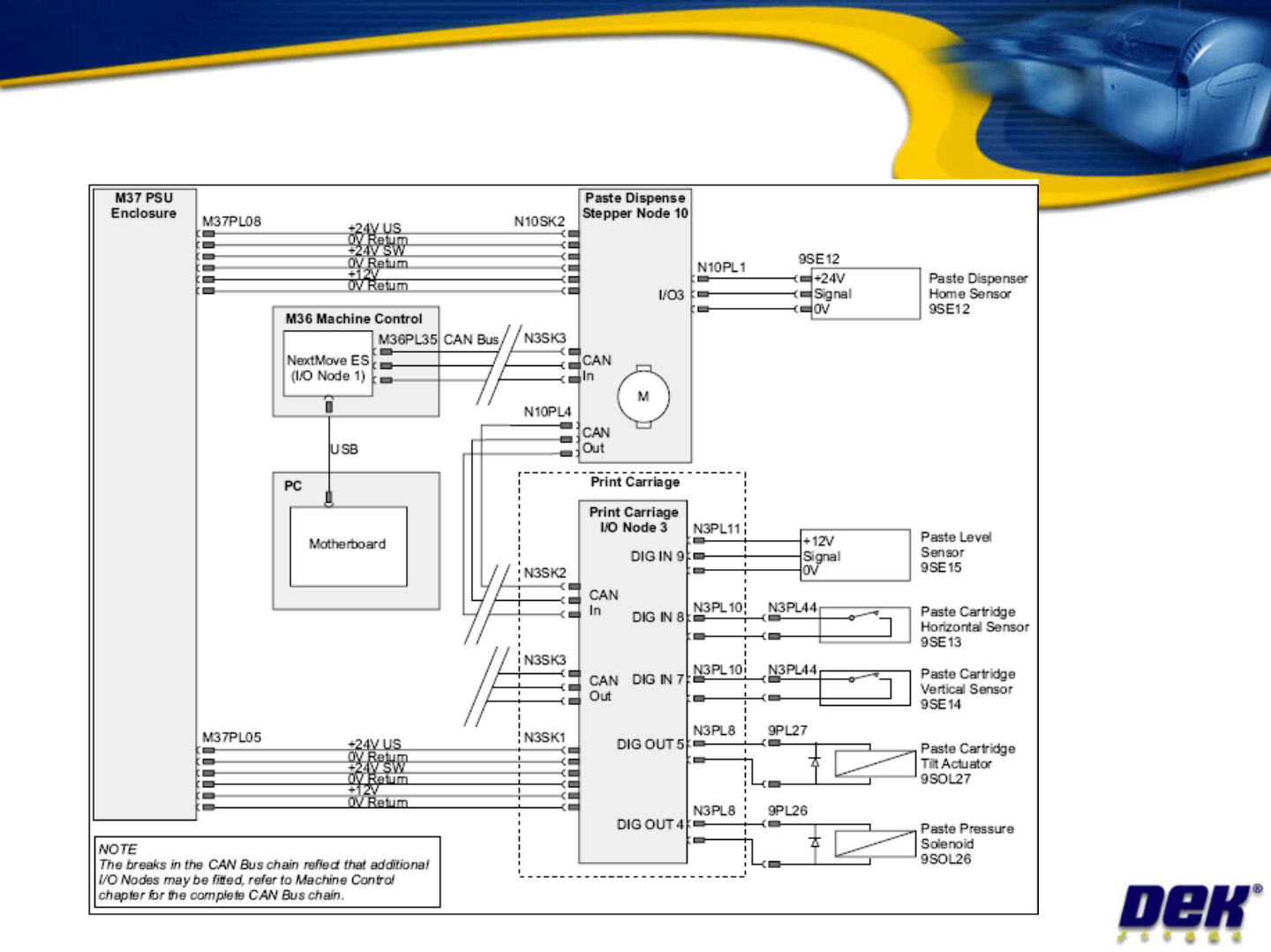

Paste Dispenser Tasks
•
Remove paste dispenser belt and
replace
•
Remove paste dispenser motor and
Issue 2: July 2007
•
replace
•
Adjust paste level sensor
•
Adjust pneumatic controls for smooth tilt
up and down operation
Objective 22: Complete activities in your workbook
Paste Dispenser
Issue 2: July 2007
•
The ASM module consists of the following
sub-assemblies:
– Chase
– Left and right chase rail assemblies
Adjustable Screen Mount
(ASM)
Issue 2: July 2007
– Left and right chase rail assemblies
– Pneumatic release valves
– Screen change mechanism
– Screen at centre long throw opto
– Screen in position reflective opto
– Screen clamps
– Drip tray mechanism
