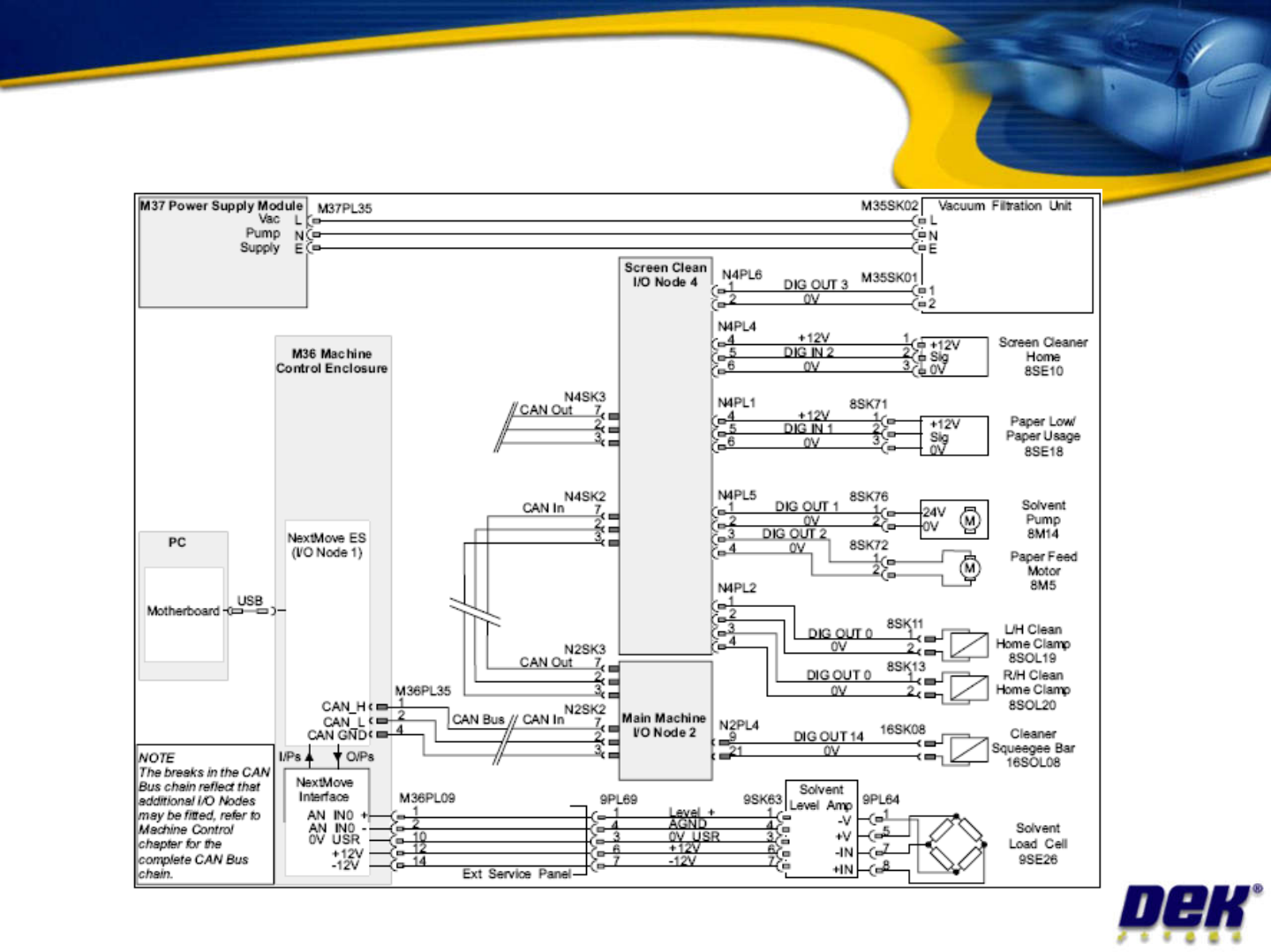

Blue Cleaner Schematic
Issue 2: July 2007
Cyclone Cleaner
•

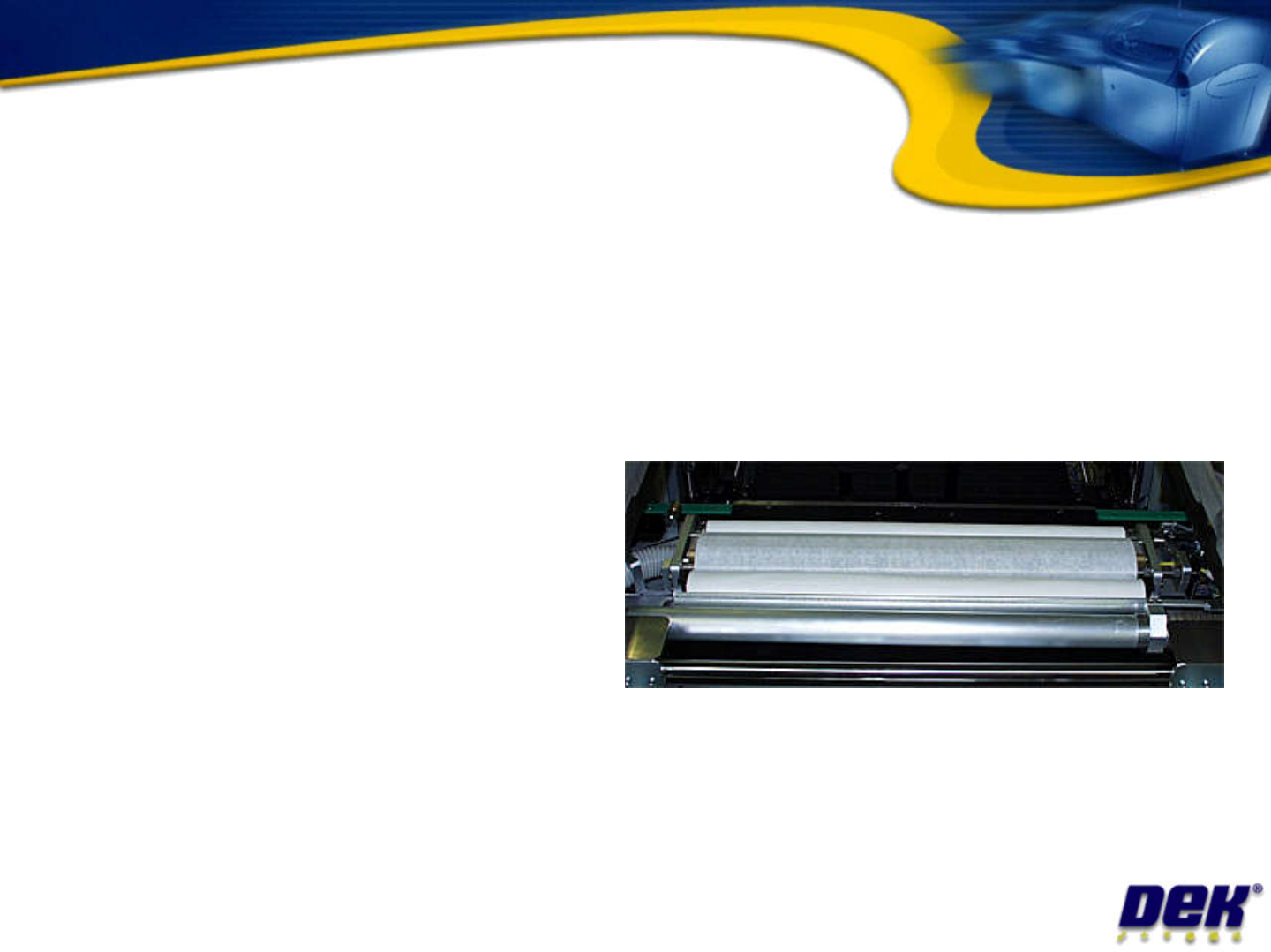

The Cyclone under screen cleaner module
consists of the following sub-assemblies:
– Cleaner body assembly
– Screen Cleaner I/O node 4
– Home sensor
Issue 2: July 2007
– Home sensor
– Home clamp
– Paper move DC motor
– Oscillating DC motor
– Paper usage sensor
– Solvent pump
– Solvent load cell and amplifier
– Pneumatic lift mechanism
– Vacuum pump

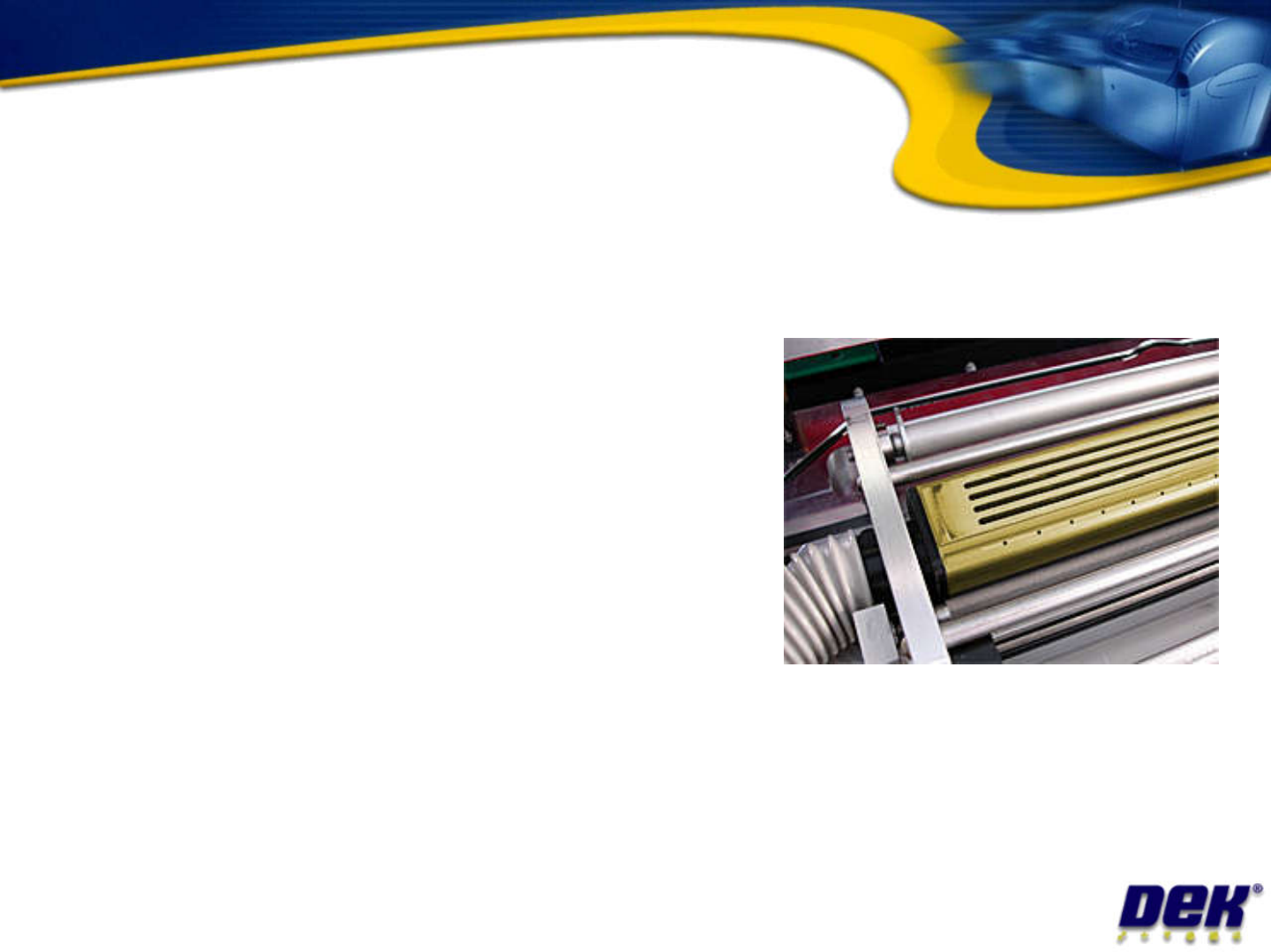

Cyclone cleaning
• Bi-directional, active cleaning
– Lateral oscillation (scrub) during traverse
•
5-stage cleaning head
– Five active surfaces clean on
every stroke
Issue 2: July 2007
– Four vacuum vents
•
Fully programmable
– Wet, dry, vacuum and paper feed
•
High speed
– Faster traverse velocity
– Effective and efficient two sweep cleaning
•
High flow vacuum system
– Large capacity, active carbon filtration
