Calibration Summary
Issue 2: July 2007

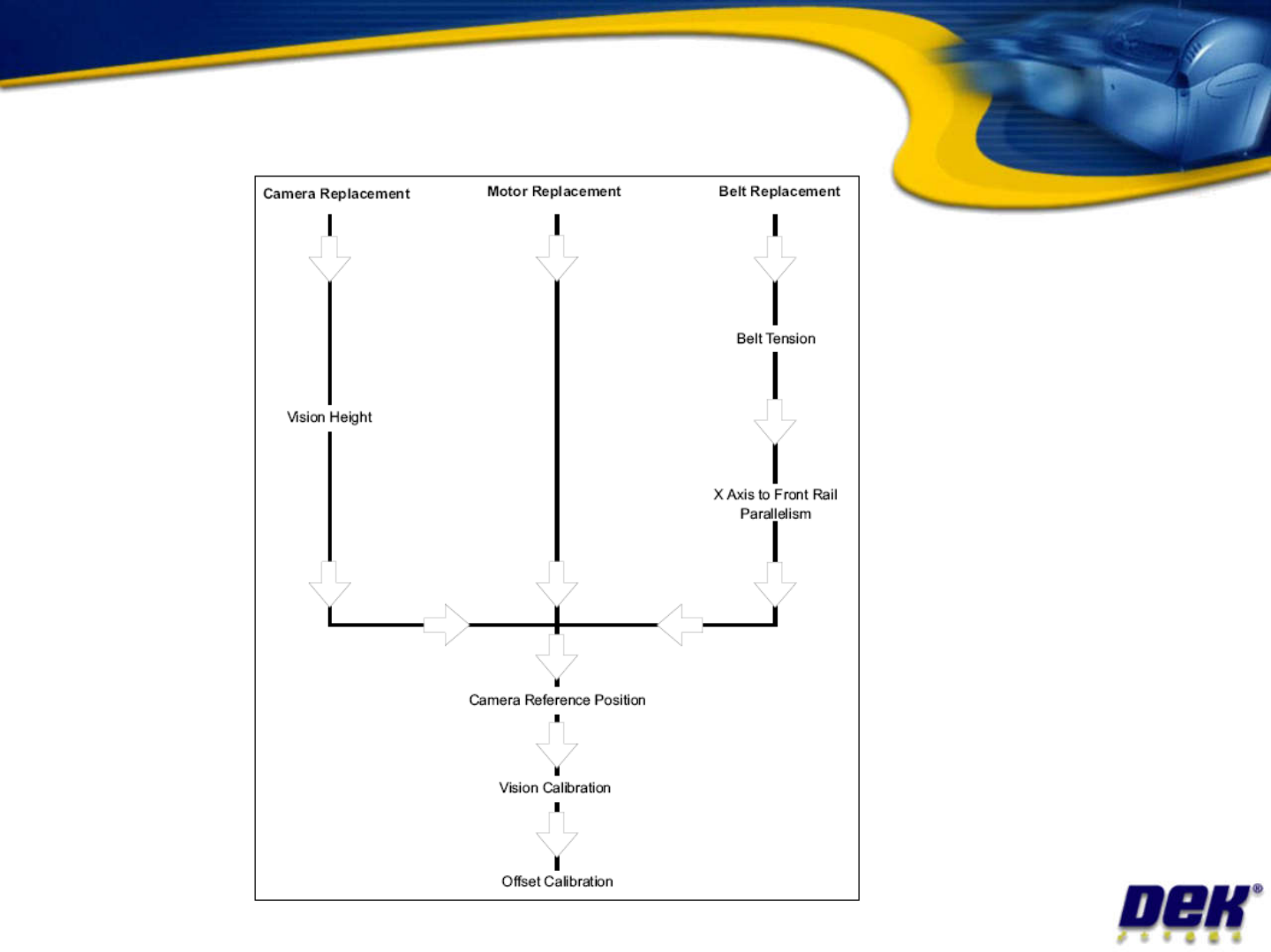

Calibrations Summary
•
Calibrations required if Config.cfg was
deleted or corrupt:
– Vision Height
– Print Height
– Board stop X Offset
Issue 2: July 2007
– Board stop X Offset
– Camera Reference Position
– Vision Scale Calibration
– Vision Offset Calibration
– Squeegee Reference Heights
– plus other settings such as cleaner type etc

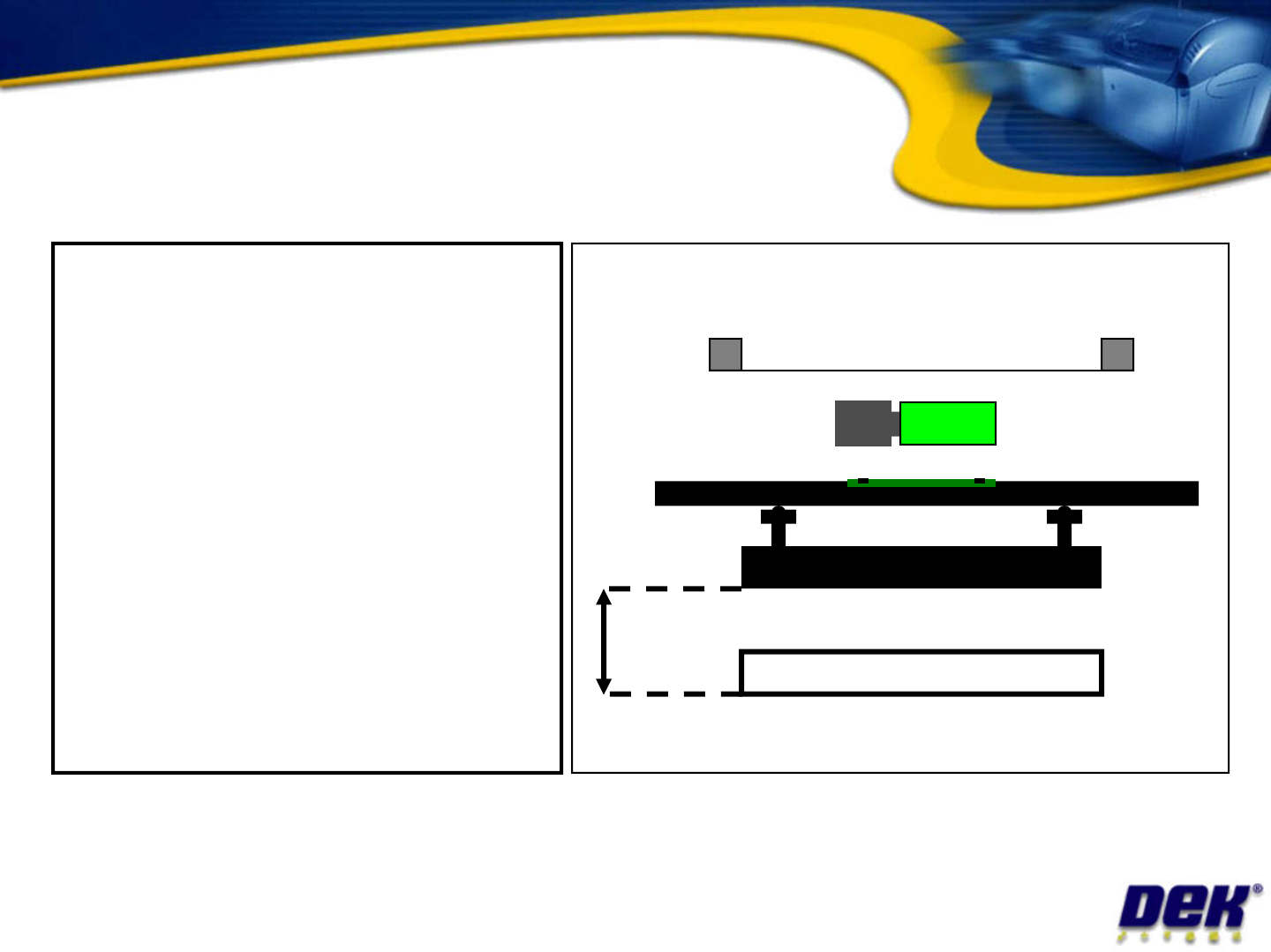

Vision Height
• Set in diagnostics
• Saved to configuration
file (config.cfg)
•
Issue 2: July 2007
•
Rising table position to
allow camera to
capture board
fiducials...
Home position
Vision height
