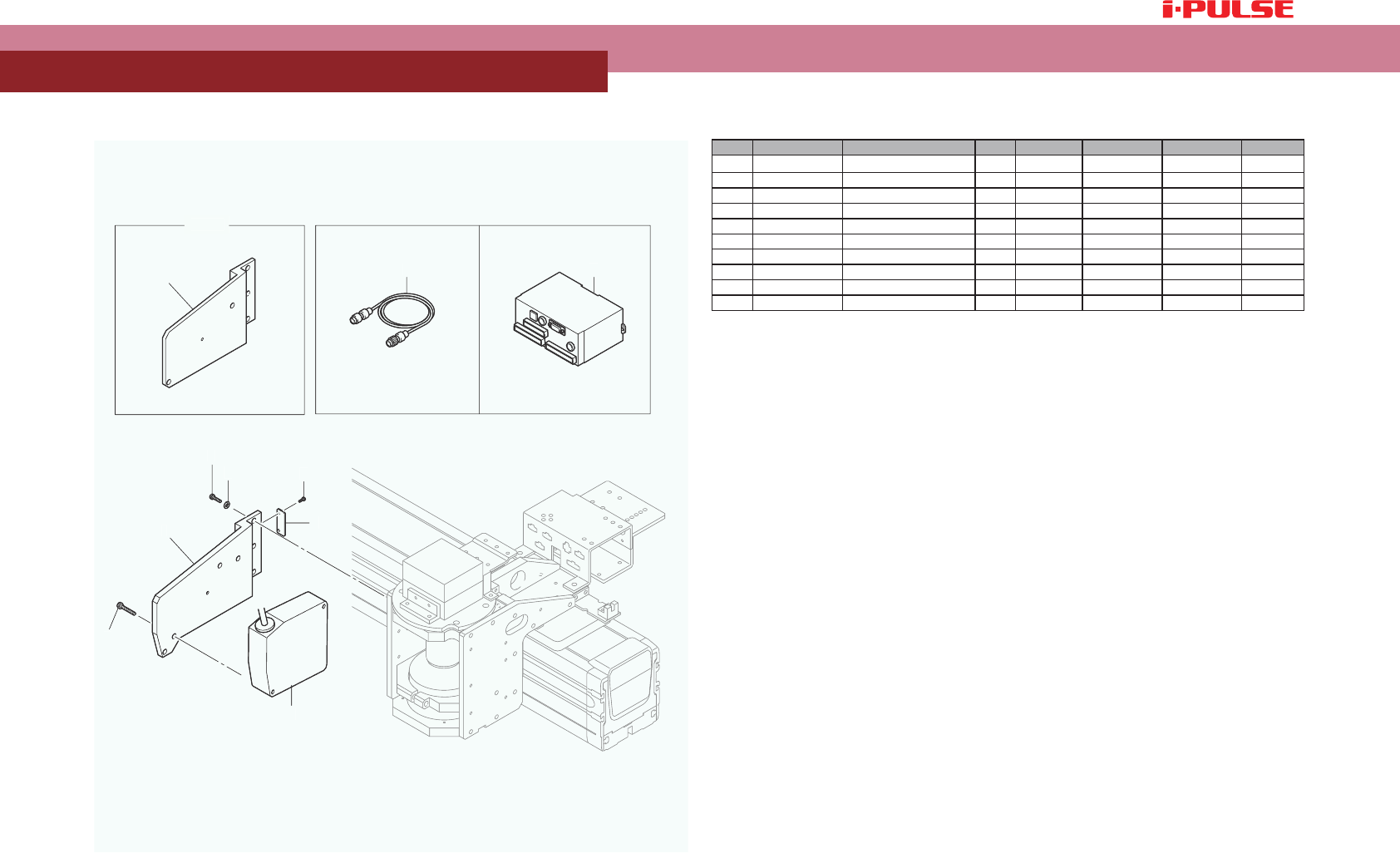

6. Laser Head Section (Option)
6-1. Laser Head (Option)
7
9
6
2
3
8
1
OLD
5 4
7
9
6
2
3
8
1
OLD
5
4
1-2
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
LE1-M5252-04 PLATE,LASER
1
1-2 LE1-M5252-03 PLATE,LASER (old) 1 OK
2 LE1-M5253-00 ADJUSTER 1
3 LE1-M50HR-00 HEAD UNIT1 1
4 LE1-M50H8-00 CONTROL UNIT 1
5 LE1-M50HA-01 RB CABLE 5 1
6 90115-02J004 BOLT HEX.SOCKET HEAD 2
7 91314-04012 BOLT HEX.SOCKET HEAD 3 M4X12
8 91314-05020 BOLT HEX.SOCKET HEAD 2 M5X20
9 92903-04200 WASHER PLAIN 3
12
7. Operation Box Section (Option)
7-1. Operation Box (Option)
3
4
5
6
7
1
2
8
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE1-M5602-00 UY CASE ADD 1
2 LE1-M5603-00 LABEL 1
3 LE1-M66JT-10 HNS.OK.SW.ASSY CE 1
4 LE1-M66JU-10 HNS.NG.SW.ASSY CE 1
5 LE1-M66JV-10 HNS.EXE.SW.ASSY CE 1
6 LE1-M66JW-10 HNS.STP.SW.ASSY CE 1
7 LE1-M66NE-00 HNS.X312-X313 1
8 LE1-M66NA-01 HNS.X201-X312 1 1.5m
13

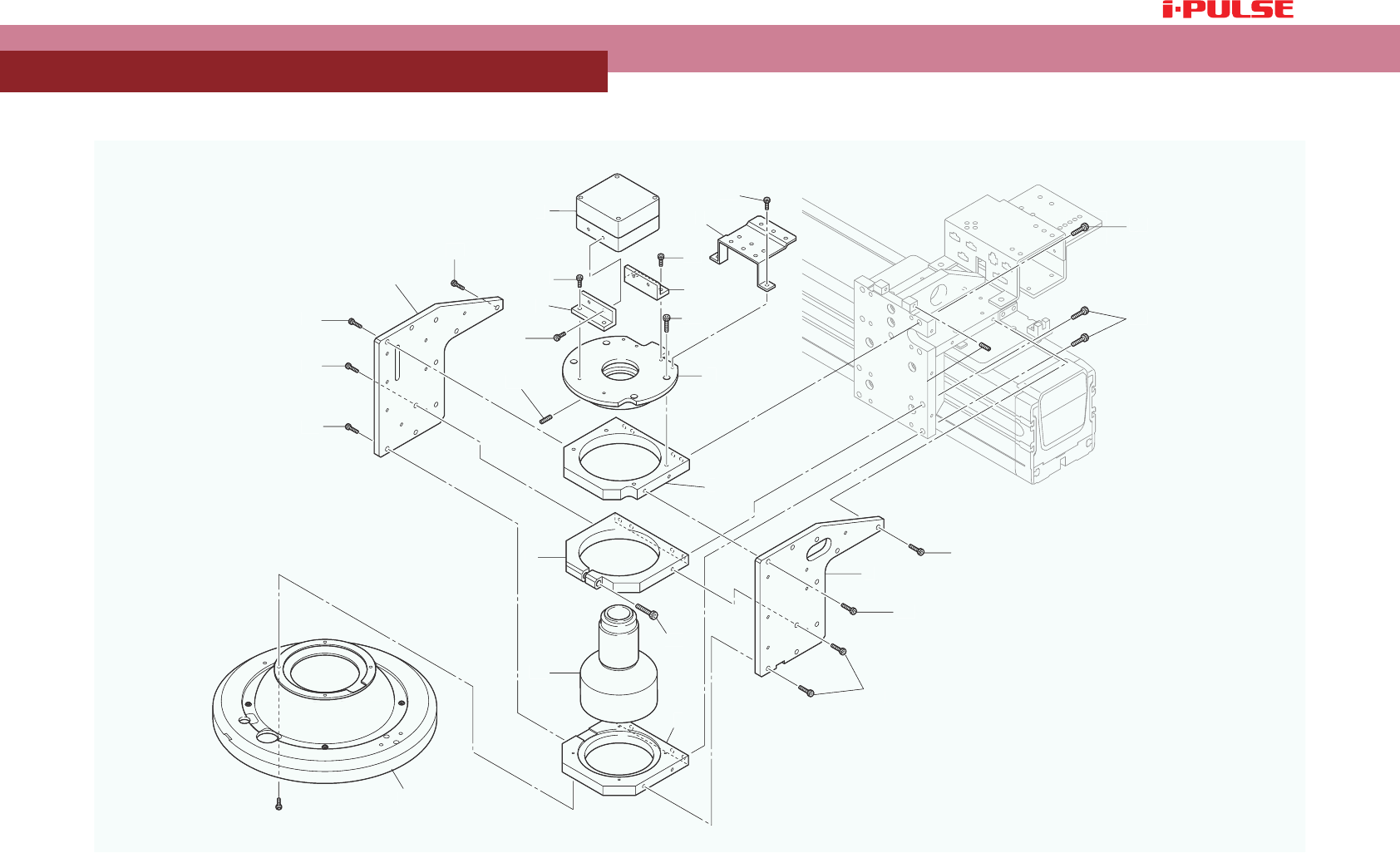

8. Vision Head Section
