14 2. Touch the “Run Method” icon 3. Enter the delay time (e x. 5000 ms) NOTE: The minimum delay time is 15ms 4. Touch the “ Co ntinu ous Run ” icon 5. Touch the Check Mark icon to save 6. Touch the X icon to exit The sc…

2. Touch the “Time Reset” icon to set timer to zero

3. Press and hold down the foot switch, the spray time will be accumulated

4. Release the foot switch when the desired amount of fluid has sprayed

5. Touch the “Timed” icon to transfer the accumulated spray time to “Timed”

mode

6. The unit is now set to repeat this “Timed” cycle

5.3 Stored Program in Memory Cell

The unit has 50 memory cells to store all parameters. The controller can activate

all memory cells in sequence mode.

5.3.1 To store dispense parameters

1. Touch the forward or backward arrow to select the desired memory cell.

2. Enter all the desired parameters then touch the “Save”

icon to save the data

5.3.2 To run in Continuous Mode

The controller can be setup to repeat the run continuously.

1. Touch the Setup icon to enter the setup screen

2. Touch the “Run Method” icon

3. Enter the delay time (ex. 5000 ms)

NOTE: The minimum delay time is 15ms

4. Touch the “Continuous Run” icon

5. Touch the Check Mark icon to save

6. Touch the X icon to exit

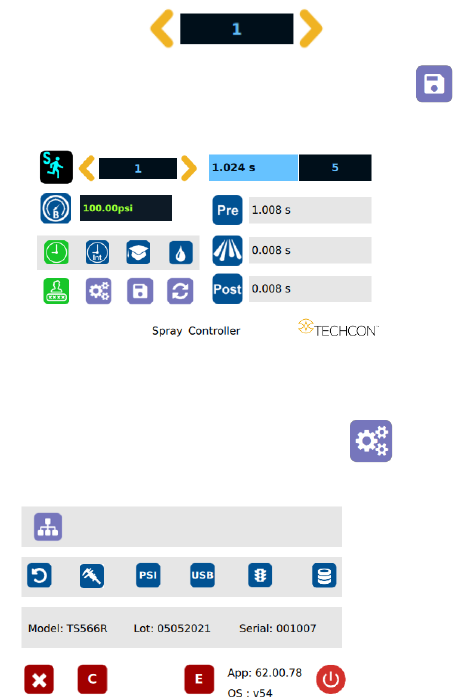

The screen will look similarly to the screen below:

Note: If the controller is set to activate memory cell 1 and the delay time is

set at 5000 ms, the controller will activate memory 1 continuously with

5000 ms delay between each activation.

5.3.3 To run in Single Sequence Mode

1. Touch the “Run Method” icon to enter sequence mode setup

2. Enter number of memories to be run in sequence (ex. 1 to 3)

3. Touch the “Sequence Mode” icon

4. Touch the Check Mark icon to save

5. Touch the X icon to exit

The screen will look similarly to the screen below:
