6.2 Making Parameters Adjustment from the webserver

Go back to the webserver site and click on the “Controllers” menu

Click on the active controller link

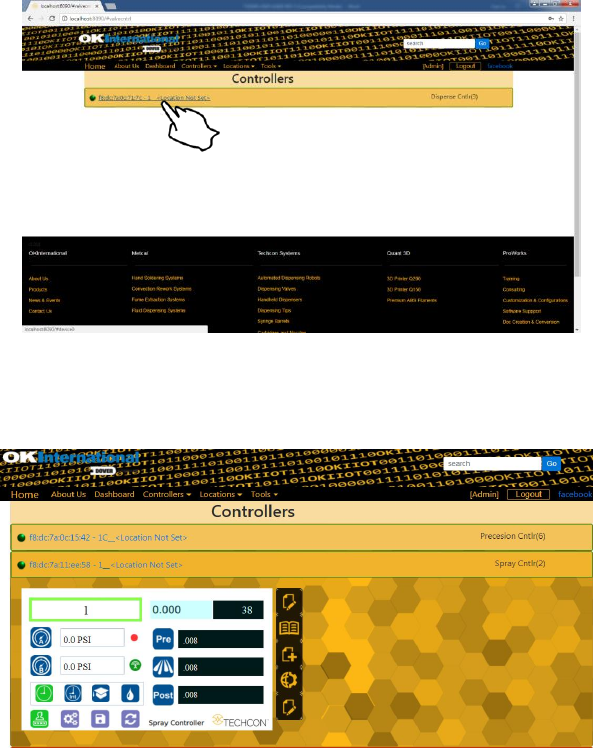

The controller screen will be displayed in the webserver as shown below.

The controller parameters such as pressure and dispense time can be adjusted

from the webserver.

Click on the “Edit” icon

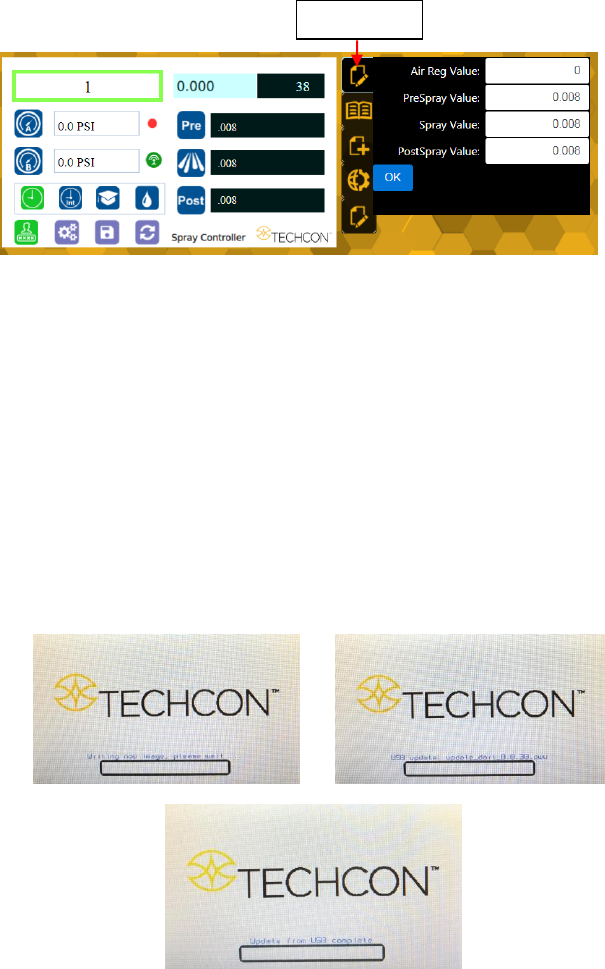

The parameter screen will appear as shown below:

Proceed to make changes

Click OK button to save

The new parameters will be displayed on the controller

7. SOFTWARE UPGRADE

Note: For future software upgrade, follow the instructions below.

1. Download the latest software version from Techcon website and copy it to

a blank USB thumb drive. Note: Do not put the software file inside a

folder

2. Make sure that the unit is turned off

3. Insert the USB drive to the USB port located in the back of the unit

4. Turn on the unit

5. Wait while the system is loading the new software. This process can take

a few minutes

“Edit” icon

6. Wait until the system completes the software update from the USB drive

and the first touch-screen calibration is displayed

7. Remove the USB drive from the USB port before proceeding to the next

step

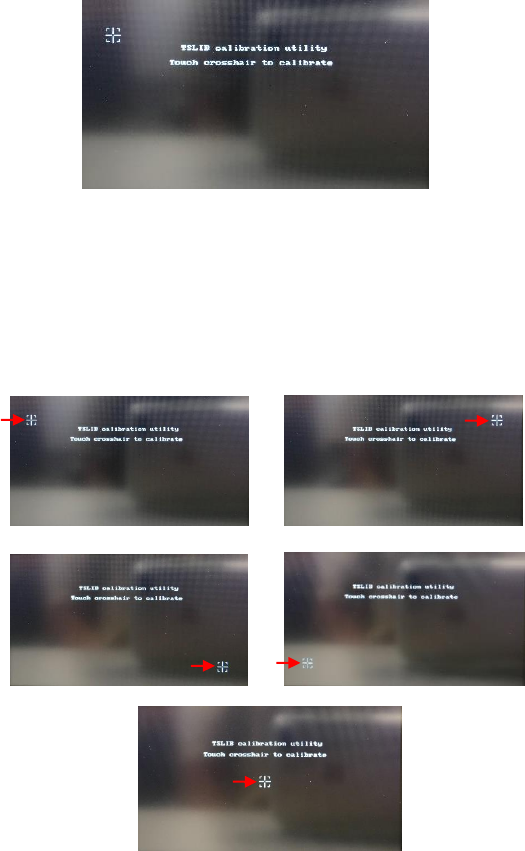

8. Follow the instructions on the display to calibrate the touch screen by

touching the crosshair at five different points. Note: In order to

accurately calibrate the touch screen, it’s recommended that the stylus

pen is used

9. Wait until the system completes the rebooting sequence and the home

screen is displayed

10. Repeat sections 5.1.1 and 5.1.2 to re-calibrate the air pressure
