KLM-1207 16 17 15 5 3 21 32 23 12 31 3 22 18 19 4 9 33 34 27 10 15 25 20 24 26 8 29 7 1 14 28 2 13 30 6 11 4 2 Y-axis Drive Moving-axis Section
KLM-1207
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KJX-M7192-00 HEAD I/O BOX 1 /
Í
39
KLD-M2A01-01 PLATE,HEAD 1 /
Í
2 $NK-3N NYLON CLIP 12
40
KHY-M652W-00 SENSOR,XORGASSY 1 B
Í
3 90563-03J160 SPACER 4
41
KLD-M2A02-01 STAY,HANDLE 1 /
Í
4 90990-01J037 BOLT HEX,SOCKET HEAD 6
42
KV7-M7165-00 SEAL DON'T TOUCH 2 /
5 90990-11J001 SCREW, PAN HEAD W/W 12
43
6 91312-04006 BOLT HEX,SOCKET HEAD 8
44
7 91312-04008 BOLT HEX,SOCKET HEAD 13
45
8 91312-05008 BOLT HEX,SOCKET HEAD 6
46
9 91312-05012 BOLT HEX,SOCKET HEAD 4
47
10 91312-05018 BOLT HEX,SOCKET HEAD 12
48
11 91312-06016 BOLT HEX,SOCKET HEAD 2
49
12 97602-03108 SCREW PAN HEAD W/W 4
50
13 97602-03306 SCREW PAN HEAD W/W 22
51
14 98702-03004 SCREW,FLAT HEAD 12
52
15 98902-04006 SCREW BINDING HEAD 4
53
16 99480-06018 PIN,PARALLEL 2
54
17 KGS-M2256-00 GRIP 1 /
55
18 KHN-M22F5-00 WASHER,SWR05 8 /
Í
56
19 KHY-M2252-02 STOPPER 1 /
57
20 KHY-M2284-00 BRACKET,SENSOR 1 /
Í
58
21 KHY-M652X-00 SENSOR,XT ASSY 1 B
Í
59
22 KHY-M5890-40 HEAD SERVO BOARD ASSY 3 B
Í
60
23 KJX-M457R-01 HEAD I/O1 BOARD ASSY 1 B
Í
61
24 KJX-M457U-01 HEAD I/O2 BOARD ASSY 1 B
Í
62
25 KJX-M457W-01 HEAD I/O3 BOARD ASSY 1 B
Í
63
26 KJX-M7191-10 FRAME,I/O BOX 1 /
Í
64
27 KJX-M7192-30 POST3 1 /
Í
65
28 KJX-M7192-40 POST4 1 /
Í
66
29 KJX-M7196-00 BRACKET,FAN 1 /
Í
67
30 KJX-M719A-00 PLATE 2,GUIDE HARNESS 1 /
Í
68
31 KLD-M220D-00 TAPE, X-AXIS 2 /
Í
69
32 KLD-M2237-00 BRACKET,HEAD SERVO 1 /
Í
70
33 KLD-M2238-00 BRACKET,L 1 /
Í
71
34 KLD-M2239-00 BRACKET,R 1 /
Í
72
35
KLD-M223F-00 STAY,R HNS. 1 /
Í
73
36
KLD-M226B-00 COVER BACK, X AXIS 1 /
74
37
KLD-M227G-00 COVER,B.S. 1 /
75
38
KLD-M2291-00 PLATE,HEAD SERVO 1 /
Í
76
4
1
X-axis Neighbor
Moving-axis Section
KLM-1207
16
17
15
5
3
21
32
23
12
31
3
22
18
19
4
9
33
34
27
10
15
25
20
24
26
8
29
7
1
14
28
2
13
30
6
11
4
2

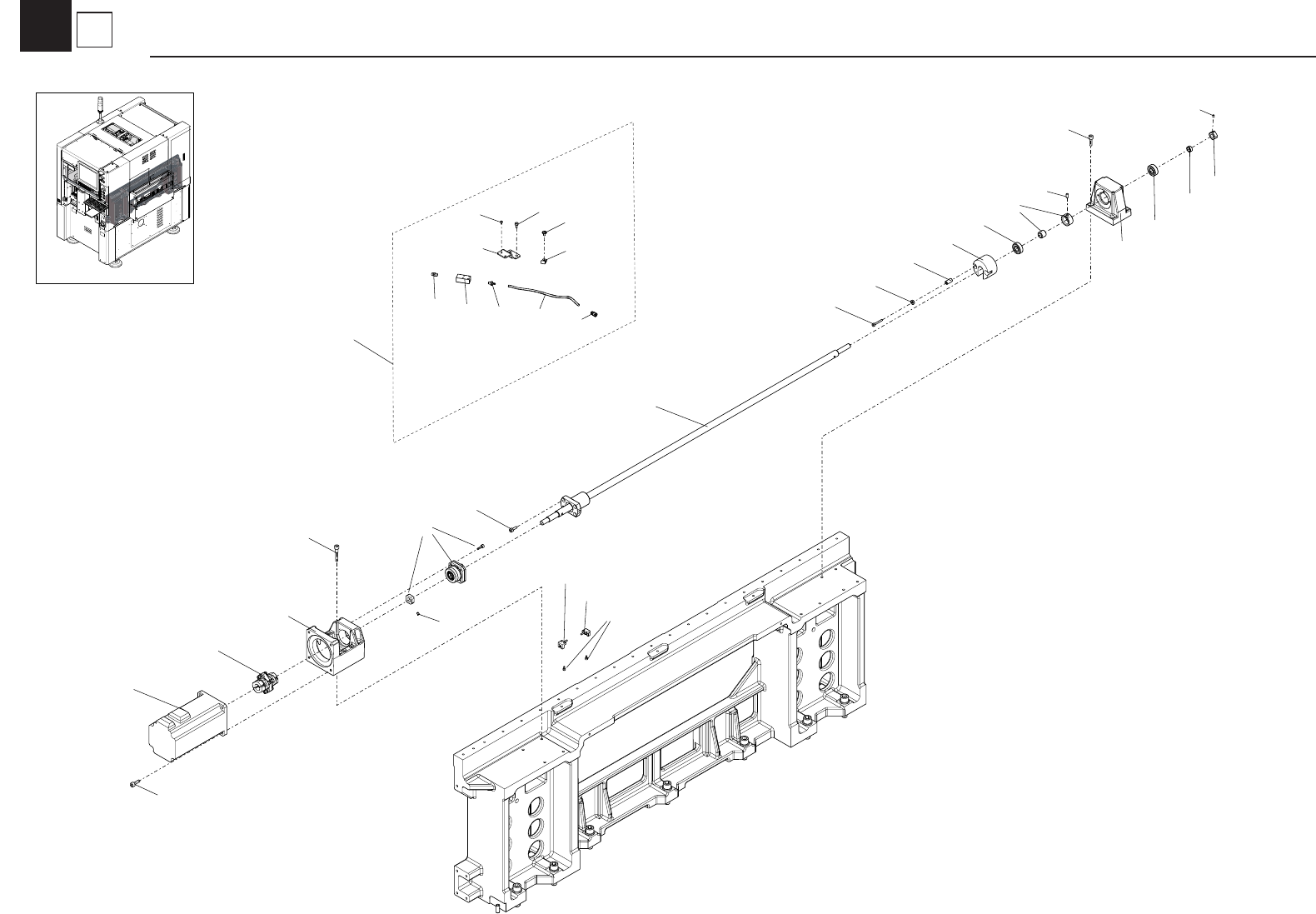

Y-axis Drive
Moving-axis Section
KLM-1207
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 $NK-3N NYLON CLIP 5
39
2 90990-12J006 SCREW, BIN. HEAD W/W 5 40
3 90990-26J008 BEARING 2 41
4 KHY-M224A-A0 SUPPORT UNIT 1 42
5 90990-41J100 COLLAR 1 43
6 90K63-611404 AC SERVO MOTOR 1 B
Í
44
7 91312-04008 BOLT HEX,SOCKET HEAD 2
45
8 $UB0425-C URETHANE TUBE 2 L=230mm
46
9 91312-04025 BOLT HEX,SOCKET HEAD 2
47
10 91312-05014 BOLT HEX,SOCKET HEAD 4
48
11 91312-06018 BOLT HEX,SOCKET HEAD 4
49
12 91312-06020 BOLT HEX,SOCKET HEAD 4
50
13 91312-06035 BOLT HEX,SOCKET HEAD 4
51
14 92012-03005 BOLT BUTTON HEAD 4
52
15 92A08-04305 SCREW SET 2
53
16 KLD-M26G0-01 Y GREASE PIPE ASSY. 1 /
Í
54
17 KG2-M9173-00 LOCK NUT 1 /
Í
55
18 KHN-M224J-00 COLLAR A 2 /
Í
56
19 KHN-M224K-00 COLLAR B 2 /
Í
57
20 KHN-M22AD-00 GREASE NIPPLE 2 /
Í
58
21 KHY-M2642-00 HOLDER,BRG.Y 1 /
Í
59
22 KHY-M2648-00 DAMPER 1 /
Í
60
23 KHY-M264L-00 SPACER,BRG SET 1 /
Í
61
24 KHY-M266C-00 BLOCK,JOINT 2 /
Í
62
25 KHY-M266D-00 JOINT 1 /
Í
63
26 KHY-M266E-00 JOINT 2 /
Í
64
27 KHY-M2671-00 SCREW BALL 1 /
Í
65
28 KLD-M2641-00 HOLDER,MOTOR Y 1 /
Í
66
29 KLD-M266A-00 PLATE,PIPE 1 /
Í
67
30 KM0-M2220-00 COUPLING, X-AXIS 1 /
Í
68
31 99480-05010 PIN,PARALLEL 1
69
32 91312-03006 BOLT HEX,SOCKET HEAD 4
70
33 KHY-M652F-00 SENSOR,YOT ASSY 1 B
Í
71
34 KHY-M652A-00 SENSOR,YORG ASSY 1 B
Í
72
35
73
36
74
37
75
38
76
4
2
Y-axis Drive
Moving-axis Section
