YC8-KLM-000_MaintenancePartsList - 第27页
KLM-1207 2 5 12 8 1 1 8 3 3 11 4 9 6 14 10 10 13 7 7 6 3 Nozzle Changer Deck Nozzle Section
KLM-1207
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 $NK-4N NYLON CLIP 5
39 KLM-M9652-00 PLATE,CLAMP 1
/
Í
2 $SC4-M5A SPEED CONTROLLER 2 /
Í
40 KLM-M9654-00 PLATE,GUIDE 2
/
Í
3 90933-02J063 BEARING 2 /
Í
41
KLM-M965A-00 COVER 1,SENSOR 2 /
Í
4 90990-02J003 SET, SCREW 12
46
5 90990-41J123 COLLAR 2
47
6 90990-41J129 COLLAR 4
48
7 91312-03010 BOLT HEX,SOCKET HEAD 2
49
8 KGR-M9611-00 BRACKET,ANC. 1 /
Í
50
9 91312-03030 BOLT HEX,SOCKET HEAD 2
51
10 91312-04010 BOLT HEX,SOCKET HEAD 2
52
11 91312-04016 BOLT HEX,SOCKET HEAD 1
53
12 91312-04022 BOLT HEX,SOCKET HEAD 1
54
13 91312-05020 BOLT HEX,SOCKET HEAD 1
55
14 91317-04008 BOLT HEX,SOCKET HEAD 5
56
15 91317-04020 BOLT HEX,SOCKET HEAD 4
57
16 91317-05016 BOLT HEX,SOCKET HEAD 3
58
17 91317-06020 BOLT HEX,SOCKET HEAD 2
59
18 92012-04010 BOLT, BOTTON HEAD 2
60
19 92902-04200 WASHER,PLAIN 3
61
20 92902-05200 WASHER,PLAIN 1
62
21 KGR-M9653-00 BRACKET 1 1 /
Í
63
22 98902-03006 SCREW BINDING HEAD 12
64
23 KHW-M916A-00 BUSH 2 /
Í
65
24 KHW-M916E-00 BUSH 1 /
Í
66
25 KHW-M916G-00 COLLAR, JOINT 1 /
Í
67
26 KHW-M916H-00 JOINT, CYL. 1 /
Í
68
27 KHY-M9605-10 CYLINDER 1 /
Í
69
28 KHY-M9613-00 BLOCK,CYLINDER 1 /
Í
70
29 KHY-M9615-00 PLATE,CYLINDER 1 /
Í
71
30 KHY-M9627-00 BLOCK,LINK 1 /
Í
72
31 KHY-M9628-00 COLLAR,LINK 1 /
Í
73
32 KHY-M9630-00 HOOK,BEARING 1 /
Í
74
33 KHY-M9631-00 COLLAR,FLOATING 1 /
Í
75
34 KHY-M9632-00 BLOCK,FLOATING 1 /
Í
76
35 KLM-M655A-00 SWITCH OPTICAL,1 1 B
Í
77
36 KLM-M655B-00 FAIBER ASSY 12 B
Í
78
37 KLM-M655C-00 SWITCH OPTICAL,2 11 B
Í
79
38 KLM-M9614-00 STOPPER,CYLINDER 1 /
Í
80
6
2
Nozzle Changer Base
Nozzle Section
KLM-1207
2
5
12
8
1
1
8
3
3
11
4
9
6
14
10
10
13
7
7
6
3

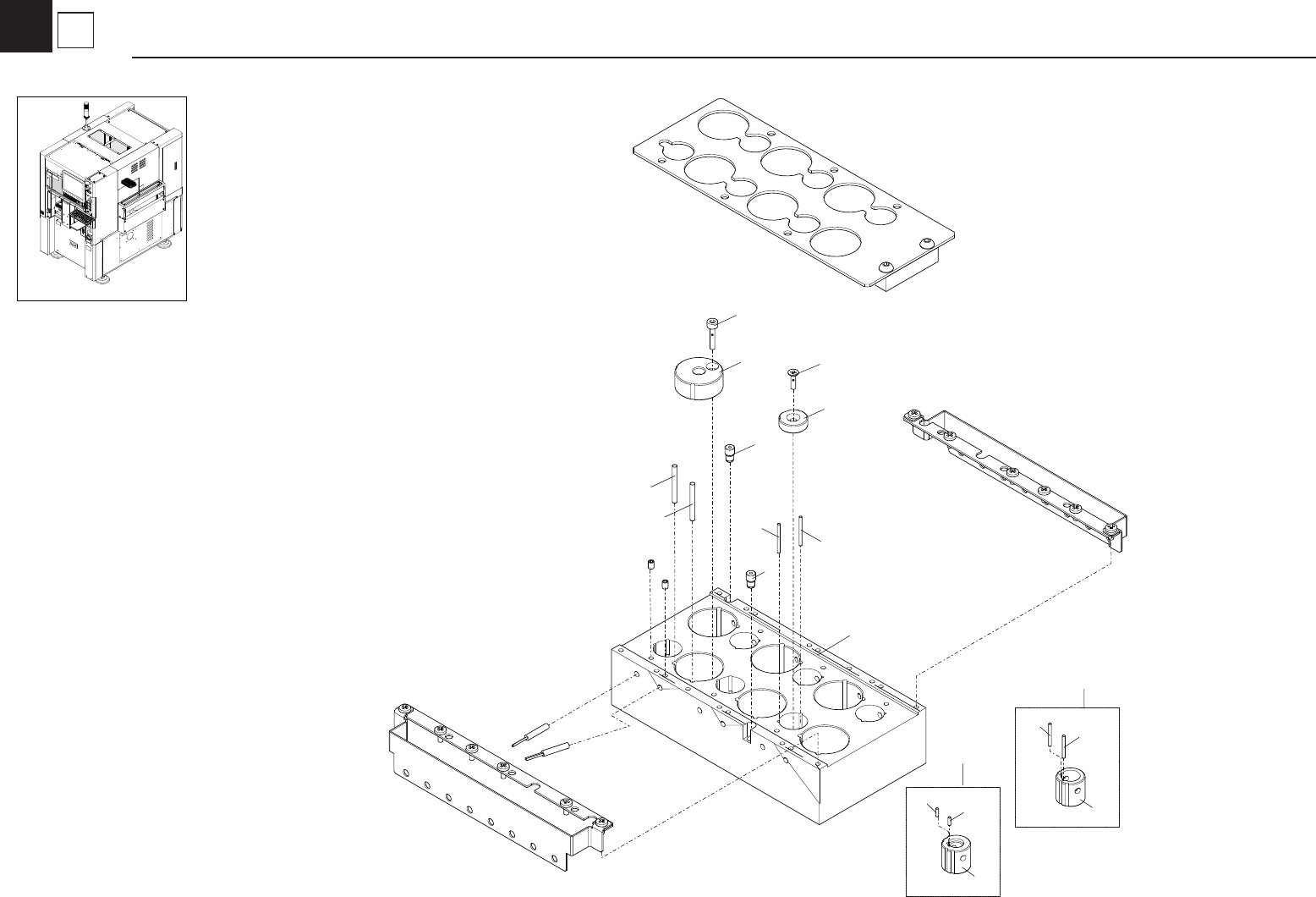

Nozzle Changer Deck
Nozzle Section
KLM-1207
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 90990-19J026 NEEDLE PIN 12
39
2 KLM-M9655-A0 ADAPTER 63A ASSY. 1 <OPTION> E
Í
40
3 90990-19J014 NEEDLE PIN 12
45
4 91312-03014 BOLT HEX,SOCKET HEAD 6
46
5 KLM-M9656-A0 ADAPTER 64A ASSY. 1 <OPTION> E
Í
47
6 98702-03010 SCREW,FLAT HEAD 6
48
7 90990-19J004 NEEDLE PIN 2
49
8 KHY-M9620-00 PIN,MARK 2 /
Í
50
9 KLM-M9608-00 SPACER,NOZZLE 6 /
Í
51
10 90990-19J007 NEEDLE PIN 2
52
11 KLM-M9609-00 SPACER,NOZZLE 6 /
Í
53
12 KLM-M9651-00 HOLDER,ANC. 1 /
Í
54
13 KLM-M9655-00 SPACER,NOZZLE 1 /
Í
55
14 KLM-M9656-00 SPACER,NOZZLE 1 /
Í
56
15
57
16
58
17
59
18
60
19
61
20
62
21
63
22
64
23
65
24
66
25
67
26
68
27
69
28
70
29
71
30
72
31
73
32
74
33
75
34
76
35
77
36
78
37
79
38
80
6
3
Nozzle Changer Deck
Nozzle Section
