KLM-1207 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KLM-1207
7
2

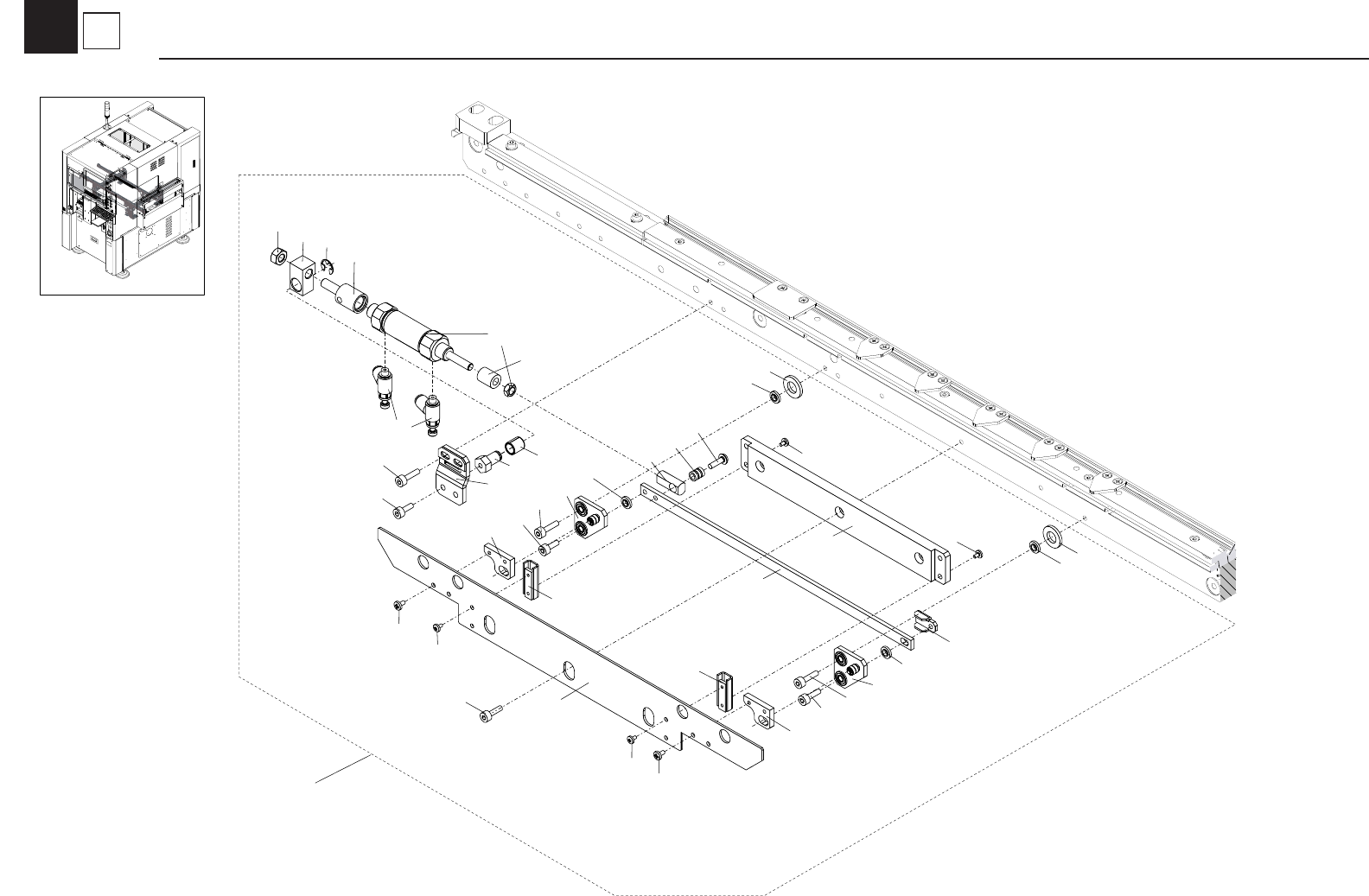

Clamp Board Front
Conveyor Section
1
3
5
8
6
2
18
28
27
11
17
7
29
9
12
20
26
23
2
10
2
15
19
6
4
21
22
14
7
12
24
11
25
2
13
29
27
12
29
26
28
16
14
12
KLM-1207
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLM-M9260-20 CLAMP BOARD SUB ASSY 1
Front-Near-Installed
/
Í
39
2 90169-02JB04 SCREW, BINDING HEAD 8 40
3 90440-10J050 CIRCLIP 1 41
4 92012-04012 BOLT, BOTTON HEAD 1 42
5 95302-06600 NUT HEXAGON 1 43
6 98902-03005 SCREW BINDING HEAD 4 44
7 KV7-M9266-01 GUIDE 2 /
Í
45
8 KHW-M9167-00 BRKT.,CYL. 1 /
Í
46
9 KHW-M916E-00 BUSH 1 /
Í
47
10 KHW-M916F-00 SHAFT 1 /
Í
48
11 KHW-M9261-00 PLATE1, LINK 2 /
Í
49
12 KHW-M9265-00 SPACER 4 /
Í
50
13 KHW-M9269-00 BRKT.,CYL. 1 /
Í
51
14 KHW-M926A-00 COLLAR 2 /
Í
52
15 KHW-M926B-00 COLLAR, JOINT 1 /
Í
53
16 KHW-M926E-00 NUT 1 /
Í
54
17 KHY-M9263-00 CYLINDER 1 /
Í
55
18 KHY-M926F-00 JOINT , CYL. BRKT 1 /
Í
56
19 KHY-M926H-00 JOINT, CYL. 1 /
Í
57
20 KHY-M926M-00 STOPPER, CYLINDER 1 /
Í
58
21 KHY-M926S-A0 SPEED CONTROLLER 2 /
Í
59
22 KLD-M9261-00 PLATE,BASE S 1 /
Í
60
23 KLD-M9262-01 PLATE,BOARD CLAMP 1 /
Í
61
24 KLD-M9263-00 PLATE 2,LINK 1 /
Í
62
25 KLD-M9264-00 PLATE 1 /
Í
63
26 KHW-M9264-A0 LINK A ASSY. 2 /
Í
64
27 91312-04010 BOLT HEX,SOCKET HEAD 2
65
28 91312-04012 BOLT HEX,SOCKET HEAD 4
66
29 91312-04014 BOLT HEX,SOCKET HEAD 4
67
30
68
31
69
32
70
33
71
34
72
35
73
36
74
37
75
38
76
7
2
Clamp Board Front
Conveyor Section
KLM-1207
7
3
Clamp Board Back
Conveyor Section
1
3
5
8
21
18
17
20
14
12
9
10
4
2
15
13
19
26
12
28
25
26
22
28
14
24
2
12
11
7
16
6
12
2
25
27
28
23
7
11
27
2
6
