YC8-KLM-000_MaintenancePartsList - 第37页
KLM-1207 7 5 Transportation Conveyor Section 30 6 33 8 14 6 33 28 23 31 32 25 7 16 5 15 28 3 11 4 2 24 31 21 20 1 26 2 18 24 29 31 31 12 31 13 10 27 9 32 5 17 19 7 22 26 25 27
KLM-1207
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLD-M9111-00 GUIDE 1 2 /
Í
39
2 KLD-M9112-00 GUIDE 1 2 /
Í
40
3 KLD-M9113-00 PLATE 1,GUIDE 1 /
Í
41
4 KLD-M9113-11 PLATE 1,GUIDE 1 /
Í
42
5 KLD-M9114-01 PLATE 2,GUIDE 1 /
Í
43
6 KLD-M9114-11 PLATE 2,GUIDE 1 /
Í
44
7 KLD-M9115-00 GUIDE 1-1 2 /
Í
45
8 KLD-M9116-00 GUIDE 1-1 2 /
Í
46
9 KHY-M912A-01 BRKT.,SENSOR 2 /
Í
47
10 KHY-M9135-00 PLATE,EDGE 2 10 /
48
11 KHY-M9135-10 PLATE,EDGE 3 2 /
49
12 KGA-M9113-00 GUIDE 1,END 2 /
50
13 KGA-M9114-00 GUIDE 2,END 2 /
51
14 91312-03006 BOLT HEX,SOCKET HEAD 12
52
15 91312-03008 BOLT HEX,SOCKET HEAD 36
53
16 91312-04010 BOLT HEX,SOCKET HEAD 4
54
17 91312-04014 BOLT HEX,SOCKET HEAD 8
55
18 92902-03200 WASHER,PLAIN 10
56
19 92902-04200 WASHER,PLAIN 4
57
20 92990-04600 WASHER,PLAIN 8
58
21 98702-03005 SCREW,FLAT HEAD 24
59
22 KHY-M652J-00 SENSOR,ENT ASSY 1 B
Í
60
23 KHY-M652M-00 SENSOR,EXT ASSY 1 B
Í
61
24 KLD-M652N-00 SENSOR,POS.1 ASSY 1
1ch only for Main-STP
(Working-Area)
B
Í
62
25 KLD-M652L-00 SENSOR,POS.1 ASSY 1
2ch for Main-STP &
Sub-STP (Waiting-Area)
B
Í
63
26 98502-03004 SCREW PAN HEAD 4
64
27 92A08-03303 SCREW SET 2
65
28 97602-03310 SCREW PAN HEAD W/W 4
66
29 KLD-M9160-00 MAIN STOPPER ASSY.R 1 B
Í
67
30 KLD-M9160-10 MAIN STOPPER ASSY.L 1 B
Í
68
31 KLD-M9180-00 SUB STOPPER ASSY.R 1 <Option> B
Í
69
32 KLD-M9180-10 SUB STOPPER ASSY.L 1 <Option> B
Í
70
33 KLD-M9270-00 EXIT STOPPER ASSY. R 1 B
Í
71
34 KLD-M9270-10 EXIT STOPPER ASSY. L 1 B
Í
72
35
73
36
74
37
75
38
76
7
4
Right Entry / Left Entry Comparison
Conveyor Section
KLM-1207
7
5

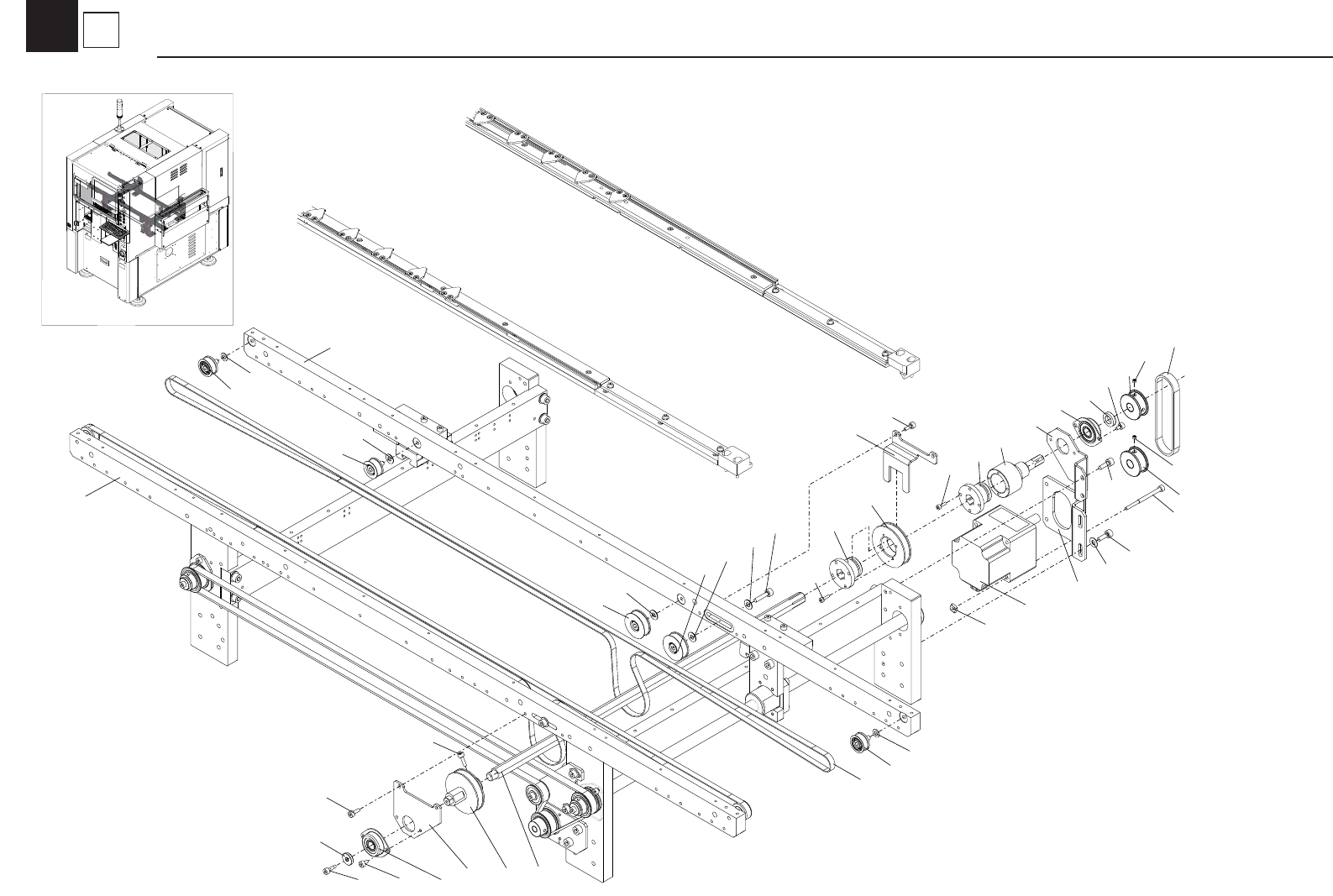

Transportation
Conveyor Section
30
6
33
8
14
6
33
28
23
31
32
25
7
16
5
15
28
3
11
4
2
24
31
21
20
1
26
2
18
24
29
31
31
12
31
13
10
27
9
32
5
17
19
7
22
26
25
27
KLM-1207
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KG2-M9105-00 PULLEY 1,SPLINE 1 /
Í
39
2 KG2-M9108-11 COLLAR CONVEYOR 2 A
Í
40
3 KGK-M9170-00 DC MOTOR ASSY. 1 B
41
4 KGT-M9193-00 NUT PLATE 4 /
42
5 KGY-M9140-A0 PULLEY CONV. ASSY. 4 /
43
6 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2 /
44
7 KH2-M9121-00 BEARING 2 /
Í
45
8 KHW-M9146-00 BELT(249-3GT-9) 1 A
46
9 KHY-M9113-00 PULLEY 1,MOTOR 1 /
Í
47
10 KHY-M9117-00 SPLINE 1 1 /
Í
48
11 KHY-M9157-00 SHAFT,MOTOR 1 /
Í
49
12 KKE-M9119-A0 PULLEY CONV. ASSY. 2 /
50
13 KKE-M9120-A0 PULLEY CONV. ASSY 2 /
51
14 KLD-M9106-00 BRKT.,CONV.MOTOR 1 /
52
15 KLD-M9108-00 BRKT.2,SPLINE 1 /
Í
53
16 KLD-M9110-10 FRAME,CONVEYOR 1 /
Í
54
17 KLD-M9117-00 BELT 1,CONVEYOR 2 E
55
18 KLD-M9124-00 BRACKET F,COLLAR 1 /
Í
56
19 KLD-M9125-00 BRKT.1,SPLINE 1 /
Í
57
20 KLM-M9110-00 FRAME,CONVEYOR 1 /
Í
58
21 KV1-M9140-A0 PULLEY CONV. ASSY. 2 /
59
22 90990-28J076 WASHER,PLAIN 1
60
23 90990-41J006 COLLAR 1
61
24 91312-03010 BOLT HEX,SOCKET HEAD 8
62
25 91312-04006 BOLT HEX,SOCKET HEAD 4
63
26 91312-04010 BOLT HEX,SOCKET HEAD 4
64
27 91312-04012 BOLT HEX,SOCKET HEAD 2
65
28 91312-05014 BOLT HEX,SOCKET HEAD 4
66
29 91312-05020 BOLT HEX,SOCKET HEAD 2
67
30 91317-04055 BOLT HEX,SOCKET HEAD 4
68
31 92902-05200 WASHER,PLAIN 10
69
32 92902-05600 WASHER,PLAIN 4
70
33 92A08-04303 SCREW SET 4
71
34
72
35
73
36
74
37
75
38
76
7
5
Transportation
Conveyor Section
