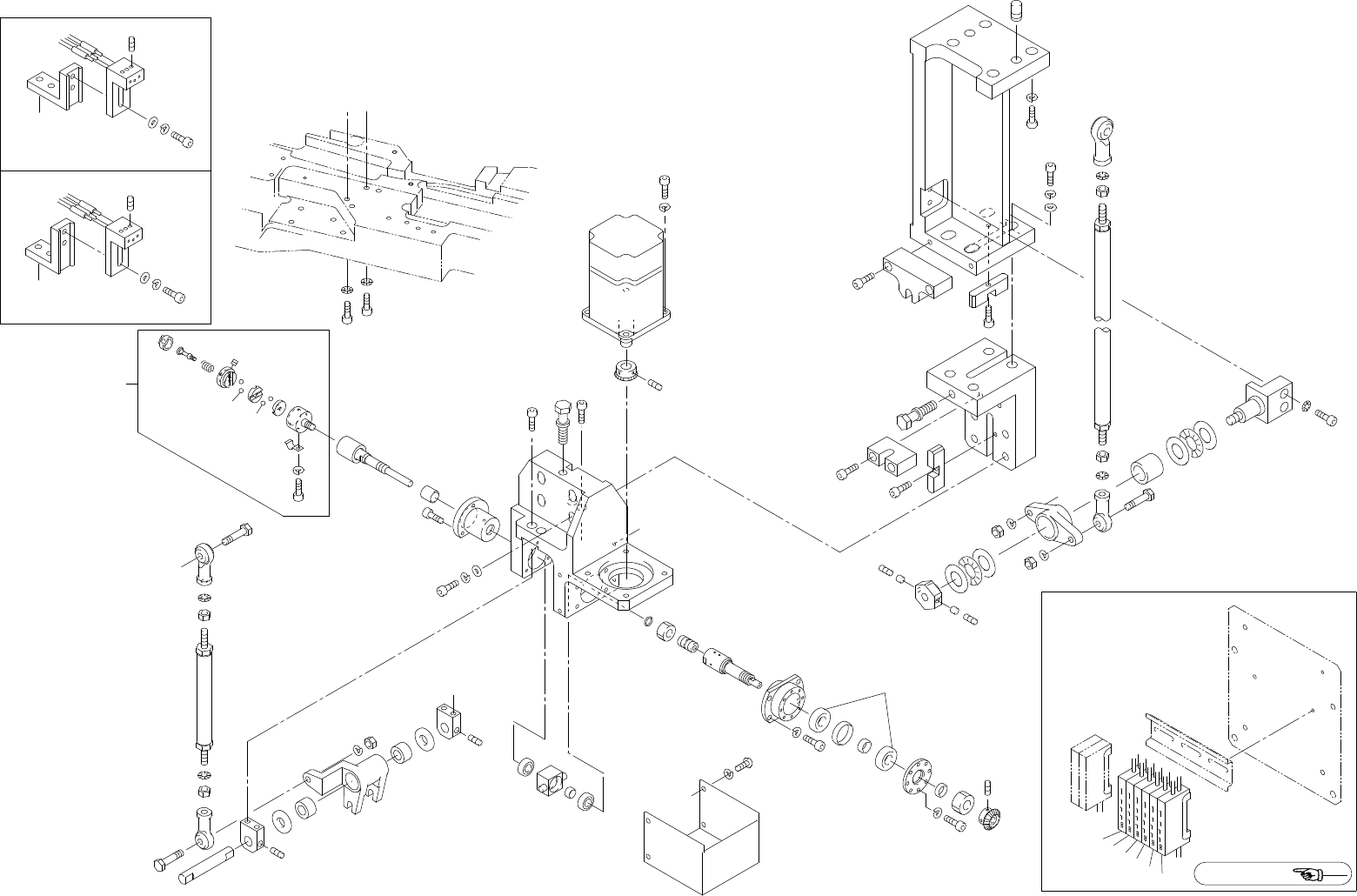

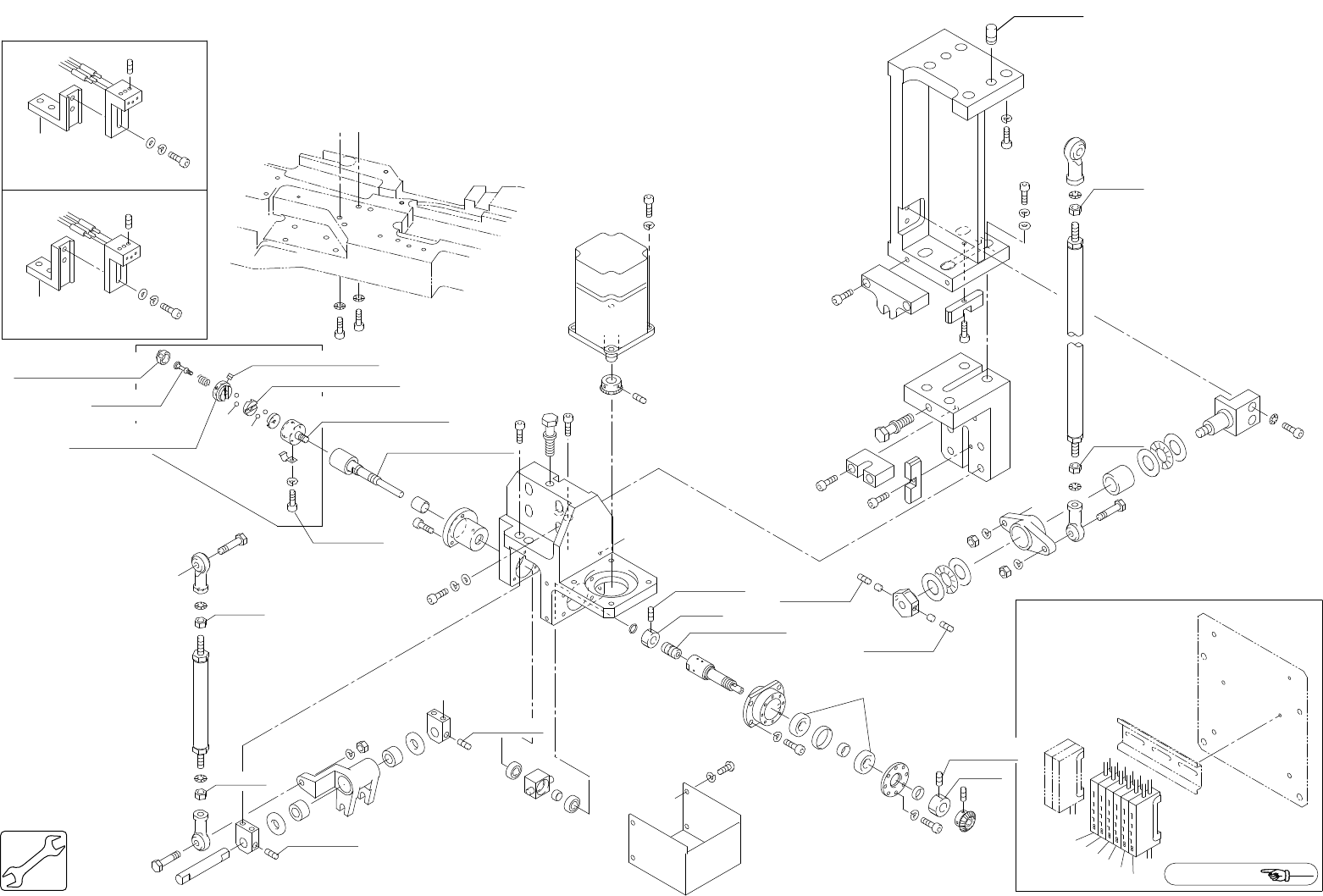

20.第14ステーション(ノズル切替)(DGPM)
20.Station 14(Nozzle change)(DGPM)
20.第14ステーション(ノズル切替)(DGPM)
20.Station 14(Nozzle change)(DGPM)
20 - 1
CP-743ME,CP-742ME PARTS LIST
Ref.15-1,36-1
C
B
B
C
A
X4.5
E
15ST
A
Front side
13ST
D
E
D
B
A
LOCTITE262
LOCTITE222
LOCTITE222
2.94N.m
7.84N.m
7.84N.m
8.0N.m
8.0N.m
7.84N.m
LOCTITE262
7.84N.m
1.7N.m
LOCTITE222
LOCTITE222
LOCTITE222
1.7N.m
LOCTITE222
ThreeBond1373B
ThreeBond1377B
ThreeBond1390E
ThreeBond1377B(12h)
ThreeBond1390E
ThreeBond1377B(12h)
LOCTITE262
ThreeBond1377B(12h)
ThreeBond1377B(12h)
ThreeBond1377B(12h)
ThreeBond1377B(12h)
LOCTITE262
1.92N.m
LOCTITE601
20.第14ステーション(ノズル切替)(DGPM)
20.Station 14(Nozzle change)(DGPM)
20.第14ステーション(ノズル切替)(DGPM)
20.Station 14(Nozzle change)(DGPM)
20 - 2
CP-743ME,CP-742ME PARTS LIST
20.第14ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換)(DGPM)
20.Station 14(Nozzle change)(DGPM)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 H4224D 1 BEARING ﾍﾞｱﾘﾝｸﾞ 7900A5DBC7P5 FE
2 H4386T 2
ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TA1010Z FE
3 N1124A 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ MR10(M10 P=0.75) FE
4 N1123A 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ MR8(M8 P=0.75) FE
5 H44512 2 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ L-1680HH FE
6 H4391A 1
ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TA1520Z FE
7 H4296A 2
ｽﾗｽﾄ ﾜｯｼｬ AS1629 FE
8 H4297A 2
ｽﾗｽﾄ ﾜｯｼｬ AS1831 FE
9 H4300A 1
ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ NTB1629 FE
10 H4301A 1
ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ NTB1831 FE
11 GPK0880 1 NUT ﾅｯﾄ FE
12 H5066A 4
ﾎﾞｰﾙ ｽﾁｰﾙ 4M/M OT
13 DCPA0070 2 PIN ﾋﾟﾝ FE
14 DCPM0090 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
15 DCPM0100 1 COLLAR ｶﾗｰ FE
16 DCPM0110 1 COLLAR ｶﾗｰ FE
17 DCPM0140 1 COLLAR ｶﾗｰ FE
18 DCPM0150 1 COLLAR ｶﾗｰ FE
19 DCPM0160 1 FLANGE ﾌﾗﾝｼﾞ FE
20 DCPM0220 1 SHAFT ｼｬﾌﾄ FE
21 DCPM0230 2 COLLAR ｶﾗｰ CO
22 DCPM0320 1 COLLAR ｶﾗｰ OT
23 DCPM0330 1 BKT, ADJUSTING BKT 調整 FE
24 DCPM0340 2 SCREW, ADJUSTING ﾈｼﾞ 調整 FE
25 DCPM0350 1 BKT, ADJUSTING BKT 調整 FE
26 DCPM0360 2 KEY, POSITIONING ｷｰ 位置決め FE
27 DCPM0380 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE
28 DCPM0390 2 BLOCK ﾌﾞﾛｯｸ FE
29 DCPM0400 1 BKT BKT OT
30 DCPM0420 1 SHAFT ｼｬﾌﾄ 注1.Note.1 FE
31 DCPM0470 1 SHAFT, SPLINE ｼｬﾌﾄ ｽﾌﾟﾗｲﾝ 注1.Note.1 OT
32 DCPM0052 1 BKT BKT FE
33 DGPM0010 1 BKT BKT FE
34 DCPM0210 1 FLANGE ﾌﾗﾝｼﾞ FE
35 DCPM0242 1 RING ﾘﾝｸﾞ OT
36 DCPM0311 4 SPRING, PLATE ｽﾌﾟﾘﾝｸﾞ 板 FE
37 DCPM0370 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 OT
38 DCPM0291 1 HOLDER ﾎﾙﾀﾞ OT
39 DCPM0270 1 BOLT ﾎﾞﾙﾄ FE
40 DCPM0250 1 RING ﾘﾝｸﾞ FE
41 DCPM0282 1 SPRING ｽﾌﾟﾘﾝｸﾞ FE
42 DCPM0261 1 HOLDER ﾎﾙﾀﾞ FE
43 DCPM0300 1 CLUTCH ｸﾗｯﾁ FE
44 H3181H 2
ﾌﾟﾚｰﾄ ｴﾝﾄﾞ PBRL6FN FE
45 H3181T 1
ﾌﾟﾚｰﾄ ｴﾝﾄﾞ PBR6FN FE
CP-743ME,CP-742ME PARTS LIST
20 - 3
20.第14ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換)(DGPM)
20.Station 14(Nozzle change)(DGPM)
