D X 6 . 5 C C B A B A B A D L O C T I T E 2 6 2 2 . 9 4 N . m T h r e e B o n d 1 3 7 3 B L O C T I T E 2 6 2 L O C T I T E 7 6 4 9 1 2 . 7 4 N . m T h r e e B o n d 1 3 7 3 B T h r e e B o n d 1 3 9 0 E 2 1 . P a l l e …
Ref.33-7
D
VK040-00000*
X6.5
11
10
11
27
38
38
47
27
47
10
9
9
55
57
22
20
21
19
24
37
8
48
41
17
18
31
47
39
48
40
2
37
4
32
33
29
30
28
51
41
26
7
43
23
61
51
25
43
6
1
50
49
45
35
13
13
3
51
42
12
5
52
44
36
46
16
C
C
B
A
B
A
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
0.5 1 2
D
59
53
54
58
48
62
63
61
48
40
60

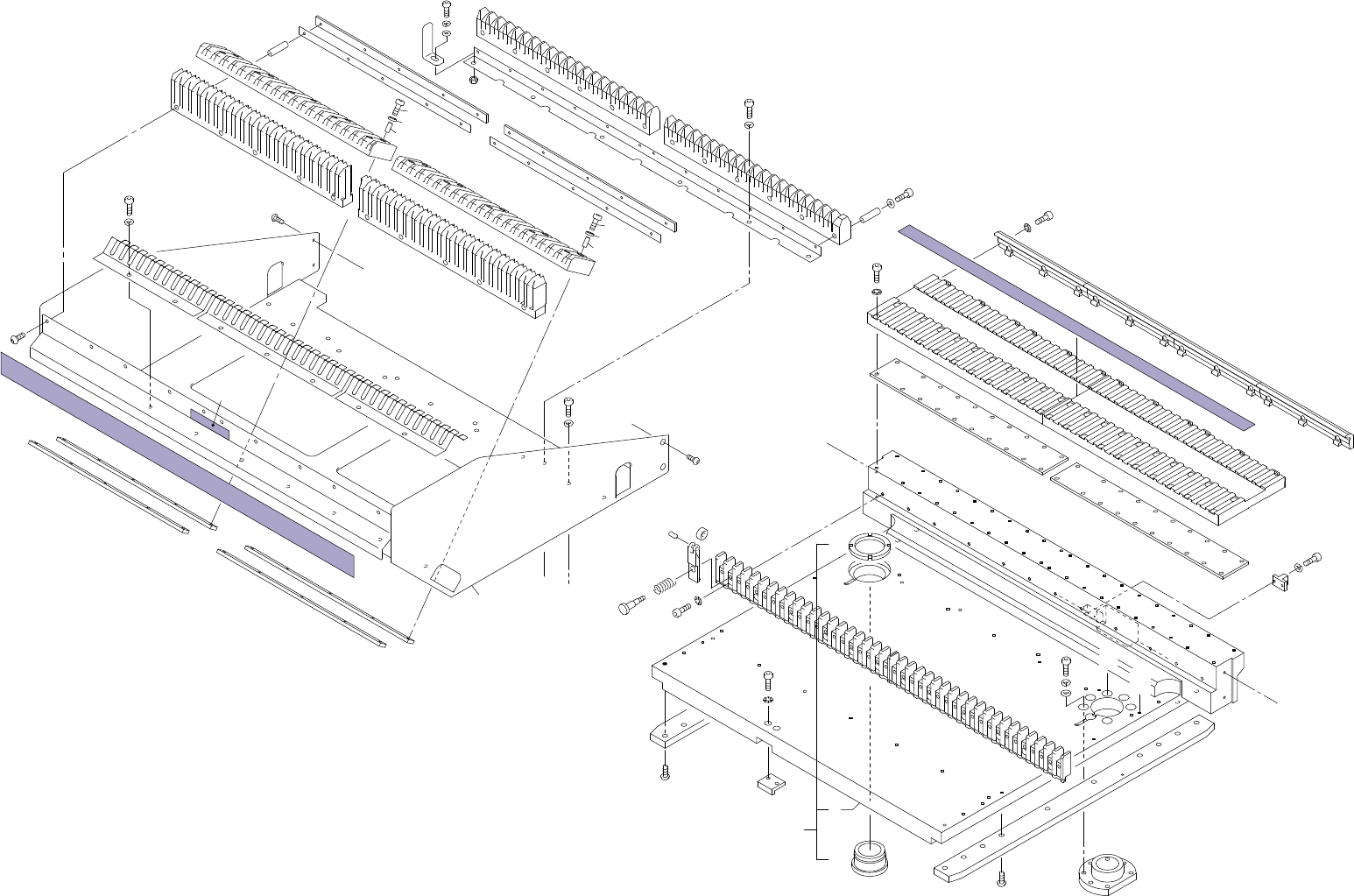

21.Pallet(DGQP)
21.パレット(DGQP)
21.Pallet(DGQP)
21.パレット(DGQP)
21 - 1
CP-743ME,CP-742ME PARTS LIST
D
X6.5
C
C
B
A
B
A
B
A
D
LOCTITE262
2.94N.m
ThreeBond1373B
LOCTITE262
LOCTITE7649
12.74N.m
ThreeBond1373B
ThreeBond1390E
21.Pallet(DGQP)
21.パレット(DGQP)
21.Pallet(DGQP)
21.パレット(DGQP)
21 - 2
CP-743ME,CP-742ME PARTS LIST
21.ﾊﾟﾚｯﾄ(DGQP)
21.Pallet(DGQP)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 DGQP0015 2 PALLET ﾊﾟﾚｯﾄ AL
2 DGQP0350 2 BKT BKT AL
3 DGQP0132 2 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準 FE
4 DGQP0031 2 GUIDE, MOVABLE ｶﾞｲﾄﾞ 移動 FE
5 DGQP0040 2 CLAMPER ｸﾗﾝﾊﾟ FE
6 DGQP0113 2 RAIL ﾚｰﾙ FE
7 DGQP0123 2 RAIL ﾚｰﾙ FE
8 DGQP0420 2 BKT BKT FE
9 DGQP0340 2 SEAL ｼｰﾙ PL
10 DGQP0230 4 PLATE ﾌﾟﾚｰﾄ FE
11 DGQP0240 4 PLATE ﾌﾟﾚｰﾄ FE
12 DGQP0260 2 SEAL ｼｰﾙ PL
13 DGQP0160 4 SHIM ｼﾑ t=4.0 注1.Note.1 FE
16 DGQP0250 2 DOG, SW ﾄﾞｯｸﾞ SW FE
17 DGQP0400 2 STEADY BRACE 振れ止め PL
18 DGQP0410 2 STEADY BRACE 振れ止め PL
19 DGQP0071 2 STEADY BRACE 振れ止め PL
20 DGQP0081 2 STEADY BRACE 振れ止め PL
21 DGQP0360 2 STEADY BRACE 振れ止め PL
22 DGQP0370 2 STEADY BRACE 振れ止め PL
23 DCQP0371 2 BUSHING ﾌﾞｯｼｭ FE
24 DCQP0280 20 COLLAR ｶﾗｰ FE
25 DCQP0151 2 LOCATOR 当金 FE
26 DCQP0320 2 BUSHING ﾌﾞｯｼｭ FE
27 DCQP0310 40 COLLAR ｶﾗｰ FE
28 WSD0014 80 CLAMPER ｸﾗﾝﾊﾟ FE
29 WSD0641 80 BOLT ﾎﾞﾙﾄ FE
30 WSD0651 80 SPRING ｽﾌﾟﾘﾝｸﾞ FE
31 DCQP0330 24 COLLAR ｶﾗｰ FE
32 R5025T 80
ROLLER, NEEDLE
ﾛｰﾗ ﾆｰﾄﾞﾙ ﾟ5X10 OT
33 H4435T 80
BEARING, MINIATURE
ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ L-1150ZZ FE
35 K5258A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M4X25L FE
36 H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X8L FE
37 k52565
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M4X6L FE
38 H5292A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X20L FE
39 H5293A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X25L FE
40 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X10L FE
41 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X12L FE
42 H5301A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X18L FE
43 K5262A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M6X10L FE
44 H5320A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X10L FE
45 H5323A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X18L FE
46 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
47 W1041A WASHER, FLAT ﾜｯｼｬ 平 4M/MX0.8X9(1W-4) FE
48 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
CP-743ME,CP-742ME PARTS LIST
21 - 3
21.ﾊﾟﾚｯﾄ(DGQP)
21.Pallet(DGQP)
