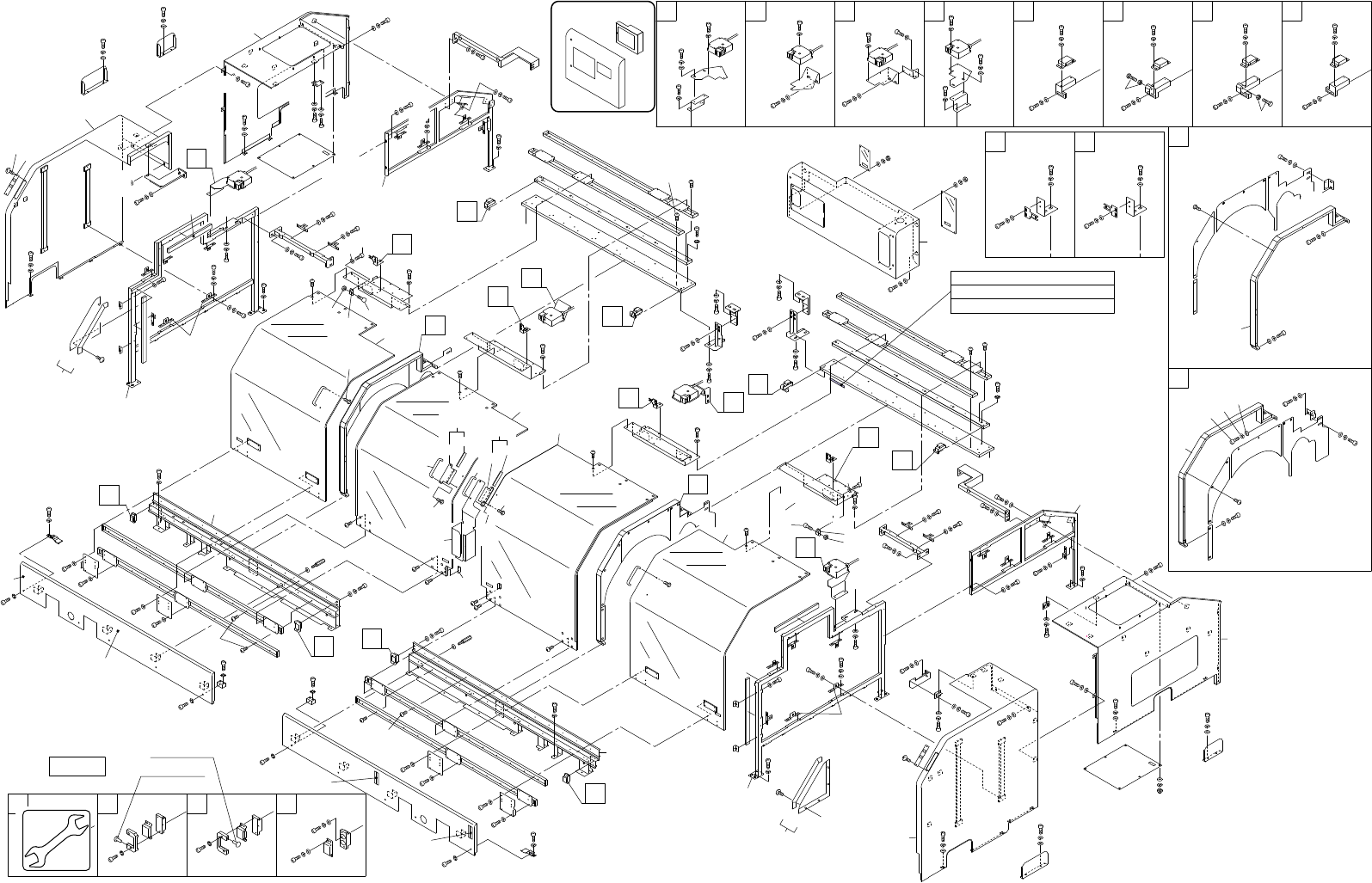

28.ｶﾊﾞｰ(後面,側面,D軸)(DGAF) 28.Cover(Rear,Side,D axis)(DGAF) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 ADGAF8030 1 DOOR 扉 OT 2 ADGAF8040 1 DOOR 扉 OT 3 ADGAF8010 1…
G
H
F
E
P
S
Q
R
J
M
B
L
K
K
C
A
D
X
X
G HFDCBA
P
E
M
L
SQ R
KJ
Y
Z
Y
Z
x25
LOCTITE262
2.94N.m
ThreeBond1373B
パンドー15A
PANDO 15A
PANDO 15A
2.94N.m
ThreeBond1373B
Antistatic
10SOL-20 カートリッジn回送り
10SOL-20
Feeder multiple index
10SOL-20
Index multiple feeder
J
743E
28.カバー(後面,側面,D軸)(DGAF)
28.Cover(Rear,Side,D-axis)(DGAF)
28.カバー(後面,側面,D軸)(DGAF)
28.Cover(Rear,Side,D-axis)(DGAF)
28 - 2
CP-743ME,CP-742ME PARTS LIST
28.ｶﾊﾞｰ(後面,側面,D軸)(DGAF)
28.Cover(Rear,Side,D axis)(DGAF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 ADGAF8030 1 DOOR 扉 OT
2 ADGAF8040 1 DOOR 扉 OT
3 ADGAF8010 1 DOOR 扉 OT
4 ADGAF8020 1 DOOR 扉 OT
5 DGAF0870 1 BKT BKT AL
6 DGAF0880 1 BKT BKT AL
7 DGAF0210 1 FRAME ﾌﾚｰﾑ FE
8 DGAF0200 1 FRAME ﾌﾚｰﾑ FE
9 DGAF0063 1 PIN ﾌﾚｰﾑ 注1. Note.1 FE
10 DGAF1010 1 PACKING ﾊﾟｯｷﾝ 注1. Note.1 OT
11 DGAF1020 1 PACKING ﾊﾟｯｷﾝ 注1. Note.1 OT
12 DGAF0053 1 FRAME ﾌﾚｰﾑ 注2. Note.2 FE
13 DGAF1010 1 PACKING ﾊﾟｯｷﾝ 注2. Note.2 OT
14 DGAF1020 1 PACKING ﾊﾟｯｷﾝ 注2. Note.2 OT
15 ADGAF8190 1 COVER 蓋 OT
16 ADGAF8200 1 COVER 蓋 OT
17 DGAF0960 2 COVER 蓋 FE
18 DGAF1290 1 GUIDE ﾊﾟｯｷﾝ OT
19 DGAF1300 1 PACKING ﾊﾟｯｷﾝ OT
20 DCAF0620 8
WASHER
ﾜｯｼｬ FE
21 DGAF0100 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ FE
22 DGAF0950 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ FE
23 DGAF0090 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ FE
24 DGAF0940 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ FE
25 DCAF0120 1 COVER ｶﾊﾞｰ FE
26 ADCAF8060 1 PLATE, ACRYLIC ﾌﾟﾚｰﾄ ｱｸﾘﾙ OT
27 DCAF0311 1 JOINT ｼﾞｮｲﾝﾄ FE
28 DCAF0330 2 JOINT ｼﾞｮｲﾝﾄ FE
29 DCAF0321 1 JOINT ｼﾞｮｲﾝﾄ FE
30 DCAF0340 4 PLATE ﾌﾟﾚｰﾄ FE
31 DCAF0380 2 SPACER ｽﾍﾟｰｻ FE
32 DGAF0160 1 COVER ｶﾊﾞｰ PL
33 DGAF0170 1 COVER ｶﾊﾞｰ FE
34 DCAF0611 8 BOLT ﾎﾞﾙﾄ FE
35 DGAF0180 1 PLATE ﾌﾟﾚｰﾄ AL
36 DGAF0290 1 PLATE ﾌﾟﾚｰﾄ AL
37 DGAF0390 1 PLATE ﾌﾟﾚｰﾄ AL
38 DGAF0400 2 PLATE ﾌﾟﾚｰﾄ AL
39 DGAF0190 1 PLATE ﾌﾟﾚｰﾄ AL
40 DGAF0300 1 PLATE ﾌﾟﾚｰﾄ AL
41 DGAF0380 1 PLATE ﾌﾟﾚｰﾄ AL
43 DGAF0430 4 SLIDER ｽﾗｲﾀﾞ OT
44 DCAF0210 1 BKT BKT FE
45 DCAF0910 2 PLATE ﾌﾟﾚｰﾄ FE
46 DCAF0920 4 BKT BKT FE
CP-743ME,CP-742ME PARTS LIST
28 - 3
28.ｶﾊﾞｰ(後面,側面,D軸)(DGAF)
28.Cover(Rear,Side,D axis)(DGAF)
28.ｶﾊﾞｰ(後面,側面,D軸)(DGAF)
28.Cover(Rear,Side,D axis)(DGAF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
47 DCAF0550 1 BKT BKT FE
48 DGAF0490 1 BKT BKT FE
49 DGAF0110 2 FRAME ﾌﾚｰﾑ FE
50 DGAF0890 1 BKT BKT FE
51 DGAF0910 1 BKT BKT FE
52 DGAF0252 1 RAIL ﾚｰﾙ AL
53 DGAF0282 2 RAIL ﾚｰﾙ AL
54 DGAF0900 1 BKT BKT FE
55 DGAF0920 1 BKT BKT FE
56 DGAF0242 1 RAIL ﾚｰﾙ AL
57 DGAF0360 1 BKT BKT FE
58 DGAF0370 1 BKT BKT FE
59 DCAF0630 22 BKT BKT FE
60 DCAF0940 1 BKT BKT FE
61 DCAF0410 1 BKT BKT FE
62 DCAF0400 4 BKT BKT FE
63 DGAF0510 2 BKT, SW BKT SW FE
64 DGAF0521 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
65 DGAF0350 1 BKT, SW BKT SW FE
66 DGAF0480 1 BKT, SW BKT SW FE
67 DGAF0531 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
68 DCAF0390 2 LOCATOR 当金 FE
70 DGAF0970 1 COVER 蓋 FE
71 DGAF0440 4 SLIDER ｽﾗｲﾀﾞ OT
72 T5005T 4 HANDLE 取手 THA-132-3-3473 OT
73 M1010K 8 MAGNET CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ TL-75-1181 OT
75 S3193K 4 SW, LIMIT SW ﾘﾐｯﾄ D4DL-1DFG-B OT
76 S3193N 4 SW, LIMIT SW ﾘﾐｯﾄ D4DS-K1 OT
77 H5274A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X5L FE
78 H5276A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X10L FE
79 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X8L FE
80 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X10L FE
81 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X12L FE
82 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X15L FE
83 H5297A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X8L FE
84 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X10L FE
85 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X12L FE
86 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
87 H5301A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X18L FE
88 H5302A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X20L FE
90 H5322A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X15L FE
91 H5323A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X18L FE
92 H5324A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X20L FE
93 H5341A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M8X20L FE
94 H5342A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M8X25L FE
CP-743ME,CP-742ME PARTS LIST
28 - 4
28.ｶﾊﾞｰ(後面,側面,D軸)(DGAF)
28.Cover(Rear,Side,D axis)(DGAF)
