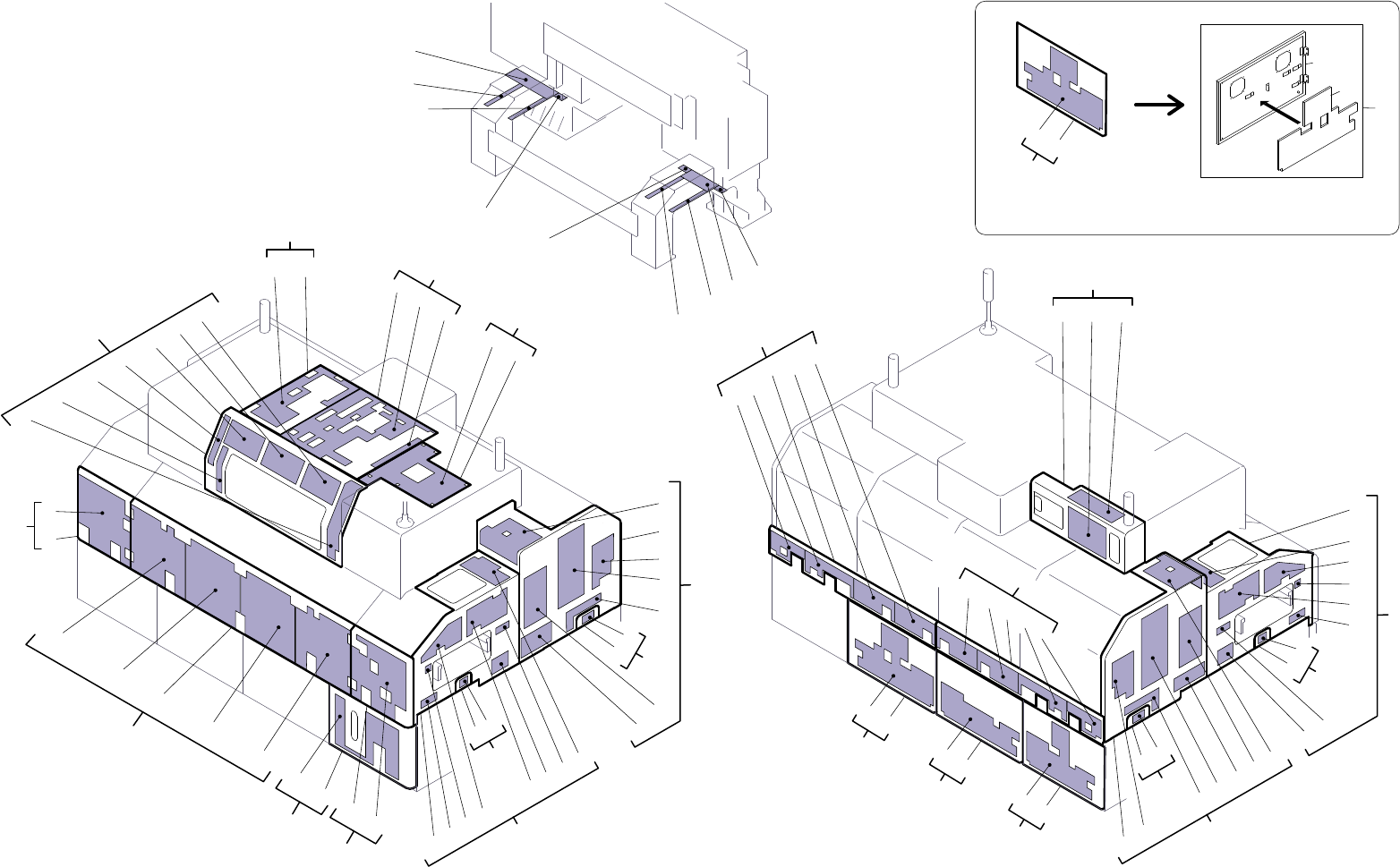

CP-743ME-04 - 第218页

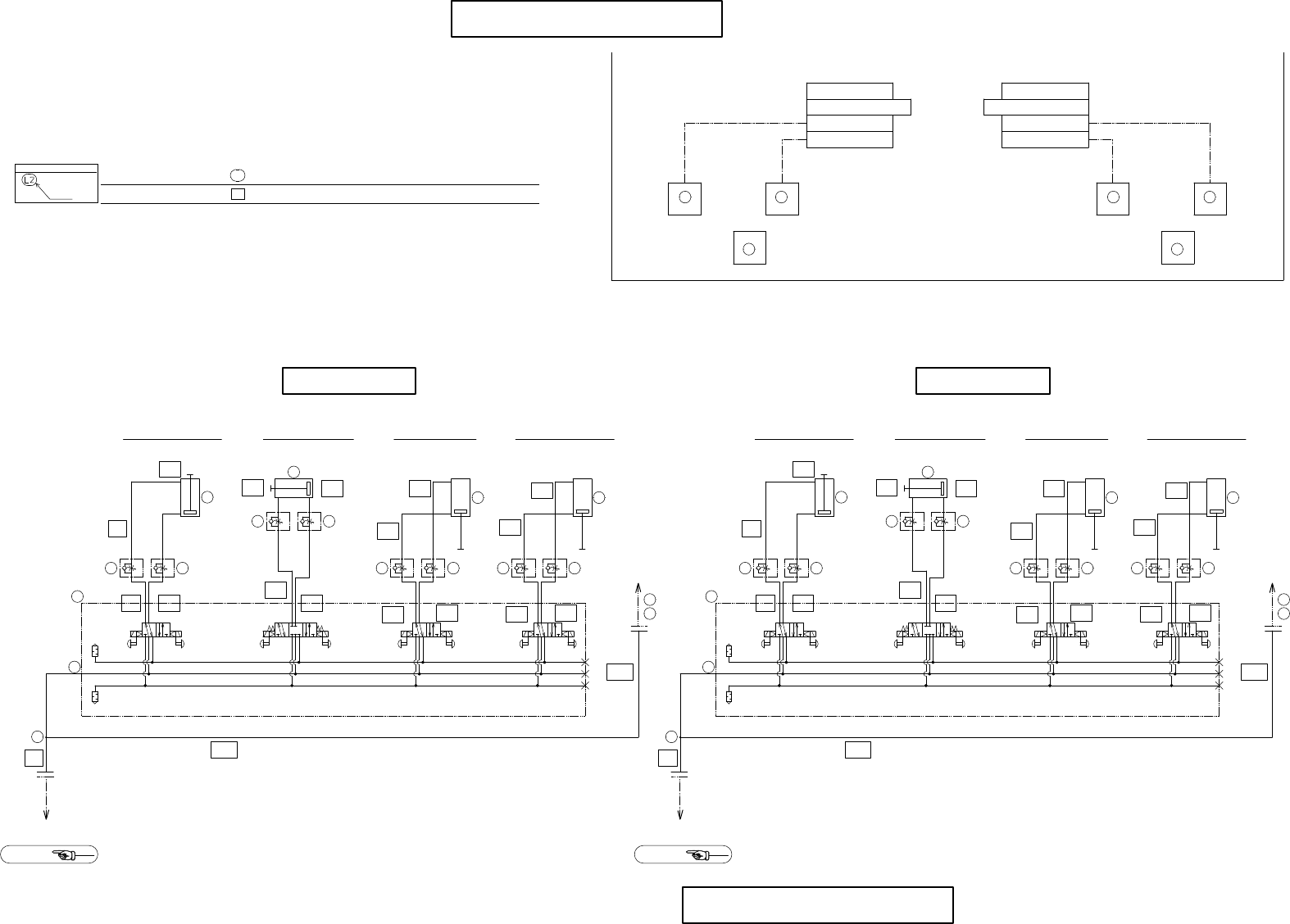

34.3.Pneumatic circuit diagram(DGPI)[English Edition] No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 DGSD0160 1 VALVE, SOL SS5X5-41P-X240 OT 2 DGSD0170 1 VALVE, SOL SS5X5-41P-X239 OT 3 DGSD0830 2 C…
φ８
φ8
BA BA BA BA
D1 axis(DGSD)
PCU CLAMP(IN)
PCU CLAMP(OUT)
PCU
VALVE SOL and CYLINDER overview
VALVE(D1)
PCU CLAMP(IN)
PCU CLAMP(OUT)
VALVE(D2)
OUT OUT
OUT OUT OUT OUT
OUT OUT
OUT OUT OUT OUT
OUT OUT
R L LR
B1
D10
D10
D1
D1
D2
D2
D3
D4
D4
D3
D5
D6
D5
D6
D8
D7
D7
D8
TABLE STOPPER
PALLET UP/DOUN
PCU CLAMP L
PCU CLAMP R
TABLE STOPPER
PALLET UP/DOUN
PCU CLAMP L
PCU CLAMP R
φ８
φ8
BA BA BA BA
D2 axis(DGSD)
PCU
B11
D20
D20
D11
D11
D12
D12
D13
D14
D14
D13
D15
D16
D5
D16
D18
D7
D17
D18
No.
Ref.34-4
A
Ref.34-4
B
50%
50%X70%
9
5
5 5
9
5 5
9
1212
5
1212
4
77
6
3
1
8
10
6
11
9
5
1212
5
1212
4
77
6
3
2
8
10
6
11
While unclampWhile stopper down
Table stopper
While pallet down
Pallet up/down
While unclamp
PCU Clamp(IN) PCU Clamp(OUT)
While unclampWhile stopper down
Table stopper
While pallet down
Pallet up/down
While unclamp
PCU Clamp(IN) PCU Clamp(OUT)
Numbers enclosed by are attached with a marker.
Numbers enclosed by are attached with a marker at both ends.
34.3.Pneumatic circuit diagram(DGPI)
34.3.Pneumatic circuit diagram(DGPI)
34 - 13
English Edition
English Edition
CP-743ME,CP-742ME PARTS LIST
34.3.Pneumatic circuit diagram(DGPI)[English Edition]
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 DGSD0160 1 VALVE, SOL SS5X5-41P-X240 OT
2 DGSD0170 1 VALVE, SOL SS5X5-41P-X239 OT
3 DGSD0830 2 CYLINDER, AIR RSDQB20D-S3685-15 OT
4 DGSD0271 2 CYLINDER, AIR CDG1DA100-S4963-8C OT
5 S2110K 4 CYLINDER, AIR CDQ2B50-15D-A93VL OT
6 K5342W 4 CONTROLLER, SPEED AS2201F-01-08S(ｼﾛ) OT
7 K5348K 4 CONTROLLER, SPEED AS3001F-08(ｼﾛ) OT
8 Y30812 2 UNION, ELBOW KQ2W08-99 OT
9 H1024K 2 VALVE 80-IN-334-61 OT
10 Y3071T 2 UNION KQ2T08-06 OT
11 Y3083A 2 UNION, HALF KQ2H06-01S OT
12 K5347Y 8 CONTROLLER, SPEED AS2301F-02-08S(ｼﾛ) OT
CP-743ME,CP-742ME PARTS LIST
34 - 14 34.3.Pneumatic circuit diagram(DGPI)[English Edition]
