P-188-003e - 第141页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10J 0306-001 139 1 630 095 6498 BRACKET 1 810JE-010-001 2 630 120 0996 BRACKET 1 810JE-010-002 5 630 096 9146 COVER 1 810JE-010-005 6 630 093 2621 COVER 1 810…
MODEL TCM-X110J
0306-001
138
XY
テーブル配管、配線
XY TABLE PIPING,WIRING

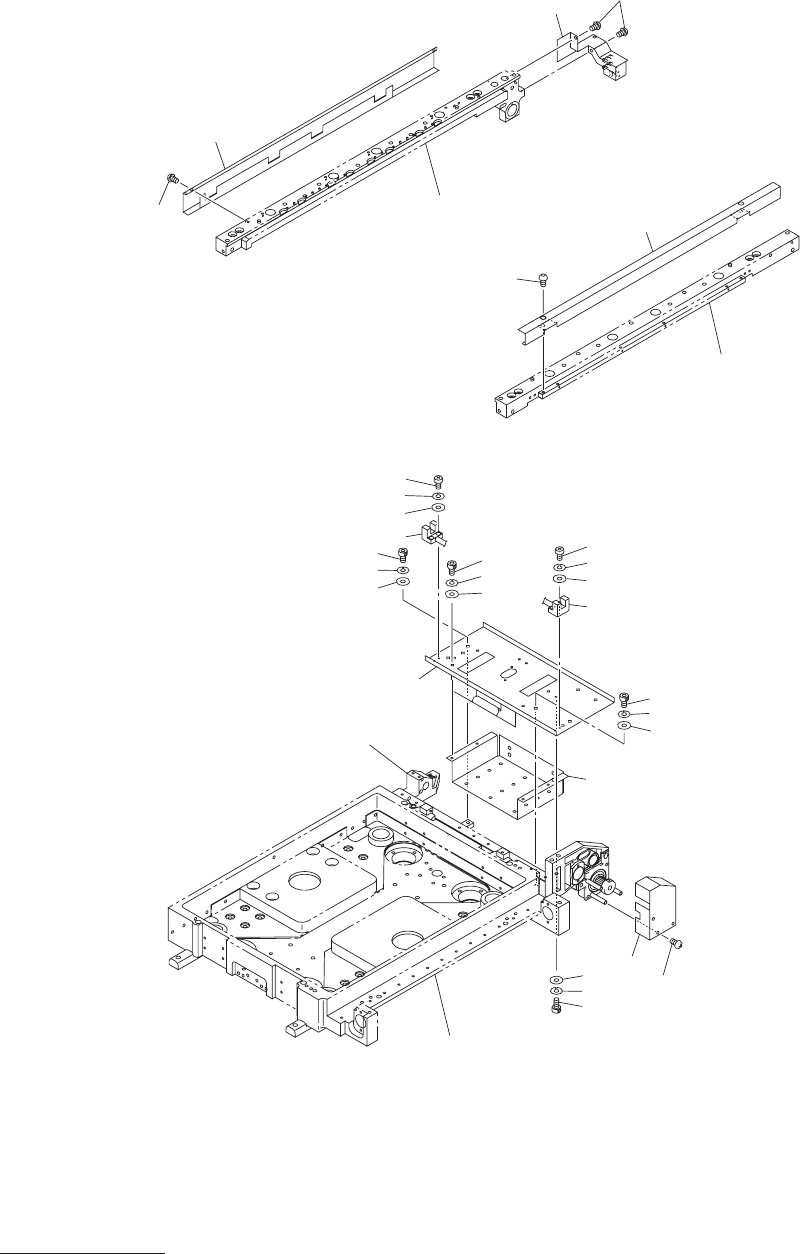

Fig. JE-1 XY
シュート幅センサ
XY Chute Width Limit Sensors
2
See Fig.JD-1
Key No.33
See Fig.JD-1
Key No.1
See Fig.JC-1
Key No.4
See Fig.JD-
4
Key No.306
7
1
27
27
11
16
19
14
18
21
12
17
20
26
10
11
16
19
14
6
27
20
17
28
18
21
10
5
27
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0306-001
139
1 630 095 6498 BRACKET 1 810JE-010-001
2 630 120 0996 BRACKET 1 810JE-010-002
5 630 096 9146 COVER 1 810JE-010-005
6 630 093 2621 COVER 1 810JE-010-006
7 630 096 8002 COVER 1 810JE-010-007
10 630 093 0016 ASSY,SENSOR,PHOTO 2 BPH73,BPH74 810JE-010-010
11 411 140 6300 SCR PAN 2X8 4 810JE-010-011
12 630 000 7503 BOLT,HEX-SCT 4 810JE-010-012
14 630 000 7619 BOLT,HEX-SCT 3 810JE-010-014
16 411 141 2509 WASHER SPR 2 4 810JE-010-016
17 411 141 2806 WASHER SPR 3 5 810JE-010-017
18 411 141 2905 WASHER SPR 4 3 810JE-010-018
19 411 141 3605 WASHER V 2X5X0.3 4 810JE-010-019
20 411 141 3902 WASHER V 3X7X0.5 5 810JE-010-020
21 411 141 4008 WASHER V 4X9X0.8 3 810JE-010-021
26 630 096 7975 BRACKET 1 810JE-010-026
27 630 047 4596 BOLT,HEX-SCT(BUTTON HEAD) 9 810JE-010-027
28 630 000 7527 BOLT,HEX-SCT 1 810JE-010-028
JE-1
MODEL TCM-X110J
0306-001
140
XY
テーブル配管、配線
XY TABLE PIPING,WIRING

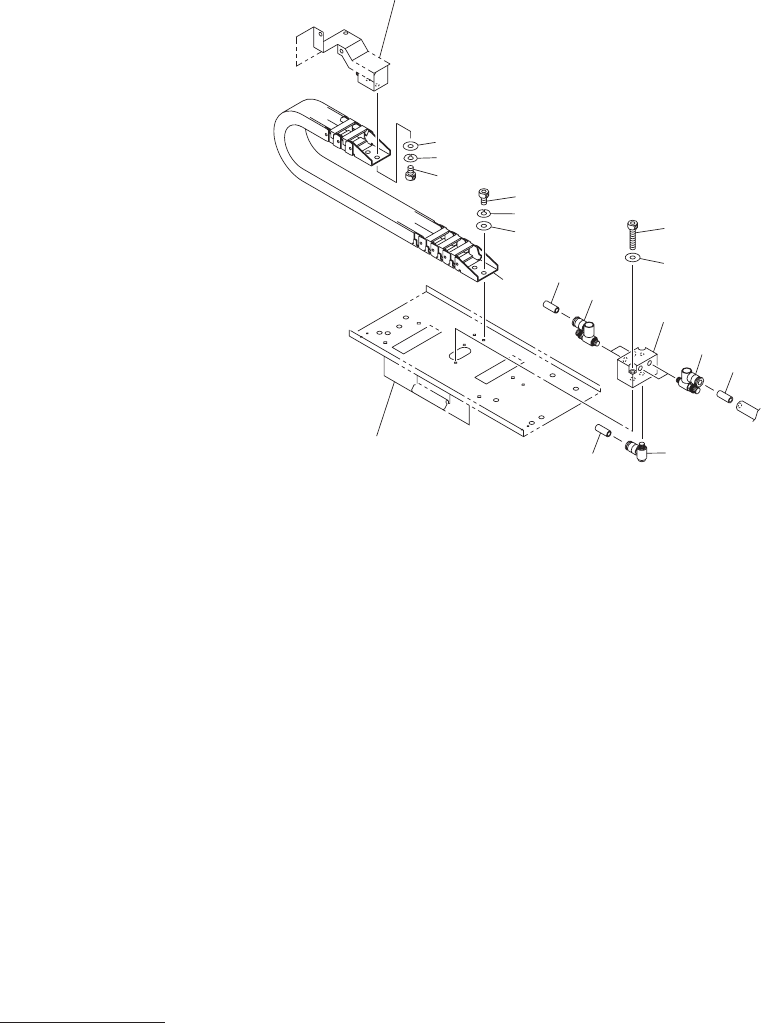

Fig. JE-2 Z
クランプ配管 - １
Z Clamp Piping-1
See Fig.JE-1
Key No.2
See Fig.JE-1
Key No.1
11
9
11
8
120
11
9
120
103
104
11
5
11
6
11
8
104
11
7
117
117
122
121
