Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10J 0306-001 149 551 630 1 1 1 1667 ASSY ,CORD(X100J10) 1 XNC185,184,188,182,183- 810JE-010-551 552 630 1 1 1 1674 ASSY ,CORD(X100J1 1) 1 XNC183- 810JE-010-55…
MODEL TCM-X110J
0306-001
148
XY

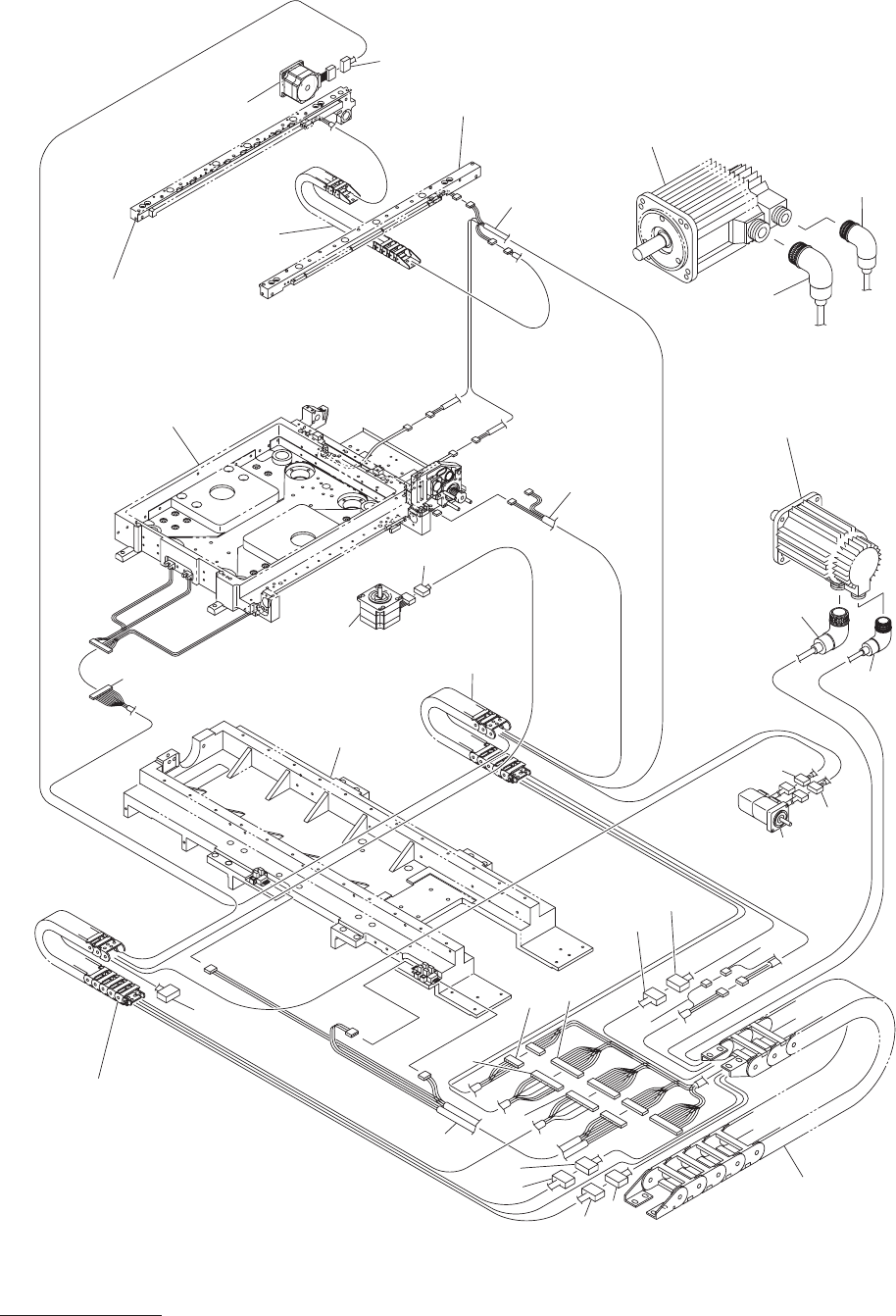

テーブル配管、配線
XY TABLE PIPING,WIRING
Fig. JE-6
ケーブル配線
Cable Wiring
See Fig.JD-6
Key No.504
MPM14(CHW)
See Fig.JD-1
Key No.33
See Fig.JD-1
Key No.1
See Fig.JE-3
Key No.209
See Fig.JB-4
Key No.301
See Fig.JB-4
Key No.316
See Fig.JC-5
Key No.412
See Fig.JE-2
Key No.103
See Fig.JC-1
Key No.4
560
554
568
571
555
553
565
See Fig.JB-1
Key No.16
MSVM6(X)
MSVM7(Y
)
MPM19(BPC)
574
575
See Fig.JE-3
Key No.209
552
563
See Fig.JE-3
Key No.20
6
MSVM8(XYTR)
551
560
569
559
565
563
562
564
570
554
553
555
569
572
See Fig.JD-5
Key No.414
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0306-001
149
551 630 111 1667 ASSY,CORD(X100J10) 1 XNC185,184,188,182,183-
810JE-010-551
552 630 111 1674 ASSY,CORD(X100J11) 1 XNC183- 810JE-010-552
553 630 091 3583 ASSY,CORD X200J12 1 XNC182- 810JE-010-553
554 630 110 3785 ASSY,CORD (X100J14) 1 XNC184- 810JE-010-554
555 630 110 3792 ASSY,CORD (X100J19) 1 XNC188- 810JE-010-555
559 630 091 3682 ASSY,CORD X200J20-1 1 XNC181- 810JE-010-559
560 630 111 1681 ASSY,CORD(X100J20-3) 1 XNC181-MPM14 810JE-010-560
562 630 091 3712 ASSY,CORD X200J20-4 1 XNC180- 810JE-010-562
563 630 091 3729 ASSY,CORD X200J20-5 1 XNC180-MPM18 810JE-010-563
564 630 091 3736 ASSY,CORD X200J20-6 1 XNC186- 810JE-010-564
565 630 091 3743 ASSY,CORD X200J20-7 1 XNC186-MPM19 810JE-010-565
568 630 091 3798 ASSY,CORD X200J23 1 XNC121- 810JE-010-568
569 630 091 3811 ASSY,CORD X200J25 1 XNC187-XCN163 810JE-010-569
570 630 091 3804 ASSY,CORD X200J24 1 XNC187- 810JE-010-570
571 630 086 8197 CORD 1 XCN123-XCN122 810JE-010-571
572 630 092 4381 ASSY,CORD (X200PG XYTR) 1 XCN165-XCN164 810JE-010-572
574 630 092 4152 ASSY,CORD (X200MOT X) 1 810JE-010-574
575 630 086 8203 CORD 1 -XCN126 810JE-010-575
JE-6
MODEL TCM-X110J
0507-002
150
ヘッド駆動部
HEAD DRIVING SECTION
Fig. K-1
メイン駆動部
Main Driver
26
33
32
31
20
19
17
16
18
8
9
7
6
12
11
10
47
22
17
46
45
44
17
16
21
See Fig.B-1
Key No.1
See Fig.L-1
Key No.12
25
24
23
43
28
5
3
2
1
4
15
30
14
13
39
38
37
35
36
40
41
34
42
