MODEL TCM-X1 10J 0507-002 282 機械廻り２ MISCELLANEOUS P ARTS-2 Fig. RM-1 H 、 CZ 、 MZ 軸モータドライバ H,CZ,MZ Axis Motor Driver 67 72 86 See Fig.L-1 Key No.12 86 54 92 91 90 70 82 96 98 93 52 51 99 97 98 99 95 98 99 69 96 98 99 87 8…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0306-001
281
RL-7
651 630 094 7250 RESISTOR,SPECIAL 8 810RL-010-651
652 630 114 9950 BOX 1 810RL-010-652
653 630 114 4269 COVER 1 810RL-010-653
654 630 048 3833 MECH PARTS(MOUNTING BASES 6 810RL-010-654
655 630 116 3932 CONNECTOR 2 810RL-010-655
656 630 116 3956 CONNECTOR 2 810RL-010-656
657 630 116 3963 ACCESSORY,CONN 16 810RL-010-657
658 630 000 7602 BOLT,HEX-SCT 16 810RL-010-658
659 411 141 2905 WASHER SPR 4 16 810RL-010-659
660 411 141 4008 WASHER V 4X9X0.8 16 810RL-010-660
661 411 113 1400 SCR PAN 4X6 6 810RL-010-661
662 411 008 1706 WASHER SPR 4 6 810RL-010-662
663 411 119 2104 WASHER V 4X9X0.8 6 810RL-010-663
664 411 140 8007 SCR TRS 5X6 4 810RL-010-664
665 630 000 7756 BOLT,HEX-SCT 4 810RL-010-665
666 411 141 6705 WASHER SPR 5 4 810RL-010-666
667 630 001 0220 WASHER 4 810RL-010-667
668 630 100 1029 NAME PLATE,NOTICE 1 810RL-010-668
MODEL TCM-X110J
0507-002
282
機械廻り２
MISCELLANEOUS PARTS-2

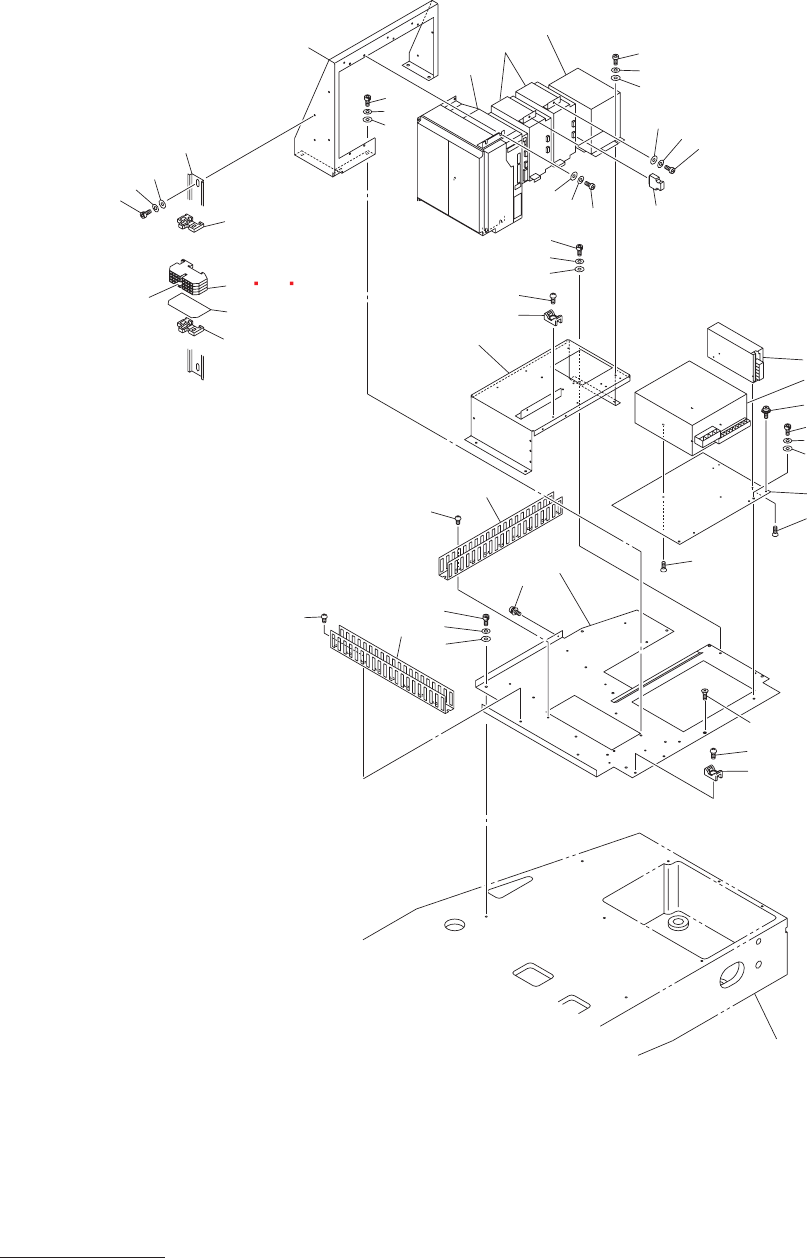

Fig. RM-1
H
、
CZ
、
MZ
軸モータドライバ
H,CZ,MZ Axis Motor Driver
67
72
86
See Fig.L-1
Key No.12
86
54
92
91
90
70
82
96
98
93
52
51
99
97
98
99
95
98
99
69
96
98
99
87
88
89
87
56
88
89
57
55
87
88
89
63
61
65
86
66
85
84
61
62
59
64
66
85
60
83
71
94
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0507-002
283
51 630 085 9577 UNIT,POWER 1 G7,PAA50F-12-RN 810RM-010-051
52 630 086 0245 UNIT,POWER 1 G8,PAA600F-24 810RM-010-052
54 630 123 9903 UNIT,DRIVER 1 ASMD1(H),#SGDH-50AE-RY414
810RM-010-054
55 630 137 1108 UNIT,DRIVER 2 ASMD9(CZ),ASMD10(MZ),
#SGDH-01AE-RY414 810RM-010-055
56 630 086 8340 RESISTOR,SPECIAL 1 810RM-010-056
57 630 119 8323 UNIT,DRIVER 1 ASMB28(CX),ASMD29(CY),#D3380
810RM-010-057
59 630 127 0937 TERMINAL 4 810RM-010-059
60 630 127 0975 ACCESSORY,WIRING 1 810RM-010-060
61 630 091 1749 BRACKET,WIRING 2 810RM-010-061
62 630 058 8460 ACCESSORY,WIRING 1 810RM-010-062
63 630 093 0764 RAIL,WIRING 1 810RM-010-063
64 630 127 0982 ACCESSORY,WIRING 2 810RM-010-064
65 630 083 5564 ACCESSORY,WIRING 1 810RM-010-065
66 630 048 3833 MECH PARTS(MOUNTING BASES 13 810RM-010-066
67 630 089 4493 ACCESSORY,WIRING 1 810RM-010-067
68 630 119 5933 BRACKET 1 810RM-010-068
69 630 119 6084 BRACKET 1 810RM-010-069
70 630 124 5676 PLATE 1 810RM-010-070
71 630 124 5683 PLATE 1 810RM-010-071
72 630 119 8415 ACCESSORY,WIRING 1 810RM-010-072
82 411 034 7208 SCR FLT 3X8 2 810RM-010-082
83 411 035 2707 SCR FLT 4X8 2 810RM-010-083
84 411 002 4307 SCR FLT 5X10 1 810RM-010-084
85 411 113 7501 SCR TRS 4X10 13 810RM-010-085
86 411 140 8007 SCR TRS 5X6 4 810RM-010-086
87 411 043 5004 SCR PAN 4X8 10 810RM-010-087
88 411 008 1706 WASHER SPR 4 10 810RM-010-088
89 411 119 2104 WASHER V 4X9X0.8 10 810RM-010-089
90 411 113 2803 SCR PAN 5X8 4 810RM-010-090
91 411 008 2109 WASHER SPR 5 4 810RM-010-091
92 411 088 1702 WASHER V 5X10X1 4 810RM-010-092
93 411 114 7807 SCR PAN+SW+W 4X10 5 810RM-010-093
94 411 174 6604 SCR PAN+SW+W 5X10 1 810RM-010-094
95 630 000 7725 BOLT,HEX-SCT 4 810RM-010-095
96 630 000 7732 BOLT,HEX-SCT 8 810RM-010-096
97 630 000 7749 BOLT,HEX-SCT 7 810RM-010-097
98 411 141 6705 WASHER SPR 5 19 810RM-010-098
99 411 141 4107 WASHER V 5X10X1 19 810RM-010-099
RM-1
