MODEL TCM-X110J
0306-001
296

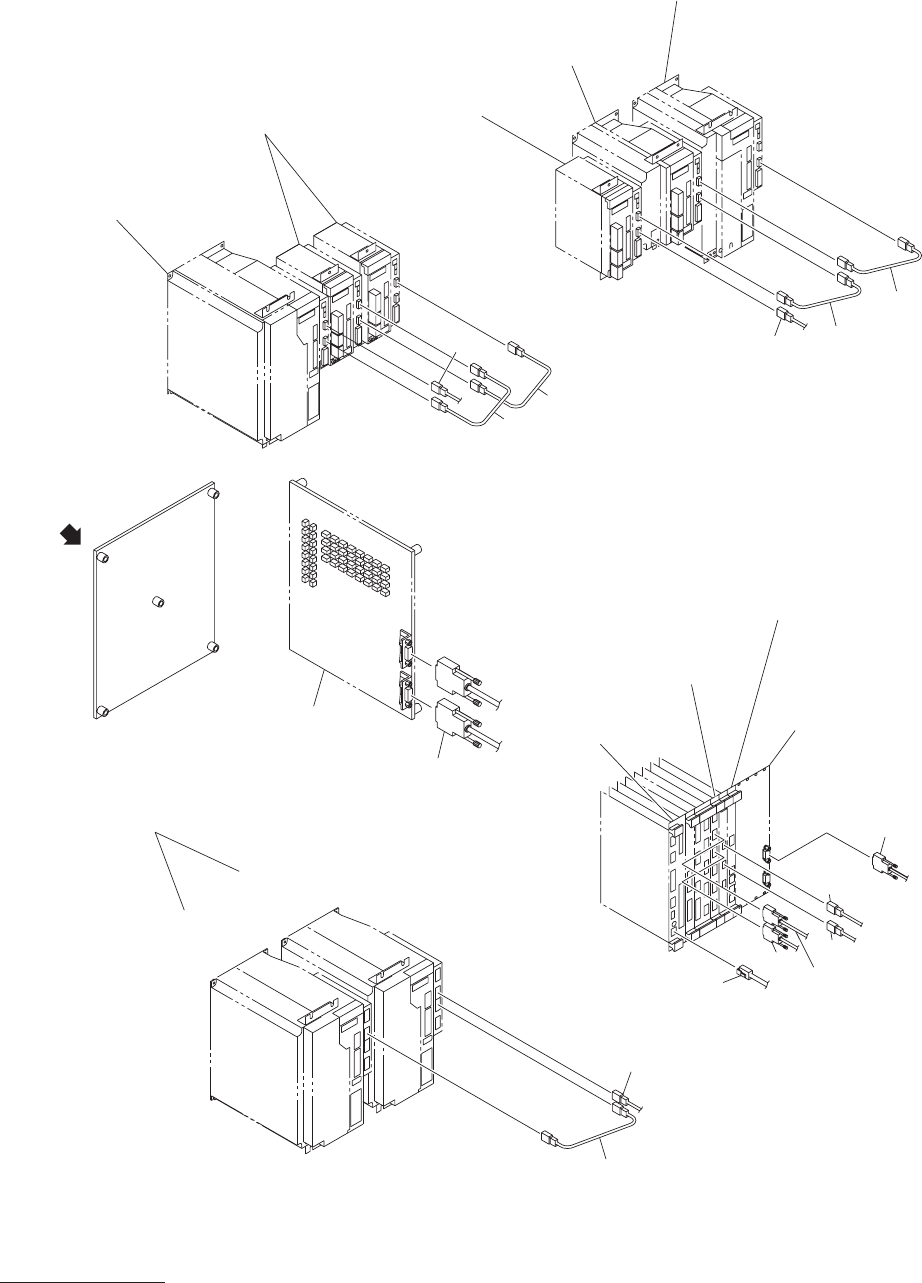

ケーブル配線
CABLE WIRING
Fig. SB-6
H
軸、
CZ
軸、
MZ
軸ドライバ
H Axis,CZ Axis,MZ Axis Driver
553
551
553
551
See Fig.RM-1
Key No.55
ASMD10
(MZ)
ASMD9
(CZ)
See Fig.RM-1
Key No.54
ASMD1(H)
554
552
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0306-001
297
551 630 086 8173 CORD 2 810SB-010-551
552 630 086 8180 CORD 1 810SB-010-552
553 630 091 5808 CORD(C32-MZ-PG) 2 810SB-010-553
554 630 092 3575 ASSY,CORD(X200MOT H) 1 810SB-010-554
SB-6
MODEL TCM-X110J
0306-001
298
ケーブル配線
CABLE WIRING
Fig. SB-8
本体部２
Main Body Section 2
752
See Fig.RL-2
Key No.157
See Fig.RL-
2
Key No.155
See Fig.RL-
2
Key No.154
ASMD6(X)
ASMD7(Y)
ASMD8(XYTR)
751
753
See Fig.RL-5
Key No.453
ASMD2
(F1)
756
ASMD5
(F2)
See Fig.RM-1
Key No.54
ASMD1(H)
753
See Fig.RM-1
Key No.55
ASMD10
(MZ)
ASMD9
(CZ)
755
754
T1 PCB
See Fig.RG-1
Key No.63
767
VIEW "A"
A
774
See Fig.RH-1
Key No.53
See Fig.RH-
1
Key No.55
See Fig.RH-1
Key No.61
770
CPU1 PCB
SIO PCB
JAMMC-EB005 PCB
See Fig.RH-1
Key No.52
769
768
760
759
760
