DT20 / DT25 Solder -Collectors for DT530 0 0 3 3 49 4 -1010 24 INSTRUCTION MANUAL DT20 Glass Solder -C ollect or . . . . . 1 box contains 2 collect ors Packing List De pend ing on t he orde r , on e of the two r efere nc…
DT20 / DT25
Solder-Collectors
for DT530
003349 4-101024
INSTRUCTION MANUAL
DT20
Glass
Solder-Collector.....1 box
contains 2 collectors
Packing List
Depending on the order, one of the
two references is included.
DT25
Metal
Solder-Collector.....1 box
contains 2 collectors
Note: The pictures on the back show DT20, but all steps and descriptions are
the same for DT25.
Be careful when handling the solder collector and the other spare
parts they can be hot. Let them cool down first.
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm

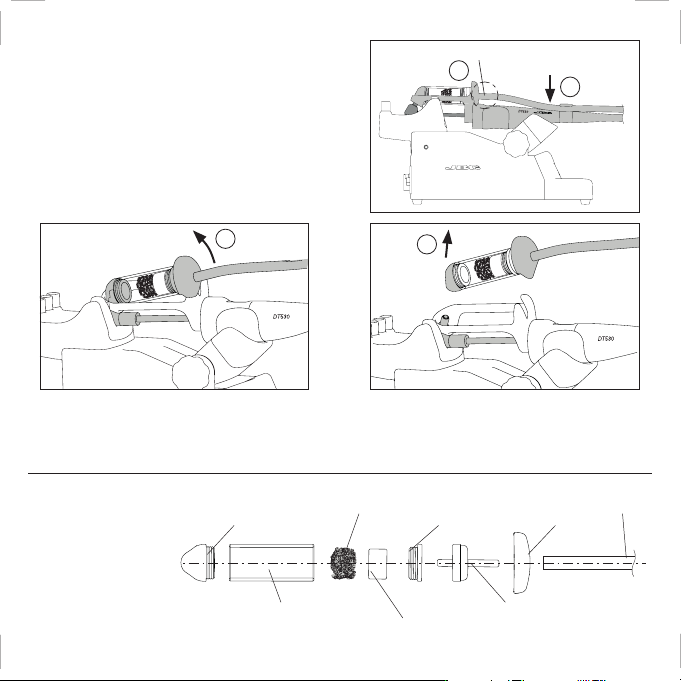

DT20 / DT25 Replacement
1
2
3
4
Grasp
here
To disassemble the solder-collector group,
place the desoldering iron in horizontal
position onto the stand, hold the tool with
one hand down onto the stand (1), grasp
the suction hose beside the protective
cover (2) ...
... and pull upward (3) to undock the
protective area.
Then undock the frontal gasket (4) from
the heating element to disassemble the
solder-collector group.
Frontal
Gasket
Hose
Connector
Protective
Cover
Rearward
Gasket
Wool Filter
Brass-Wool Prefilter
Solder-Collector
Hose
Replace the
collector by
disassembling
and assembling
the components
in the shown
order.
