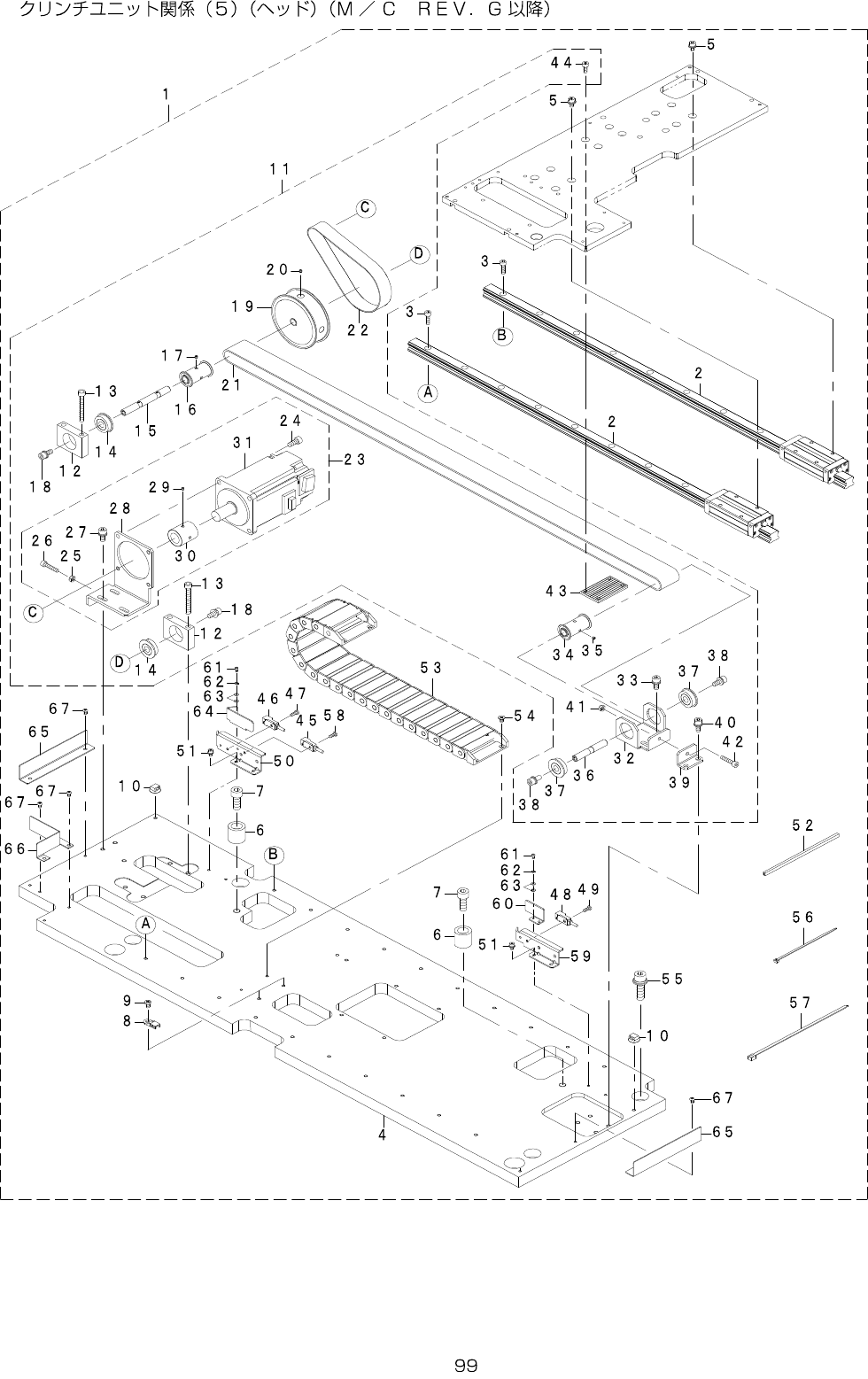

50.CLINCHUNITCOMPONENTS(5)(HEAD)(UNTILM/CREV.G)
- -

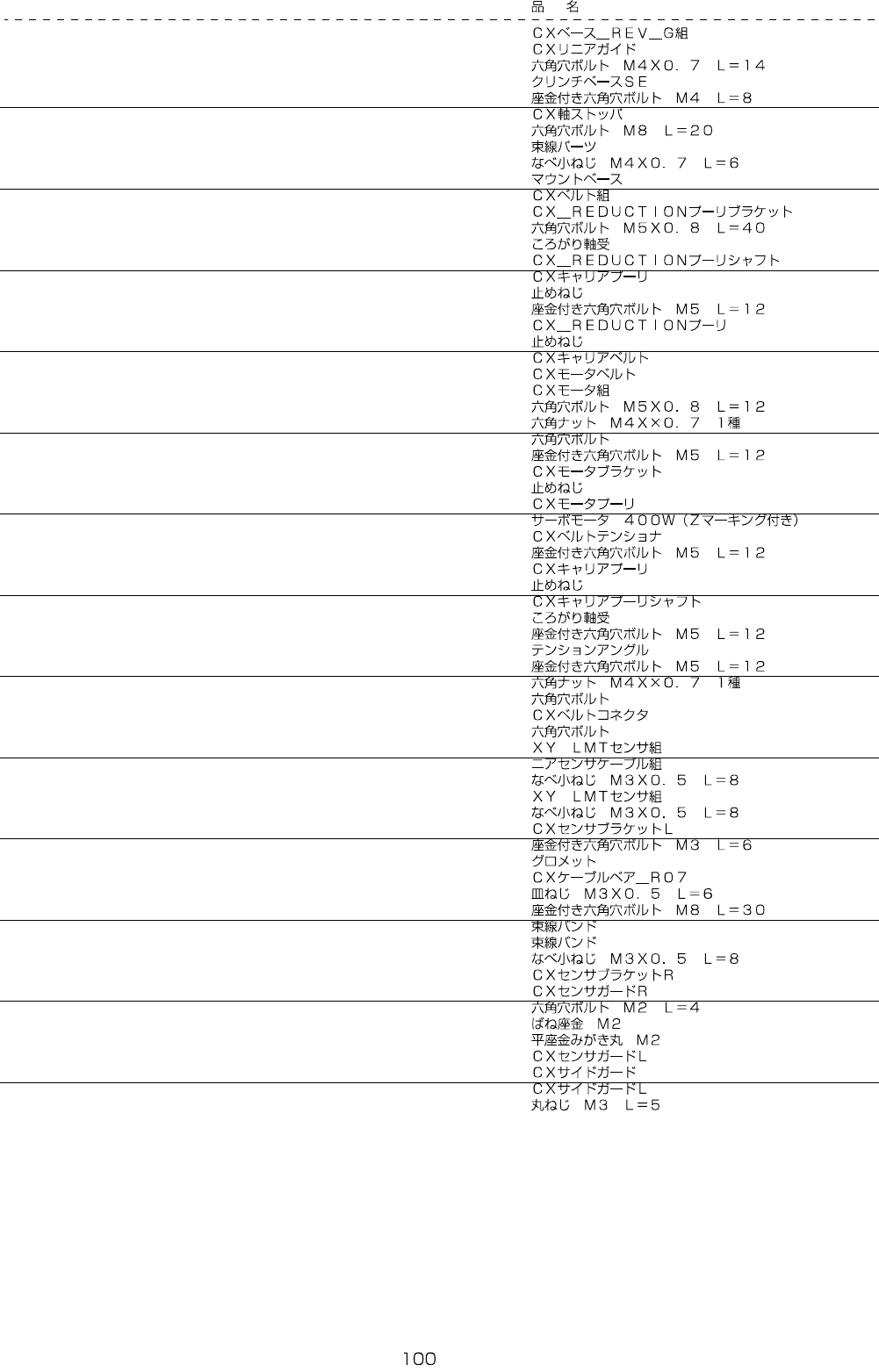

REF.NO NOTE PARTNO DESCRIPTION Qty
1 440-244068 CX_BASE_REV_G_ASM 1
2 402-13822 CX_LINEAR_GUIDE (2)
3 SM-6041402-TN SCREWM4X0.7L=14 (20)
4 402-44056 CLINCH_BASE_SE (1)
5 SL-6040892-TN SCREWM4L=8 (8)
6 402-13823 CX_AXIS_STOPPER (2)
7 SM-6082002-TN SCREWM8L=20 (2)
8 HX-0034400-00 FIXEDBASE (2)
9 SM-4040601-SC SCREWM4X0.7L=6 (2)
10 HX-0070600-0A MOUNTBASE (2)
11 402-13912 CX_BELT_ASM (1)
12 402-13827 CX_REDUCTION_PULLEY_BR (2)
13 SM-6054002-TN SCREWM5X0.8L=40 (4)
14 SB-1080005-00 BEARING (2)
15 402-13824 CX_REDUCTION_PULLEY_SHAFT (1)
16 402-13825 CX_CARRIER_PULLEY (1)
17 SM-8040302-TP SETSCREW (2)
18 SL-6051292-TN SCREWM5L=12 (2)
19 402-13826 CX_REDUCTION_PULLEY (1)
20 SM-8040302-TP SETSCREW (2)
21 402-13828 CX_CARRIER_BELT (1)
22 402-13829 CX_MOTOR_BELT (1)
23 402-13913 CX_MOTOR_ASM (1)
24 SM-6051202-TN SCREWM5X0.8L=12 (4)
25 NM-6040001-SC NUTM4X0.7TYPE1 (1)
26 SM-6042002-TN SCREW (1)
27 SL-6051292-TN SCREWM5L=12 (3)
28 402-13830 CX_MOTOR_BR (1)
29 SM-8040302-TP SETSCREW (2)
30 402-13831 CX_MOTOR_PULLEY (1)
31 402-13937 SERVOMOTOR400W(ZMARKING) (1)
32 402-13833 CX_BELT_TENSIONER (1)
33 SL-6051292-TN SCREWM5L=12 (2)
34 402-13825 CX_CARRIER_PULLEY (1)
35 SM-8040302-TP SETSCREW (2)
36 402-13834 CX_CARRIER_PULLEY_SHAFT (1)
37 SB-1080005-00 BEARING (2)
38 SL-6051292-TN SCREWM5L=12 (2)
39 402-13832 TENSIONER_ANGLE (1)
40 SL-6051292-TN SCREWM5L=12 (2)
41 NM-6040001-SC NUTM4X0.7TYPE1 (1)
42 SM-6042002-TN SCREW (1)
43 402-13835 CX_BELT_CONNECTOR (1)
44 SM-6041002-TN SCREW (4)
45 401-65028 XYLMTSENSORASM (1)
46 401-29002 NEARSENSORCABLEASM (1)
47 SM-4030801-SC SCREWM3X0.5L=8 (1)
48 401-65028 XYLMTSENSORASM (1)
49 SM-4030801-SC SCREWM3X0.5L=8 (1)
50 402-44044 CX_SENSOR_BR_L (2)
51 SL-6030692-TN SCREWM3L=6 (4)
52 HX-0067100-00 GROMMET (0.03)
53 402-44058 CX_CABLE_BEAR_R07 (2)
54 SM-1030601-SC SCREWM3L=6 (2)
55 SL-6083092-TN SCREWM8L=30 (4)
56 EA-9500B01-00 CABLEBAND (10)
57 EA-9500B02-00 CABLEBAND (10)
58 SM-4030801-SC SCREWM3X0.5L=8 (1)
59 402-44046 CX_SENSOR_BR_R (1)
60 402-44047 CX_SENSOR_GUARD_R (1)
61 SM-6020402-TN BOLTM2L=4 (4)
62 WS-0210002-KN SPRINGWASHERM2 (4)
63 WP-0220301-SC WASHERM2 (8)
64 402-44045 CX_SENSOR_GUARD_L (1)
65 402-44060 CX_SIDE_GUARD (2)
66 402-44061 CX_SIDE_GUARD_L (1)
67 SM-3030552-TN SCREWM3L=5 (7)
- -

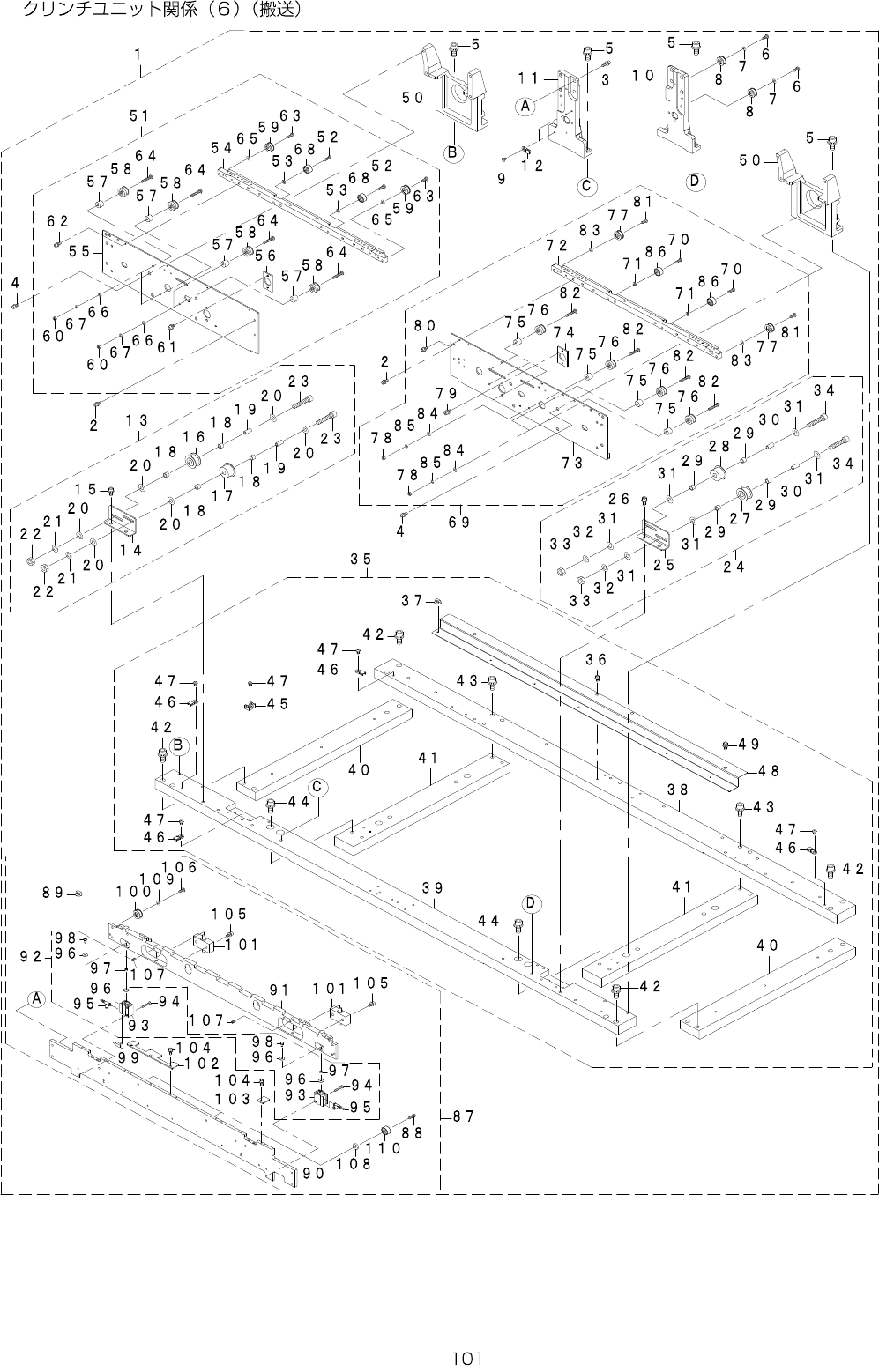

51.CLINCHUNITCOMPONENTS(6)(CONVEYOR)
