3. BASEFRAMEELECTRICAPPARATUSCOMPONENTS(2)
- -

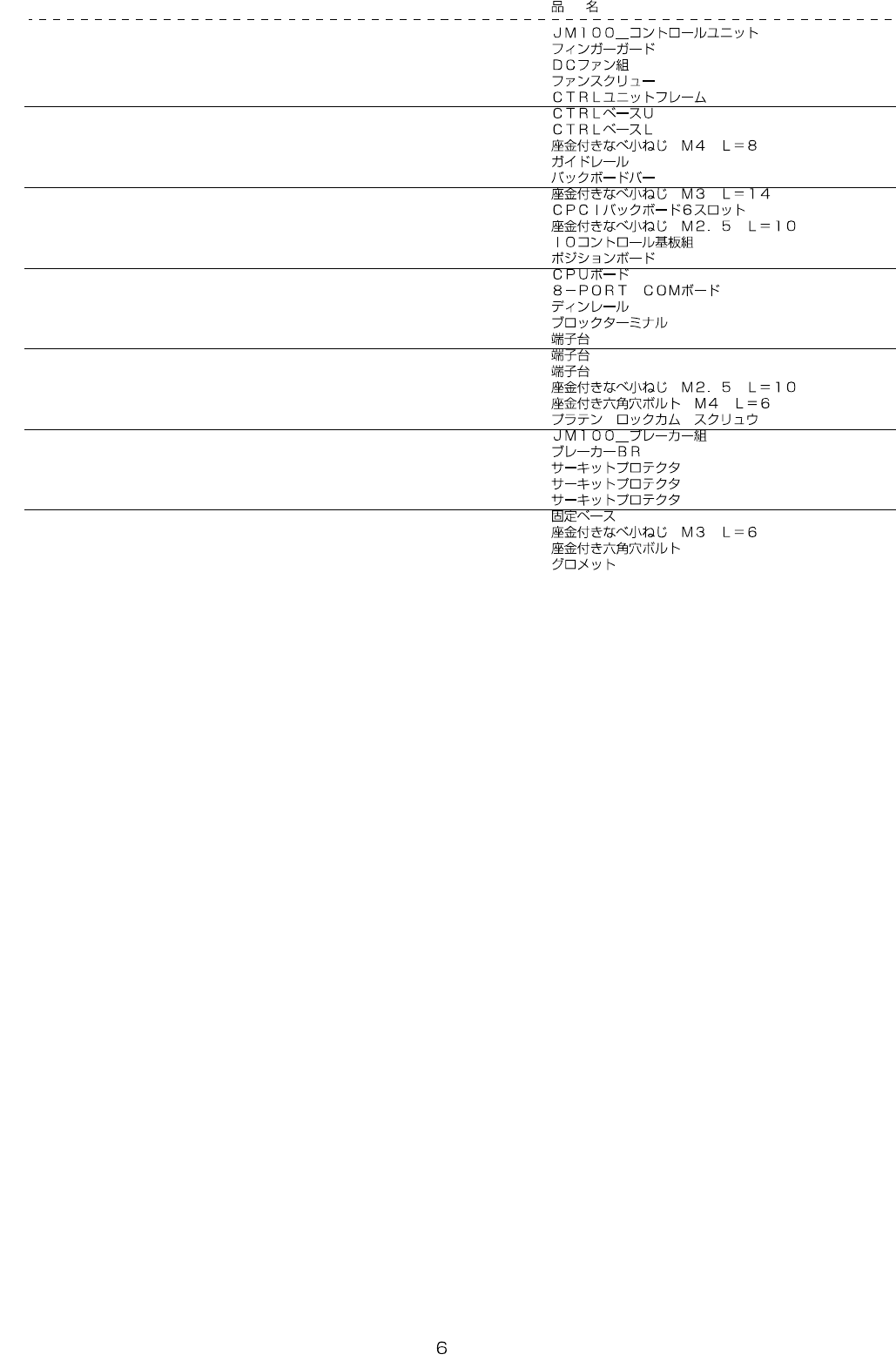

REF.NO NOTE PARTNO DESCRIPTION Qty
1 402-06693 ASM_JM100_CTRL_UNIT 1
2 HM-0003300-30 FANMOTOR (1)
3 401-89090 DCFANASM (1)
4 401-77318 FAN_SCREW (2)
5 401-47546 CTRL_UNIT_FRAME (1)
6 401-47544 CTRL_BASE_U (1)
7 401-47545 CTRL_BASE_L (1)
8 SL-4040891-SC SCREWM4X8 (8)
9 HX-0002600-00 GUIDERAIL (10)
10 400-47087 BACK_BOAD_BAR (1)
11 SL-4031491-SC SCREWM3L=14 (3)
12 401-72512 CPCIBACKBOARD6SLOT (1)
13 SL-4851091-SC SCREWM2.5L=10 (16)
14 401-28871 IOCONTROLPCBASM (1)
15 401-96265 POSITIONBOARD (1)
16 402-05765 CPUBOARD (1)
17 401-35433 8-PORTCOMBOARD (1)
18 400-47145 DIN_RAIL (1)
19 401-82382 BLOCKTERMINAL (1)
20 HK-0693500-10 BLOCKTERMINAL (2)
21 HK-0695900-00 BLOCKTERMINAL (1)
22 HK-0691900-0B BLOCKTERMINAL (2)
23 SL-4851091-SC SCREWM2.5L=10 (16)
24 SL-6040692-TN SCREWM4L=6 (2)
25 E1038-871-000 PLATENLOCKCAMSCREW (2)
26 402-06700 ASM_JM100_BREAKER_UNIT 1
27 402-06497 BREAKER_BR (1)
28 HA-0065200-1A CIRCUITPROTECTOR (1)
29 HA-0070300-00 CIRCUITPROTECTOR (1)
30 HA-0065400-0A CIRCUITPROTECTOR (1)
31 HX-0029400-00 FIXEDBASE (5)
32 SL-4030691-SC SCREWM3L=6 (5)
33 SL-6061292-TN SCREW (2)
34 HX-0067100-0A GROMMET (0.08)
- -

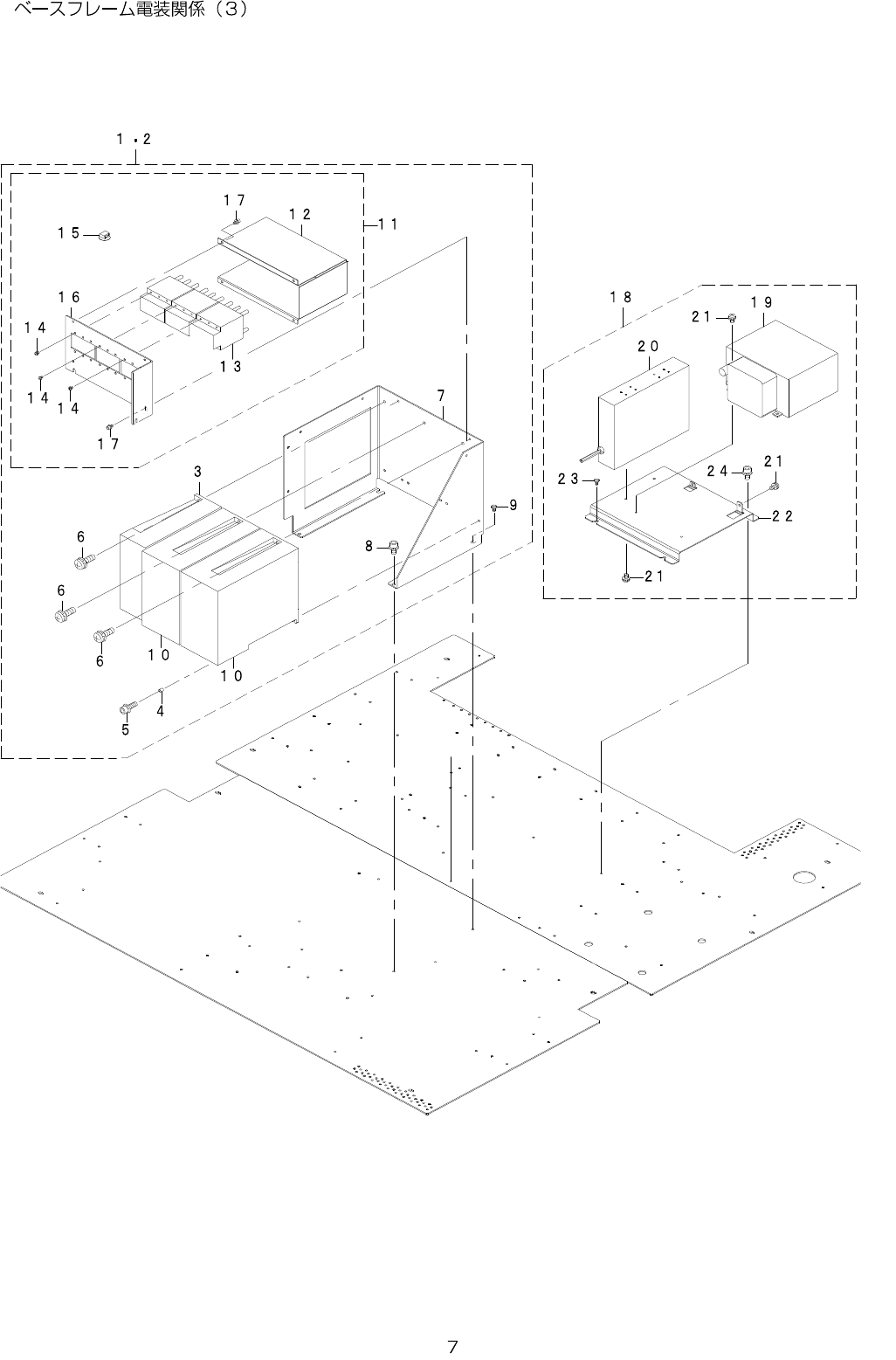

4. BASEFRAMEELECTRICAPPARATUSCOMPONENTS(3)
