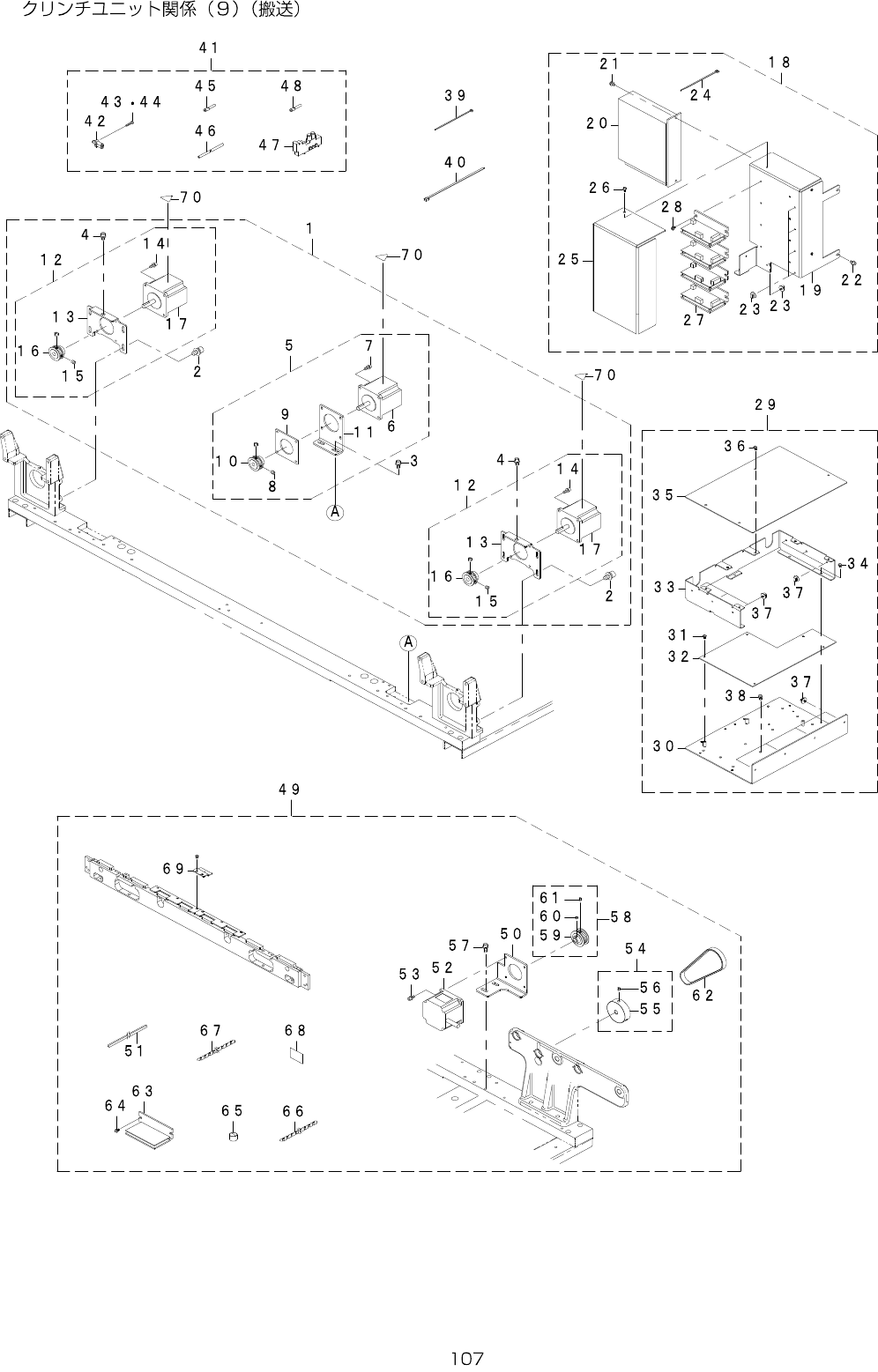

54.CLINCHUNITCOMPONENTS(9)(CONVEYOR)
- -

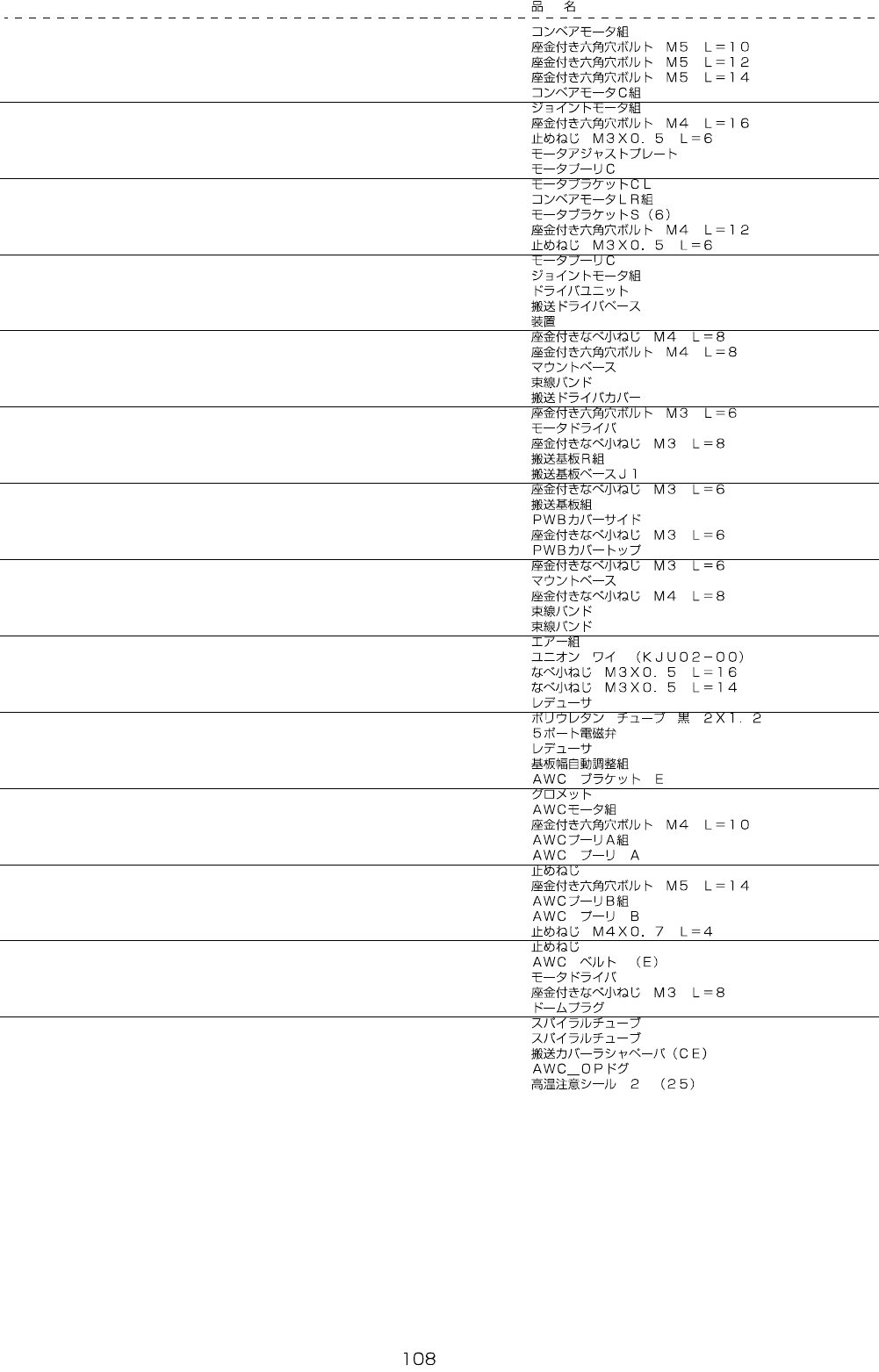

REF.NO NOTE PARTNO DESCRIPTION Qty
1 402-13944 CONVEYOR_MOTOR_ASM 1
2 SL-6051092-TN SCREWM5L=10 (8)
3 SL-6051292-TN SCREWM5L=12 (2)
4 SL-6051492-TN SCREWM5L=14 (2)
5 402-13945 CONVEYOR_MOTOR_C_ASM (1)
6 400-48075 JOINTMOTORASM (1)
7 SL-6041642-TN SCREWM4L=16 (4)
8 SM-8030602-TP SCREWM3X0.5L=6 (3)
9 400-00869 MOTOR_ADJUST_PLATE (1)
10 400-00870 MOTOR_PULLEY_C (1)
11 402-13796 MOTOR_BRACKET_CL (1)
12 401-37170 CONVEYOR_MOTOR_LR_ASM (2)
13 400-46034 MOTORBRACKETS(6) (1)
14 SL-6041242-TN SCREWM4L=12 (4)
15 SM-8030602-TP SCREWM3X0.5L=6 (3)
16 400-00870 MOTOR_PULLEY_C (1)
17 400-48075 JOINTMOTORASM (1)
18 402-06719 DRIVER_UNIT 1
19 402-06511 CONV_DRIVER_BASE (1)
20 HX-0068900-00 UNIT (1)
21 SL-4040891-SC SCREWM4X8 (2)
22 SL-6040892-TN SCREWM4L=8 (3)
23 HX-0070600-00 MOUNTBASE (5)
24 EA-9500B01-00 CABLEBAND (5)
25 402-06512 CONV_DRIVER_COVER (1)
26 SL-6030692-TN SCREWM3L=6 (2)
27 HM-0013200-00 STEPPINGMOTOR (3)
28 SL-4030891-SC SCREWM3L=8 (3)
29 402-06720 CONVEYOR_PCB_R_ASM 1
30 402-06513 CONV_PWB_BASE_J1 (1)
31 SL-4030691-SC SCREWM3L=6 (5)
32 401-28875 CONVEYORPCBASM (1)
33 401-83075 PWB_COVER_SIDE (1)
34 SL-4030691-SC SCREWM3L=6 (5)
35 401-83076 PWB_COVER_TOP (1)
36 SL-4030691-SC SCREWM3L=6 (3)
37 HX-0070600-00 MOUNTBASE (10)
38 SL-4040891-SC SCREWM4X8 (2)
39 EA-9500B01-00 CABLEBAND 20
40 EA-9500B02-00 CABLEBAND 30
41 402-13926 AIR_ASM 1
42 EZ-4455733-01 WYE(KJU02-00)UNION (6)
43 SM-4031601-SC SCREWM3X0.5L=16 (1)
44 SM-4031401-SC SCREWM3X0.5L=14 (1)
45 401-64325 REDUCER (2)
46 BT-0200121-EB URETHANETUBEBLACK2X1.2 (20)
47 PV-1502093-00 5-PORTSOLENOIDVALVE (1)
48 401-64325 REDUCER (2)
49 402-13931 AWC_ASM 1
50 E2163-725-000 AWCBRACKETE (1)
51 HX-0067100-0B GROMMET (0.035)
52 401-29040 AWCMOTORASM (1)
53 SL-6041042-TN SCREWM4L=10 (4)
54 400-00768 AWCPULLEYAASM (1)
55 E2153-725-000 AWCPULLEYA (1)
56 SM-8040602-TP SCREWM4X0.7L=6 (2)
57 SL-6051492-TN SCREWM5L=14 (2)
58 400-00769 AWCPULLEYBASM (1)
59 E2154-725-000 AWCPULLEYB (1)
60 SM-8040402-TP SCREWM4X0.7L=4 (2)
61 SM-8040602-TP SCREWM4X0.7L=6 (2)
62 E2160-725-000 AWCBELT(E) (1)
63 HM-0013200-00 STEPPINGMOTOR (1)
64 SL-4030891-SC SCREWM3L=8 (2)
65 HX-0032600-0J GROMMET (1)
66 HX-0031400-00 SPIRALTUBE (0.55)
67 HX-0031400-00 SPIRALTUBE (0.32)
68 E1143-721-000 WOOLENCLOTHPAPER (1)
69 402-06618 AWC_OP_DOG (1)
70 CM-3003000-02 HIGHTEMPARATURECAUTIONLABEL2(25) 3
- -

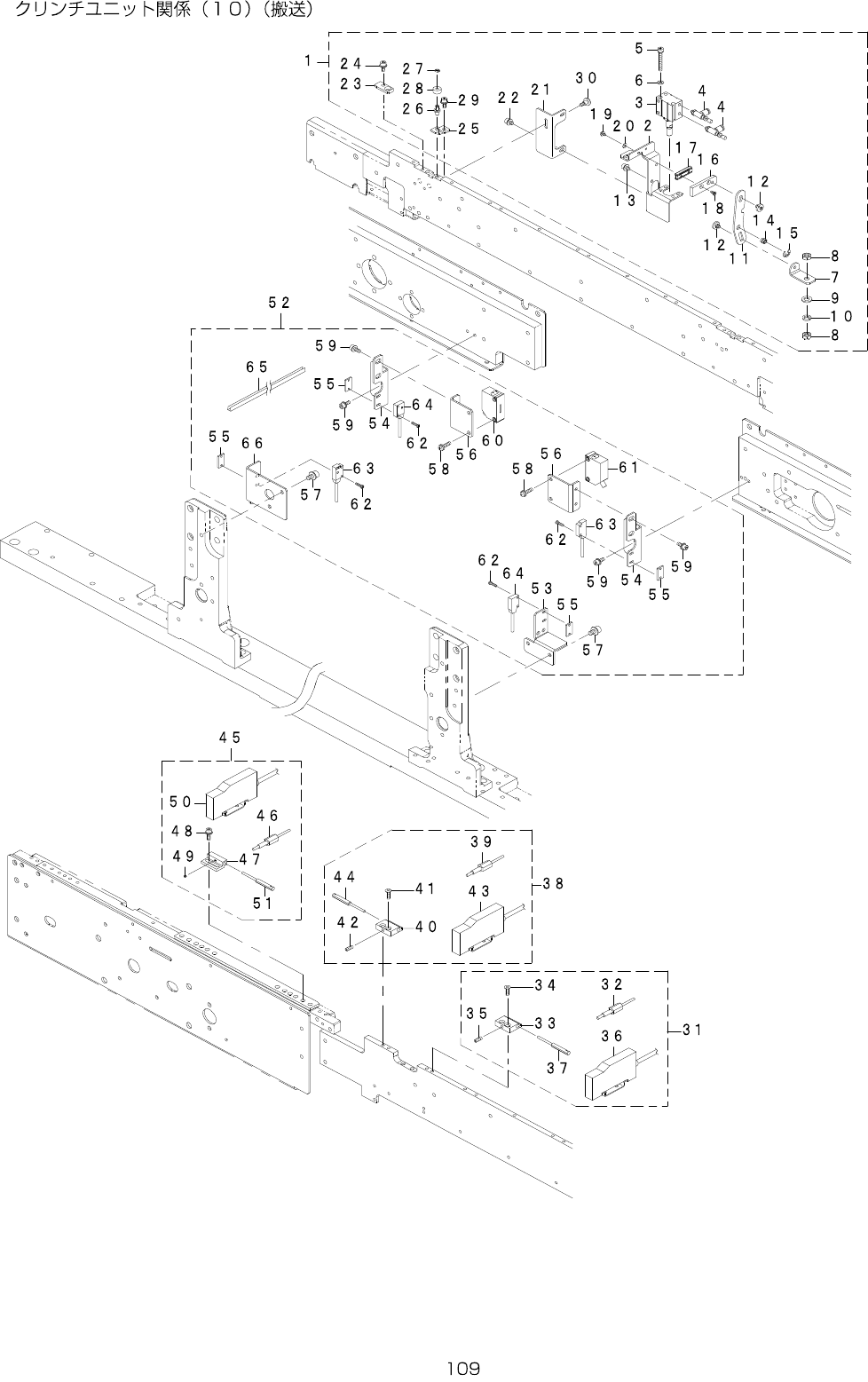

55.CLINCHUNITCOMPONENTS(10)(CONVEYOR)
