REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-88588 LEFTSENSORUNIT_RS-1 1
2 HX-0044000-00 CABLEBAND (1)
3 401-46990 SENSOR_BR_A (1)
4 401-46991 SENSOR_BR_B (1)
5 400-01079 SENSORBRACKETC (1)
6 400-01076 SENSOR_SLIDE_PLATE (1)
7 400-00912 SENSOR_ADJUST_SPRING (3)
8 400-58815 SPACER (1)
9 G6518-880-000 SETPICK-UP (1)
10 SM-6041602-TN SCREWM4X16 (3)
11 WP-0430801-SC WASHERM4 (6)
12 NM-6040002-SE NUTM4X0.7TYPE2 (3)
13 401-29046 SIDESENSORCABLEASM (1)
14 SL-4031091-SC SCREWM3L=10 (2)
15 HX-0036700-0A GROMMET (0.16)
16 EA-9500B00-00 CABLEBAND (5)
17 SL-6031092-TN SCREWM3L=10 2
18 401-88589 RIGHTSENSORUNIT_RS-1 1
19 400-58815 SPACER (1)
20 401-46990 SENSOR_BR_A (1)
21 401-46991 SENSOR_BR_B (1)
22 400-01079 SENSORBRACKETC (1)
23 400-01076 SENSOR_SLIDE_PLATE (1)
24 400-00912 SENSOR_ADJUST_SPRING (3)
25 G6518-880-000 SETPICK-UP (1)
26 SM-6041602-TN SCREWM4X16 (3)
27 WP-0430801-SC WASHERM4 (6)
28 NM-6040002-SE NUTM4X0.7TYPE2 (3)
29 401-29046 SIDESENSORCABLEASM (1)
30 SL-4031091-SC SCREWM3L=10 (2)
31 HX-0036700-0A GROMMET (0.16)
32 EA-9500B00-00 CABLEBAND (5)
33 HX-0044000-00 CABLEBAND (1)
- -

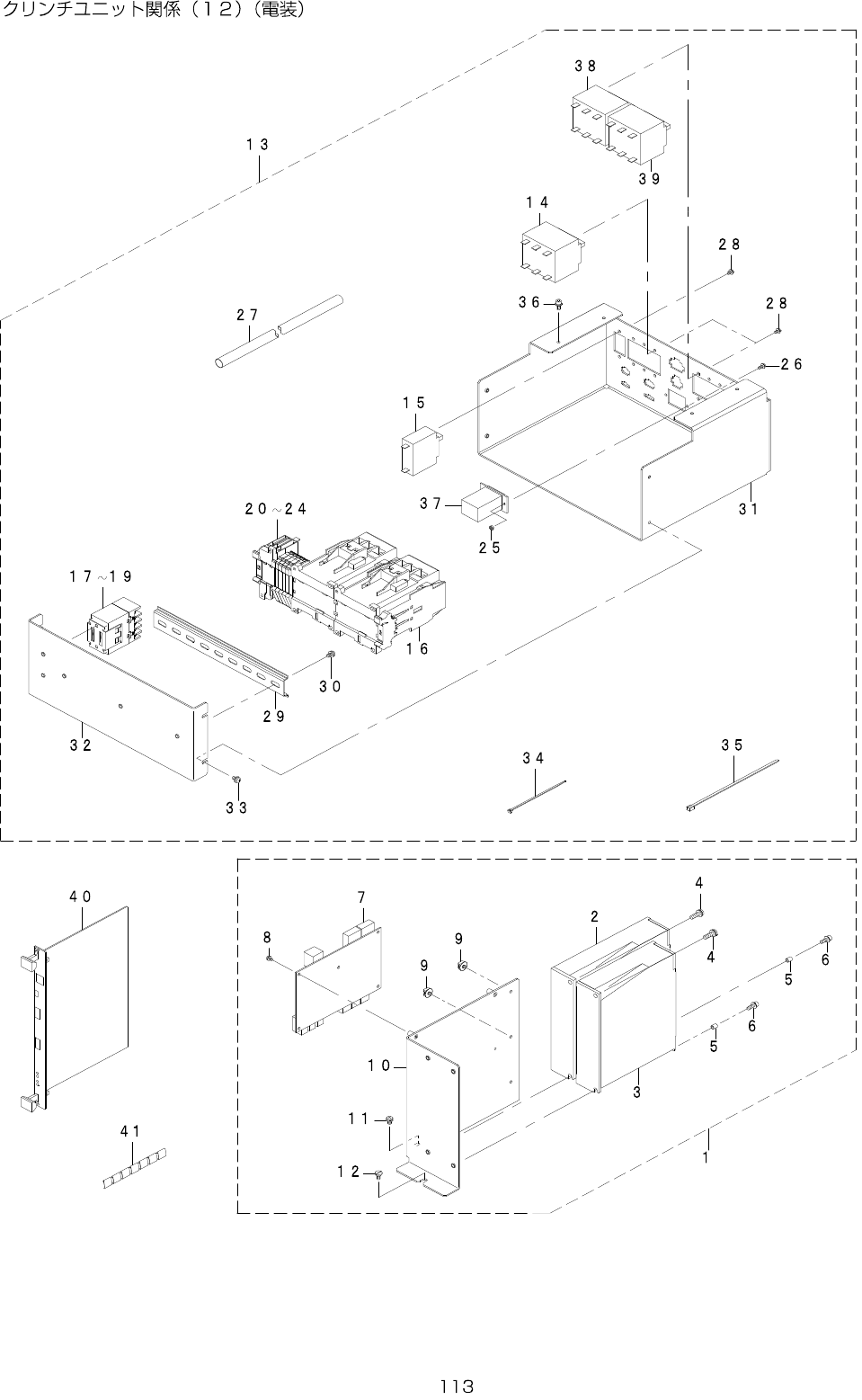

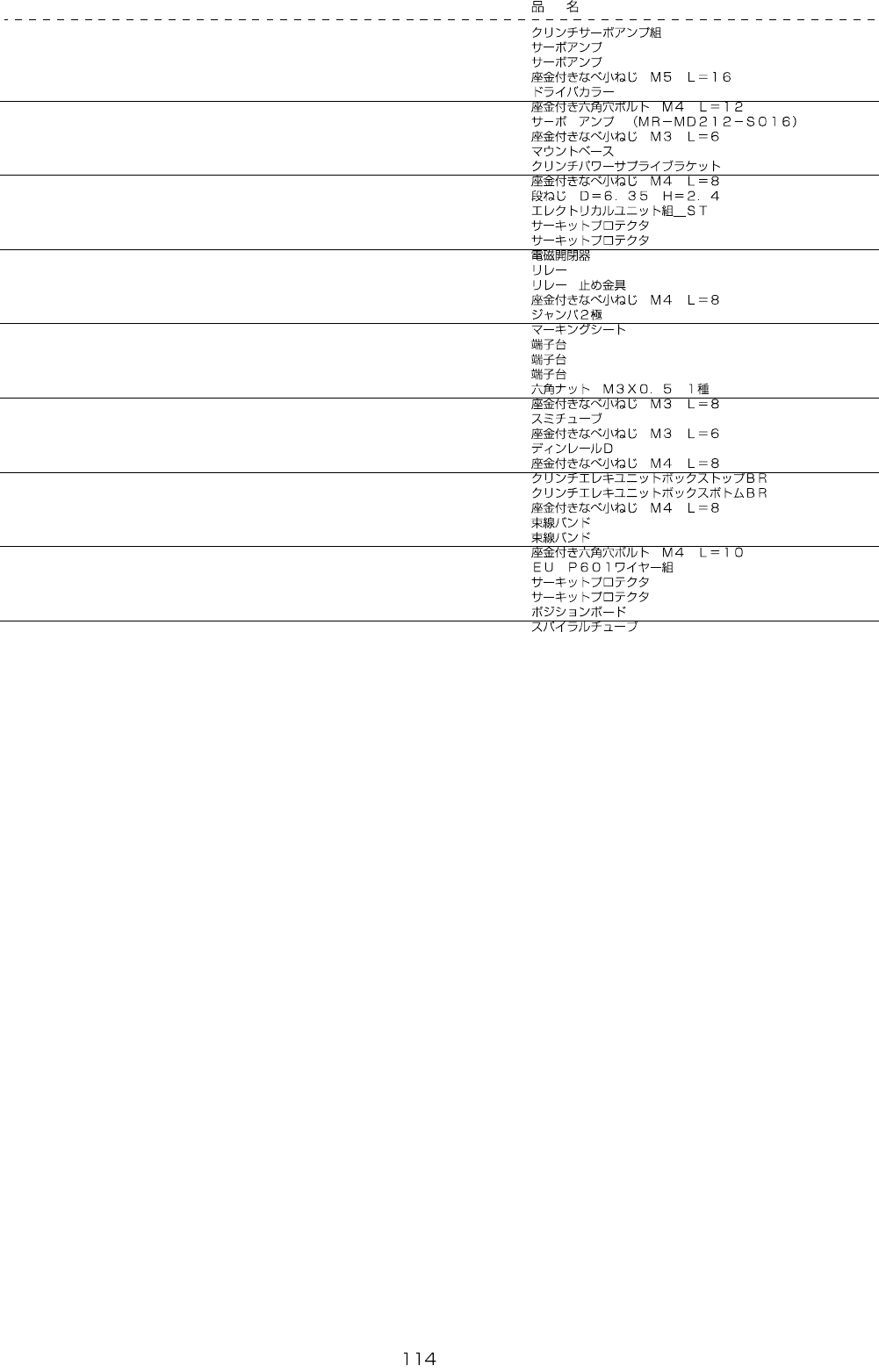

57.CLINCHUNITCOMPONENTS(12)(ELECDEVICE)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 402-13938 CLINCH_SERVO_AMP_ASM 1
2 402-13462 SERVOAMP (1)
3 402-13463 SERVOAMP (1)
4 SL-4051691-SC SCREWM5L=16 (2)
5 401-83517 DRIVER_COLLAR (2)
6 SL-6041292-TN SCREWM4L=12 (2)
7 EZ-1492148-11 AMPLIFIERSERVO (1)
8 SL-4030691-SC SCREWM3L=6 (4)
9 HX-0070600-0A MOUNTBASE (2)
10 402-13861 CLINCH_POWER_SUPPLY_BR (1)
11 SL-4040891-SC SCREWM4X8 (2)
12 SD-0640246-SP SHOULDERSCREWD=6.35H=2.4 (1)
13 402-13939 ELECTRICAL_UNIT_C_ASM_ST 1
14 HA-0065100-0E CIRCUITPROTECTOR (1)
15 HA-0065000-0B CIRCUITPROTECTOR (1)
16 HA-0063000-00 MAGNETICCONTACTOR (1)
17 HB-0012800-0C RELAY (1)
18 HB-0005800-10 RELAY (1)
19 SL-4040891-SC SCREWM4X8 (2)
20 HK-0695900-20 TERMINAL (2)
21 HK-0695900-0A BLOCKTERMINAL (1)
22 HK-0695900-00 BLOCKTERMINAL (1)
23 HK-0691900-0B BLOCKTERMINAL (2)
24 HK-0695500-10 BLOCKTERMINAL (5)
25 NM-6030001-SC NUTM3X0.5TYPE1 (2)
26 SL-4030891-SC SCREWM3L=8 (2)
27 E8760-452-P00 TUBE (0.32)
28 SL-4030691-SC SCREWM3L=6 (8)
29 400-63485 DIN_RAIL_D (1)
30 SL-4040891-SC SCREWM4X8 (3)
31 402-13862 CLINCH_ELEC_UNIT_BOX_TOP_BR (1)
32 402-13863 CLINCH_ELEC_UNIT_BOX_BOTTOM_BR
(1)
33 SL-4040891-SC SCREWM4X8 (4)
34 EA-9500B01-00 CABLEBAND (5)
35 EA-9500B02-00 CABLEBAND (10)
36 SL-6041092-TN SCREWM4L=10 (4)
37 402-13497 EUP601WIREASM (1)
38 HA-0065100-0F CIRCUITPROTECTOR (1)
39 HA-0065100-0A CIRCUITPROTECTOR (1)
40 401-96265 POSITIONBOARD 1
41 HX-0031400-0A SPIRALTUBE 2
