JM-100-Rev06PDF - 第42页

- - 19. HMSCOMPON ENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-07434 OCC_ASSY_JM100 1

2 402-07435 OCC_LENS_ASSY (1)

3 402-07436 CAMERALENSASSY (1)

4 402-06440 OCC_LENS_BR_J1 (1)

5 PH-0400082-C0 PARALLELPINTYPEB4X8 (2)

6 SM-6041202-TN SCREWM4X0.7L=12 (2)

7 SL-6042092-TN SCREWM4L=20 (3)

8 400-46805 CCD_BRACKET (1)

9 SL-6030692-TN SCREWM3L=6 (1)

10 SM-6020302-UZ SCREWM2L=3 (2)

11 402-07437 OCC_LIGHT_ASSY (1)

12 402-06505 OCC_LIGHT_BR_J1 (1)

13 SL-6041092-TN SCREWM4L=10 (2)

14 401-27902 OCC_LIGHT_BRACKET (1)

15 SL-6030692-TN SCREWM3L=6 (2)

16 401-27897 OCC_LIGHT_SUPPORT (1)

17 SL-6030692-TN SCREWM3L=6 (3)

18 401-28878 OCCAPCBASM (1)

19 HX-0033500-0G SPACER (4)

20 401-27900 LIGHT_DIFFUSER (1)

21 SM-1031001-SC SCREWM3X0.5L=10 (4)

22 HX-0029400-00 FIXEDBASE (1)

23 SL-4030891-SC SCREWM3L=8 (1)

24 401-27898 MIRRORBOX (1)

25 400-43896 LENSFILTER (1)

26 SM-0020201-SC SCREWM2L=2 (3)

27 SL-6030692-TN SCREWM3L=6 (3)

28 401-27899 FILTER_PLATE (1)

29 SL-6030692-TN SCREWM3L=6 (3)

30 118-04606 RUBBERPLUG (10)

31 400-14040 LIGHTDIFFUSER (1)

32 400-14037 BEAMSPRITTER (1)

33 E1143-721-000 WOOLENCLOTHPAPER (1)

34 401-28879 OCCCPCBASM (1)

35 SL-6030692-TN SCREWM3L=6 (2)

- -

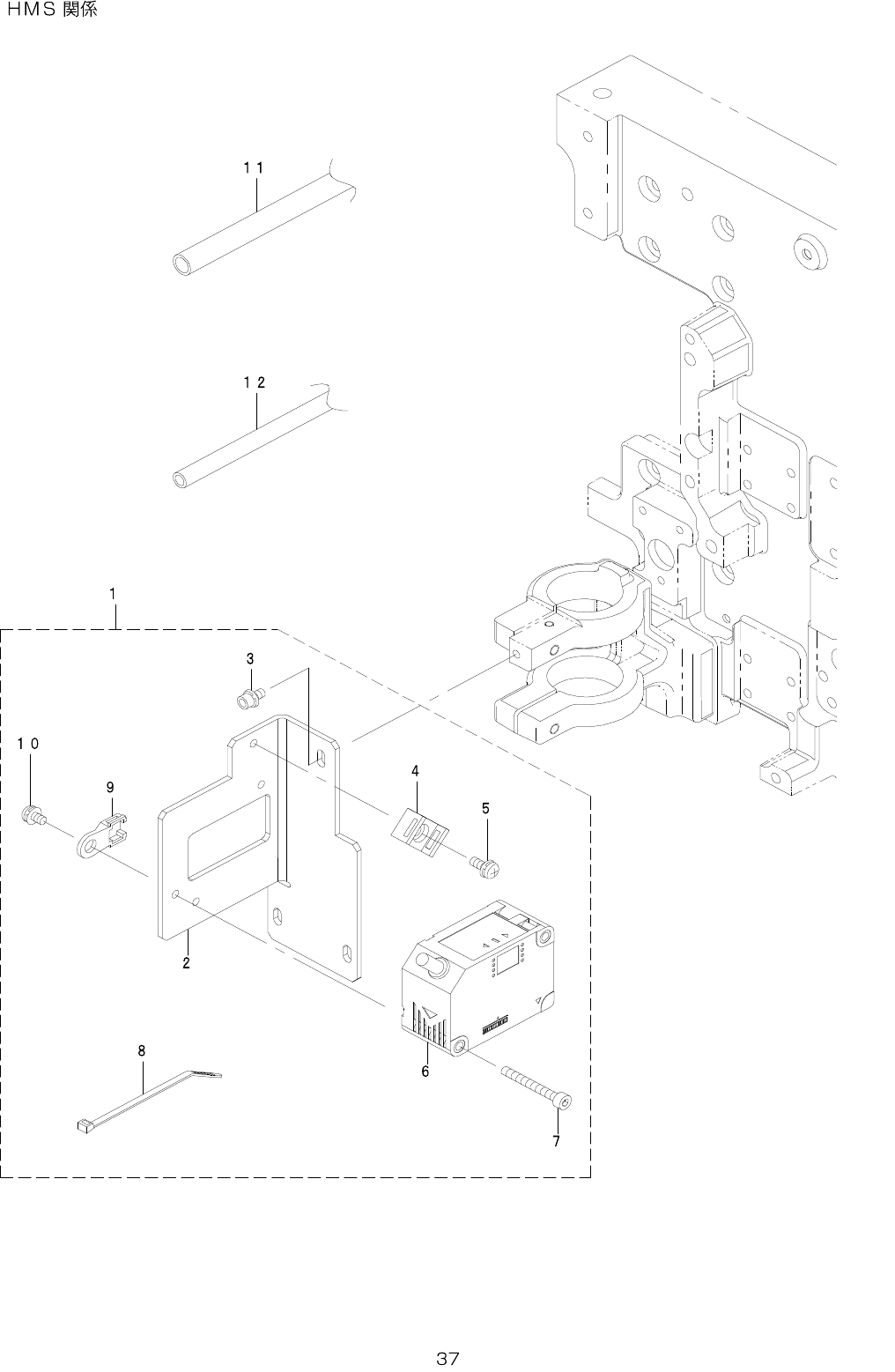

19.HMSCOMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-07438 HMS_ASSY_JM100 1

2 402-06506 HMS_BR_J1 (1)

3 SL-6030692-TN SCREWM3L=6 (3)

4 HX-0029400-00 FIXEDBASE (1)

5 SL-4030891-SC SCREWM3L=8 (1)

6 402-05724 HMSSENSORASM (1)

7 SM-6032502-TN SCREWM3L=25 (2)

8 HX-0023300-00 CABLEBAND (2)

9 HX-0034400-00 FIXEDBASE (1)

10 SL-4030691-SC SCREWM3L=6 (1)

11 400-54839 SOFTNYLON8 0.51

12 BT-0600400-EC URETHANETUBEBLUE6X4 0.47
