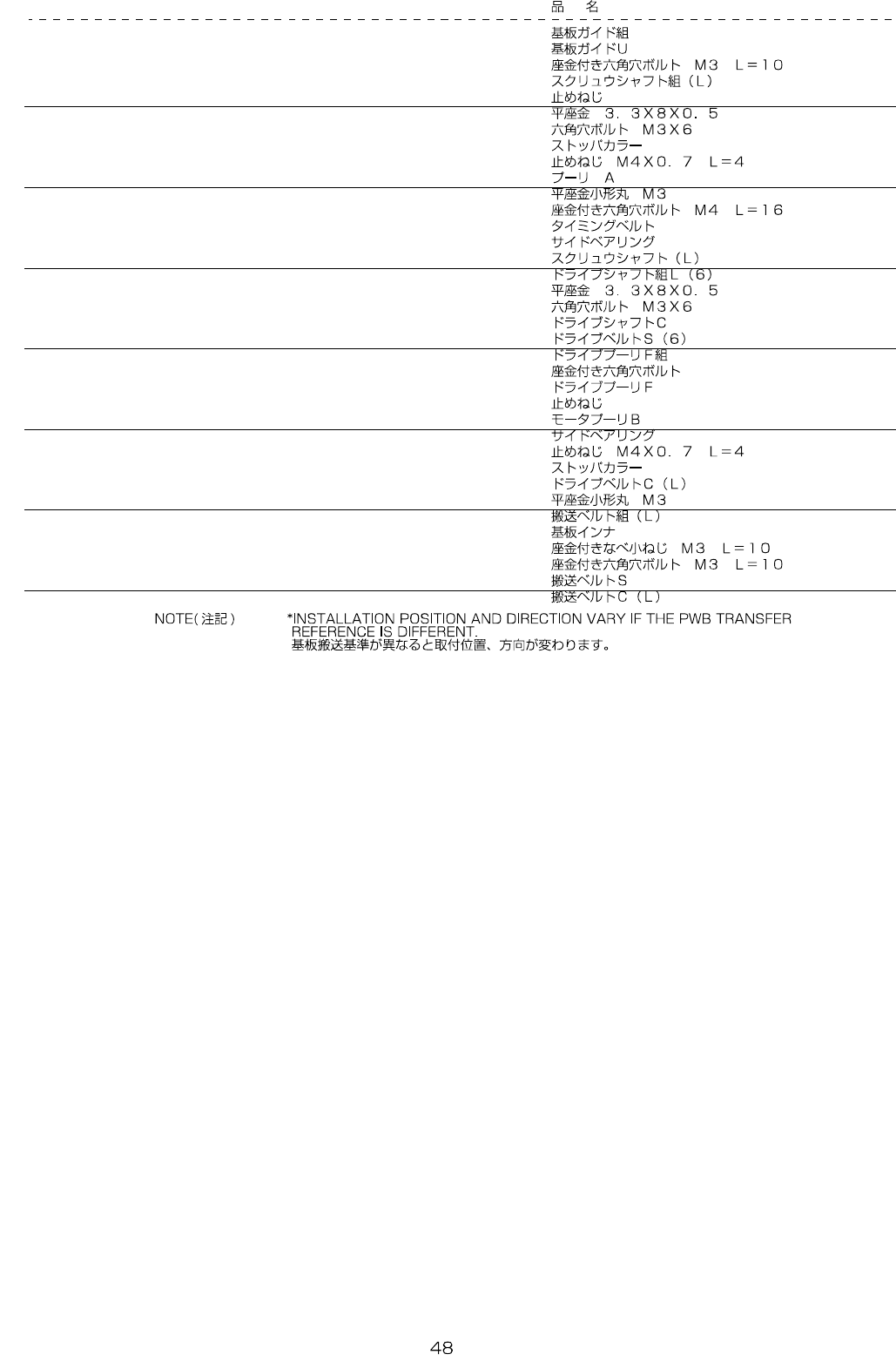

- - 25. PWBCONVEY ORCOMPONEN TS(4)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-00860 PWBGUIDEASM 1

2 400-00861 PWBGUIDEU (8)

3 SL-6031092-TN SCREWM3L=10 (16)

4 400-01003 SCREWSHAFTASM(L) 1

5 SM-8040602-TP SCREWM4X0.7L=6 (4)

6 WP-0330516-SC WASHER3.3X8X0.5 (4)

7 SM-6030602-TN SCREWM3X6 (4)

8 E2141-721-000 STOPPERCOLLAR (2)

9 SM-8040402-TP SCREWM4X0.7L=4 (4)

10 E2156-721-000 PULLEYA (2)

11 WP-0320500-SF WASHERM3 (8)

12 SL-6041692-TN SCREWM4L=16 (8)

13 E2146-721-000 TIMINGBELT (1)

14 SB-1080002-00 SIDEBEARING (4)

15 400-15578 SCREWSHAFT(L) (2)

16 400-54803 DRIVESHAFTASML(6) 1

17 WP-0330516-SC WASHER3.3X8X0.5 (6)

18 SM-6030602-TN SCREWM3X6 (6)

19 E2152-721-000 DRIVESHAFTC (3)

20 400-46033 DRIVEBELTS(6) (2)

21 400-00849 DRIVEPULLEYFASM (3)

22 SL-6031642-TN SCREW (3)

23 400-00850 DRIVEPULLEYF (1)

24 SM-8040602-TP SCREWM4X0.7L=6 (2)

25 400-00851 MOTORPULLEYB (1)

26 SB-1080002-00 SIDEBEARING (6)

27 SM-8040402-TP SCREWM4X0.7L=4 (6)

28 E2141-721-000 STOPPERCOLLAR (3)

29 400-01005 DRIVEBELTC(L) (1)

30 WP-0320500-SF WASHERM3 (12)

31 400-01068 CONVEYORBELTASM(L) 1

32 E2046-725-000 PWBINNER (12)

33 SL-4031091-SC SCREWM3L=10 (8)

34 SL-6031092-TN SCREWM3L=10 (16)

35 400-00863 CONVEYORBELTS (4)

36 400-01070 CONVEYORBELTC(L) (2)

- -

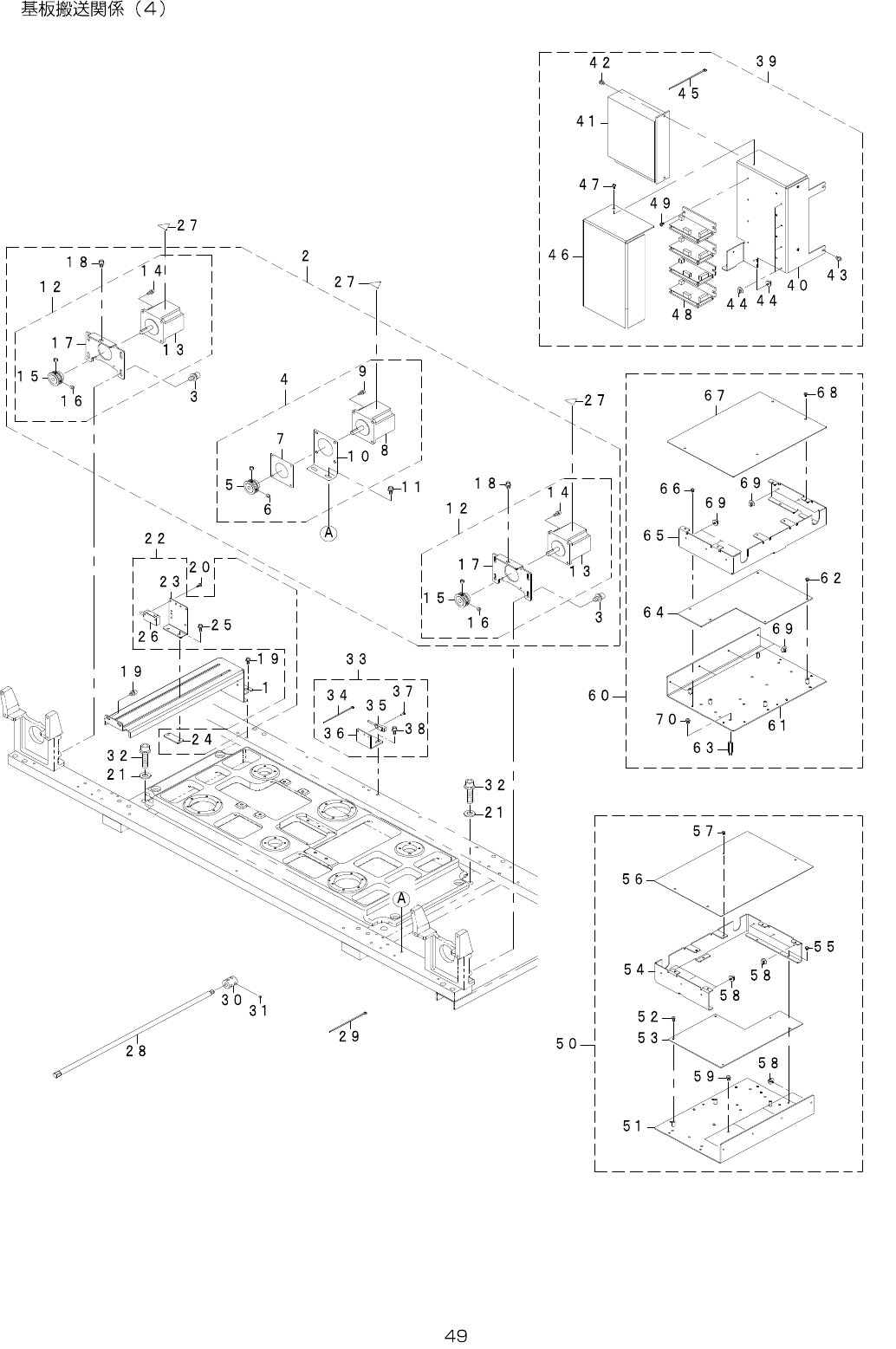

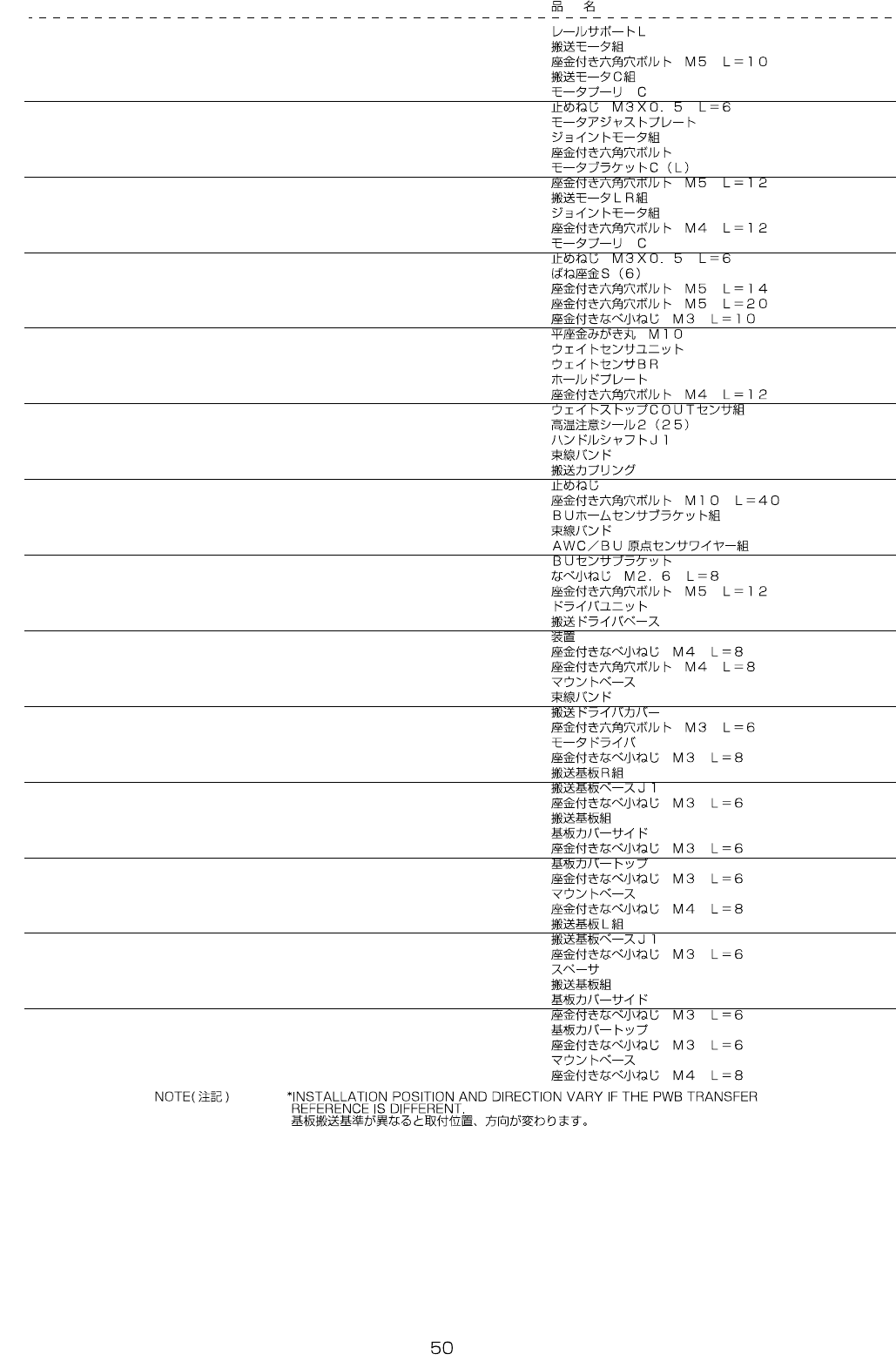

25.PWBCONVEYORCOMPONENTS(4)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-13944 RAILSUPPORTL 1

2 401-37168 CONVEYOR_MOTOR_ASM 1

3 SL-6051092-TN SCREWM5L=10 (8)

4 401-37169 CONVEYOR_MOTOR_C_ASM (1)

5 400-00870 MOTORPULLEYC (1)

6 SM-8030602-TP SCREWM3X0.5L=6 (3)

7 400-00869 MOTORADJUSTPLATE (1)

8 400-48075 JOINTMOTORASM (1)

9 SL-6041642-TN SCREW (4)

10 400-01009 MOTORBRAKETC(L) (1)

11 SL-6051292-TN SCREWM5L=12 (2)

12 401-37170 CONVEYOR_MOTOR_LR_ASM (2)

13 400-48075 JOINTMOTORASM (2)

14 SL-6041242-TN SCREWM4L=12 (4)

15 400-00870 MOTORPULLEYC (1)

16 SM-8030602-TP SCREWM3X0.5L=6 (3)

17 400-46034 MOTORBRACKETS(6) (1)

18 SL-6051492-TN SCREWM5L=14 (2)

19 SL-6052092-TN SCREWM5L=20 4

20 SL-4031091-SC SCREWM3L=10 2

21 WP-1052001-SC WASHER10 4

22 402-06718 WAIT_SENSOR_UNIT 1

23 401-10110 WAIT_SENSOR_BR (1)

24 E2169-721-000 HOLDPLATE (1)

25 SL-6041292-TN SCREWM4L=12 (2)

26 402-05760 WAITSTOPCOUTSENSASM (1)

27 CM-3003000-02 HIGHTEMPARATURECAUTIONLABEL2(25) 3

28 402-06579 HANDLE_SHAFT_J1 1

29 EA-9500B01-00 CABLEBAND 40

30 400-13197 CONVEYORCOUPLING 1

31 SM-8050502-TP SCREWM5L=5 4

32 SL-6104042-TN SCREWM10L=40 4

33 402-06687 BU_HOME_SENSOR_BRACKET_ASM 1

34 EA-9500B01-00 CABLEBAND (1)

35 401-29042 AWC/BUORGSENSORCABLEASM (1)

36 401-36833 BU_SENSOR_BRACKET (1)

37 SM-4860801-SC SCREWM2.6L=8 (1)

38 SL-6051292-TN SCREWM5L=12 (2)

39 402-06719 DRIVER_UNIT 1

40 402-06511 CONV_DRIVER_BASE (1)

41 HX-0068900-00 UNIT (1)

42 SL-4040891-SC SCREWM4X8 (2)

43 SL-6040892-TN SCREWM4L=8 (3)

44 HX-0070600-00 MOUNTBASE (5)

45 EA-9500B01-00 CABLEBAND (5)

46 402-06512 CONV_DRIVER_COVER (1)

47 SL-6030692-TN SCREWM3L=6 (2)

48 HM-0013200-00 STEPPINGMOTOR (3)

49 SL-4030891-SC SCREWM3L=8 (3)

50 402-06720 CONVEYOR_PCB_R_ASM 1

51 402-06513 CONV_PWB_BASE_J1 (1)

52 SL-4030691-SC SCREWM3L=6 (5)

53 401-28875 CONVEYORPCBASM (1)

54 401-83075 PWB_COVER_SIDE (1)

55 SL-4030691-SC SCREWM3L=6 (5)

56 401-83076 PWB_COVER_TOP (1)

57 SL-4030691-SC SCREWM3L=6 (3)

58 HX-0070600-00 MOUNTBASE (10)

59 SL-4040891-SC SCREWM4X8 (2)

60 402-06721 CONVEYOR_PCB_L_ASM 1

61 402-06513 CONV_PWB_BASE_J1 (1)

62 SL-4030691-SC SCREWM3L=6 (5)

63 HX-0033900-0A SPACER (4)

64 401-28875 CONVEYORPCBASM (1)

65 401-83075 PWB_COVER_SIDE (1)

66 SL-4030691-SC SCREWM3L=6 (5)

67 401-83076 PWB_COVER_TOP (1)

68 SL-4030691-SC SCREWM3L=6 (3)

69 HX-0070600-00 MOUNTBASE (10)

70 SL-4040891-SC SCREWM4X8 (2)
