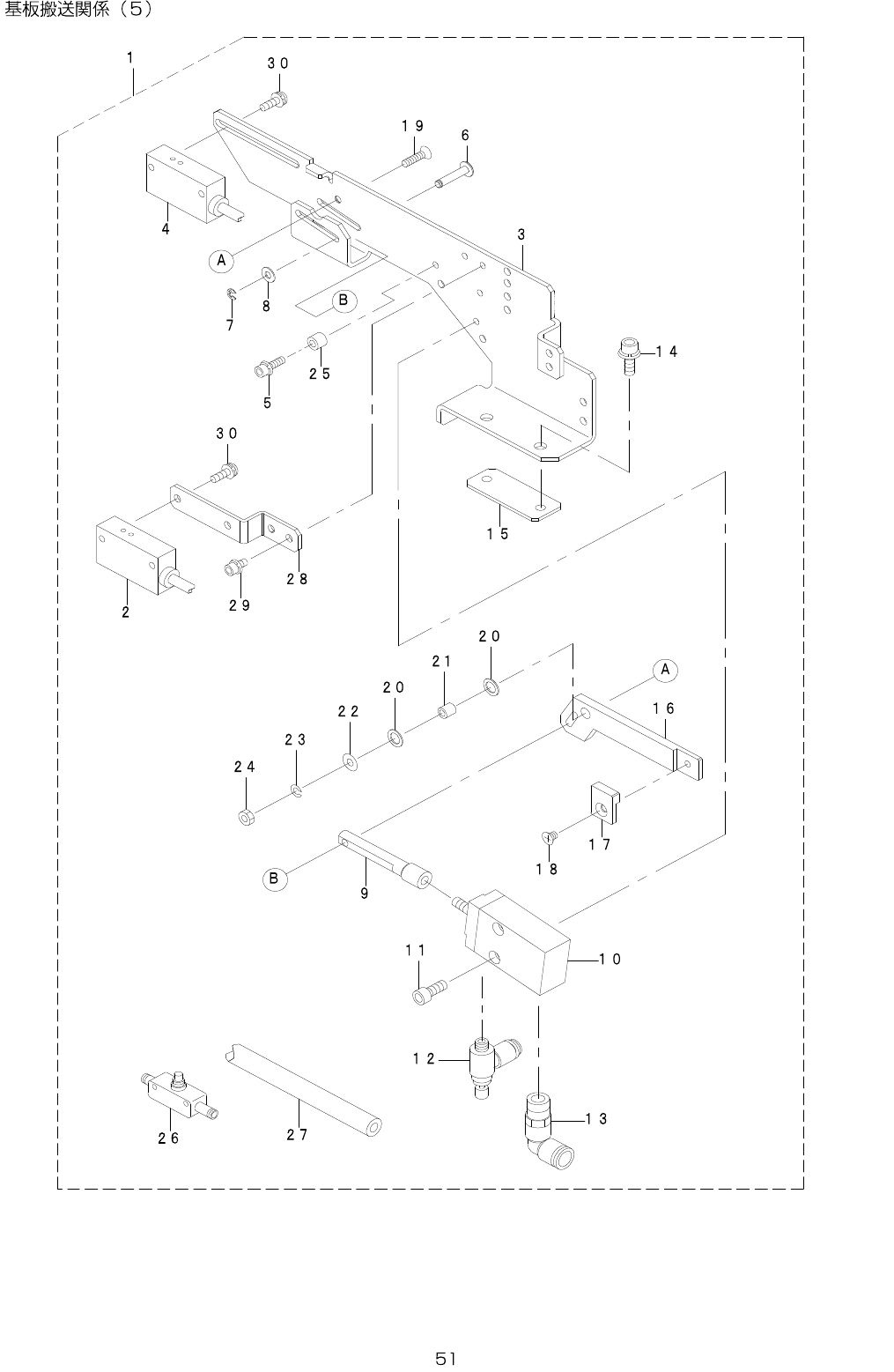

26.PWBCONVEYORCOMPONENTS(5)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-06717 STOPPER_ASM 1

2 402-05760 WAIT_STOP_COUT_SENS_ASM (2)

3 401-36820 STOPPER_FRAME (1)

4 402-05760 WAITSTOPCOUTSENSASM (1)

5 SL-6030842-TN SCREWM3L=8 (1)

6 400-00910 STOPPERPIN (1)

7 RE-0200000-K0 E-RING2 (1)

8 WP-0320501-SC WASHERM3 (1)

9 400-00911 STOPERCONNECT (1)

10 PA-1002008-A0 AIRCYLINDER (1)

11 SM-6031402-TN SCREWM3X0.5L=14 (2)

12 PC-0105080-00 SPEEDCONTROLLER (1)

13 PJ-3040405-11 ELBOWUNION (1)

14 SL-6041292-TN SCREWM4L=12 (2)

15 E2169-721-000 HOLDPLATE (1)

16 400-00909 STOPER (1)

17 E2233-725-000 STOPPERCHIP (1)

18 SM-1030401-SE SCREWM3L=4 (1)

19 SM-1031201-SC SCREWM3X0.5L=12 (1)

20 E2039-721-000 WASHERA (2)

21 E2038-721-000 STOPPERCOLLAR (1)

22 WP-0330516-SC WASHER3.3X8X0.5 (1)

23 WS-0310002-KN SPRINGWASHERM3 (1)

24 NM-6030001-SC NUTM3X0.5TYPE1 (1)

25 400-23788 STOPERSPACER (1)

26 PC-0124010-00 SPEEDCONTROLLER (1)

27 BT-0400251-EA URETHANETUBEBLUE4X2.5 (2.5)

28 401-13940 COSENSORBR (1)

29 SL-6030692-TN SCREWM3L=6 (2)

30 SL-4031091-SC SCREWM3L=10 (4)

- -

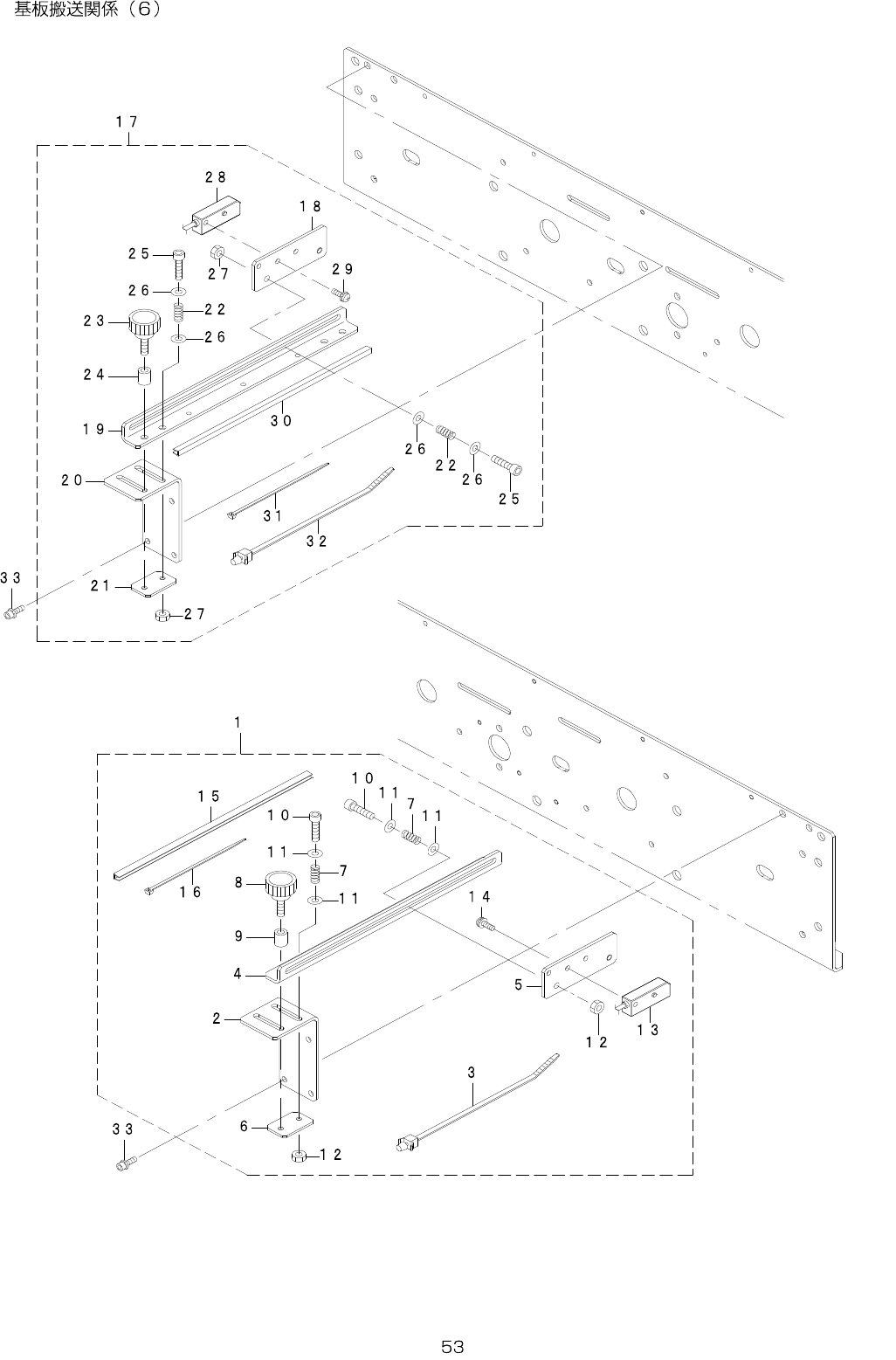

27.PWBCONVEYORCOMPONENTS(6)
