JM-100-Rev06PDF - 第84页

- - 40. CONVEYORE XTENTIONCO MPONENTS(250MM )

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-83444 LCD_BRACKET 1

2 400-47170 LCD_BRACKET_F 1

3 SD-0640246-SP SHOULDERSCREWD=6.35H=2.4 2

4 161-87007 WINGBOLT 1

5 WS-0610002-KN SPRINGWASHERM6 1

6 WP-0641601-SC WASHERM6 1

7 SL-6040892-TN SCREWM4L=8 4

8 SL-6041092-TN SCREWM4L=10 4

9 HX-0032600-0A GROMMET 2

10 HX-0035400-0S SPACER 6

11 SL-4030681-SC SCREWM3L=6 6

12 402-05714 CONSOLESWCABLEASM 2

13 401-97864 SUPERIMPOSEBOARD 1

14 401-58158 15INCHLCDMONITOR 1

15 E5348-033-100 GROMMET 0.14

16 401-23194 USBKEYBOARDSPASM 1

17 401-36976 KB_BRACKET 1

18 HX-0009600-0A EDGING 0.5

19 401-23713 KBCLAMP 1

20 SL-4040891-SC SCREWM4X8 3

- -

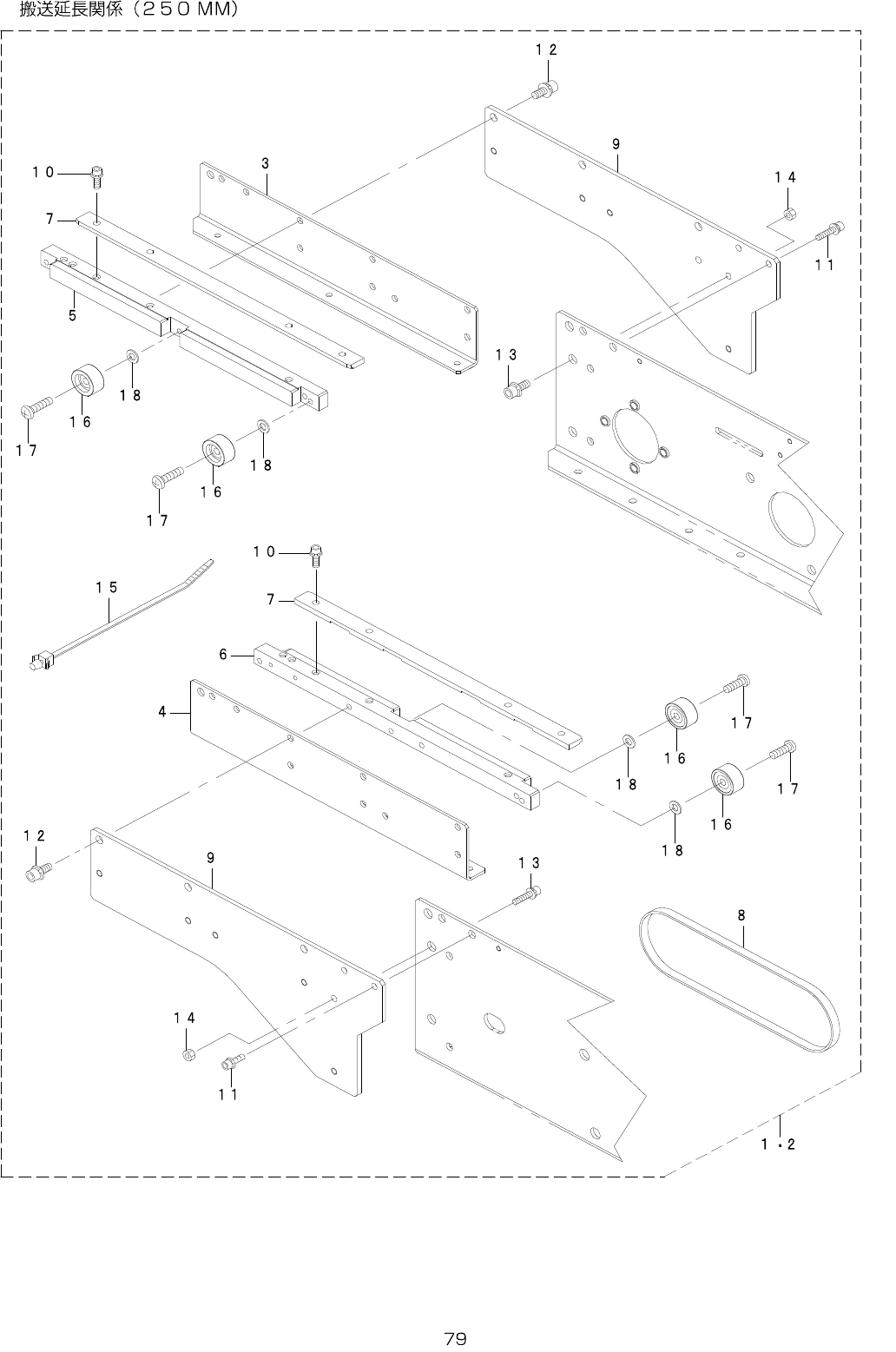

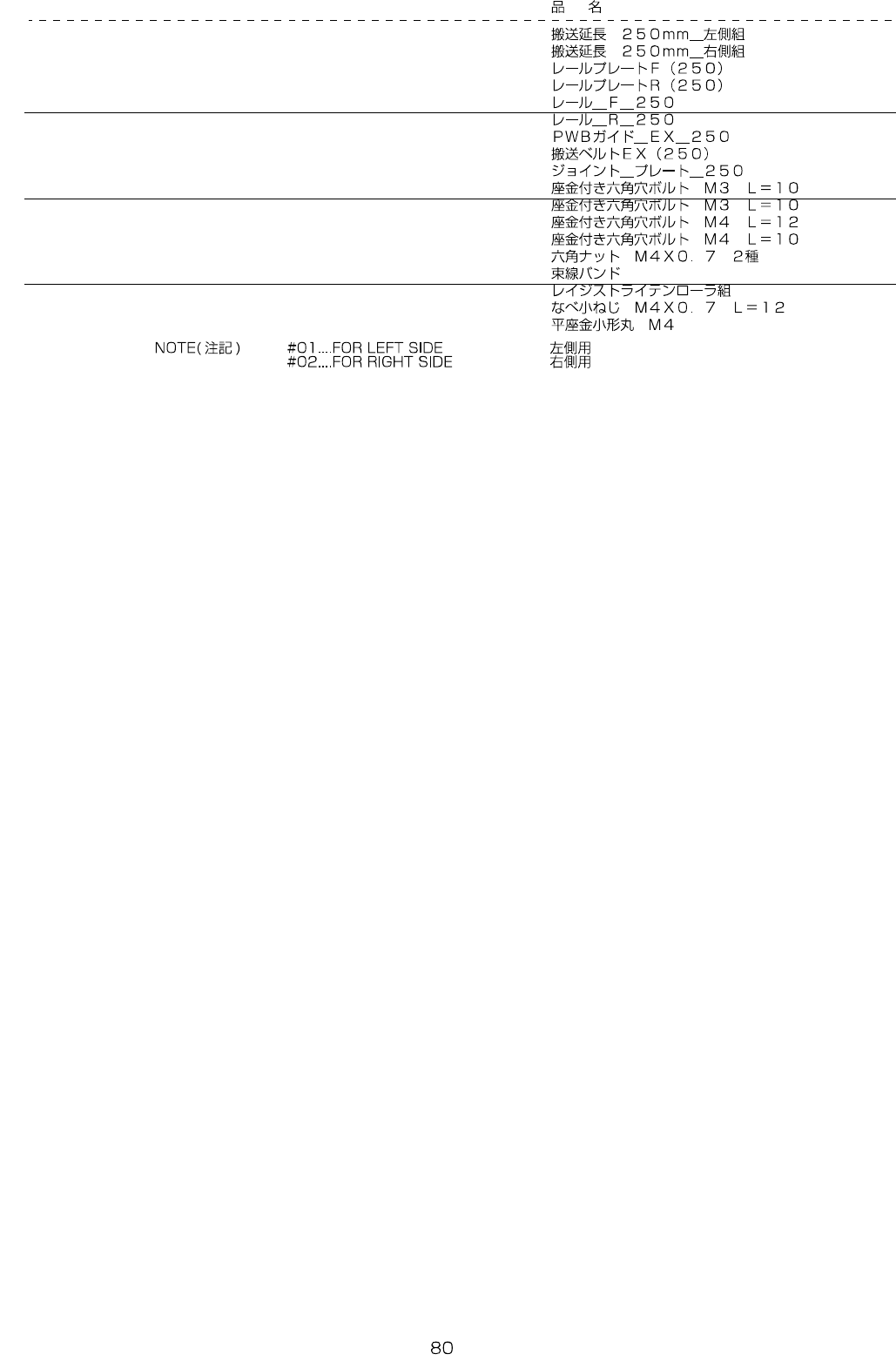

40.CONVEYOREXTENTIONCOMPONENTS(250MM)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

#01

402-07357 CONVEYOR_EXTENSION_250_L_ASM 1

#02

402-07358 CONVEYOR_EXTENSION_250_R_ASM 1

3 400-11060 RAILPLATEF(250) (1)

4 400-11061 RAILPLATER(250) (1)

5 401-38188 RAIL_F_250 (1)

6 401-38189 RAIL_R_250 (1)

7 401-38190 PWB_GUIDE_EX_250 (2)

8 400-11065 CONVEYORBELTEX(250) (2)

9 401-40931 JOINT_PLATE_250 (2)

10 SL-6031092-TN SCREWM3L=10 (8)

11 SL-6031092-TN SCREWM3L=10 (4)

12 SL-6041292-TN SCREWM4L=12 (6)

13 SL-6041092-TN SCREWM4L=10 (12)

14 NM-6040002-SN NUTM4X0.7TYPE2 (12)

15 HX-0044000-00 CABLEBAND (5)

16 401-38303 RESIST_LIGHTEN_ROLLER_ASM (4)

17 SM-4041201-SC SCREWM4X0.7L=12 (4)

18 WP-0430800-SC WASHERM4 (4)
